Russound A-H2, 1 Source, 2 Zone Surface Mount Hub
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Russound A-H2, 1 Source, 2 Zone Surface Mount Hub is backordered and will ship as soon as it is back in stock.
Description
Description

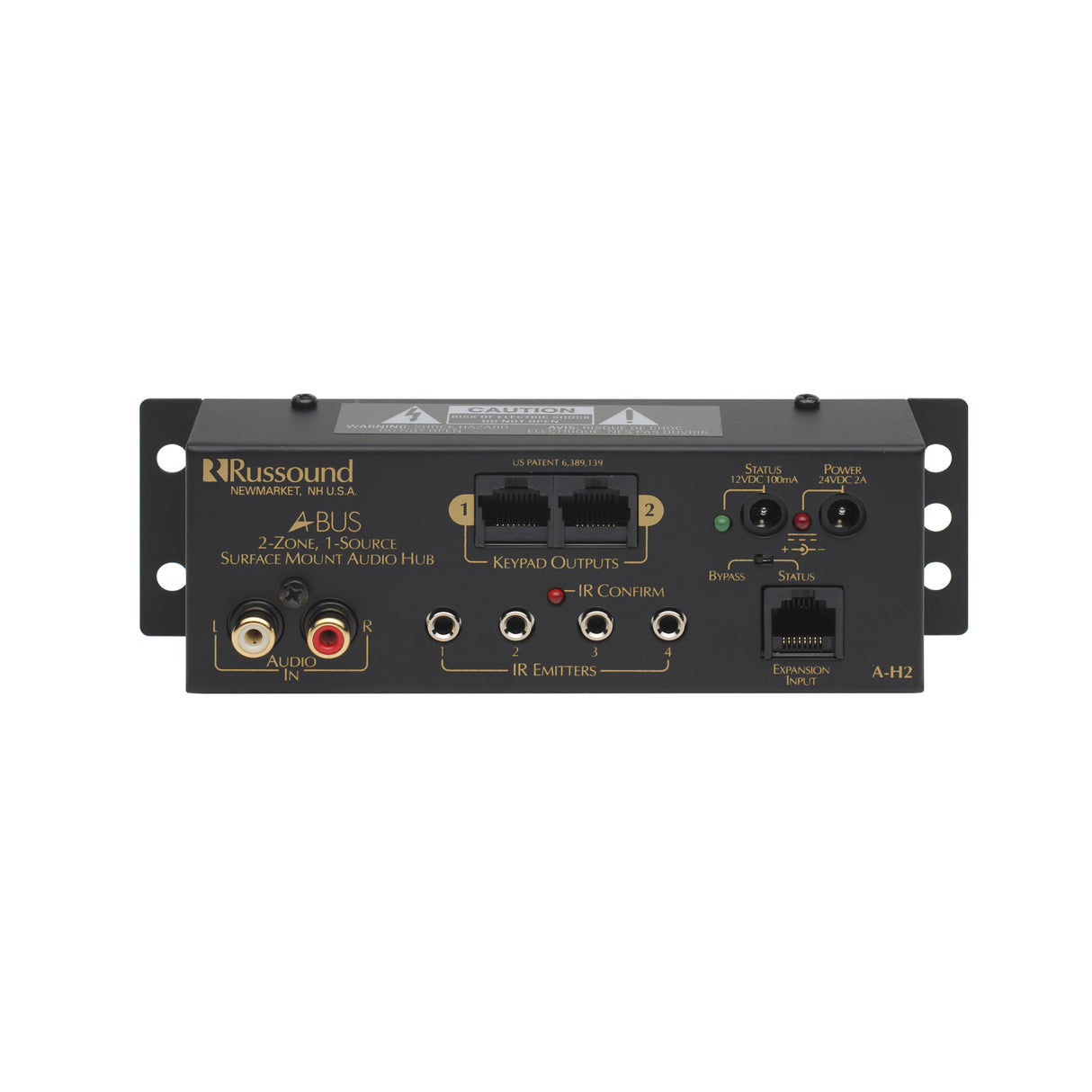

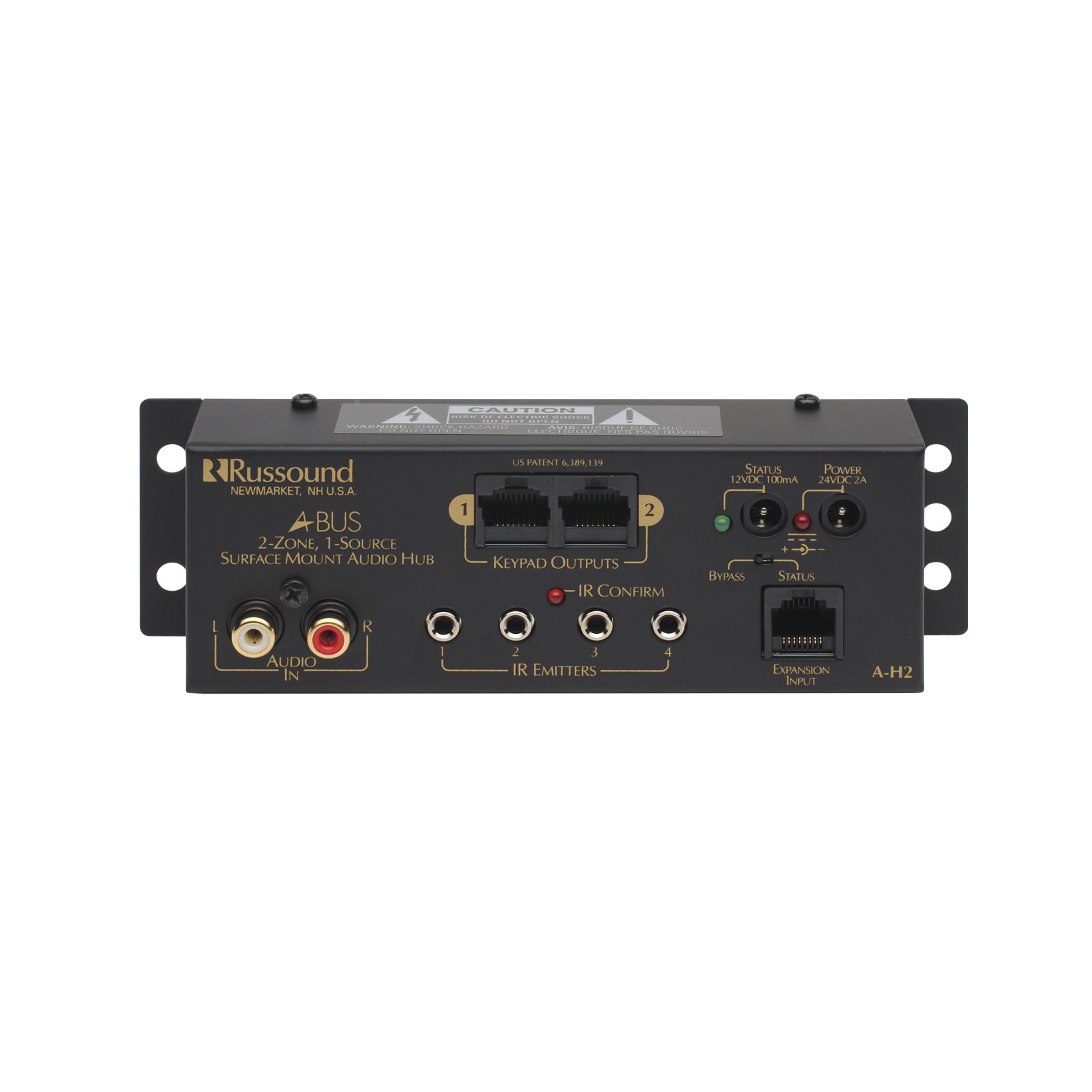

Russound AH2 - 2 Zone/Single Source Surface Mount Hub
The A-H2 hub gives you two rooms of music from a single source. By connecting a receiver to the hub, you can use the receiver to select other sources. Or you can connect just a single audio source, such as a computer or a CD changer.
The A-H2 supports A-BUS Amplified Keypads and Amplified Volume Controls. An optional Status feature indicates on your keypads when the source receiver is on and turns your keypads off when it’s turned off.
Features
- Works with Russound A-K3 Amplified Keypads and A-VC2 Amplified Volume Controls
- Provides source status indication on your keypads
- Mounts unobtrusively near your audio equipment, on a shelf or in a rack or cabinet
- Includes IR emitter jacks for four source components
- Links to other hubs for more zones
Specs
| Shipping Dimensions | 2.8" (W) x 2.3" (H) x 7.0" (D) |
|---|---|
| Shipping Weight | 1.1 lbs |
| Audio Input Connectors | Line-level stereo RCA jacks |
| Expansion Input Connector | RJ-45 jack, T568A standard |
| IR Emitter Connectors | (4) 1/8" (3.5 mm) TS jacks, tip positive |
| Keypad Outputs | (2) RJ-45 jacks, T568A standard |
| Power Connector | 2.5 mm jack, tip positive |
| Power Requirement(s) | 24 VDC 2.5 A (use Russound A-PS power supply) |
| Status Power (optional) | 12 VDC 100 mA |
| Status Power Connector | 2.5 mm jack, tip positive |
