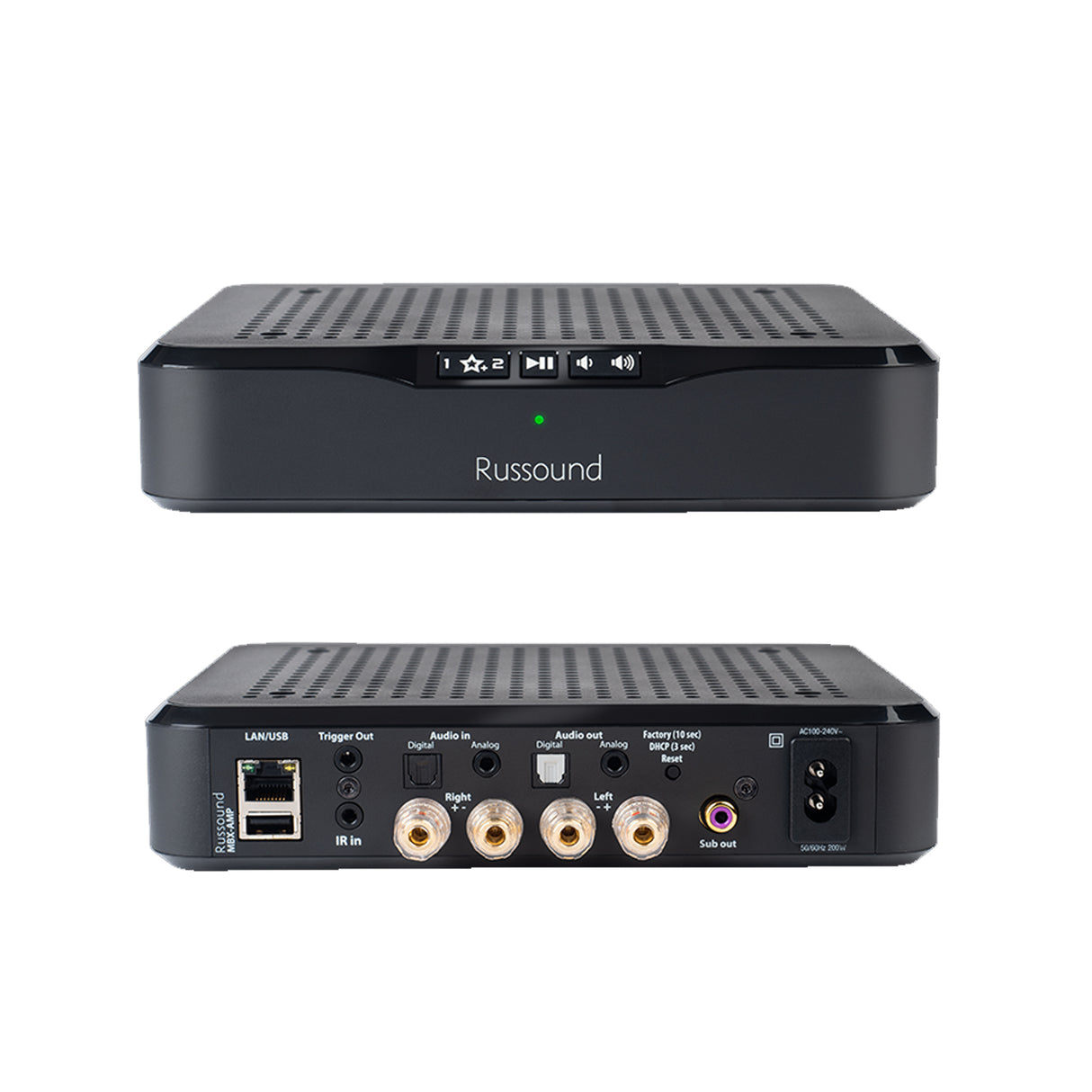

Russound MBX-AMP Streaming zone amplifier with Wi-Fi and Bluetooth
by Russound
SKU RSMBX-AMP
Russound MBX-AMP
The MBX-AMP Wi-Fi Streaming Zone Amplifier is designed to offer a simple-to-install and simple-to-configure streaming media solution to add high quality streaming audio anywhere in the home. Additionally, the advanced TV integration features enable the MBX-AMP to share speakers between your TV and your audio system easily without having to use any additional hardware or control system. Just use the included Infrared Sensor and quickly teach the MBX-AMP your remote control's volume and mute commands. It's that easy.

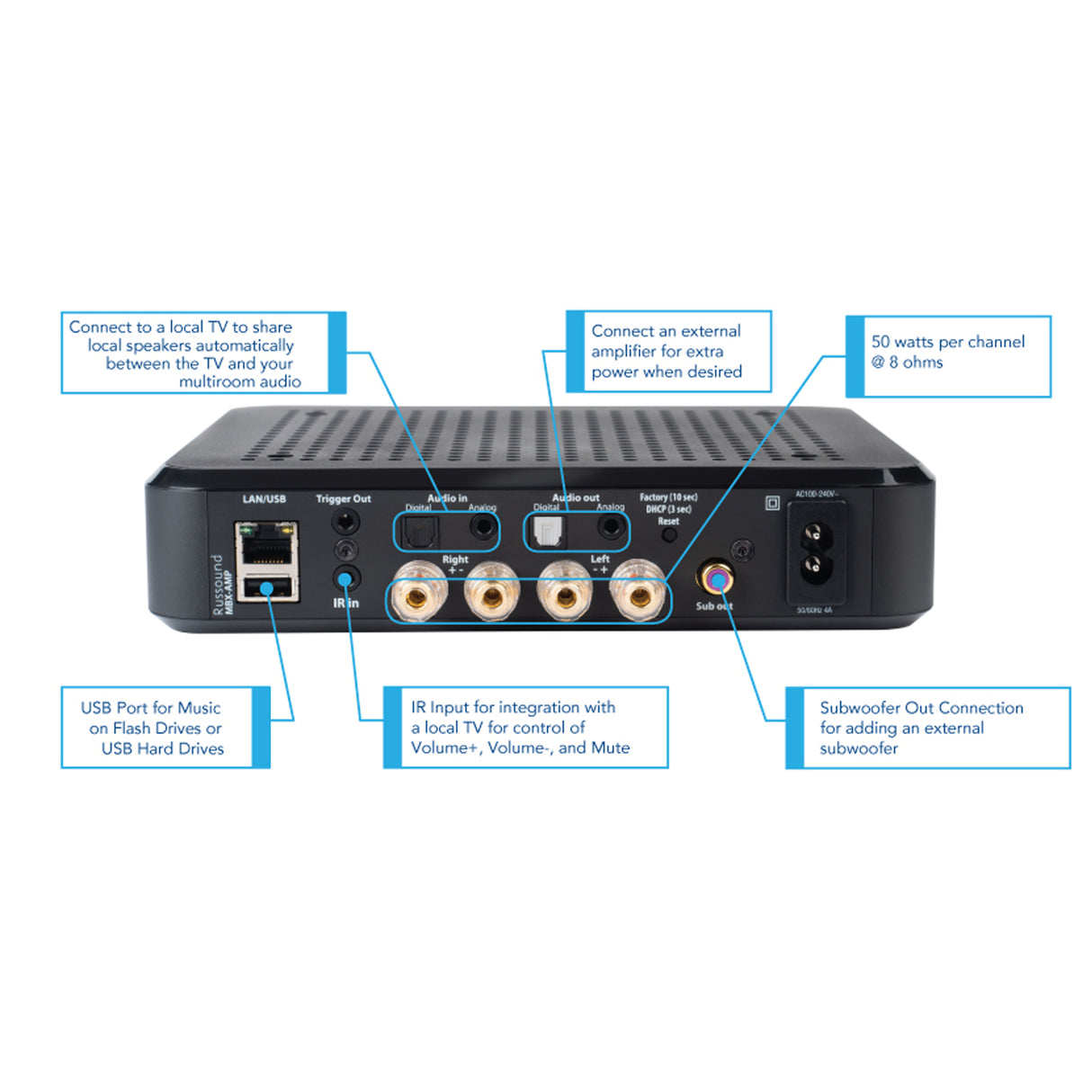

- Connect your TV's digital audio output to improve your TV's sound quality and to share your speakers with your premium audio system.
- External IR Sensor included to use the MBX-AMP with your current remote control for Volume/Mute commands• Builtin AirPlay streaming with full metadata to iOS/Android apps or XTSPlus touchscreens
- Built-in Chromecast for Audio support with full metadata to iOS/Android apps or XTSPlus touchscreens
- Bluetooth Audio
- Hi-Res audio streaming support up to 24-bit/192 kHz
- USB for Flash or external USB Hard drive-based music collections
- Digital (PCM) and Analog Stereo Inputs
- Digital or analog output
- Controllable with the MyRussound App and fully compatible with the Russound XTSPlus in-wall touchscreen
- Bass, Treble, and Loudness settings available through the MyRussound App
- Supports local favorites
- Onboard browser-based configuration, accessible from a smartphone or tablet
- Mix and match with other MBX-Series® components for versatile system designs
| Frequency Response: | 20Hz to 20KHz |
|---|---|
| Speaker Output | 50 Watts Per Channel @ 8ohms, 70 watts @ 4 ohms |
| Audio Outputs Analog | Stereo Audio RCA, Digital Optical, Subwoofer Out |
| Line Audio Output | 2V rms |
| Audio Inputs | 3.5mm Analog Stereo Audio, Digital Optical, USB2.0 Media Playback |
| Communication Ports | Ethernet RJ45 10/100 BaseT |
| Wi-Fi | 802.11ac, dual band |
| Bluetooth Audio Support | Yes |
| Subwoofer Out Low Frequency Filter | 80Hz |
| Trigger Output | 12vDC @100mA |
| Music File Formats | MP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis, FLAC (8, 16-bit), AAC, AAC+ (supports up to 24-bit/192kHz) |
| Power Requirements | 12VDC, 200 watts |
| Product Dimensions | 8.25”W x 7”D x 1.75”H (21cm W x 17.8cm D x 4.5cm H) |
| Product Weight | 1.5 lb (0.68 kg) |
