Russound | SKU:
RSP75

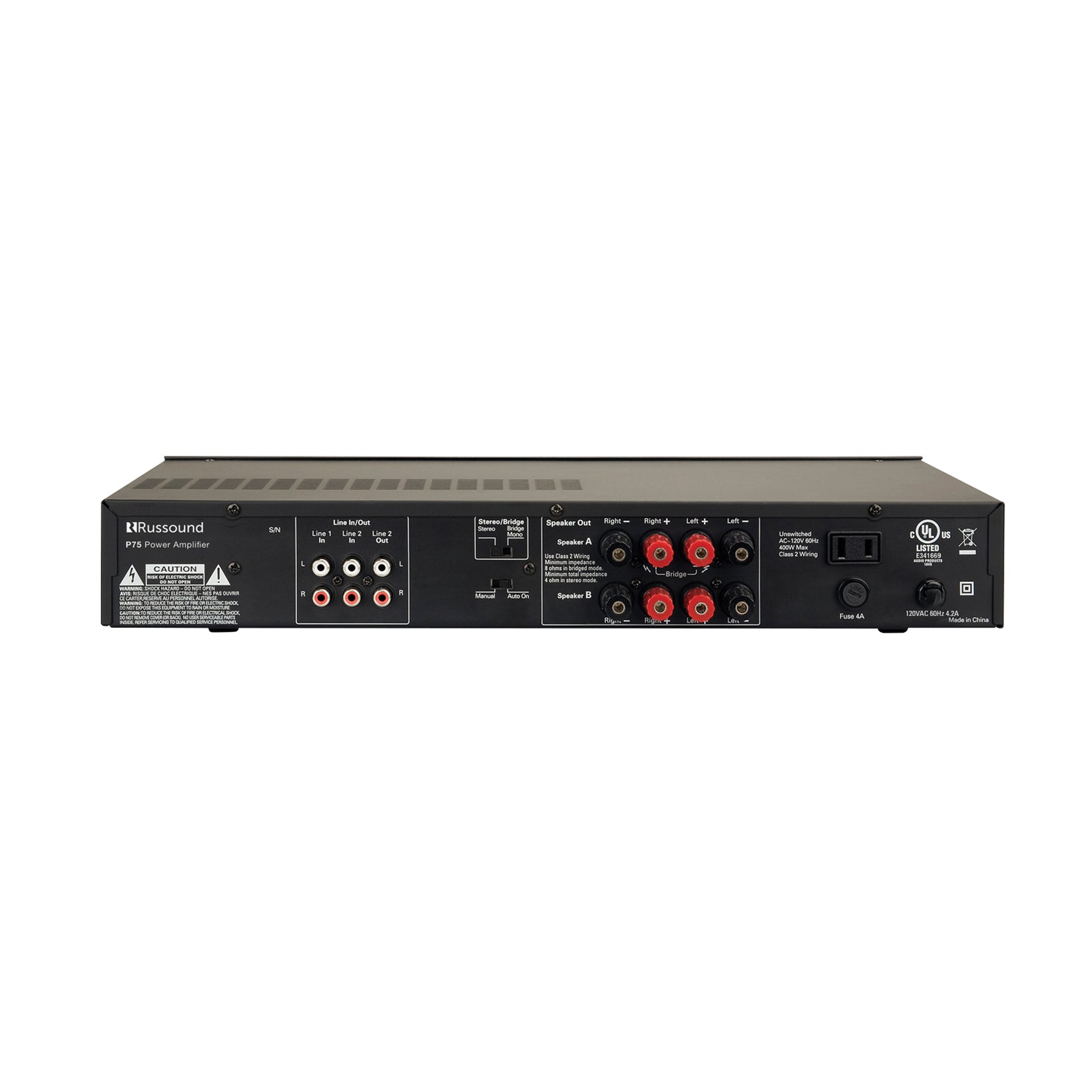

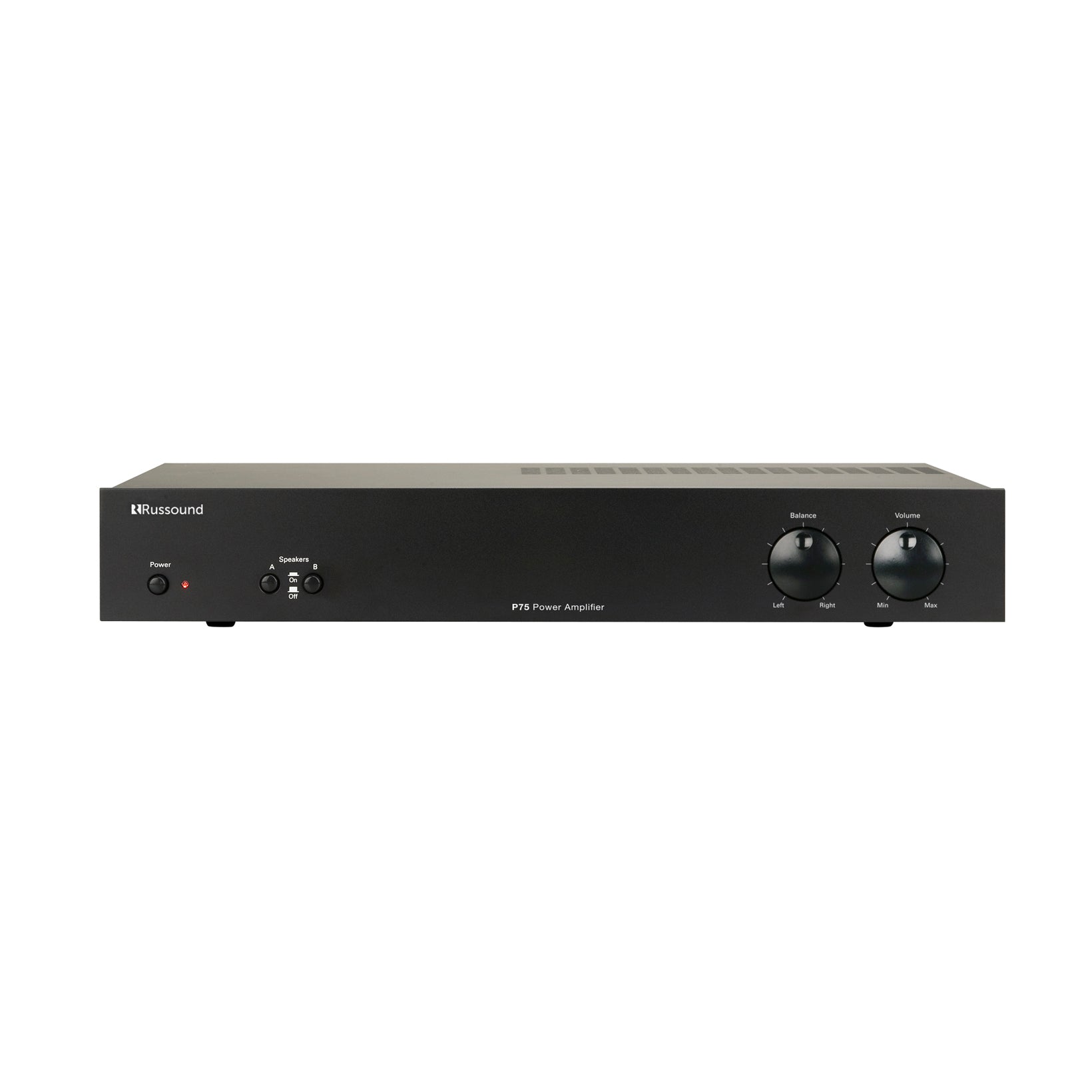

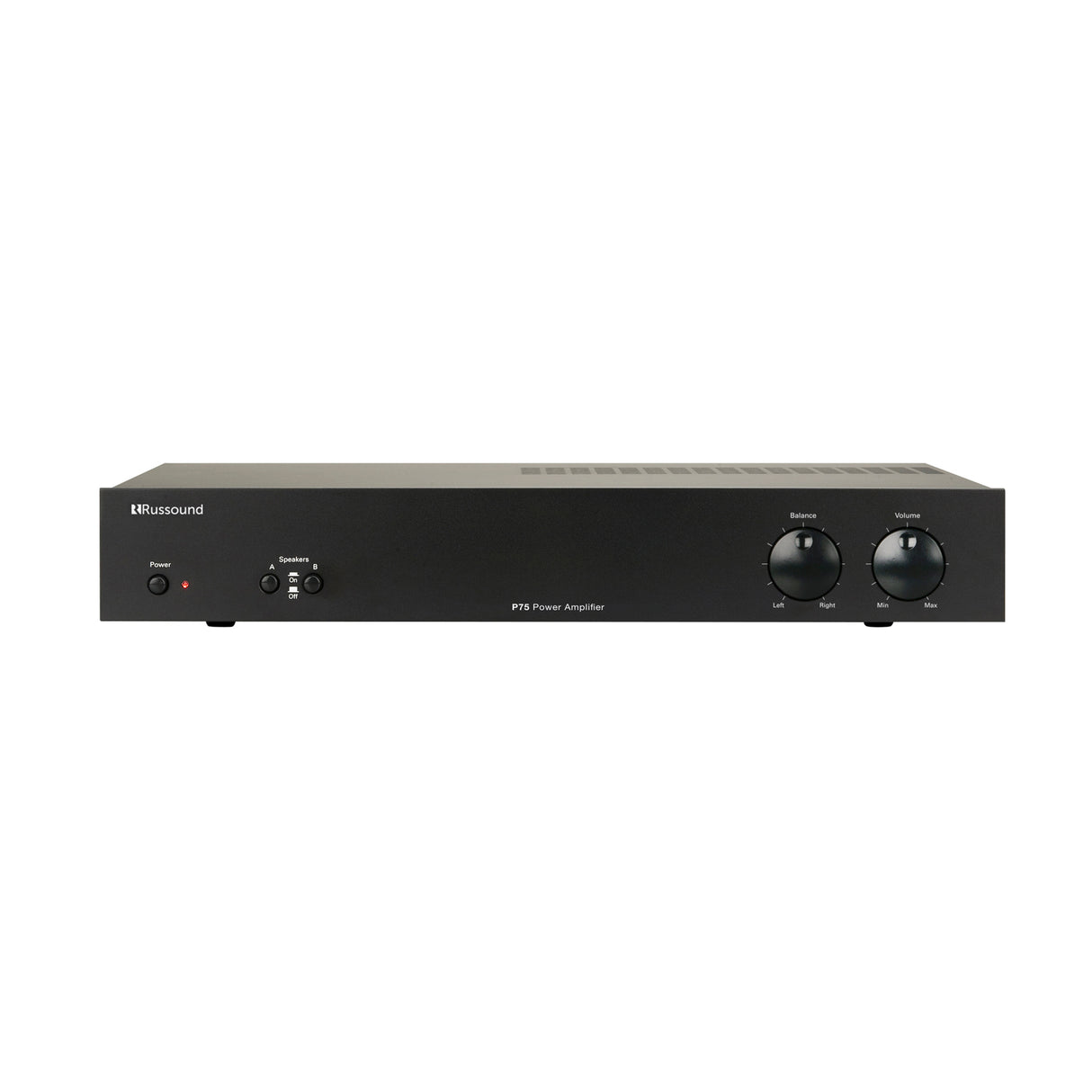

Russound P75, 2 Channels (75W), Dual Source Amplifier, Black
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Russound P75, 2 Channels (75W), Dual Source Amplifier, Black is backordered and will ship as soon as it is back in stock.
Description
Description
P75 2-Channel 75W, Stereo Dual-Source power amplifier
The P75 is a 2-channel dual source power amplifier with autosource switching. It features two audio line inputs with a loop out to another zone, receiver, or device from Line 2 source. This amplifier can be used for power upgrades in specific zones, for speaker selector or volume control systems.
Features
- 60 watts per channel into 8 ohms or 75 watts into 4 ohms
- 160 watts when bridged into a single 8-ohm load
- volume and balance controls
- A/B speaker switching
- primary and secondary audio line inputs with automatic source switching
- loop output on the secondary line input passes that audio signal on to another amp, giving you flexibility in designing a multi-room system
Specs
| Number of Channels | 2 |
|---|---|
| Power Output per Channel (8 ohms) | 60 |
| Power Output per Channel (6 ohms) | --- |
| Power Output per Channel (4 ohms) | 75 |
| Frequency Response | 10 - 30K |
| THD | 1 % |
| Bridged Power per Channel | 160 watts |
| Speaker Outputs | 4 |
| THX Certification | No |
| Width (inches) | 16-9/16 |
| Height (inches) | 2-3/4 |
| Depth (inches) | 9-5 /16 |
| Weight | 11.5 pounds |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
| Number of Inputs | 2 |
| Level Controls | N0 |
| Speaker Connectors | Posts |
