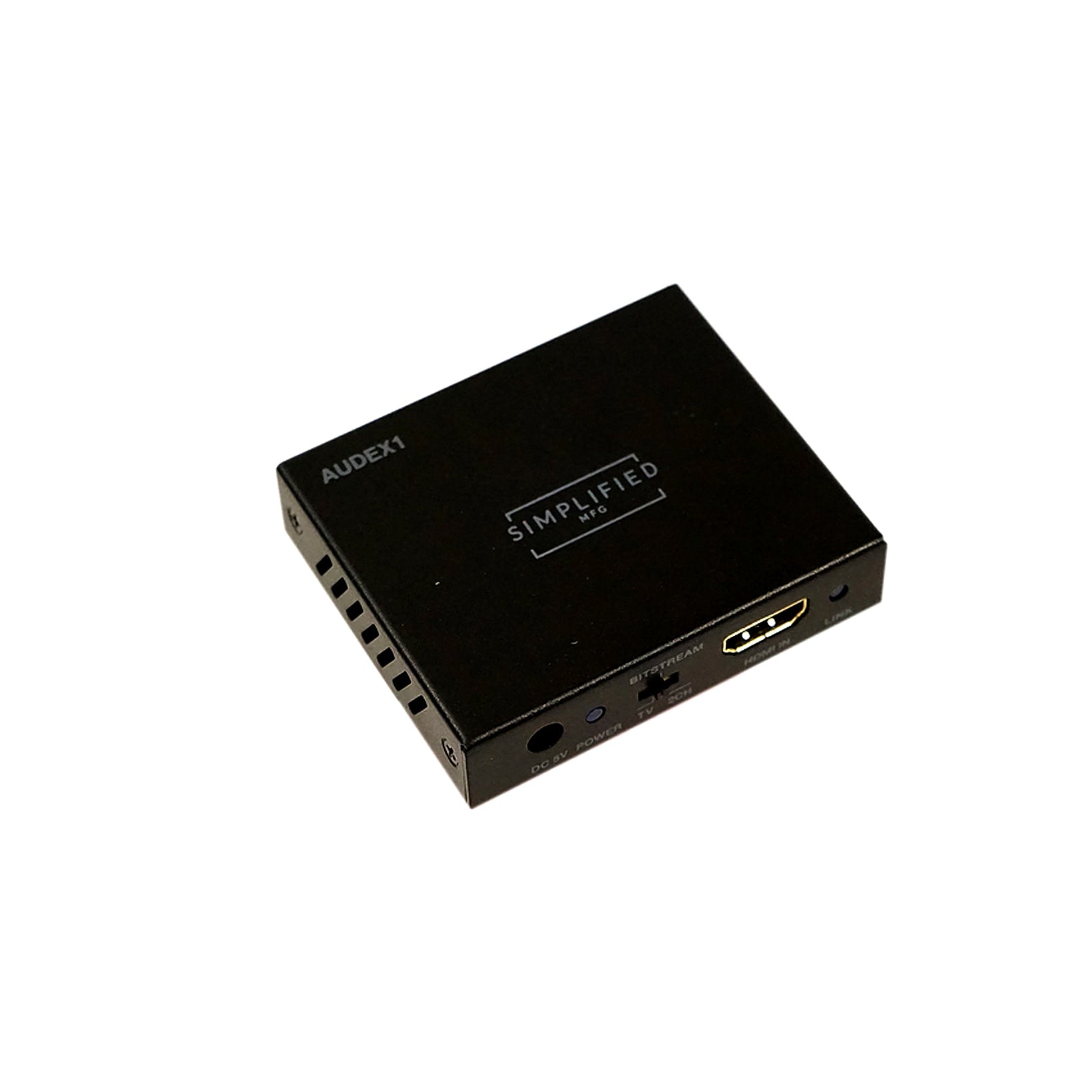

Simplified AUDEX1, HDMI 18Gbps Audio Extractor that supports HDR/DolbyVision
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Simplified AUDEX1, HDMI 18Gbps Audio Extractor that supports HDR/DolbyVision is backordered and will ship as soon as it is back in stock.
Description
Description
This handy little problem-solver from Simplified MFG lets you connect an HDMI source like a 4K Blu-ray player to receivers, amplifiers, and other devices that don't have HDMI inputs.

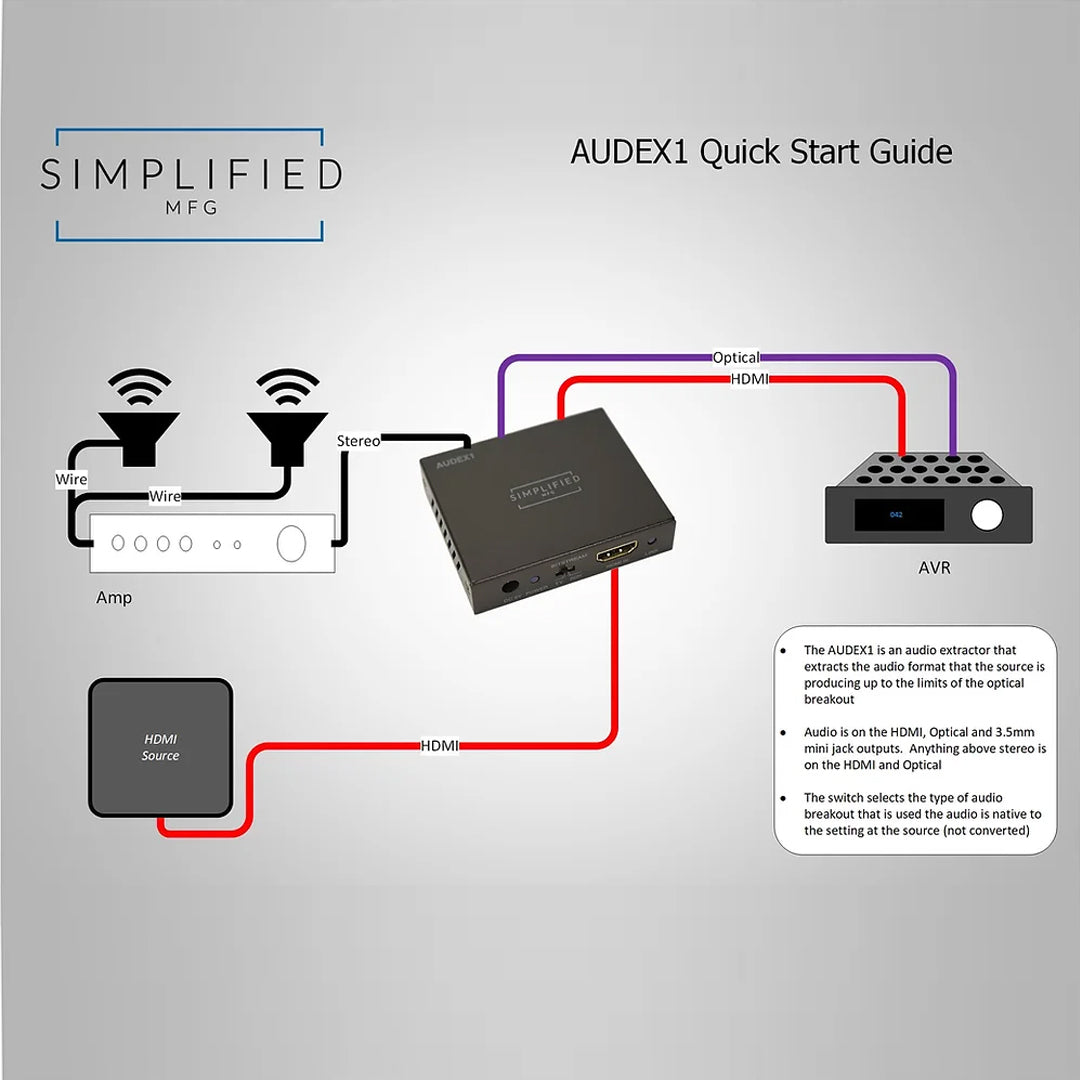

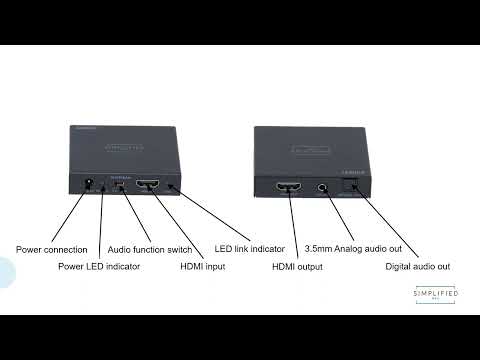

The AUDEX1 has an HDMI input for your source, plus an HDMI passthrough output for sending the signal onto your TV. Analog 3.5mm and optical digital audio output jacks let you send signals to your receiver, amp, or home audio system.
Features
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through
Supports CEC bypass
Specifications
HDMI Compliance |
HDMI 2.0b |
HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
Video Bandwidth |
18 Gbps |
Video Resolutions |
up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
Color Depth |
8-bit, 10-bit, & 12-bit |
HDMI Audio Formats (Pass-through) |
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
Optical Audio Formats |
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
L/R Audio Formats |
Analog Stereo 2CH |
ESD Protection |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |

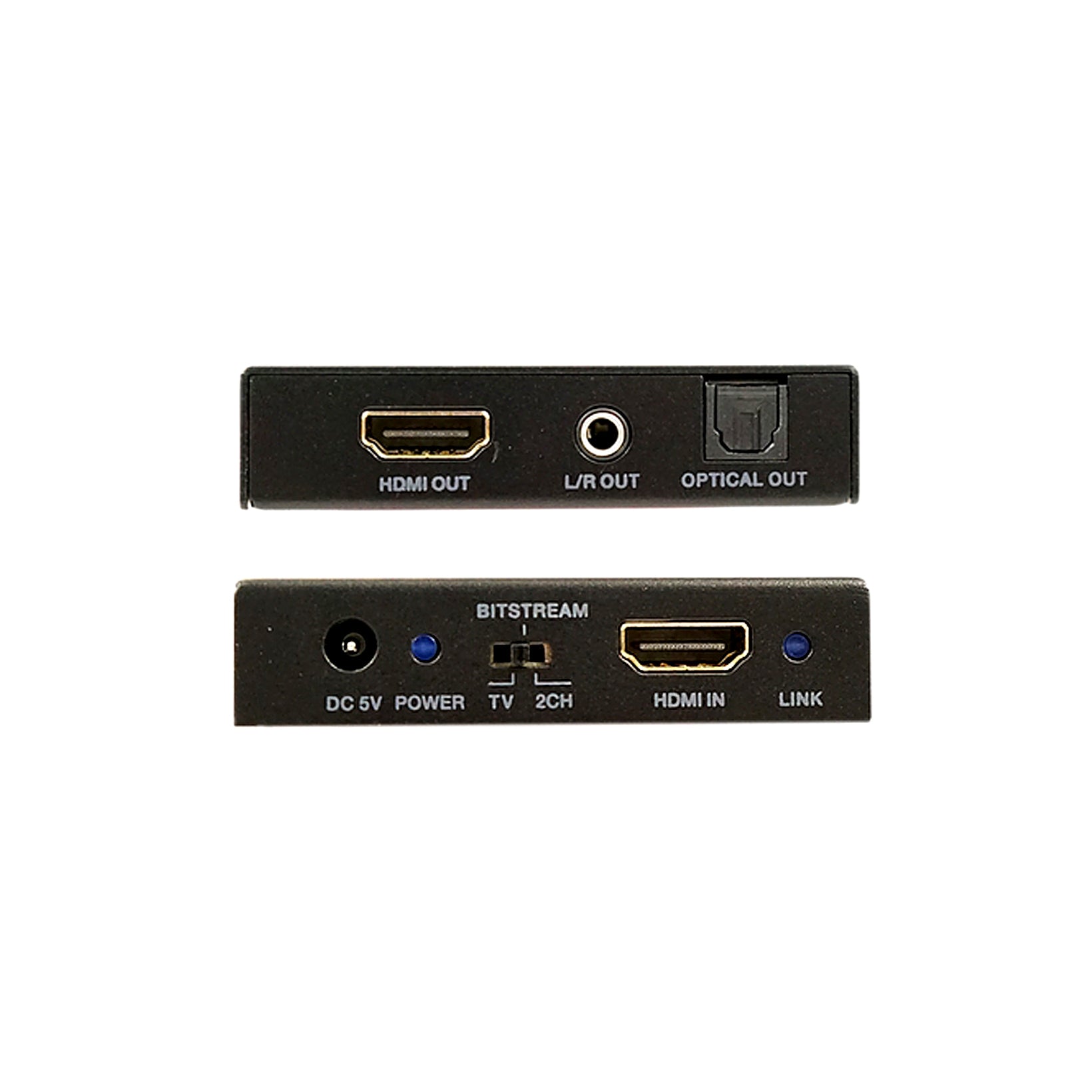

Inputs |
1x HDMI Type A [19-pin female] |
Outputs |
1x HDMI Type A [19-pin female] 1x L/R Audio Out [3.5mm Stereo Mini-jack] 1x Optical Out [S/PDIF] |
