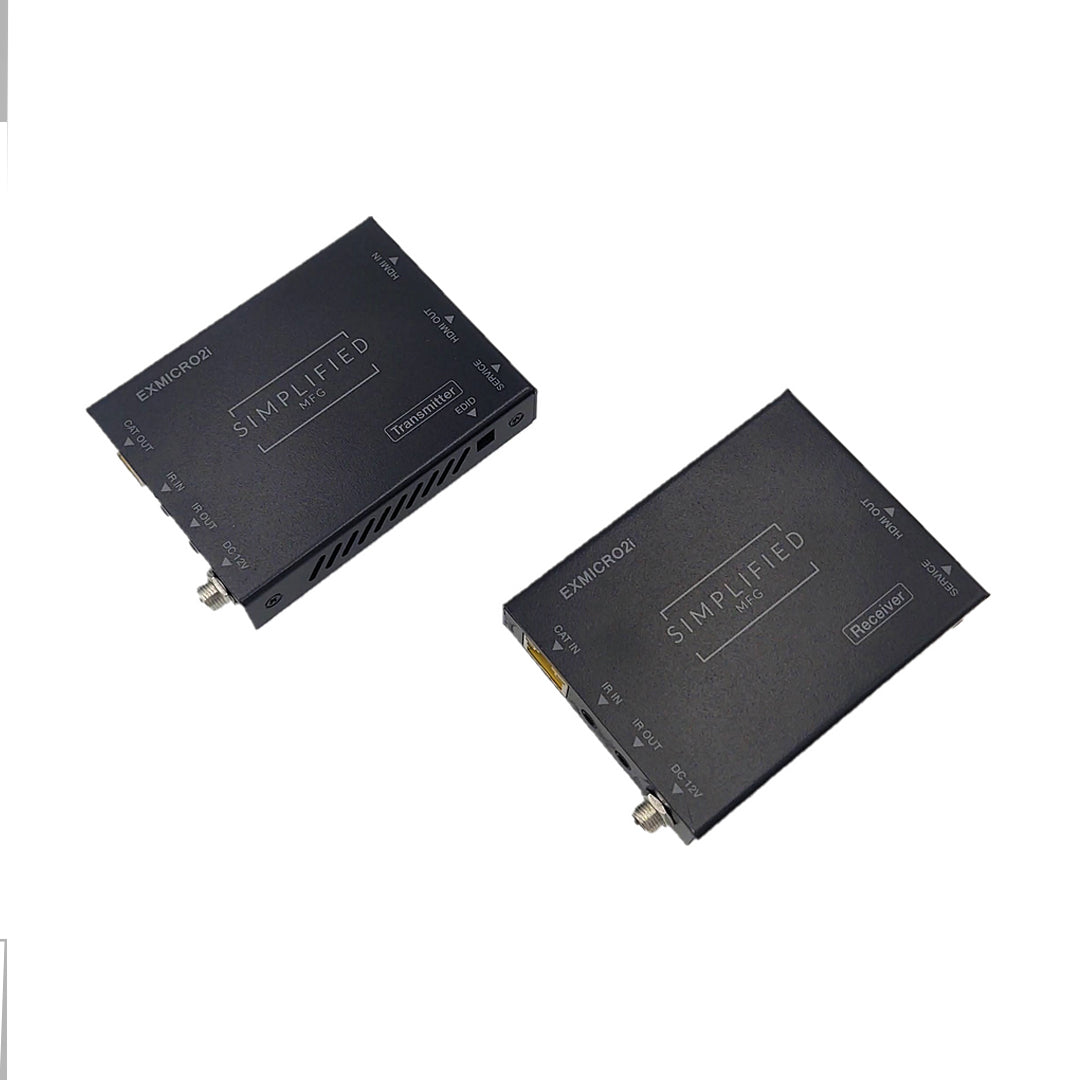

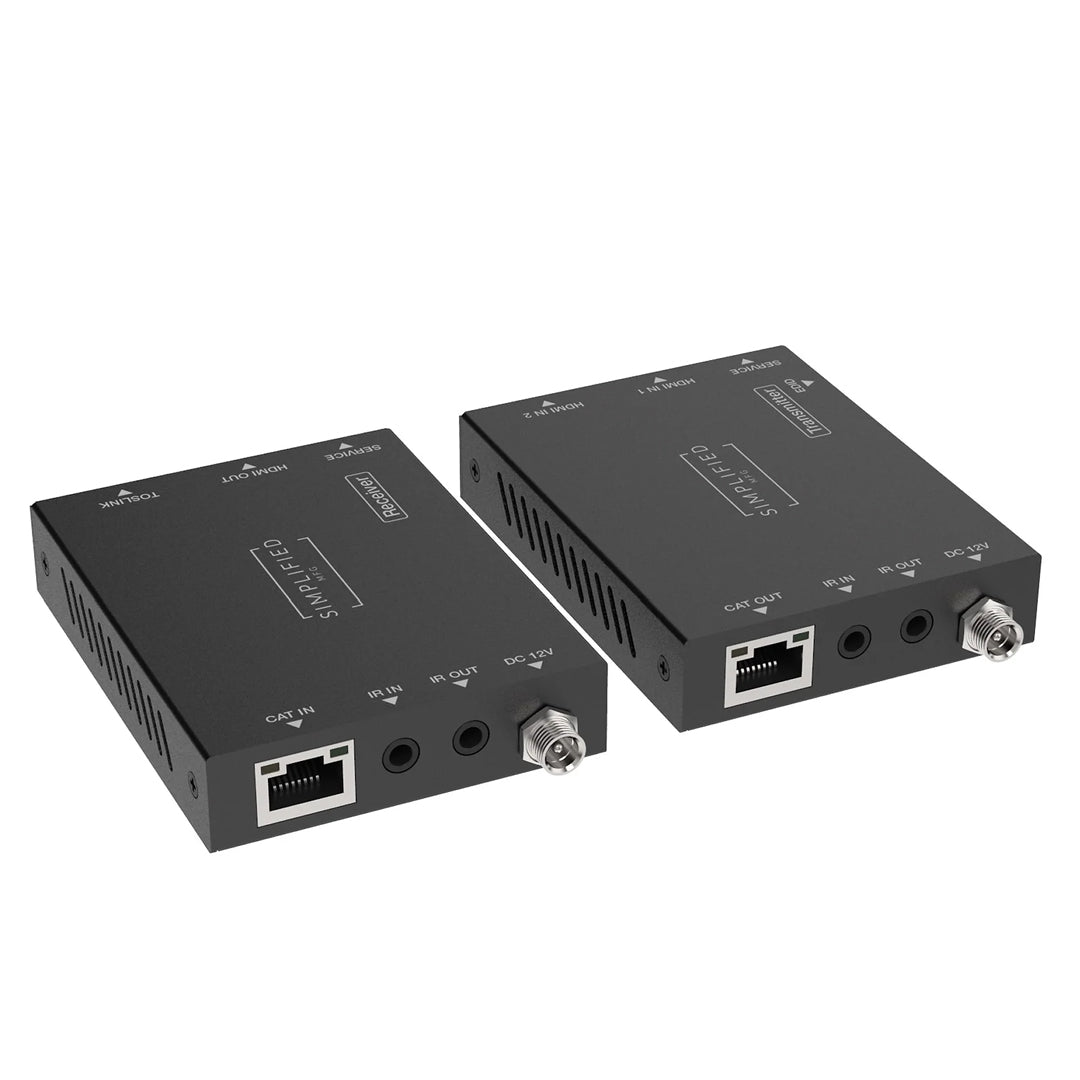

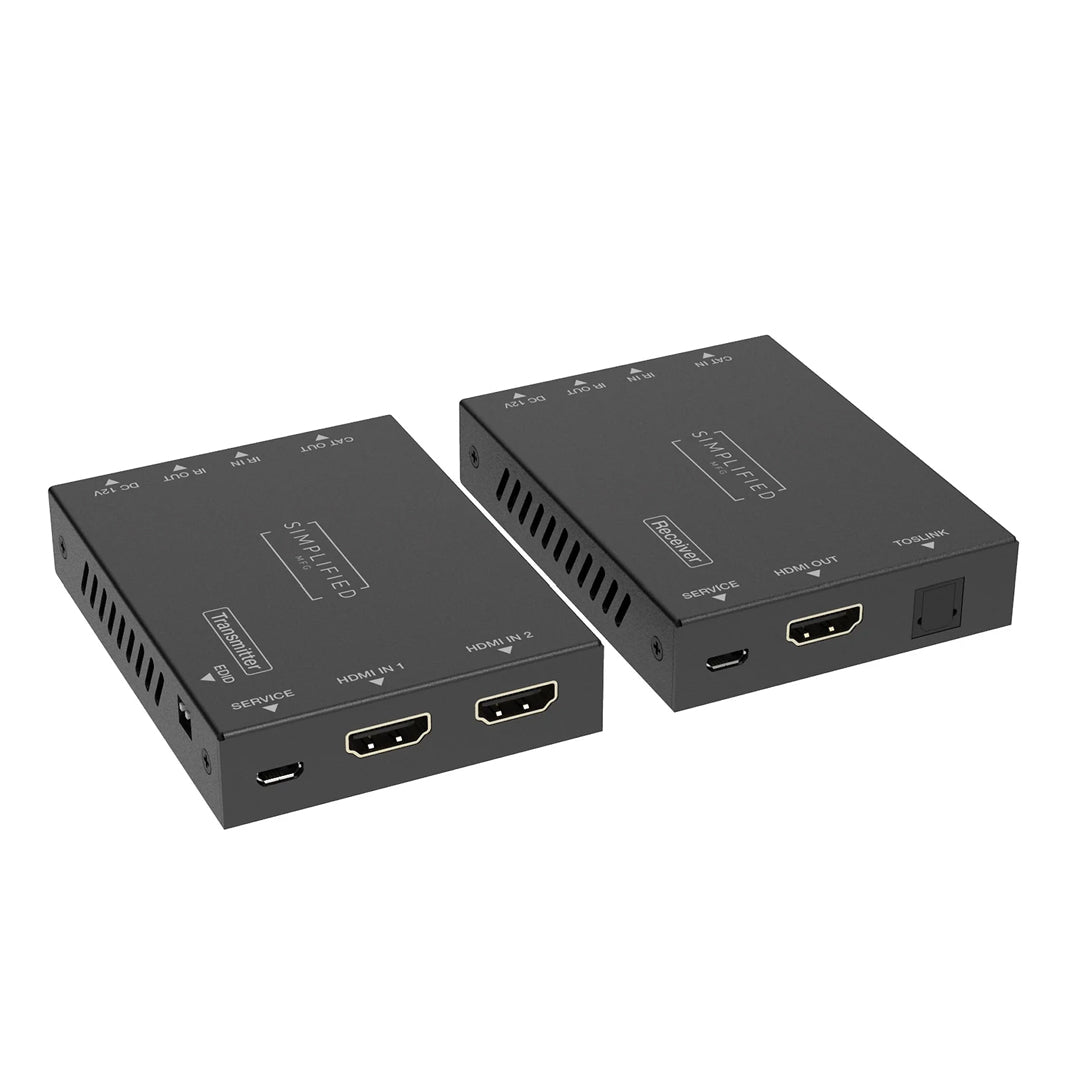

Simplified EXMICRO2i, HDMI Extender 4K over Cat6 up to 50 meters
4K HDMI 50m/164ft. on Cat6/6A, 1080p 70m/230ft on Cat6A extender with IR control from display to source
The EXMICRO2 is the second device in the Simplified MFG Micro line. It extends 1080p HDMI signals up to 70m/230ft and 4K HDMI signals up to 50m/164ft. The EXMICRO2 supports the entire HDMI 2.0b format including HDR and HDR+.

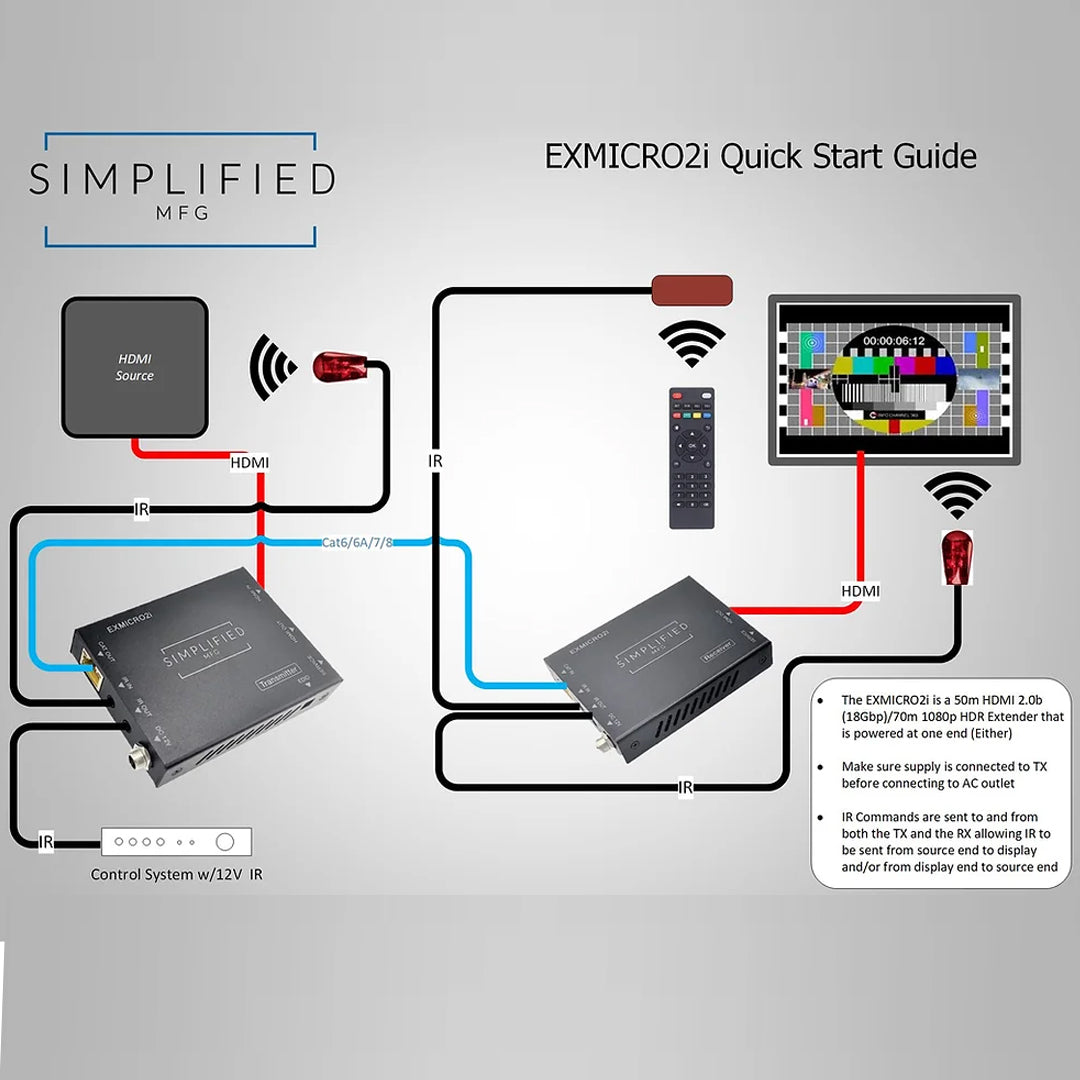

The extender kit only requires power from one end (either) and has a 1-Way IR kit included (transmits IR from display end to source.) This technology is more efficient than most only drawing about 1/3 the power (3.84W) of a typical extender set similar to its abilities. Small, efficient, effective.
-
Allows HDMI 2.0b (18Gbps) Audio/Video and IR signals to be transmitted over a single Cat6/5e cable
-
Built in EQ technology to eliminate
clocking issues -
Supports EDID copy from receiver display
-
Transmission Range:
-
4K@60Hz up to 50m/164ft over Cat6 cable.
-
1080P@60Hz up to 70m/230ft over Cat6 cable.
-
-
HDCP1.4 and HDCP2.2 compliant
-
Power from RX or TX
-
Compact design
| HDMI Compliance | HDMI 2.0b |
| HDCP Copliance | HDCP 2.2/1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K @60Hz 4:4:4 |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 |
| Color Depth | 8,10,12-Bit |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
