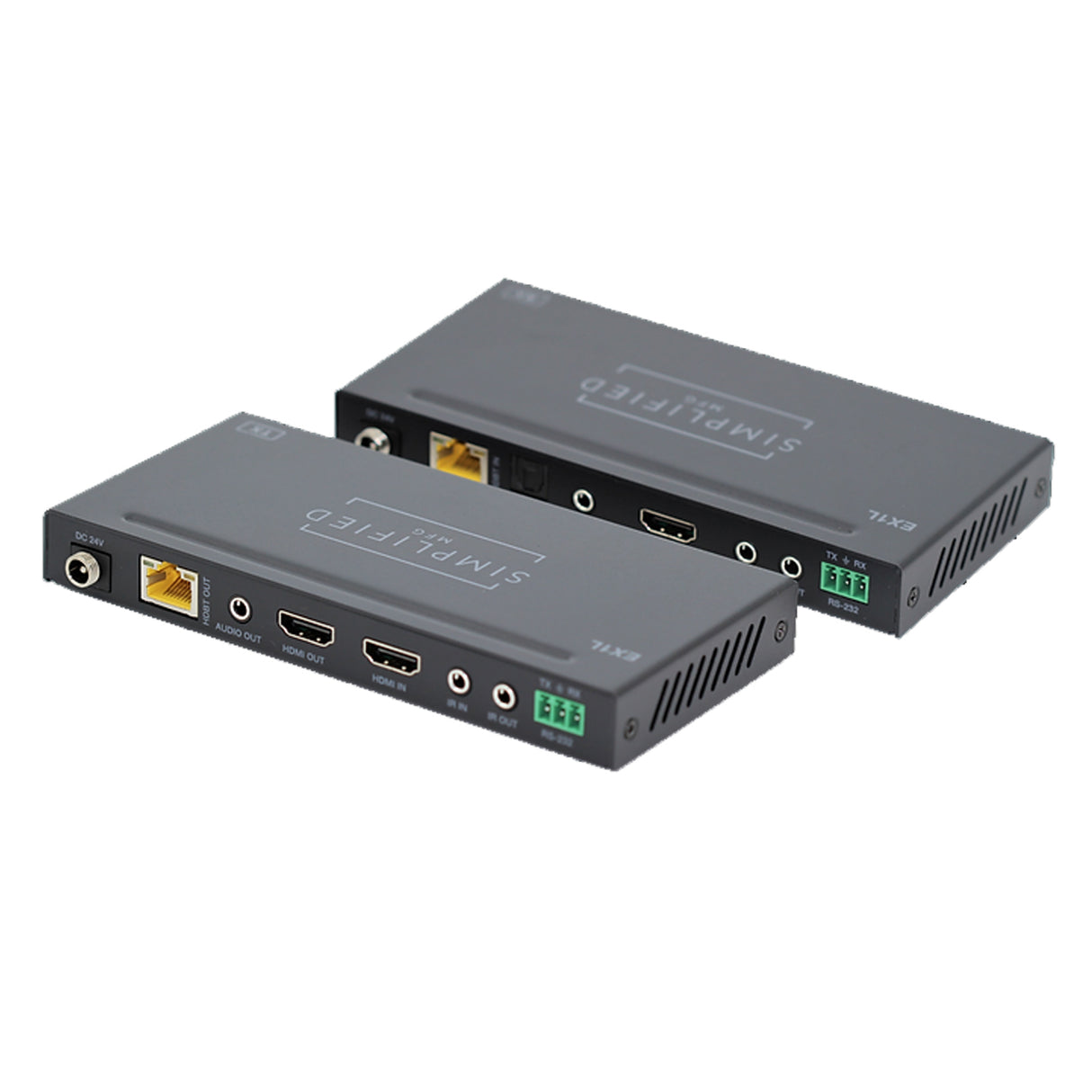

Simplified EX1L, HDMI Extender 4K over Cat6 up to120 meters

The EX1L 18Gbps HDMI extender has 3 times the distance of most extenders in it's price range! The EX1L can extend your HDMI signal over 492ft/150meters to a compatible 1080p display, 394ft/120meters to a HDMI 2.0b 18gbps compatible display.

Features

The EX1L supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18gbps HDMI 2.0b signal.

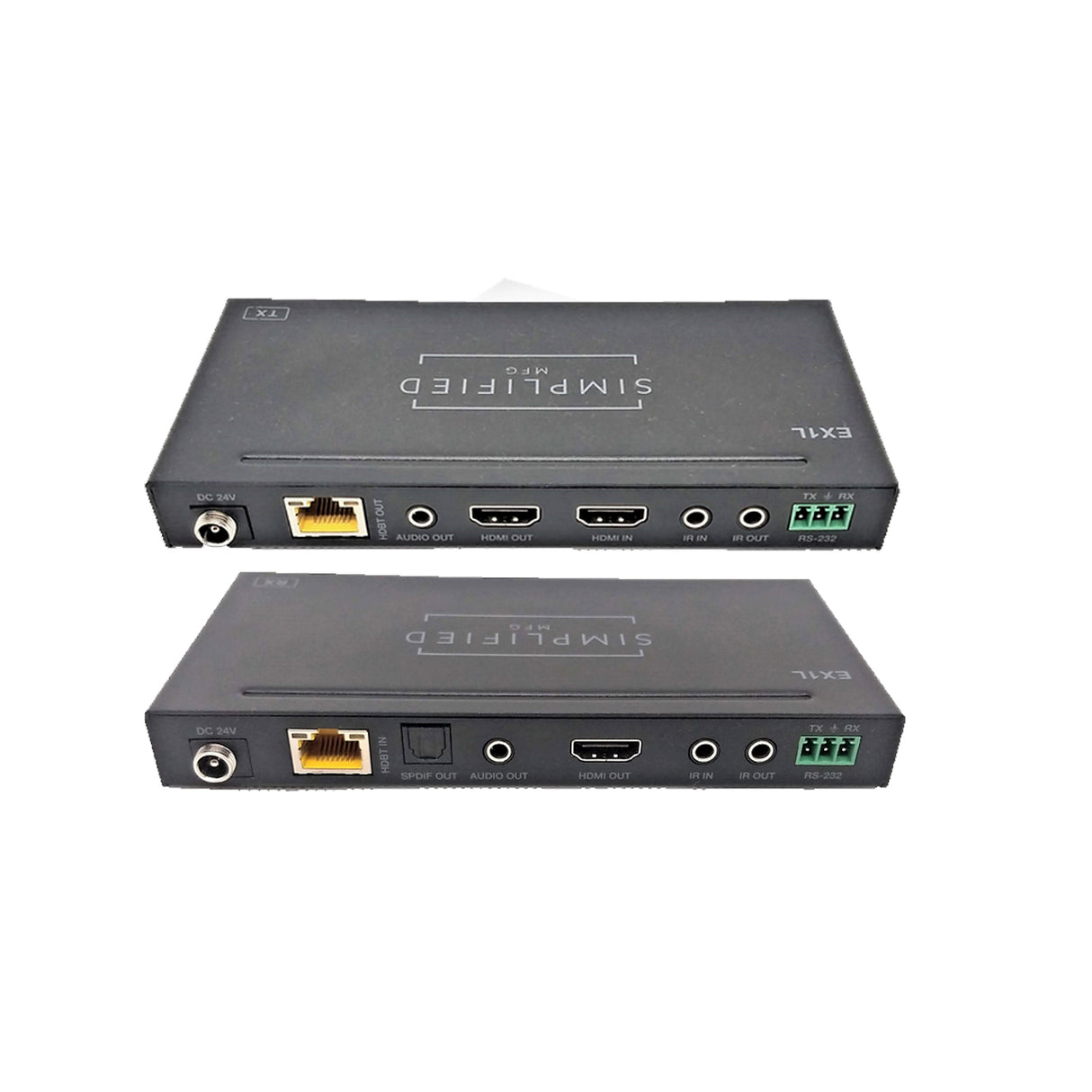

There are also audio breakouts on both the transmitter and the receiver. With 120m of capability, the EX1l can overcome the punch downs and other wiring challenges often seen. Try one, they are reasonable and awesome!

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

• Video resolutions up to 4K2K@50/60Hz (YUV444)

• HDR8/10/10+ pass through

• Dolby Vision™ pass through

• Supports HDMI High Bit Rate(HBR) audio pass through

• Supports CEC bypass

• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)

• Bidirectional 12V Infrared control signal together with the HDMI signal

• Transfer Bidirectional RS232 control signal together with the HDMI signal

• Transmission distance: Over CAT6 cable

  • 150m/ 492 ft.:

    • 1080P @60Hz36bit; 3D1080P@30Hz36bit;

  • 120m/394 ft.:

    • 4K x 2K@30Hz@24bit.

    • 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)

• 3-Year Warranty

Specifications
