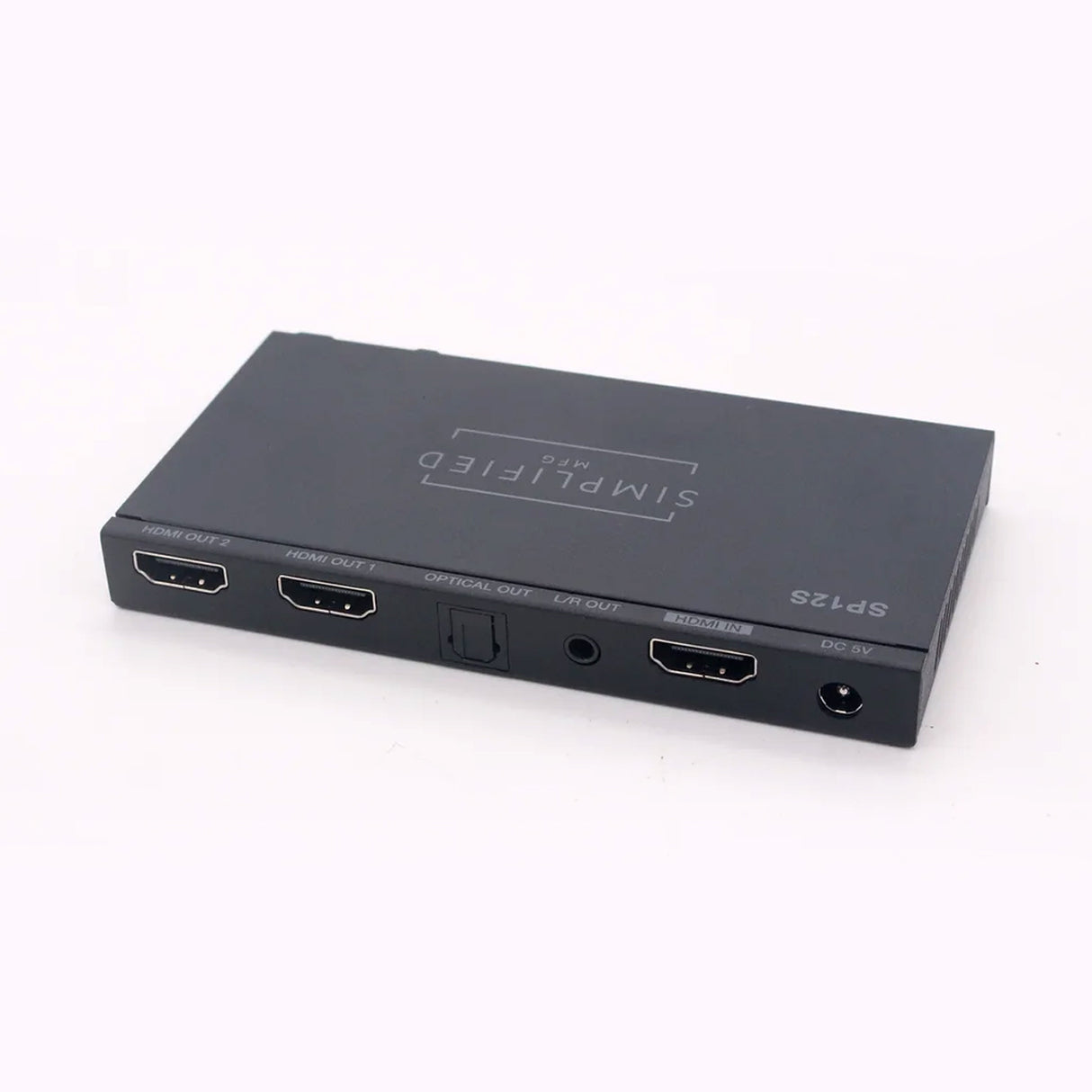

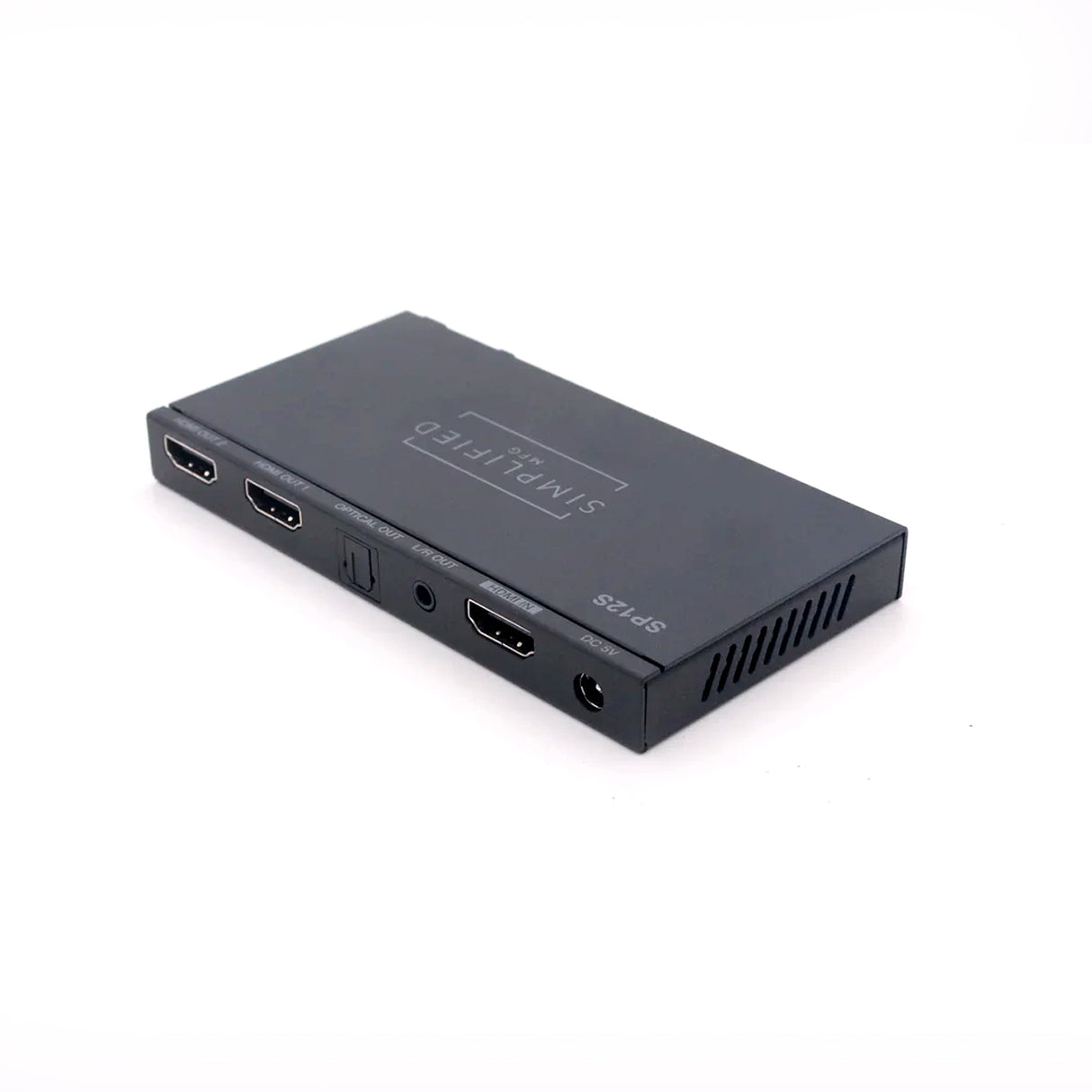

Simplified SP12S, HDMI 4K,1x2 Splitter with Audio Breakout

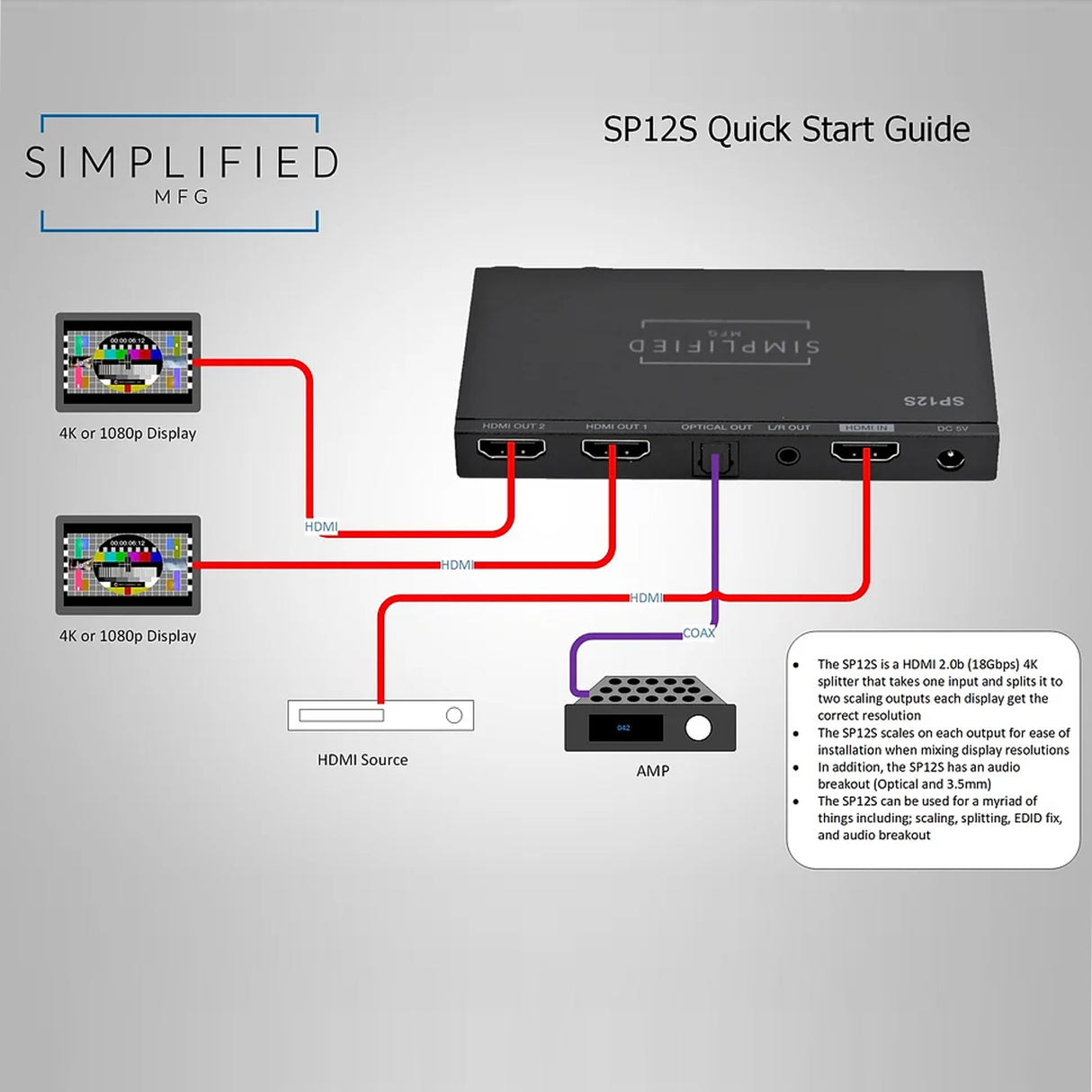

The SP12S is a Scaling 1 by 2 HDMI 18Gbps 4K/UHD Splitter with HDCP 2.2, EDID, & an audio breakout. It is a solution for splitting a single HDMI input to two HDMI outputs whether they are identical or not.
In cases of 1080p and 4K displays, both can receive the appropriate signal needed for each display. EDID can be manipulated to help with multiple displays as well. In addition there is an optical SPDIF/3.5mm mini jack for audio breakout. The SP12S supports the latest features of the most advanced HDMI 2.0b signals including HDR8/10/10+ and Dolby VisionÂ
-
Compliant with HDMI2.0, HDCP2.2 and DVI 1.0
-
Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
-

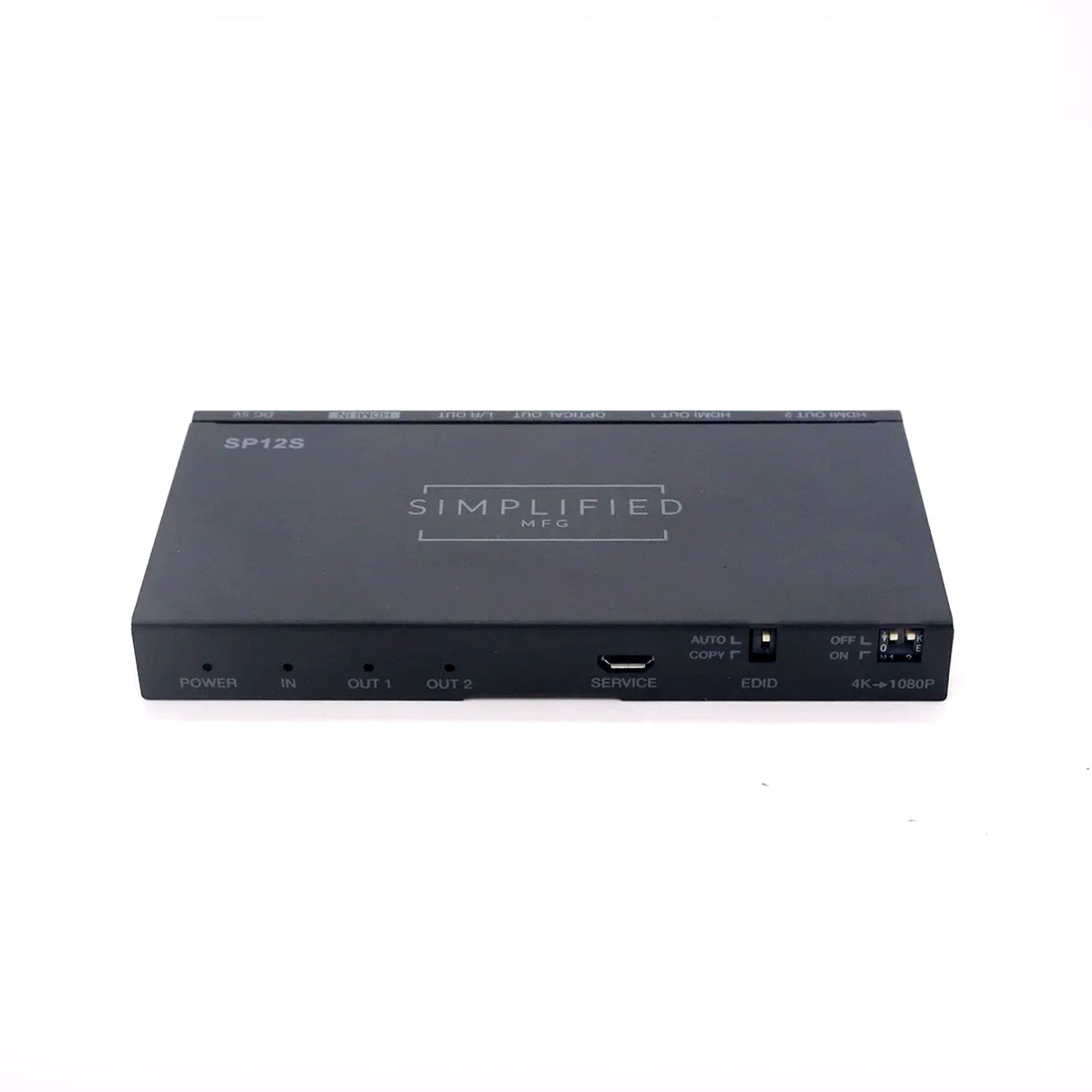

Selectable EDID setting (Copy output 1 or Mix)
-
Selectable Scaling will allow each output to either follow the EDID setting or scale to 1080p
-
Both SPDIF and 3.5mm Mini jack audio breakout
-
Supports HDR8/10/10+ and Dolby Vision
-
Supports high resolution VESA mode video format up to QSXGA@60Hz
-
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
| Video Bandwidth | 600MHz./18Gbps |
| Input Ports | 1 HDMI Type A [19 Pin female] |
| Output Ports | 2 HDMI Type A [19 Pin female] 1 L/R 3.5mm mini jack, 1 Optical SPDIF |
| Output Resolution | 480i~1080p 50/60Hz., 4Kx2K 24/25/30/50/60Hz |
| ESD Protection: Human Body Model | ±8 kV (air-gap discharge) |
| ±4 kV (contact discharge) | |
| Power Supply | 5V/1A DC (US/EU standards, CE/FCC/UL Certified) |
| Dimensions | 120mm/4.73" [W] x 56mm/2.2" [D] x 16mm/0.63" [H] |
| Weight | 200g/7oz. |
| Chassis Material | Metal |
| Operating Temperature | 0 °C~40 °C/ 32 °F~104 °F |
| Storage Temperature | â20 °C ~ 60 °C/â4 °F ~140 °F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power Consumption (Max)Â | 5WÂ |
