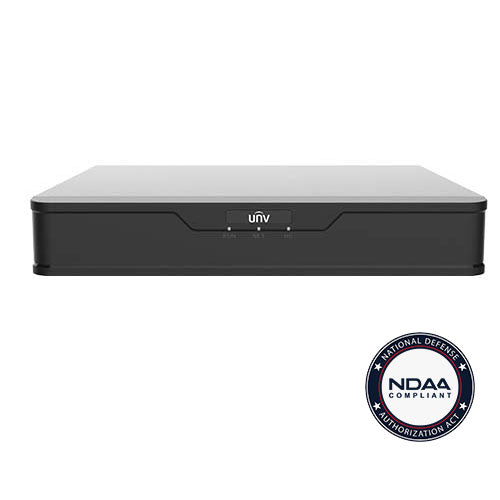

UNV XVR301-04Q3, (4-CH) 1 SATA Interface, 4K, 4 BNC, 2 IP, AOC, UL Listed
by Snap Toggle
SKU UVXVR301-04Q3
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Video/Audio Input | ||||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC | ||
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | 4-ch(only IP up to 12ch), each channel up to 8MP | ||
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
||
| Audio Input | 1-ch, RCA | |||
| Audio Compression | G.711U | |||
| Video/Audio Output | ||||
| CVBS Output | 1-ch, BNC | |||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | 4 | 8 | ||
| Live view display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | ||
| Two-way Audio | 1-ch, RCA | |||
| Snapshot | ||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to 704*576 resolution | 8-ch snapshot, up to 704*576 resolution | ||
| Network | ||||
| Incoming Bandwidth | 40Mbps (Up to 48Mbps after all analog channel conversion) | 40Mbps (Up to 56Mbps after all analog channel conversion) | ||
| Outgoing Bandwidth | 48Mbps | 64Mbps | ||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|||
| Encoding | ||||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/CIF | 8MP Lite/5MP Lite/4MP Lite /1080P/720P/CIF | ||
| Recording Frame Rate |
Main stream | Sub stream | Main stream | Sub stream |
| 8MP Lite@8fps | D1@8fps | 8MP Lite@8fps | D1@8fps | |
| 5MP Lite @12fps | D1@12fps | 5MP Lite @12fps | D1@12fps | |
| 4MP Lite@15fps | D1@15fps | 4MP Lite@15fps | D1@15fps | |
| 1080P@15fps | D1@15fps | 1080P@15fps | D1@15fps | |
| 720p@30fps | D1@30fps | 720p@30fps | D1@30fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |||
| Audio Bit Rate | 64Kbps per channel | |||
| Decoding | ||||
| Capability | Analog: 4 x 8MP Lite@8, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 |
Analog: 8 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MP Lite@15, 8x 1080P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
||
| Hard Disk | ||||
| SATA | 1 SATA interface | |||
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|||
| Smart Alarm | ||||
| VCA Detection | Ultra Motion Detection(UMD) for analog:4-ch | Ultra Motion Detection(UMD) for analog:8-ch | ||
| VCA Search | Behavior Search | |||
| General Alarm | ||||
| General Alarm | Motion detection | |||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||
| External Interface | ||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||
| USB Interface | Rear panel: 2 x USB2.0 | |||
| RS485 | 1 | |||
| Alarm In | 4-ch | |||
| Alarm Out | 1-ch | |||
| General | ||||
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
|||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||
| Certification | ||||
| Certification | UL /CE /FCC /RoHS /WEEE | |||
