TRENDnet TEW-807ECH AC1200 High Power Wireless Dual Band PCIe Adapter

SKU TNTEW-807ECH
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

AC1200 High Power Wireless Dual Band PCIe Adapter / TEW-807ECH (Version v1.0R)

  • Easy setup
  • AC1200: 867 Mbps Wireless AC or 300 Mbps Wireless N bands*
  • Convenient 1 m (3.3 ft.) extension cable and magnetic mounting base
  • High power radio
  • Heat sink for optimal heat dissipation and performance
  • Includes standard and low profile brackets
  • Compatible with a PCI Express (PCIe) slot
  • Supports Windows operating systems

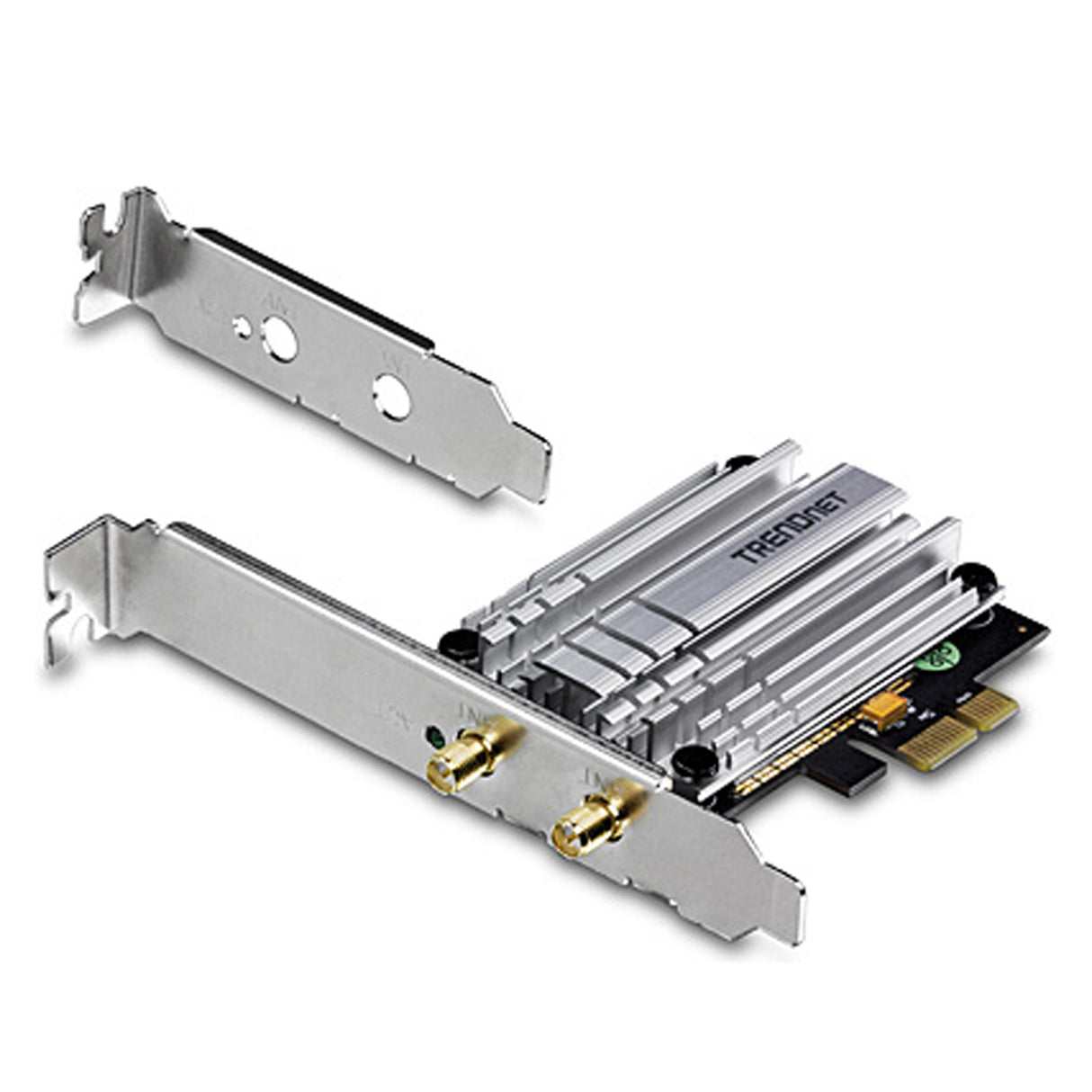

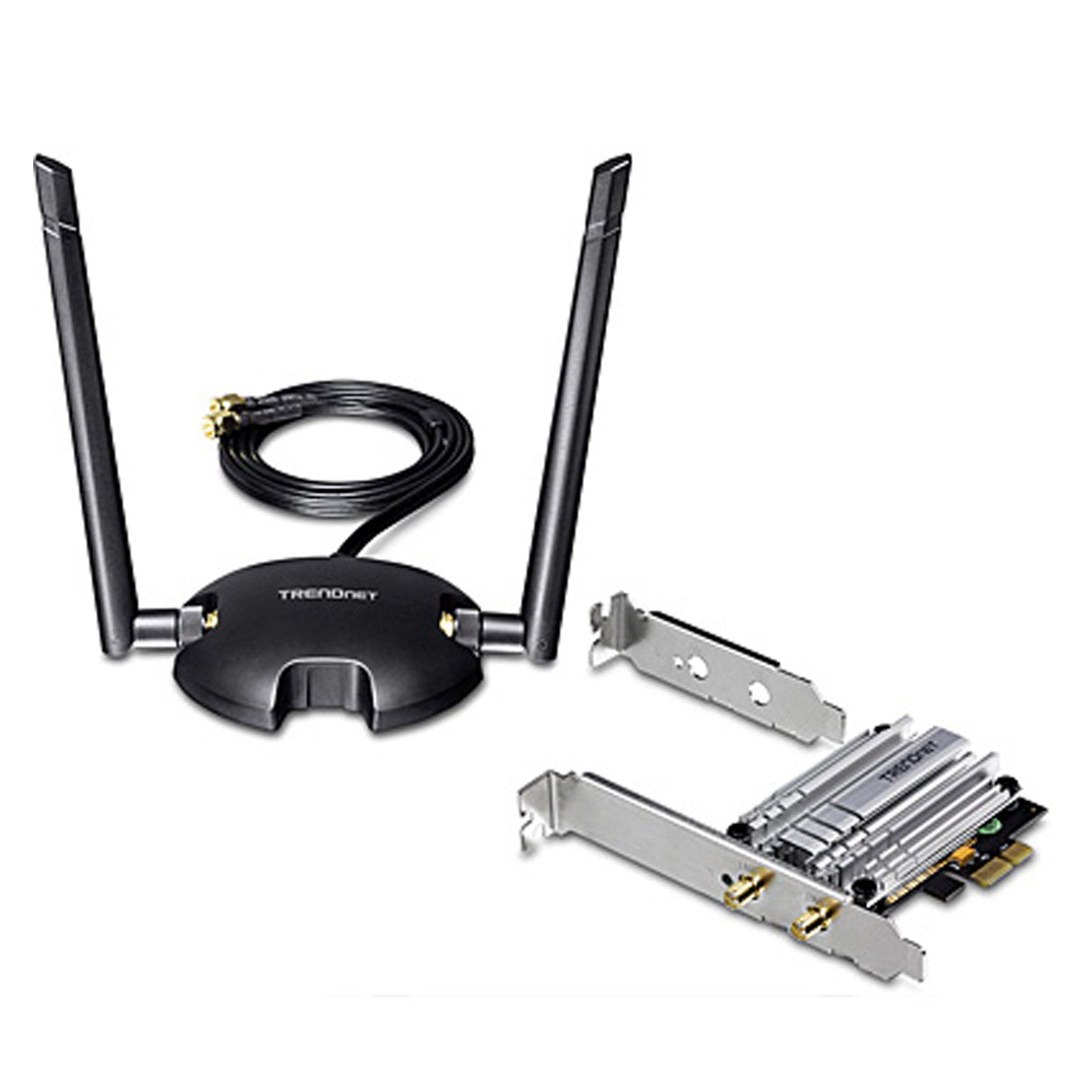

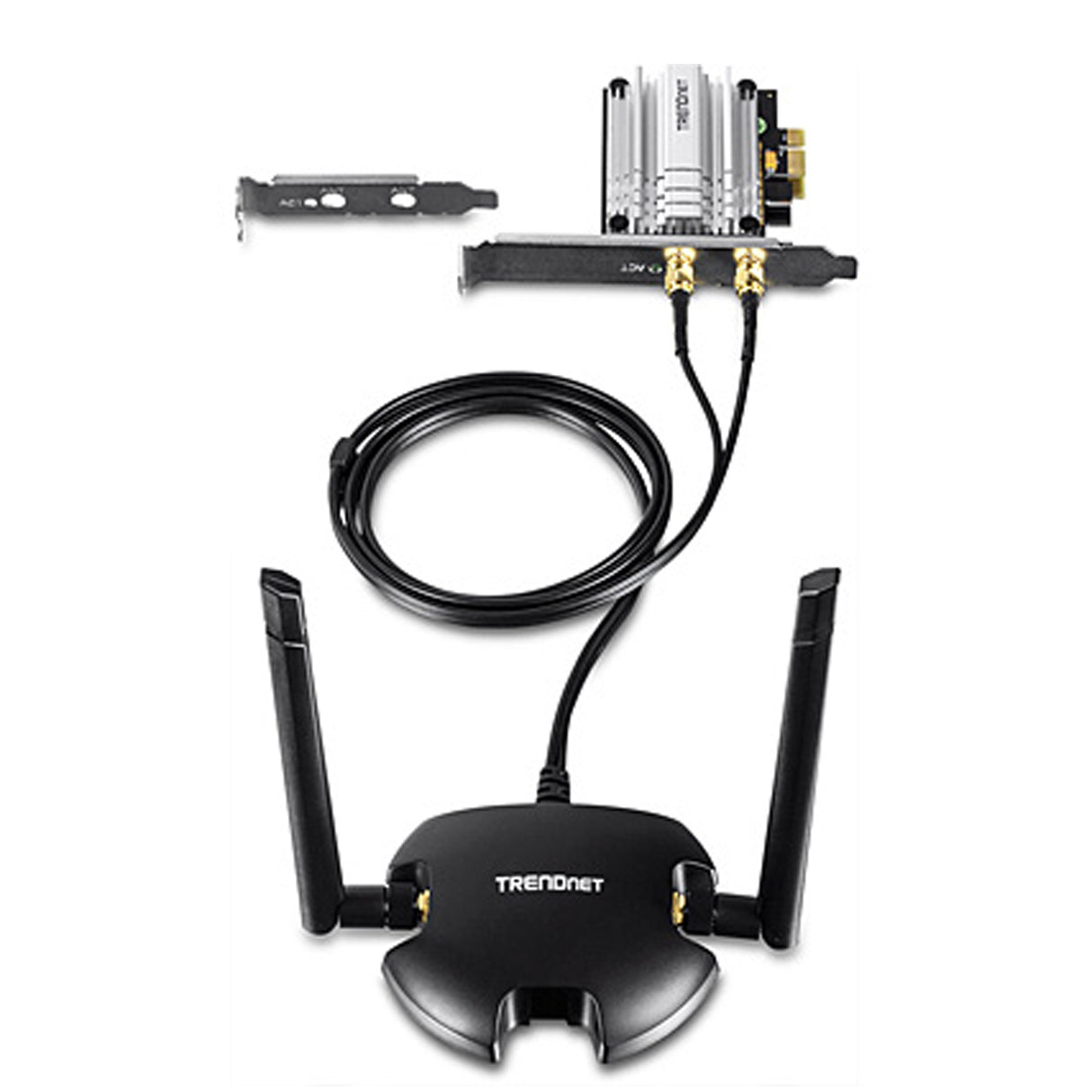

TRENDnet's AC1200 High Power Wireless Dual Band PCIe Adapter, model TEW-807ECH, upgrades a standard or low profile Windows® computer to Wireless AC1200. Quickly connect to a high performance Wireless AC network at 867 Mbps or to a Wireless N network at 300 Mbps. A high power radio with detachable 5 dBi antennas increase wireless coverage. A conven-ient 1 m (3.3 ft.) extension cable and a magnetic mounting base provide installation flexibility.

WiFi Performance

Updgrade your desktop computer to 867 Mbps WiFi AC or 300 Mbps WiFi N to surf, game, and stream 4K HD video

Versatility

Interchangeable mounting brackets provide compatibility with both standard and low profile computers.

Increased Coverage

A high power radio with detachable 5 dBi antennas on a magnetic mounting base increase WiFi coverage.

Standards
  • PCI Express 1.0a
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11ac (up to 867 Mbps)
Hardware Interface
  • PCI Express x1 (Version 1.0a)
  • LED indicator
  • 2 x RP-SMA antenna connectors
  • Magnetic Antenna Base with 1 m (3.3 ft) extension cable
  • 2 High Gain Detachable Dual Band Antennas
  • Standard and low profile tower brackets
Encryption
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Special Features
  • 2 high gain dual band detachable antennas and integrated high powered amplifiers for long range connectivity
  • Magnetic Antenna Base for easy mounting and antenna positioning for optimal signal reception
  • High-speed 802.11ac connectivity
Quality of Service
  • WMM
  • WMM-SA
Frequency
  • 2.4GHz: (FCC) 2.412 – 2.462GHz, (ETSI) 2.412 – 2.472GHz
  • 5GHz: (FCC) 5.150 – 5.250GHz/5.745 - 5.825GHz, (ETSI) 5.150 – 5.250GHz/5.260 – 5.320GHz/5.500 – 5.700GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Antenna Gain
  • 2.4 GHz/5 GHz: 2 x 5 dBi (max.) dual band external/detachable
Wireless Output Power
  • FCC: 802.11a: 28 dBm (max.) / ETSI: 22.30 dBm (max.) @ 54 Mbps
  • FCC: 802.11b: 27 dBm (max.) / ETSI: 19.80 dBm (max.) @ 11 Mbps
  • FCC: 802.11g: 27 dBm (max.) / ETSI: 19.70 dBm (max.) @ 54 Mbps
  • FCC: 802.11n (2.4GHz): 27 dBm (max.) / ETSI: 19.70 dBm (max.) @ 300 Mbps
  • FCC: 802.11n (5GHz): 27 dBm (max.) / ETSI: 22.50 dBm (max.) @ 300 Mbps
  • FCC: 802.11ac: 27 dBm (max.) / ETSI: 22.30 dBm (max.) @ 867 Mbps
Receiving Sensitivity
  • 802.11a: -90 dBm (typical) @ 54 Mbps
  • 802.11b: -91 dBm (typical) @ 11 Mbps
  • 802.11g: -87 dBm (typical) @ 54 Mbps
  • 802.11n (2.4GHz): -85 dBm (typical) @ 300 Mbps
  • 802.11n (5GHz): -90 dBm (typical) @ 300 Mbps
  • 802.11ac: -58 dBm (typical) @ 867 Mbps
Wireless Channels
  • 2.4GHz: (FCC) 1-11, (ETSI) 1-13
  • 5GHz: (FCC) 36, 40, 44, 48, 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Power
  • Consumption: Max. 6 W
Operating Temperature
  • 00 - 55 °C (32 – 141 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 84 x 64 x 17 mm (3.3 x 2.5 x 0.7 in.)
Weight
  • 80 g (2.8 oz.)
  • Antenna Base: 114 g (4 oz.)
