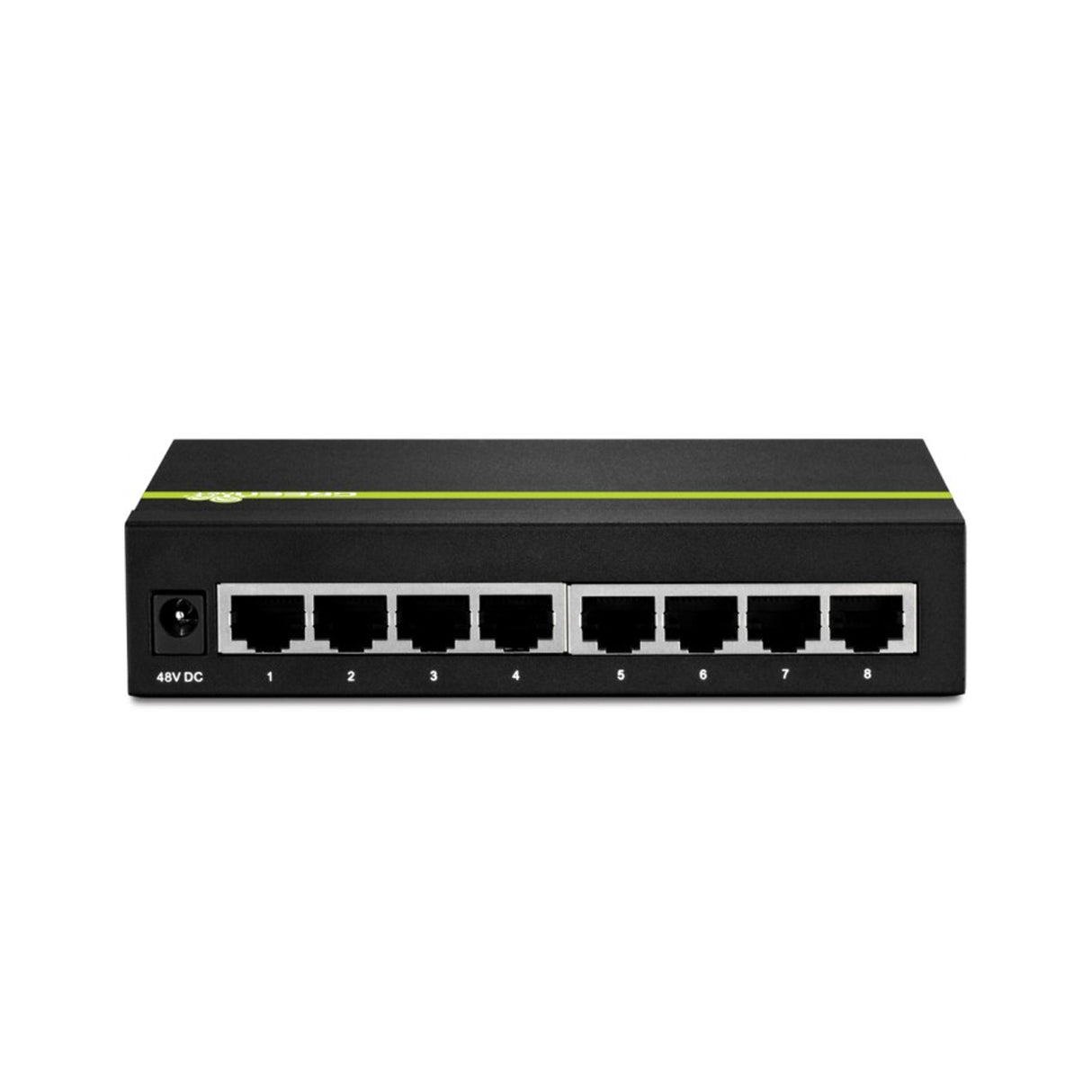

TRENDnet TPE-TG44g 8-port GREENnet Gigabit PoE+ Switch (4 PoE+, 4 Non-PoE)

SKU TNTPE-TG44g
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

8-Port Gigabit PoE+ Switch / TPE-TG44g (Version v3.0R)

  • 4 x Gigabit PoE / PoE+ ports (up to 30 Watts per PoE+ port)
  • 4 x Gigabit ports
  • 61.6W PoE power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • 16Gbps switching capacity
  • Sturdy metal housing
  • GREENnet power savings
  • Lifetime Warranty*

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG44g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers four Gigabit PoE+ and four Gigabit non-PoE ports. The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems. Auto sensing technology delivers 30W to 802.3at PoE+ devices, 15.4W to 802.3af PoE devices, and only data to non-PoE devices.

GREENnet technology reduces energy consumption when the switch is not in use.Boost office efficiency and reduce network congestion with a total switching capacity of 16Gbps.

LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case and quickly adds PoE+, PoE, and non-PoE devices to your network.

Gigabit Ethernet

Eight gigabit ports provides a 16Gbps switching capacity to support edge network installations.

PoE Power

A 61.6W PoE power budget supports up to four Power over Ethernet devices.

Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.1p
Device Interface
  • 4 x Gigabit PoE/PoE+ ports
  • 4 x Gigabit ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switch Fabric: 16Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Power
  • Input: 110-240V AC, 50/60 Hz, 54V/1.67A
  • Output: 54VDC, 1.67A
  • Consumption: Max. 65.22W
PoE
  • PoE budget: 61W
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 148 x 95 x 26mm (5.8 x 3.7 x 1in.)
Weight
  • 387g (13.65oz.)
Certifications
  • CE
  • FCC
