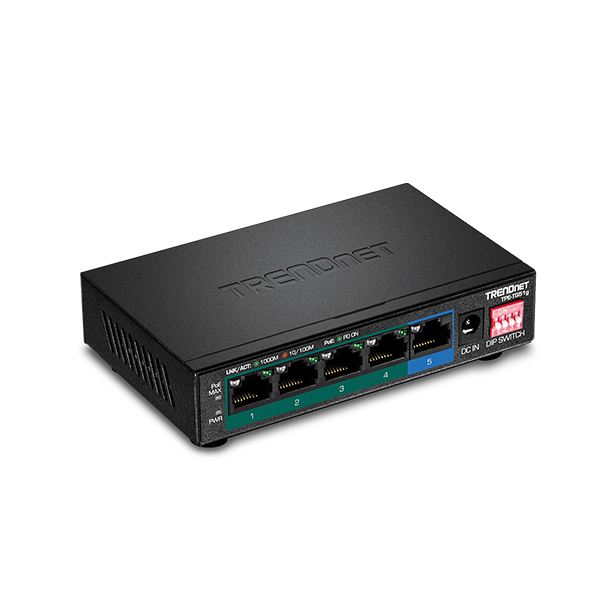

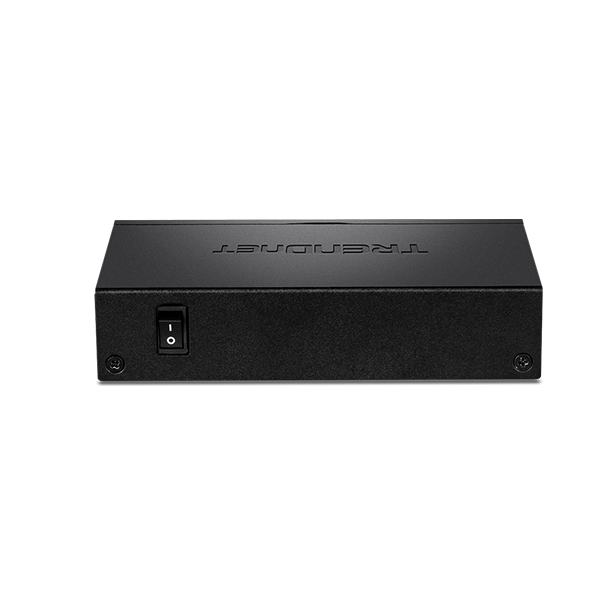

TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Switch.

SKU TNTPE-TG51g
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

5-Port Gigabit PoE+ Switch / TPE-TG50g (Version v2.0R)

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 31W PoE power budget
  • 10Gbps switching capacity
  • Compact metal switch
  • Lifetime Warranty*

With 30 watts of PoE power per port and a 31-watt power budget, the TPE-TG50G 5-Port Gigabit PoE+ Switch from TRENDnet is capable of handling various PoE compatible devices such as IP cameras and VoIP equipment. Users benefit from four Gigabit PoE+ ports and a single Gigabit port to connect Ethernet enabled devices to the network.

Once configured, this switch offers a 10 Gbps switching capacity, a 96 KB data RAM buffer, 1 K MAC address table, and a forwarding rate of up to 7.44 Mpps to ensure optimal network performance.

  • PoE+: Supplies up to 30 watts of PoE power per port with a 31 watt PoE budget
  • Ports: 4 x Gigabit PoE+ ports and 1 x Gigabit port
  • Switching Capacity: 10 Gbps switching capacity
  • Jumbo Frame: Sends larger packets, or Jumbo Frames (up to 9 KB) for increased performance
  • Energy Savings: Embedded GREENnet technology reduces power consumption by up to 70%
  • Housing: Rugged metal enclosure
  • LED Indicators: LED indicators convey port status
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 4 x Gigabit PoE/PoE+ ports
  • 1 x Gigabit port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Packet Buffer: 128KB
  • Switch Fabric: 10Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Power
  • Input: 110-240V AC, 50/60Hz, 0.75A
  • Output: 48V DC, 0.8A
  • Consumption: Max. 34W
PoE
  • PoE budget: 31 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature
  • 0 – 40°C (32 - 104°F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 148 x 95 x 26mm (5.8 x 3.7 x 1 in.)
Weight
  • 366g (12.9 oz.)
Certifications
  • CE
  • FCC
