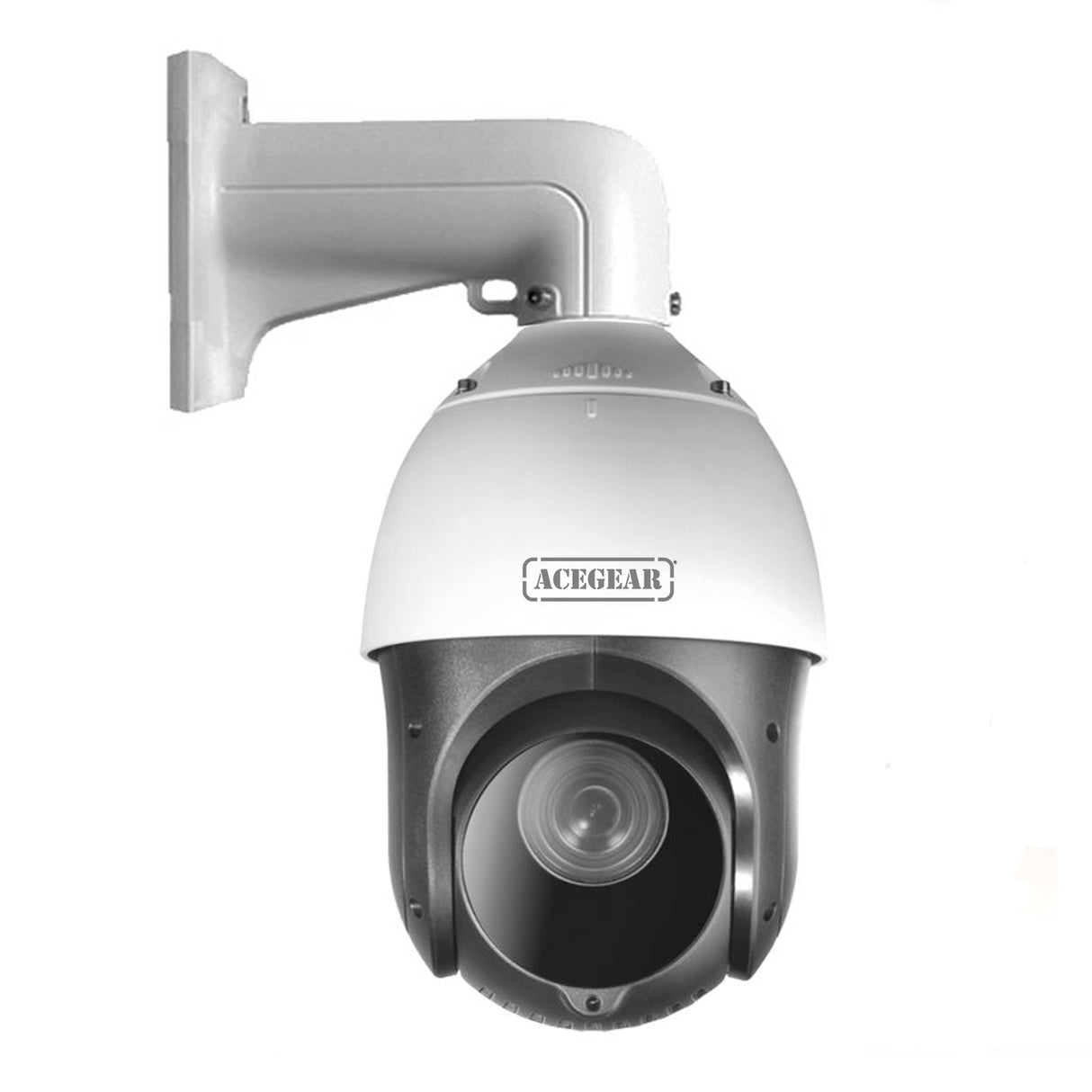

Acegear CT4252.25XIRD 2MP HD-TVI/CVI/AHD 25X Optical EXIR 300ft. Coax Control 12VDC, (Wall Bracket Included), UL Listed

by Acegear
SKU AGCT4252.25XIRD
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Resolution: 2 MP High Resolution
  • Sensor: 1/2.8’’ Progressive Scan CMOS
  • Lens: 4.8 ~ 120mm, 25x optical zoom
  • Functions: 3DNR, WDR.
  • Menu: OSD
  • IR RangeEXIR, smart IR, up to 300ft. IR distance
  • Multiprotocol Output: TVI/AHD/CVI/CVBS
  • Control: Coax OSD and PTZ Control
  • Protection: IP66
  • Warranty:  1 Year

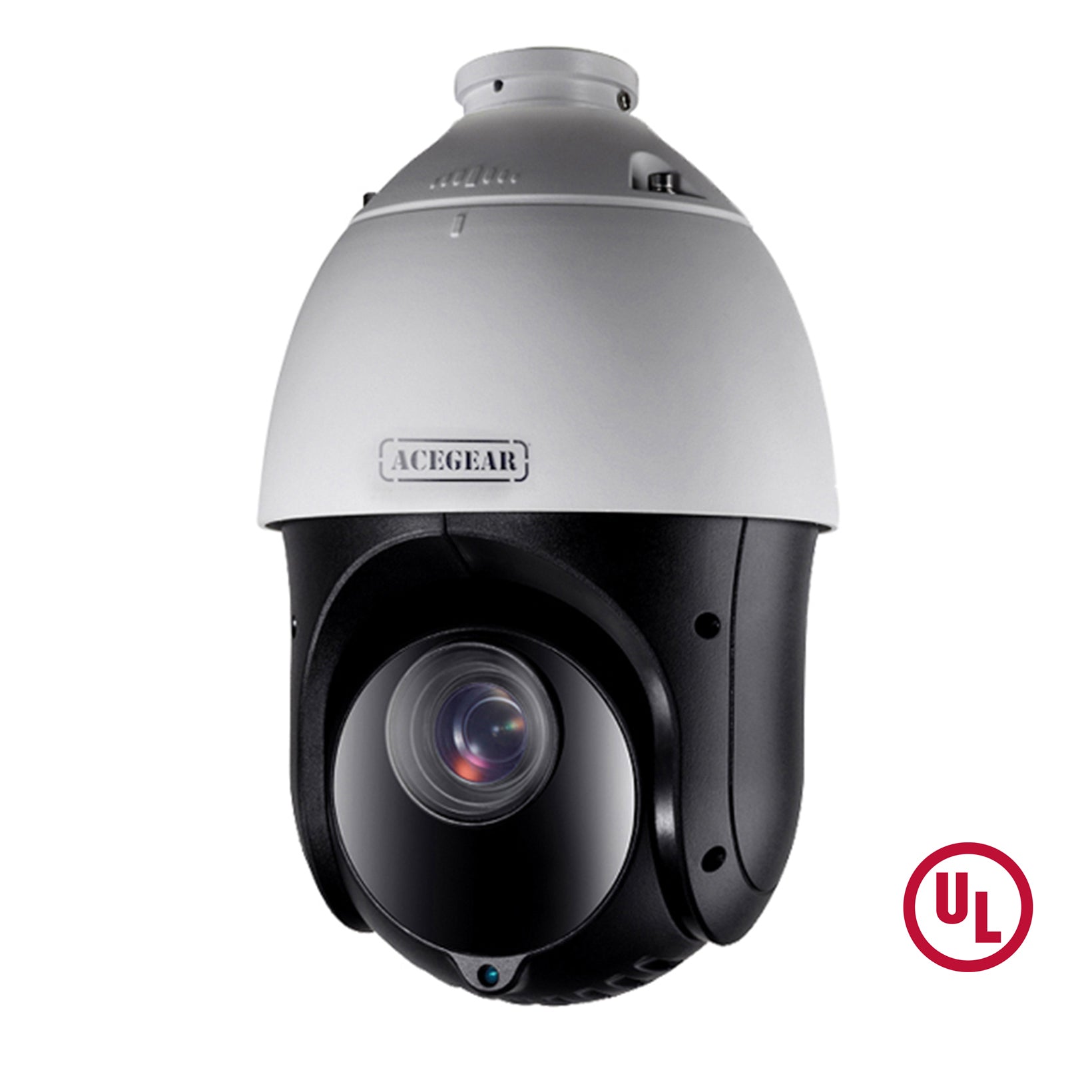

The Acegear AGCT4252.25XIRD 2MP HD-TVI PTZ Camera with Night Vision is equipped with a 1080P progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps.

This PTZ Camera has a 25X Optical Zoom and a maximum night vision range of 300ft. HD-TVI technology allows the camera to be controlled and transmit HD video over coaxial cables.

Image Sensor 1/2.8’’ Progressive Scan CMOS
Frame Rate 2MP@30fps
Effective Pixels 1920 x 1080
Min. Illumination Color: 0.005Lux@( F1.6,AGC ON); B/W: 0.001Lux@( F1.6,AGC ON), 0 Lux with IR
Lens 4.8 ~ 120mm, 25x optical zoom
Zoom Speed Approx.3s (Optical Wide~Tele)
Angle of View 57.6-2.5 degree(Wide-Tele)
Focus mode Auto / Semi-auto / Manual
Min. Working Distance 10~1,500mm(Wide~Tele)
Digital Zoom 16x
Shutter speed 1 s to 1/10,000 s
Day/Night IR cut filter with auto switch
Wide Dynamic Range True 120dB WDR
Noise Reduction 3D-DNR
Synchronization Internal synchronization
Aperture Range F1.6-F3.5
S/N Ratio ≥ 50dB
AGC Auto / manual
White Balance Auto / Manual / ATW/ Indoor / Outdoor
Privacy Mask 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Enhancement 3D DNR,BLC, EIS
Range Pan:360° endless; Tilt: -15°~90°(Auto Flip)
Speed Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 256
PTZ position display On / Off
Preset freezing Yes
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time not less than 10 minutes
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
Schedule task Preset / Patrol / Pattern / Pan - Scan / Tilt - Scan / Panorama - Scan / Day - Mode / Night - Mode / Zero - Calibration / None
Power-off memory Yes
IR Distance Up to 300ft. (100m.)
IR Intensity Auto adjustable, depending on the zoom range
Analog HD output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
CVBS output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 interface Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
Operating Conditions -30 °C ~ 65 °C (-22 °F ~ 149 °F)
Humidity 90% or less (non-condensing)
Power Supply DC12V
Power Consumption Max. 20W
Protection level IP66, TVS 4,000V lightning and surge protection
Mounting Optional
Warranty 12 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Camera: Φ 6.47" x 11.61" (Φ164.5 × 295 mm)
Weight 4.41 lb. (2000 g.)
