Ubiquiti U7-Lite-US UniFi AP 7 Lite US
MPN: U7-LITE-US
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Ubiquiti U7-Lite-US UniFi AP 7 Lite US is backordered and will ship as soon as it is back in stock.
Description
Description
- Wi-Fi 7 (802.11be)
- Max Data Rate: up to 4.3 Gb/s (5 GHz)
- Max Data Rate: up to 688 Mb/s (2.4 GHz)
- 2.4 GHz / 5 GHz (Dual-Band)
- 5 dBi Antenna Gain

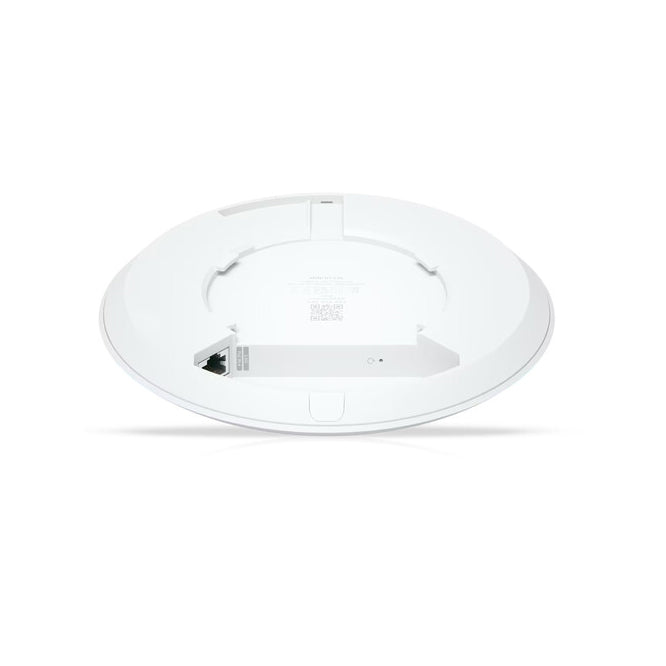

- 1 x 2.5GbE RJ45 Uplink Port
- PoE via RJ45
- Covers up to 1250 ft²
- Max Client Count: 200+
- Four Spatial Streams
Features

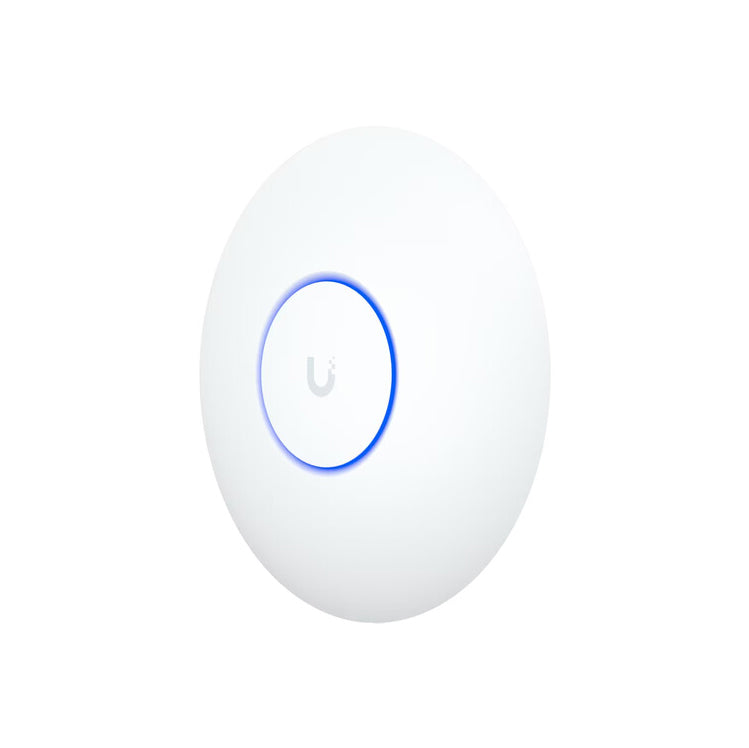

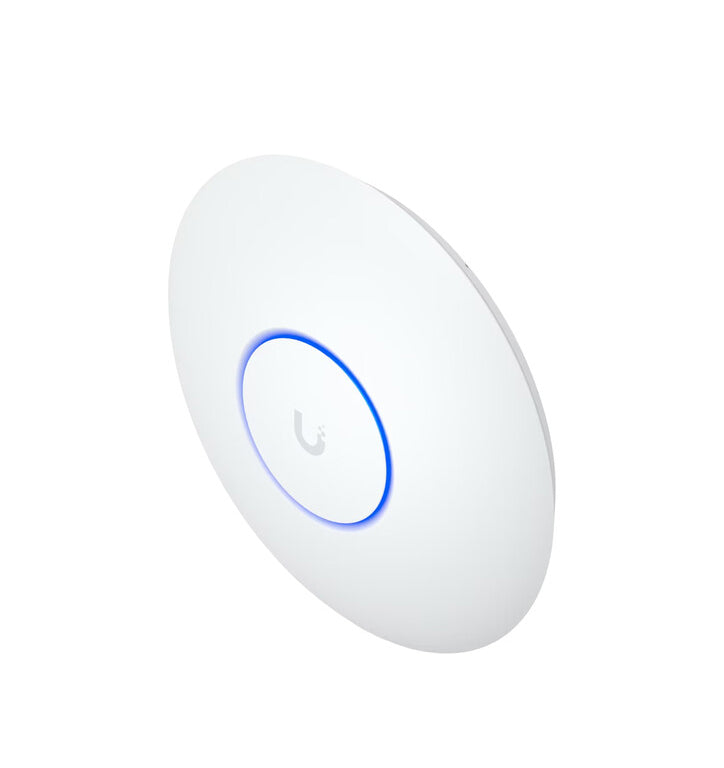

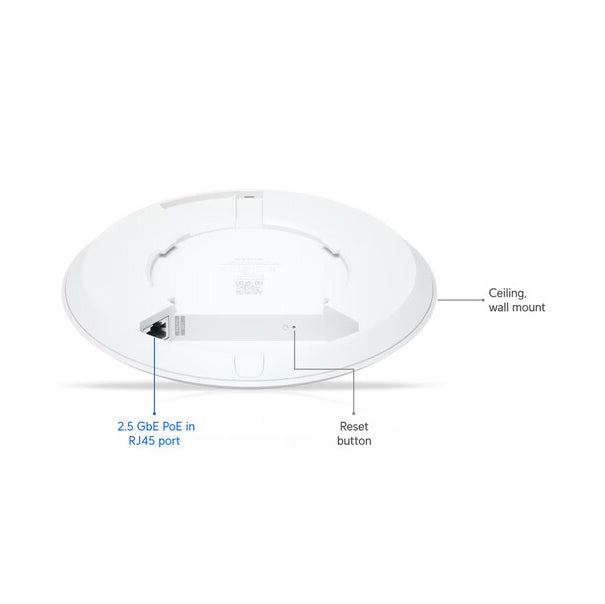

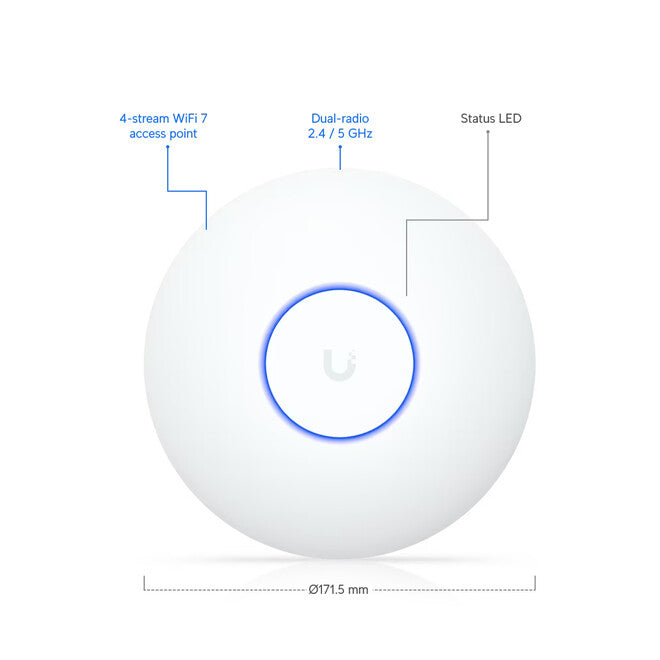

The UniFi U7 Lite Dual-Band Wireless Access Point from Ubiquiti Networks is a compact, ceiling-mounted Wi-Fi 7 (802.11be) AP with four spatial streams and a 2.5GbE RJ45 uplink port that also functions as a PoE port. It supports 2.4 and 5 GHz dual-band connectivity, with max data rates of up to 4.3 Gb/s when connected to the 5 GHz band and 688 Mb/s when connected to 2.4 GHz.

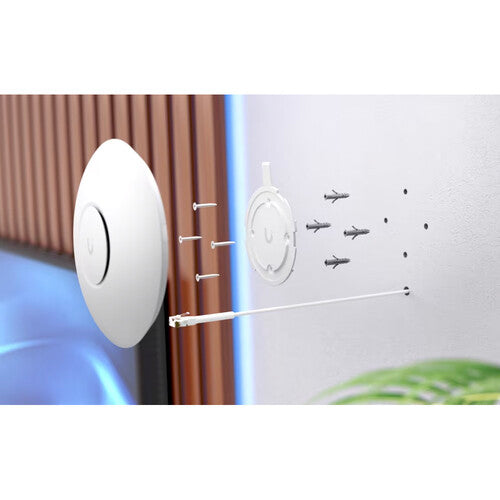

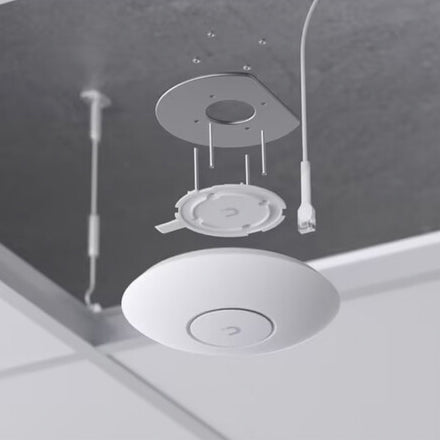

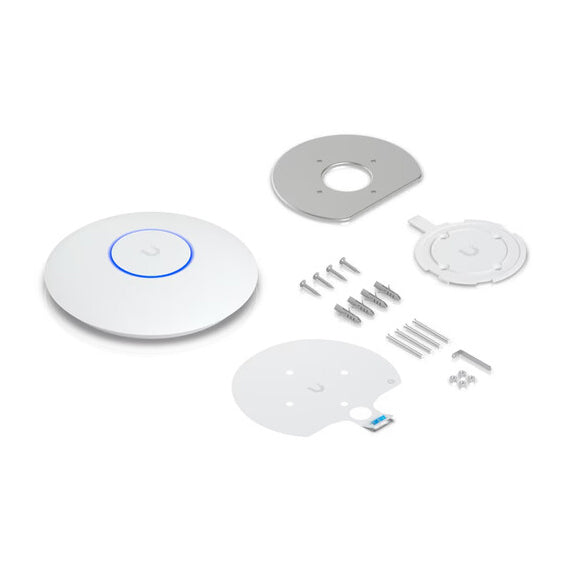

In addition to Wi-Fi 7, it is backward compatible with Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), and Wi-Fi 4 (802.11n). Also featured is a 5 dBi antenna gain, coverage for up to 1250 ft2, a max client count of 200+, four spatial streams, and a status LED. Included is a Lite Mount and mounting hardware.
Specification
| Wireless | |
|---|---|
| Wi-Fi | Wi-Fi 7 (802.11be); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2) |
| Antenna Gain | 5 dBi |
| Transmit Power | 24 dBm |
| Supported Protocols | RADIUS |
| Antenna Placement | Internal |
| Bluetooth | No |
| Performance | |
| Throughput | 5000 Mb/s Total (2.4 GHz: 688 Mb/s, 5 GHz: 4300 Mb/s) |
| Interface | |
| Inputs/Outputs | 1x RJ45 2.5 GbE PoE (Unspecified) |
| Security | |
| Wireless Security | No |
| Lock Slot | No |
| Management | |
| Operation Modes | Access Point |
| Supported Clients | 200 |
| Mobile App Compatible | Yes: Android & iOS |
| Hardware | |
| Supported IEEE Standards | 802.11ac, 802.11ax, 802.11be, 802.11n |
| Electrical | |
| Input Power | 42.5 to 57 VDC |
| Power Consumption | 13 W |
| General | |
| Environmental Resistance | No |
| Certifications | CE, FCC, IC |
| Operating Conditions | -22 to 104°F / -30 to 40°C at 5 to 95% Humidity |

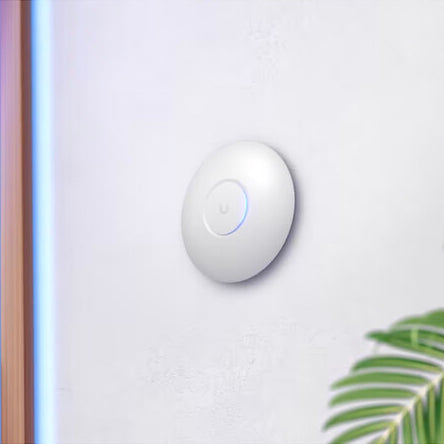

| Mount Options | Wall, Ceiling |

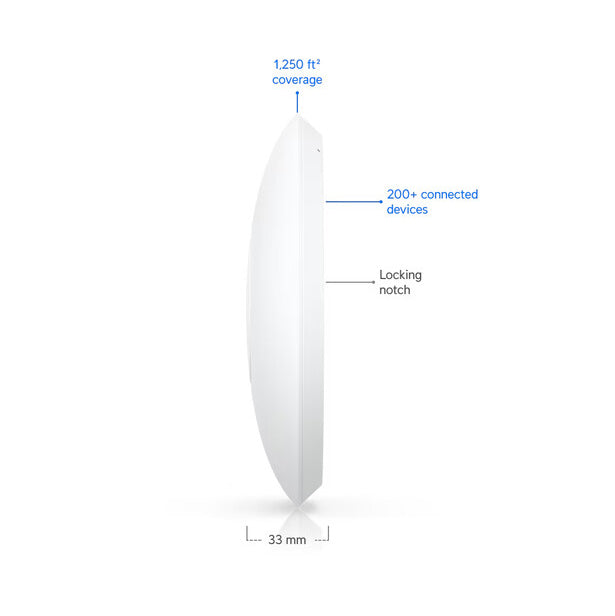

| Dimensions | 6.8 x 1.3" / 172.7 x 33 mm |
| Packaging Info | |
| Package Weight | 1.27 lb |
| Box Dimensions (LxWxH) | 9.5 x 7.4 x 2" |
