Ubiquiti U7-Outdoor-US UniFi AP 7 Outdoor US
MPN: U7-Outdoor-US
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Ubiquiti U7-Outdoor-US UniFi AP 7 Outdoor US is backordered and will ship as soon as it is back in stock.
Description
Description
- Wi-Fi 7 (802.11be)
- Up to 4.3 Gb/s Total Throughput
- 2.4 / 5 GHz (Dual-Band)
- 1 x 2.5G Ethernet PoE+ Port
- 2 x External & 1 x Internal Antennas
- IPX6 Rated

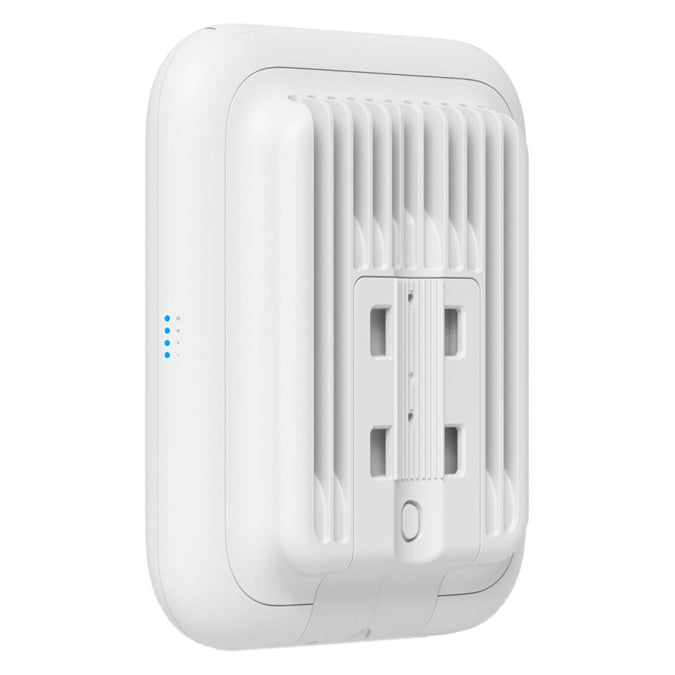

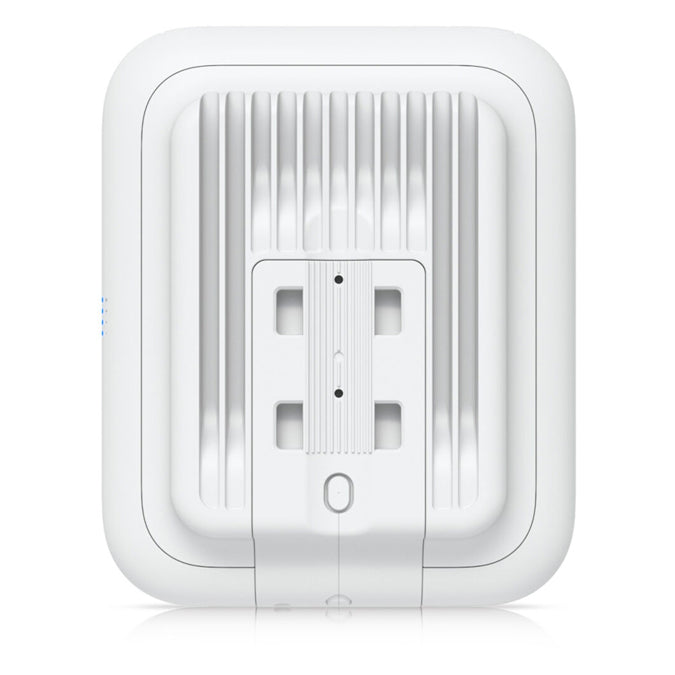

- Includes Wall & Pole Mounting Kits
- Up to 5000 Square Foot Coverage
- WPA3 Security
- Works with UniFi Network Application
Features
Experience fast and reliable wireless connections in outdoor areas by expanding your network with the UniFi U7 Outdoor Dual-Band Wi-Fi 7 Access Point from Ubiquiti Networks. Supporting over 200 concurrent connections, this IPX6-rated Wi-Fi 7 (802.11be) access point mounts onto a wall or pole to provide up to 4.3 Gb/s transfer speeds over the 2.4 and 5 GHz bands.

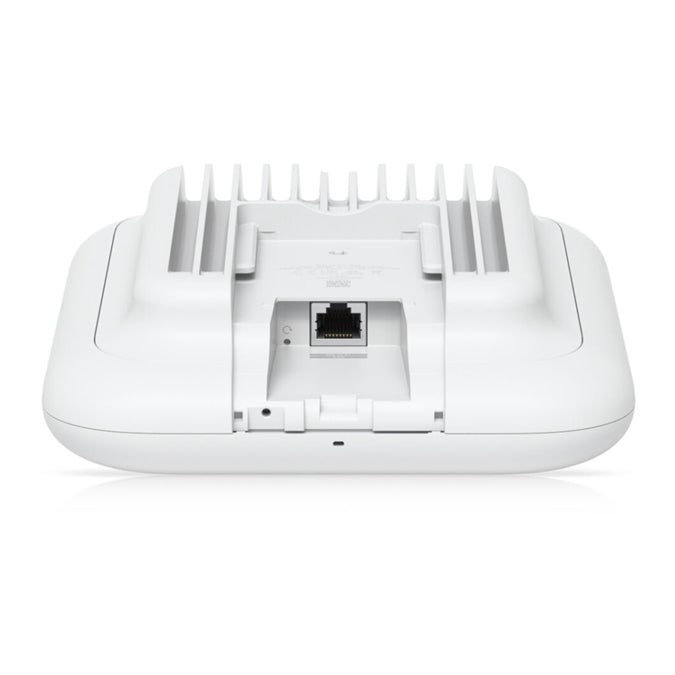

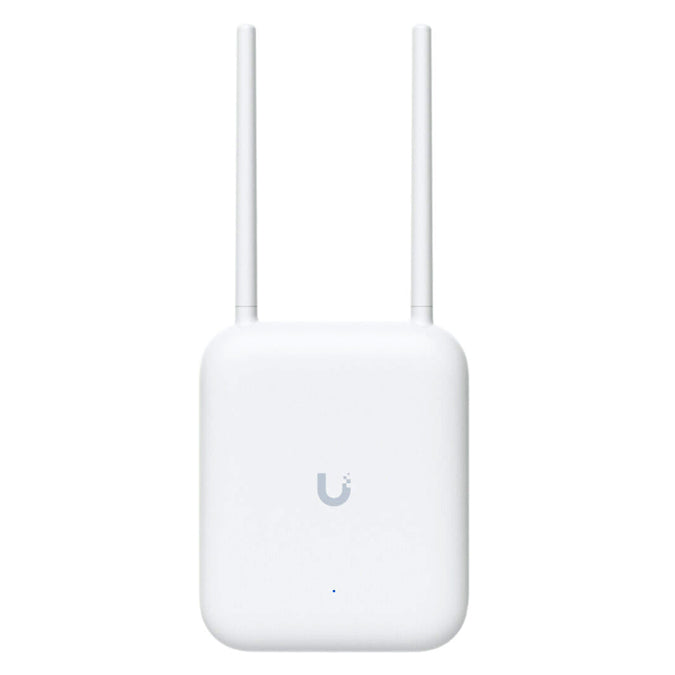

The two detachable, software-adjustable external omnidirectional antennas work with the one internal directional antenna to provide you with up to 5000 square feet of coverage. Connect the 2.5G Ethernet port to a PoE+ compatible switch to transfer power and data over a single cable. Use the UniFi Network application to set up, configure, and manage your device. Your wireless connections are protected by WPA3 encryption.
- Manage networks from a single interface
- Intuitive configuration options and robust device control and monitoring
- Remote device firmware updates
- Manage network users and guests
- Personalize the design, architecture, and privacy of guest hotspots
Specifications
Wi-Fi |
Wi-Fi 7 (802.11be); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2) |
Number of Antennas |
2x External 1x Internal |
Antenna Gain |
3 to 12.5 dBi |
Transmit Power |
23 to 26 dBm |
Antenna Placement |
Internal, External (Detachable) |
Bluetooth |
No |
Throughput |
4300 Mb/s Total |
Inputs/Outputs |
1x RJ45 2.5 GbE PoE+ (30 W, 802.3at) 2x SMA Antenna |
USB Sharing Support |
No |
Guest Network Support |
Yes |
Wireless Security |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-PSK |
Lock Slot |
No |
