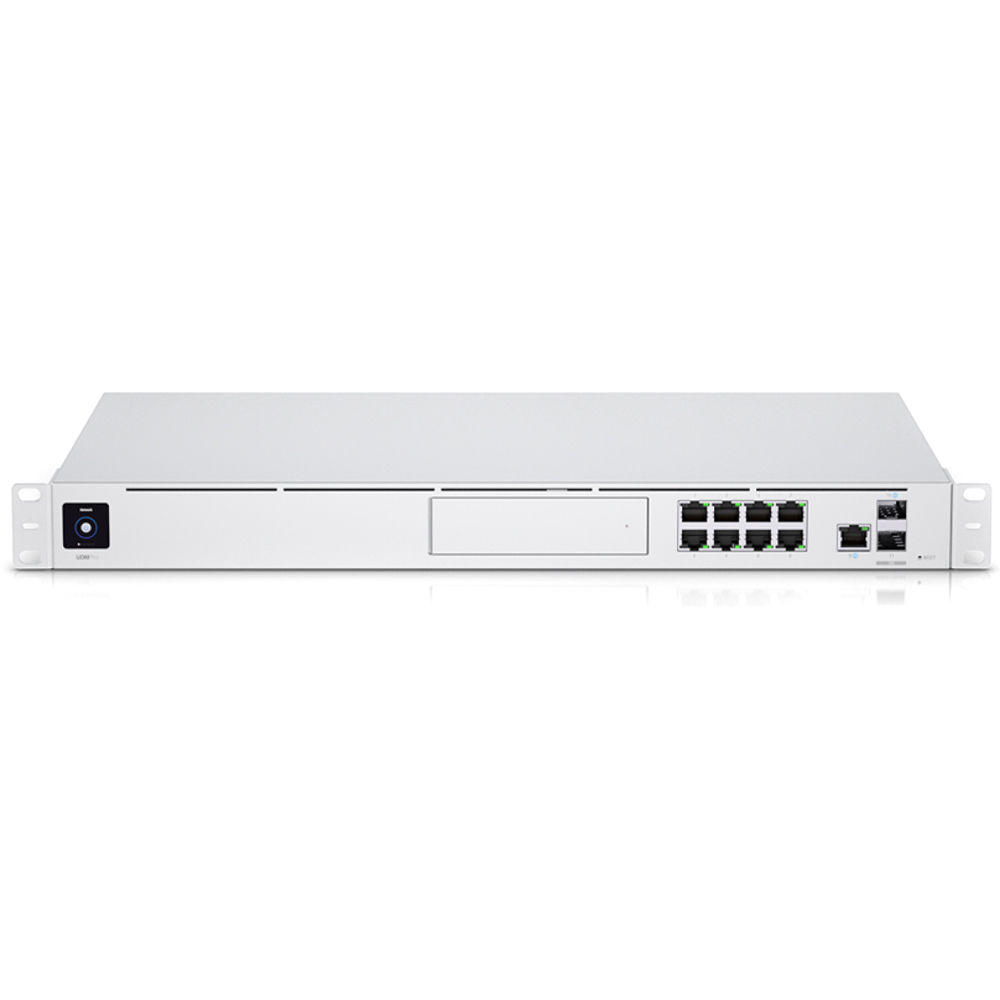

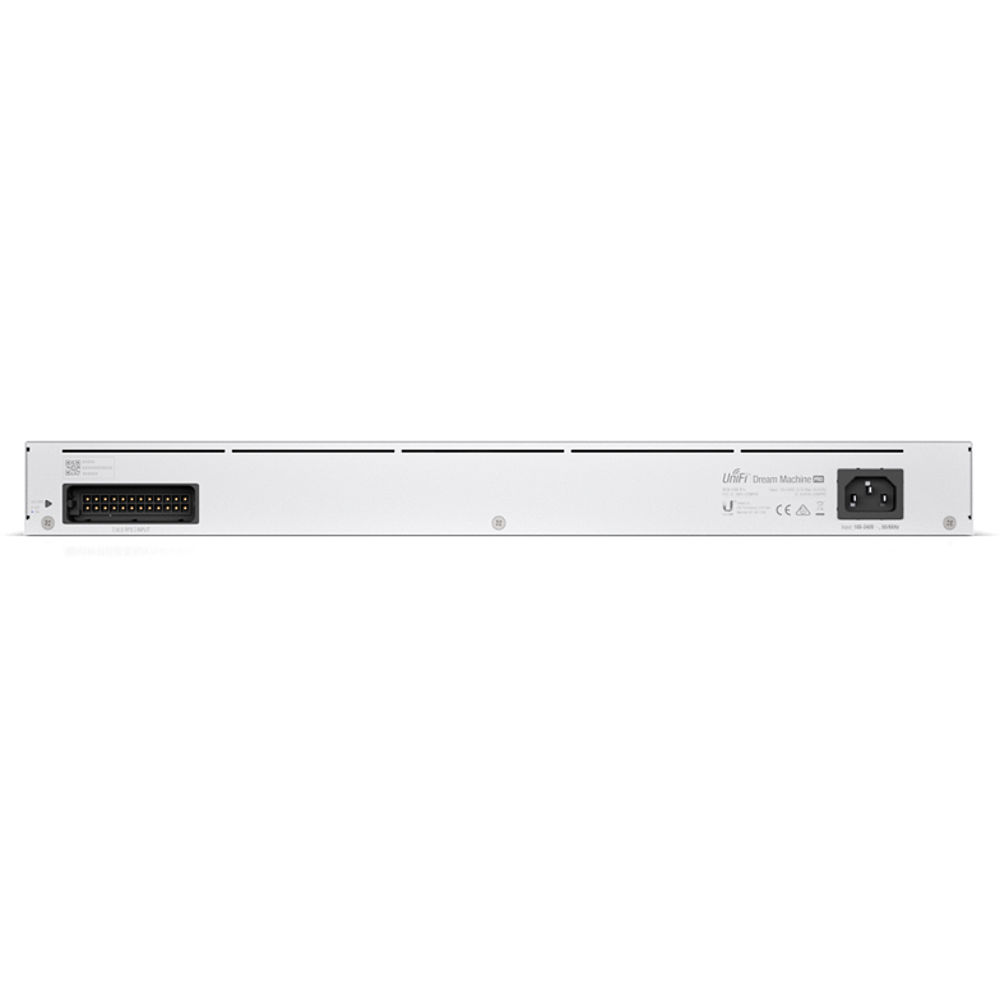

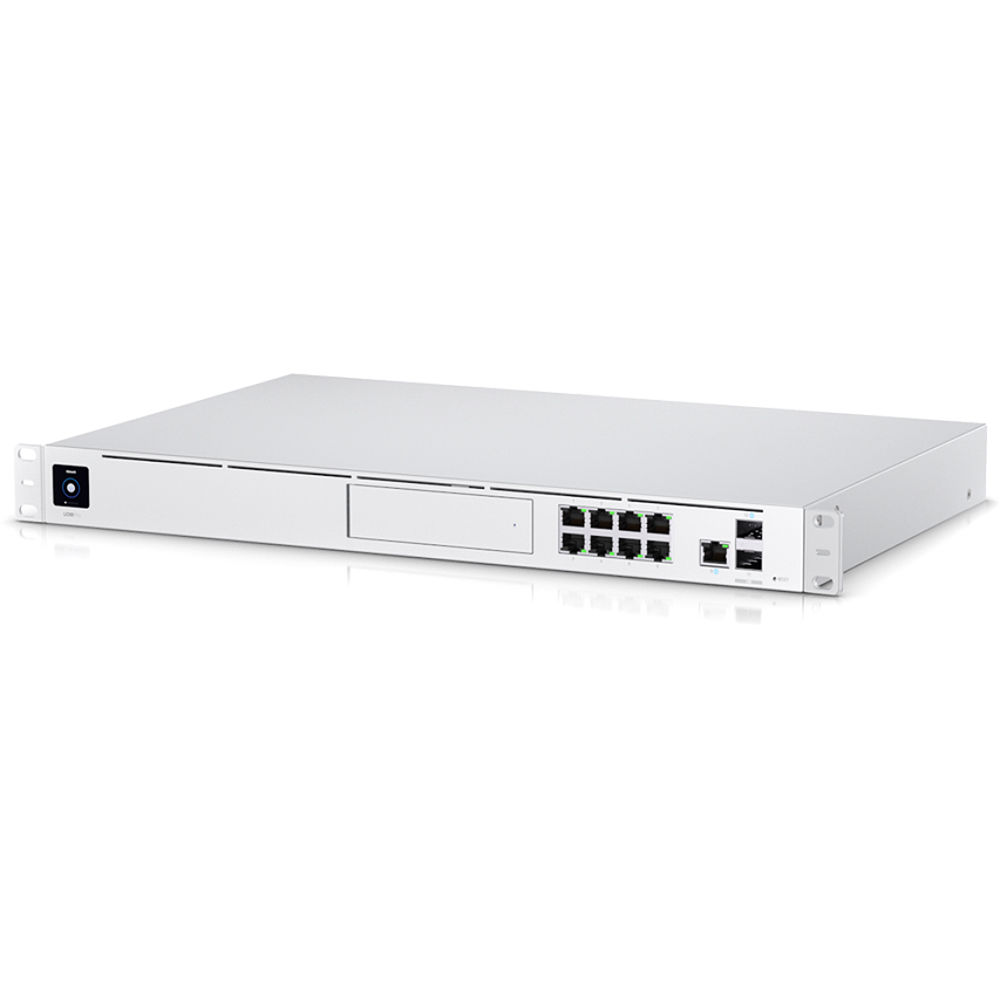

Ubiquiti UDM-PRO, UniFi Dream Machine Pro - Enterprise Security Gateway and Network Appliance

SKU UBUDM-PRO
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • All-in-One Enterprise Network Appliance
  • Security Gateway
  • 8-Port Gigabit Switch
  • 10G SFP+ Ports
  • 2.5" / 3.5" HDD Bay
  • 1.7 GHz ARM Cortex-A57 Quad-Core
  • 4GB DDR4 RAM | 16GB eMMC
  • 1U Rack Size
  • 1.3" Touchscreen Display
  • UniFi Protect Integration

Streamline your small to medium business network with the UniFi Dream Machine Pro.

The enterprise-class network device integrates a security gateway, 10G SFP+ WAN, an eight-port Gigabit switch, and 2.5" / 3.5" hard drive support into a single 1U rack appliance for UniFi Controllers. Powered by a 1.7 GHz ARM Cortex-A57 Quad-Core processor, 4GB of memory, and 16GB of onboard eMMC flash storage, the security gateway offers an intrusion detection and protection system with a 3.5 Gb/s max throughput rate. The eight-port RJ45 managed switch has a 10 Gb/s SFP+ LAN port available for network expansion and supports advanced Layer 2 features. A 1.3" touchscreen displays the device's status for easy monitoring and troubleshooting. Additionally, the integrated UniFi Protect controller automatically detects attached security cameras, and you can access up to 20 live camera feeds, network statistics, and more from a centralized interface. Video surveillance recordings may be stored onto an off-the-shelf 2.5" or 3.5" hard drive that you install into the built-in bay.

Security Gateway The UniFi Dream Machine Pro's enterprise-class security gateway combines routing, advanced firewall and VPN services, Deep Packet Inspection (DPI), 10 Gbps SFP+ WAN, and a full intrusion detection and prevention system with a 3.5 Gb/s throughput into a single device. Managed Switch A fully managed switch with eight Gigabit RJ45 ports and a 10 Gbps SFP+ LAN port is integrated into the network device.

Configurable port features include:

  • Individual port operation modes (switching, mirroring, or aggregate).
  • Network/VLAN configuration.
  • Jumbo frame and flow control services.
  • Network settings.
  • Storm control setting per port.
  • Spanning tree configuration.
  • 802.1X control and RADIUS VLAN.
  • Debug terminal option for command-line interface.

Wi-Fi Intelligence

Built-in features include Wi-Fi AI, which automatically optimizes the wireless network for improved performance. UniFi Protect UniFi Protect offers professional grade video surveillance and network video recording (NVR), which can be stored locally onto 2.5" / 3.5" hard drives installed into the integrated bay. It also allows you to access up to 20 live camera feeds simultaneously and use the Time Lapse feature to quickly review recordings in addition to updating and configuring your cameras from a centralized interface. Advanced Redundancy Features The UniFi Dream Machine Pro includes multiple redundancy features to help maintain reliable network connectivity. They include:

  • USP-RPS redundant power in case of power loss.
  • U-LTE backup connectivity to the internet.
  • Dual WAN ports with Failover.
  • Failure alerts.
  • Automated failover.

Managing Network Performance The UniFi Network Controller is accessible using a web browser or the UniFi mobile app to manage connected devices, install applications, map networks, monitor system traffic, and more. This system is compatible with the UniFi OS, a cloud-based portal that enables you to manage your network remotely.





Inputs/Outputs 1x RJ45 Gigabit Ethernet LAN
8x RJ45 Gigabit Ethernet
1x SFP+ 10 GbE LAN
1x SFP+ 10 GbE
