Panamax MB1500, 1500VA Rack Mount UPS, Black
by Panamax
SKU PNMB1500
Panamax MB1500VA Rack Mount UPS
The Panamax MB1500 protects your audio/video gear three ways. First, it guards against harmful spikes and surges that can damage equipment with either one catastrophic strike, or the cumulative damage that can compromise delicate electronics over time. The MB1500 also maintains outgoing power at a consistent, optimal level, ensuring the best possible picture and sound from your gear. But what sets the MB1500 apart from most power conditioners is its massive built-in uninterruptible power supply (UPS)

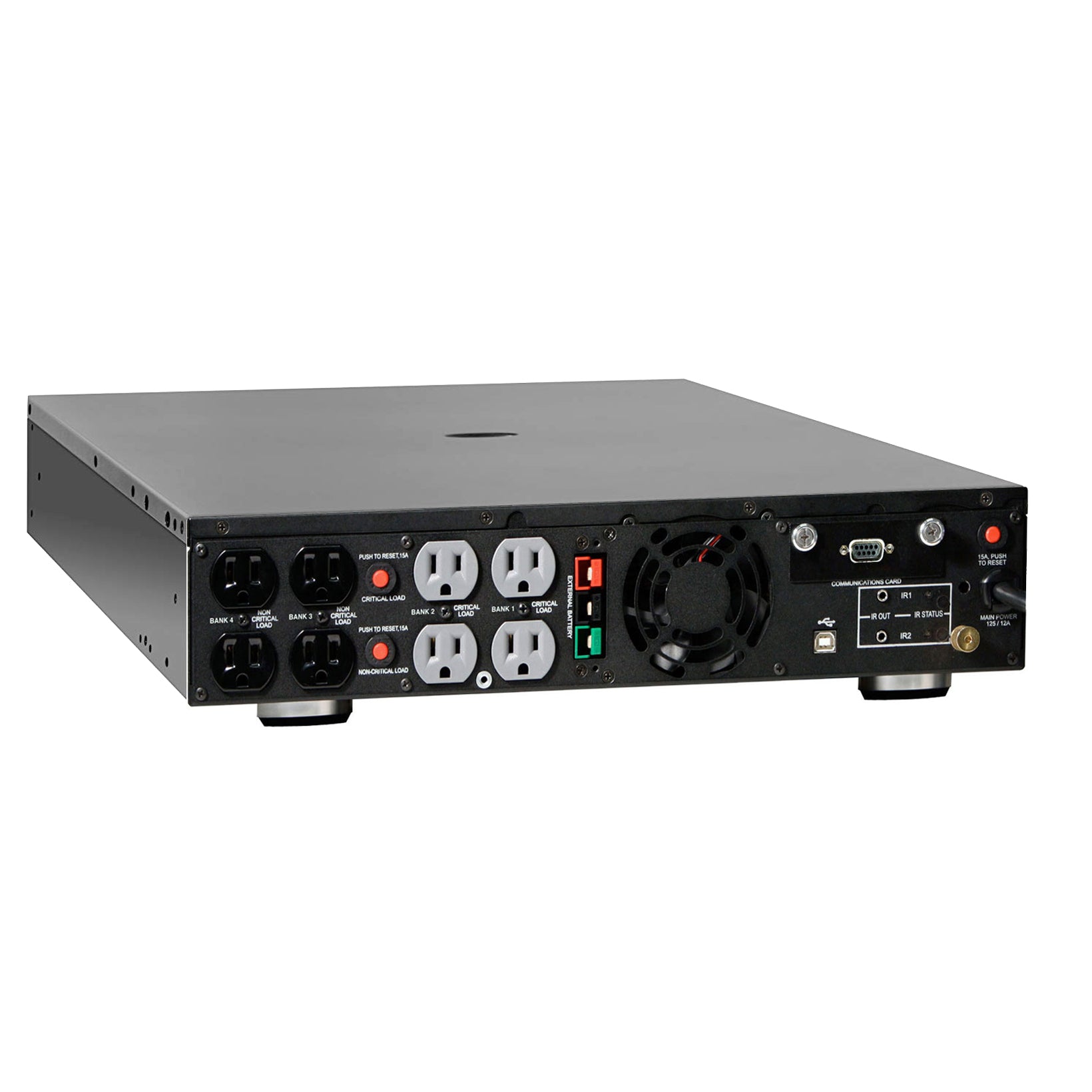

- 8 AC outlets with 4 programmable isolated banks:
- two isolated, battery-protected banks of two outlets for critical-load components
- two isolated, battery-protected banks of two outlets for non-critical-load components
- 1500VA/900W uninterruptible power supply (UPS) provides battery power to components during brief blackouts and brownouts
- UPS backup time: 12 minutes with full load, 32 minutes with half load
- automatic voltage regulation circuitry ensures that components receive consistent power by maintaining voltage within an optimum range
- Automatic Voltage Monitoring circuitry will automatically disconnect equipment from power if it senses an unsafe power condition
- LiFT (Linear Filtration Technology) filters noise evenly across the entire frequency band
- type-B USB port allows communication between the conditioner and a computer
- RS-232 serial communication port for connecting to an automation, media server, or computer system
- two 3.5mm jacks for connecting IR flashersĂ‚Â

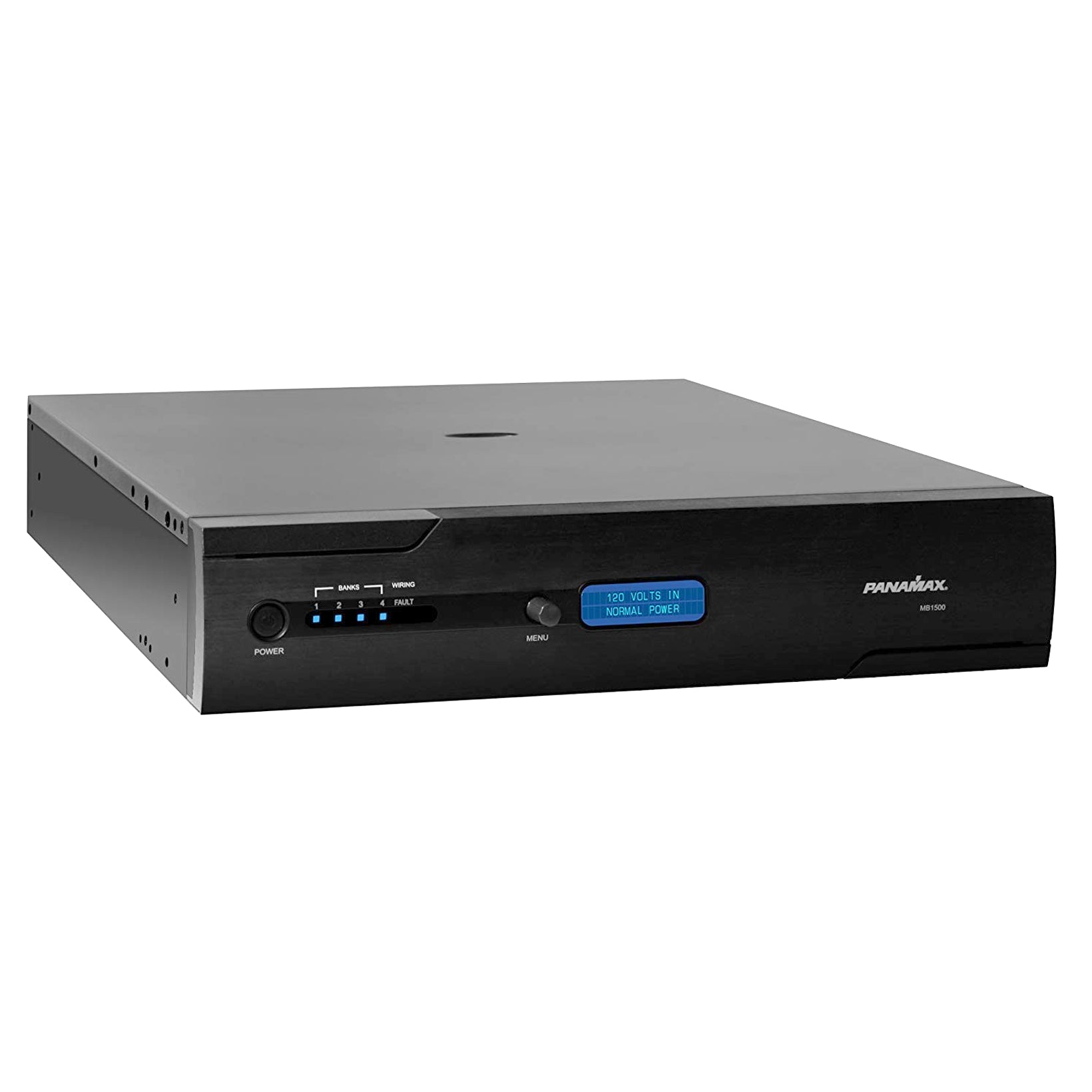

- front-panel LCD display shows status and menu navigation
- two resettable circuit breakers provide optimal overload protection
- maximum current rating: 12 amps (recommended maximum of 7.5A for battery power)
- includes USB cable (Type-A-to-Type-B), serial cable for RS-232, software CD, and rack mounting ears
| Total AC Outlets | 8 |
|---|---|
| High-Current Outlets | None |
| USB Connections | 1 |
| RF-EMI Filtering | Yes |
| Joule Rating | Not Given |
| Powerline Network Compatible | No |
| Connected Equipment Guarantee | N/A |
| Width (inches) | 17-1/16 |
| Height (inches) | 4 |
| Depth (inches) | 20-11/16 |
| Weight (pounds) | 72.5 |
