Vertical Cable (214-2321/TL), Access Control Cable Riser: 22/2(Shielded) Data + 18/2 Power, Stranded Bare Copper Conductors, Teal with Yellow Stripe, 1000ft
SKU VECNTRL(214-2321TL)

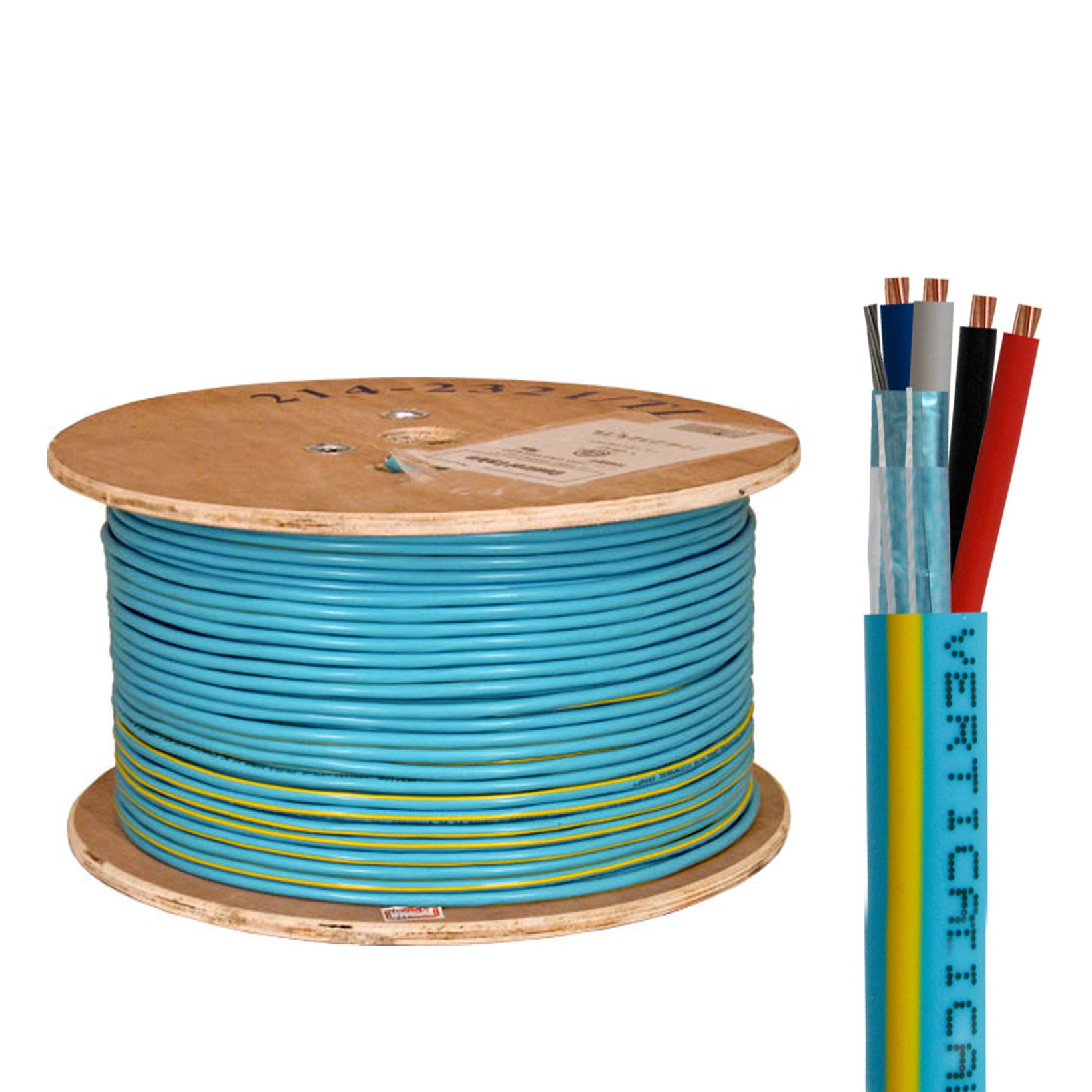

Vertical Cable (Shielded) Bare Copper Conductors, Teal with Yellow Stripe, 214-2321/TL (1000ft)Spool
- Touch Panels, Key Pads
- Expansion Modules, Tuners
- Indoor Applications
- Power Limited Control Circuits
- ETL Lisetd, RoHS Compliant
- 1000ft Spool

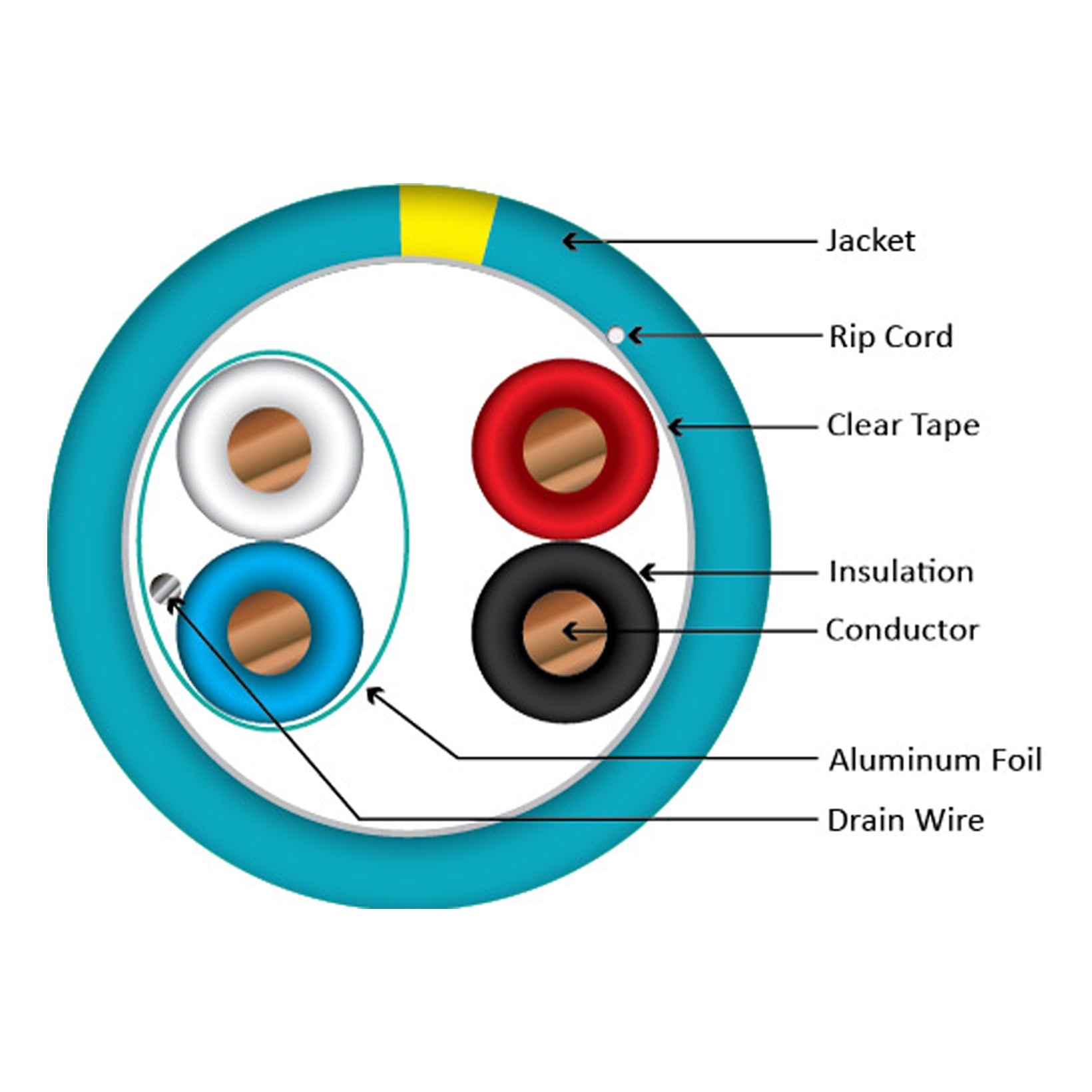

This is a 2 component control cable that consists of a 22 awg 2 wire shielded cable for data and a 18 awg 2 wire cable for power. All the conductors are made of stranded bare copper. Overall jacket is made of PVC and Jacket color is teal with yellow stripes.
This cable is designed for indoor applications such as touch panels, key pads, expansion modules, tuners and power limited control circuits. This product is CM and CL3 (in wall) rated, ETL listed and RoHS compliant. Length of the cable is 1000ft and is delivered in wooden spool.
| Model | 214-2321/TL |
|---|---|
| Package Weight | 39 lb |
| Box Dimensions (LxWxH) | 20 x 20 x 9 in |
