Xantech | SKU:
XADL85

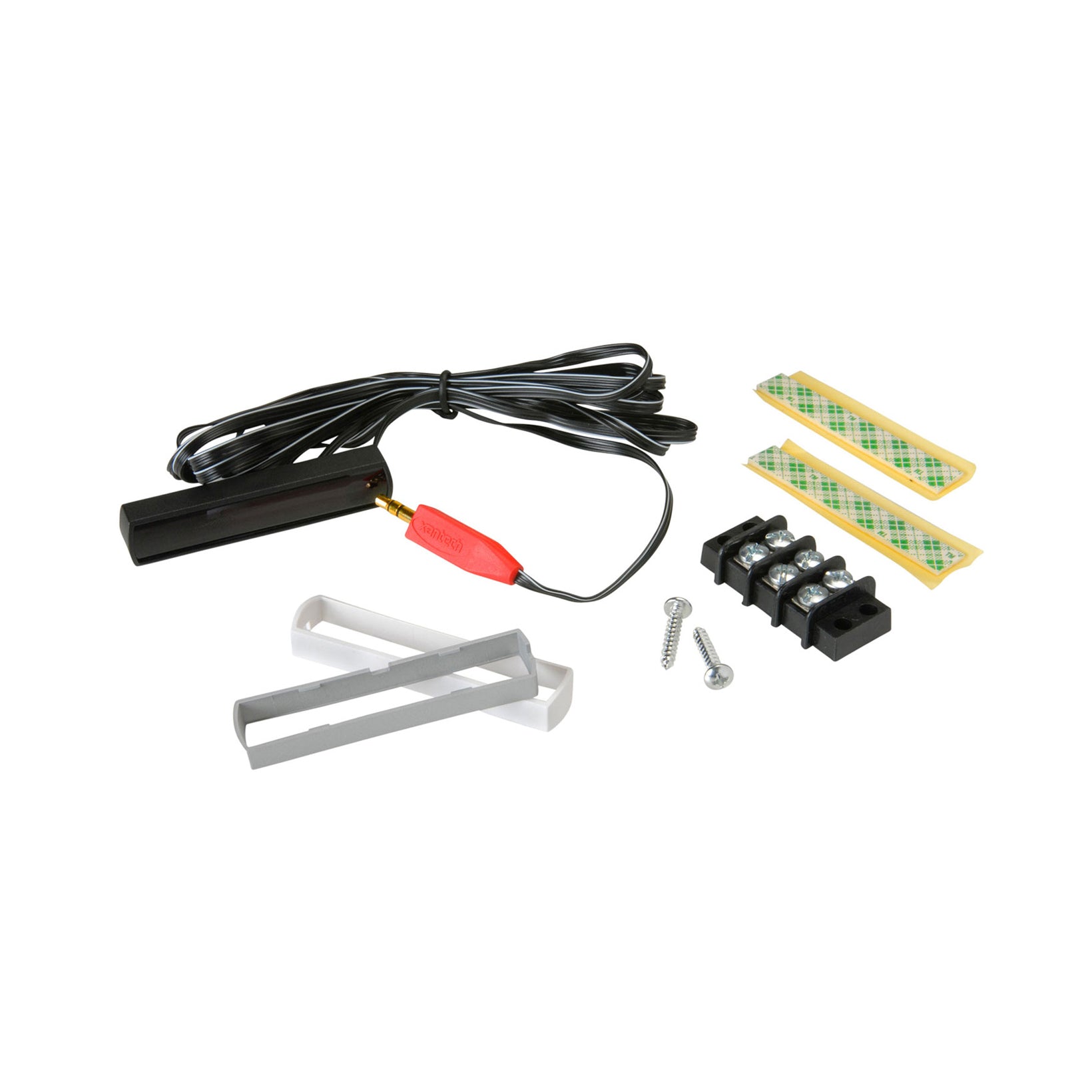

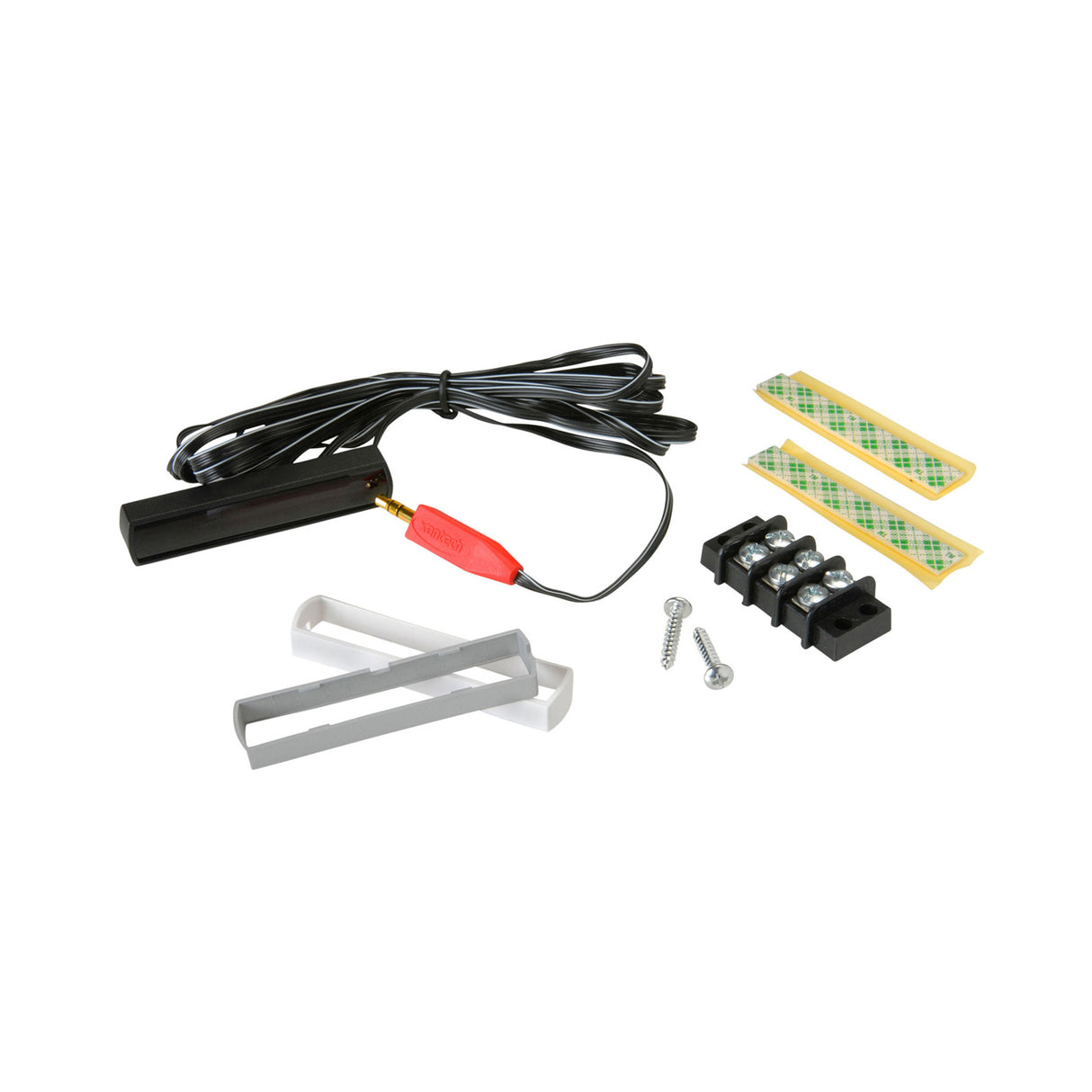

Xantech DL85 LCD/CFL Dinky Link IR Receiver
MPN: DL85
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Xantech DL85 LCD/CFL Dinky Link IR Receiver is backordered and will ship as soon as it is back in stock.
Description
Description
DL85 -Â Dinky Link Plasma/LCD/LED/CFL Proof IR Receiver
These small IR receivers have been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc. – anywhere an inconspicuous appearance is desired. The high sensitivity of these receivers allows placement behind speaker grilles and still receive IR commands up to 80 feet away.
Features
- Wire channel for clean installation.
- System testing red-talk-back LED.
- Includes 3-Terminal Block for easy extension to remote room locations.
Specs
| Weight | 0.5lb |
|---|---|
| Length | 6.1in |
| Width | 0.4in |
| Height | 1.3in |
| Infrared carrier frequency bandwidth | 30 - 60 kHz |
| Reception range | Up to 80 feet |
| Reception angle | +/- 60 degrees |
| Max. Transmission length | 1 mile using 18 gauge wire |
| Maximum current output | 100mA |
| Power requirements | +12VDC, 10mA |
