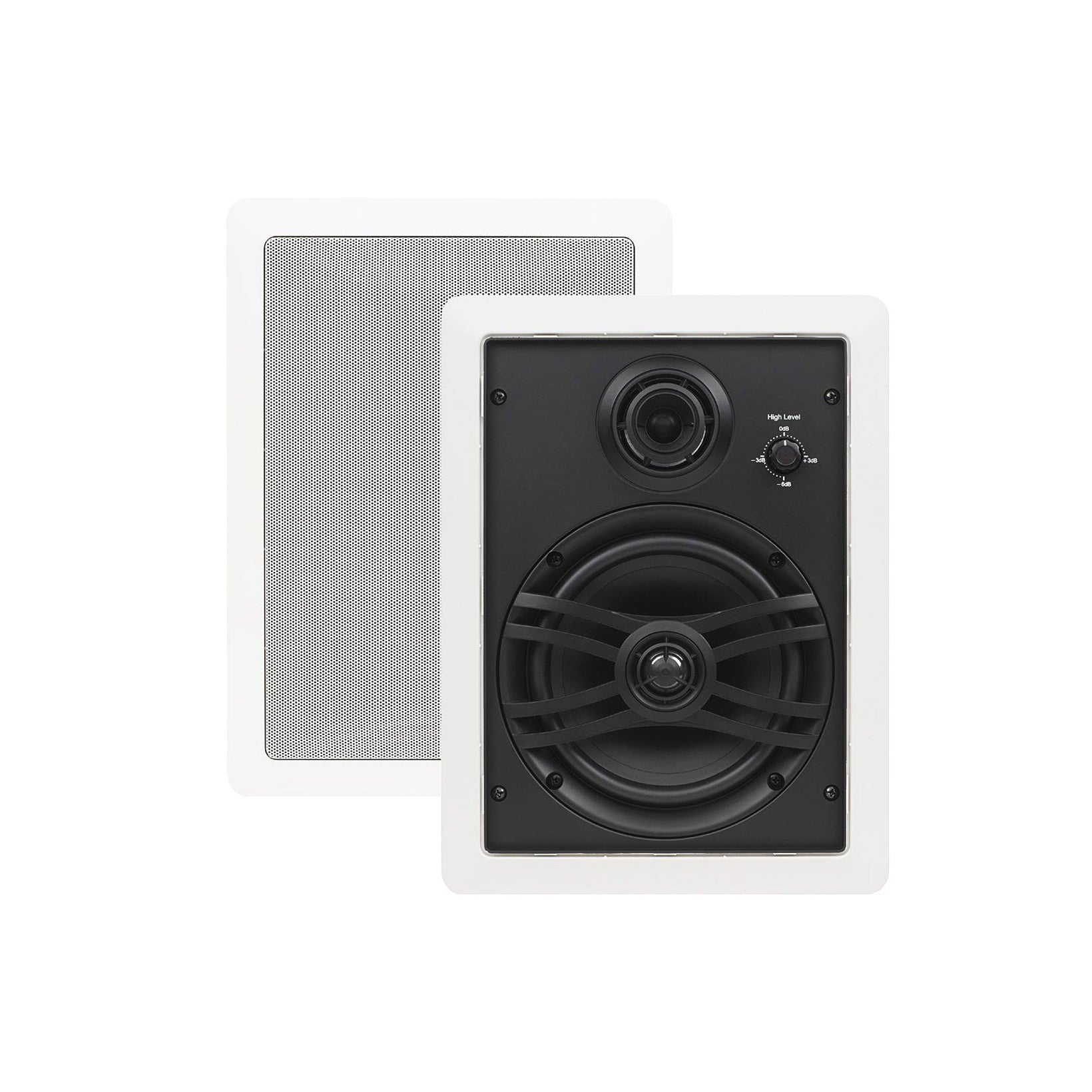

Yamaha NS-IW470 In-Wall Speaker, White (Pair).
NS-IW470 Natural Sound 3-way In-wall Speaker System
Easy-to-Install, In-Wall Speaker System delivers high-quality natural sound to enhance the Home Theater experience.
- New Natural Sound In-Wall Speaker System
- Versatile Design Perfect for Any Room Situation
- 6.5" Coated Paper Cone Woofer
- 2" Paper Cone Midrange (Level Adjustable)
- 1" Silk Soft Dome Tweeter ・Swivel Tweeter and Midrange
- Push-Type Speaker Terminals
- 120W Maximum Input Capability
- Paintable Grille with Protective Cover Included
Do-It-Yourself Installation, Paintable Grille and Frame
With a few basic tools you can easily install these speakers in the wall yourself. The grilles and frames can be spray painted to match the room's decor.
Low Distortion, High Capacity Customized Crossover Network
The NS-IW470WH features a high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network.
Internally Wired with Monster Cable™
Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker driver.
Swivel Tweeter and Midrange Driver, with High-Level Adjustment
You can swivel the tweeter and midrange driver to " aim" the high frequency sound toward the main listening area. To do this, simply press on the edge of the tweeter or midrange and set the position. You can also adjust the level of the midrange by using the "High-Level" control to match your taste or the installation environment.
NS-IW470 Natural Sound 3-way In-wall Speaker System
| Recommended Usage | In-Wall Front / Surround Speakers | |
|---|---|---|
| Type | 3-Way In-Wall | |
| Woofers | 6-1/2" | |
| MidRange Driver | 1-5/8" Aluminum Dome Driver | |
| Tweeters | 2" | |
| Swivel Tweeter and Midrange Driver | Yes | |
| Paintable Grill with Protective Cover Included | Yes | |
| Frequency Response | 55 Hz - 28 kHz | |
| Sensitivity | 87 dB/2.83 V/1 m | |
| Input Power (Max / Nominal) | 120W / 40W | |
| Impedance | 6 Ohms | |
| Product Dimensions (W x H x D) | 8-29/32" x 3-13/16" x11-15/16 | |
