Ubiquiti  |  SKU: UBUAP-AC-HD-US

Ubiquiti UAP-AC-HD-US, High Density, Wave 2 802.11ac UniFi High-Density, 4x4 MU-MIMO Access Point** US POWER CORD, US/FCC CHANNEL/FREQUENCY PLAN ONLY

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Ubiquiti UAP-AC-HD-US, High Density, Wave 2 802.11ac UniFi High-Density, 4x4 MU-MIMO Access Point** US POWER CORD, US/FCC CHANNEL/FREQUENCY PLAN ONLY is backordered and will ship as soon as it is back in stock.

Description

  • 802.11ac Wave 2 Wi-Fi Standards
  • 2 x 10/100/1000 Ethernet Ports
  • 4x4 Spatial Streams
  • UniFi Controller Software
  • Integrated Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet
  • 500+ Concurrent Clients
  • Reset Button
  • CE, FCC, IC Certified
Features

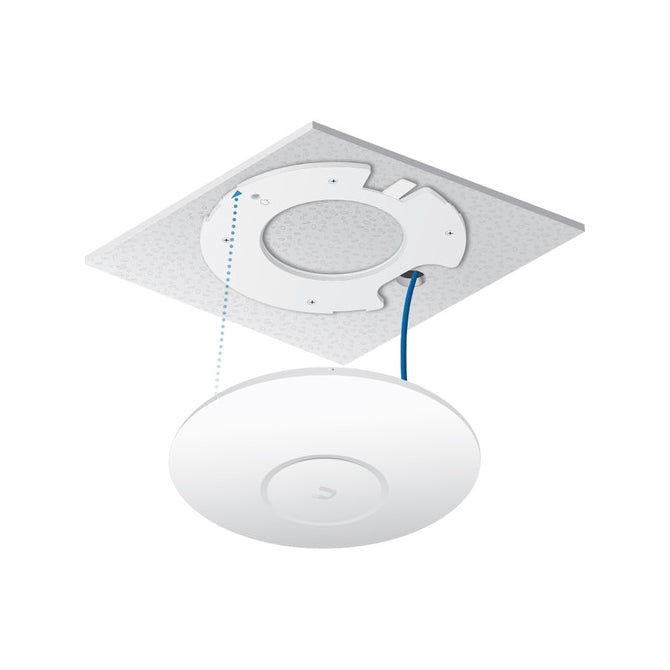

The UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits.

Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.

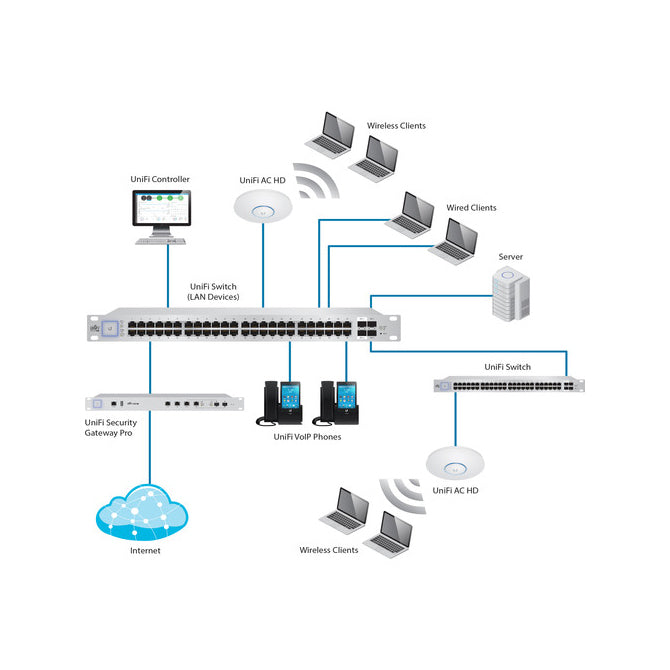

The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training.

Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

Specifications
Wi-Fi
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4)
Throughput
2150 Mb/s Total
2.4 GHz: 450 Mb/s
5 GHz: 1700 Mb/s

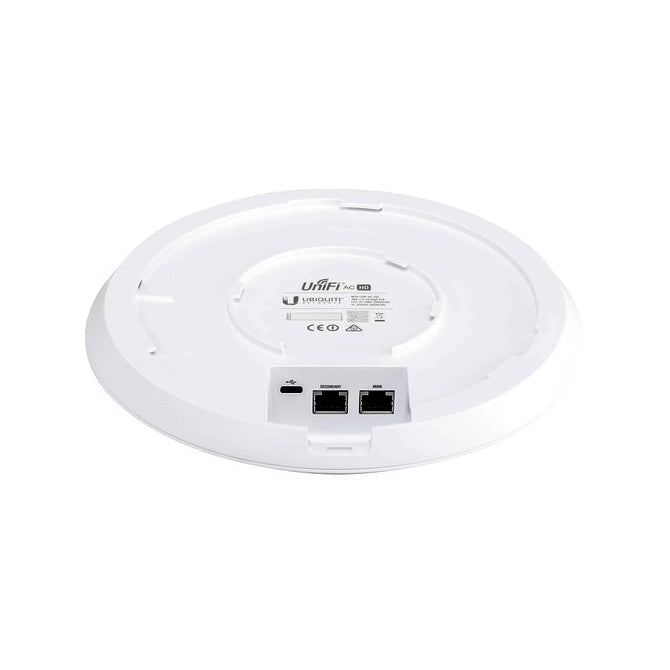

Inputs/Outputs
2x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
1x USB-C
Wi-Fi
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4)
Number of Antennas
4
Antenna Gain
3 to 4 dBi
Transmit Power
6 to 25 dBm
Supported Protocols
WMM
Antenna Placement
Internal
Throughput
2150 Mb/s Total
2.4 GHz: 450 Mb/s
5 GHz: 1700 Mb/s
Inputs/Outputs
2x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
1x USB-C
Wireless Security
AES, TKIP, WEP, WPA, WPA-PSK, WPA-Enterprise, WPA2, WPA2-Enterprise
Max SSIDs Supported
8
Storage Capacity
4 GB
Processor
Qualcomm
CPU
Dual-Core: Up to 1.4 GHz Krait
Supported IEEE Standards
802.11a, 802.11ac, 802.11b, 802.11g, 802.11i, 802.11n, 802.3at (PoE+ 30 W
