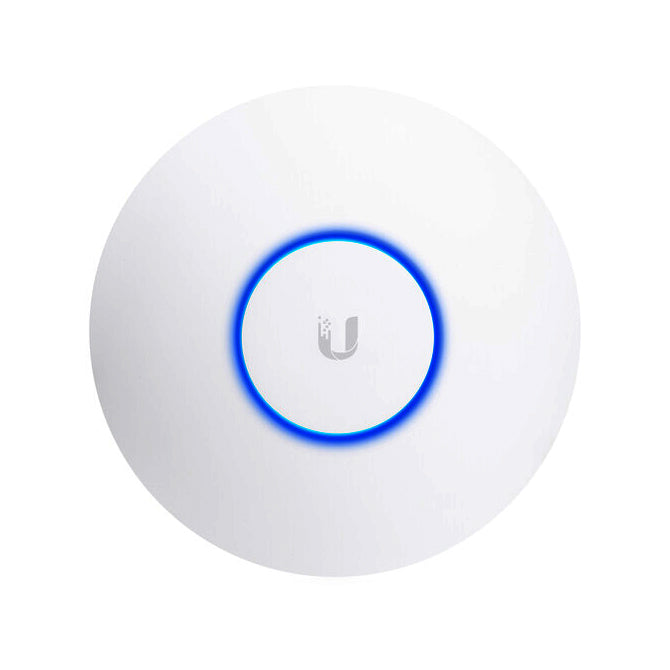

Ubiquiti UAP-AC-HD-US, High Density, Wave 2 802.11ac UniFi High-Density, 4x4 MU-MIMO Access Point** US POWER CORD, US/FCC CHANNEL/FREQUENCY PLAN ONLY
- 802.11ac Wave 2 Wi-Fi Standards
- 2 x 10/100/1000 Ethernet Ports
- 4x4 Spatial Streams
- UniFi Controller Software
- Integrated Omni Antennas
- Guest Portal/Hotspot Support
- Passive Power over Ethernet
- 500+ Concurrent Clients
- Reset Button
- CE, FCC, IC Certified
The UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits.
Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training.
Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4) |
| Throughput | 2150 Mb/s Total 2.4 GHz: 450 Mb/s 5 GHz: 1700 Mb/s |
| Inputs/Outputs | 2x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 1x USB-C |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4) |
| Number of Antennas | 4 |
| Antenna Gain | 3 to 4 dBi |
| Transmit Power | 6 to 25 dBm |
| Supported Protocols | WMM |
| Antenna Placement | Internal |
| Throughput | 2150 Mb/s Total 2.4 GHz: 450 Mb/s 5 GHz: 1700 Mb/s |
| Inputs/Outputs | 2x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 1x USB-C |
| Wireless Security | AES, TKIP, WEP, WPA, WPA-PSK, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Max SSIDs Supported | 8 |
| Storage Capacity | 4 GB |
| Processor | Qualcomm |
| CPU | Dual-Core: Up to 1.4 GHz Krait |
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11b, 802.11g, 802.11i, 802.11n, 802.3at (PoE+ 30 W |
