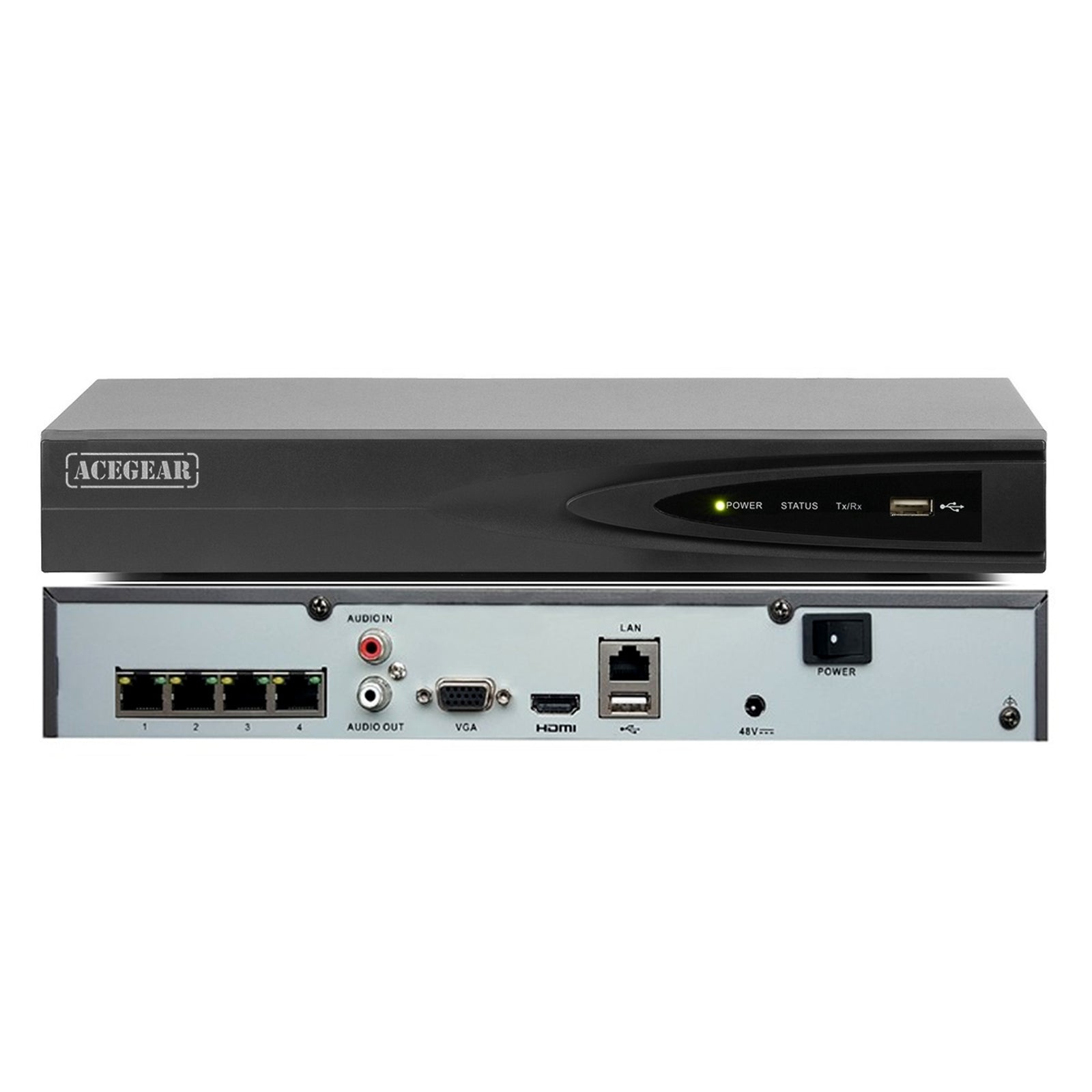

Acegear AGNVR4P4K265K1+ (4-CH) 1-SATA Interfaces, 4-PoE, UL Listed
by Acegear
SKU AGNVR4P4K265K1+
Acegear AGNVR4P4K265K1
- Up to 8MP recording resolution
- Full PoE interface
- 4-ch synchronous playback
- Provide simultaneous HDMI and VGA outputs. HDMI output at up to 4K resolution
- 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
The Acegear AGNVR4P4K265K1 NVR is capable to record in full digital IP cameras up to 8MP in resolution. The system can be remote access using mobile app available for Android and Apple iOS devices, Acegear also offers a free video management software available for Windows and MacOS.
| Analog video input | 4CH |
|---|---|
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 80Mbps |
| Remote connection | 32 |
| HDMI/VGA output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Live view/Playback resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| SATA | 1 SATA interface for 1 HDD, Up to 8 TB capacity for each disk |
| Network interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 |
| Power supply | 48 VDC, 1.35 A |
| Consumption (without HDD) | ≤ 10 W |
| Working temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Working humidity | 10% to 90% |
| Dimensions (WxDxH) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight (without HDD) | ≤ 1.18 kg (without HDD, 2.6 lb.) |
