Acegear AGNVR4P4K265K1+ (4-CH) 1-SATA Interfaces, 4-PoE, UL Listed

by Acegear
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

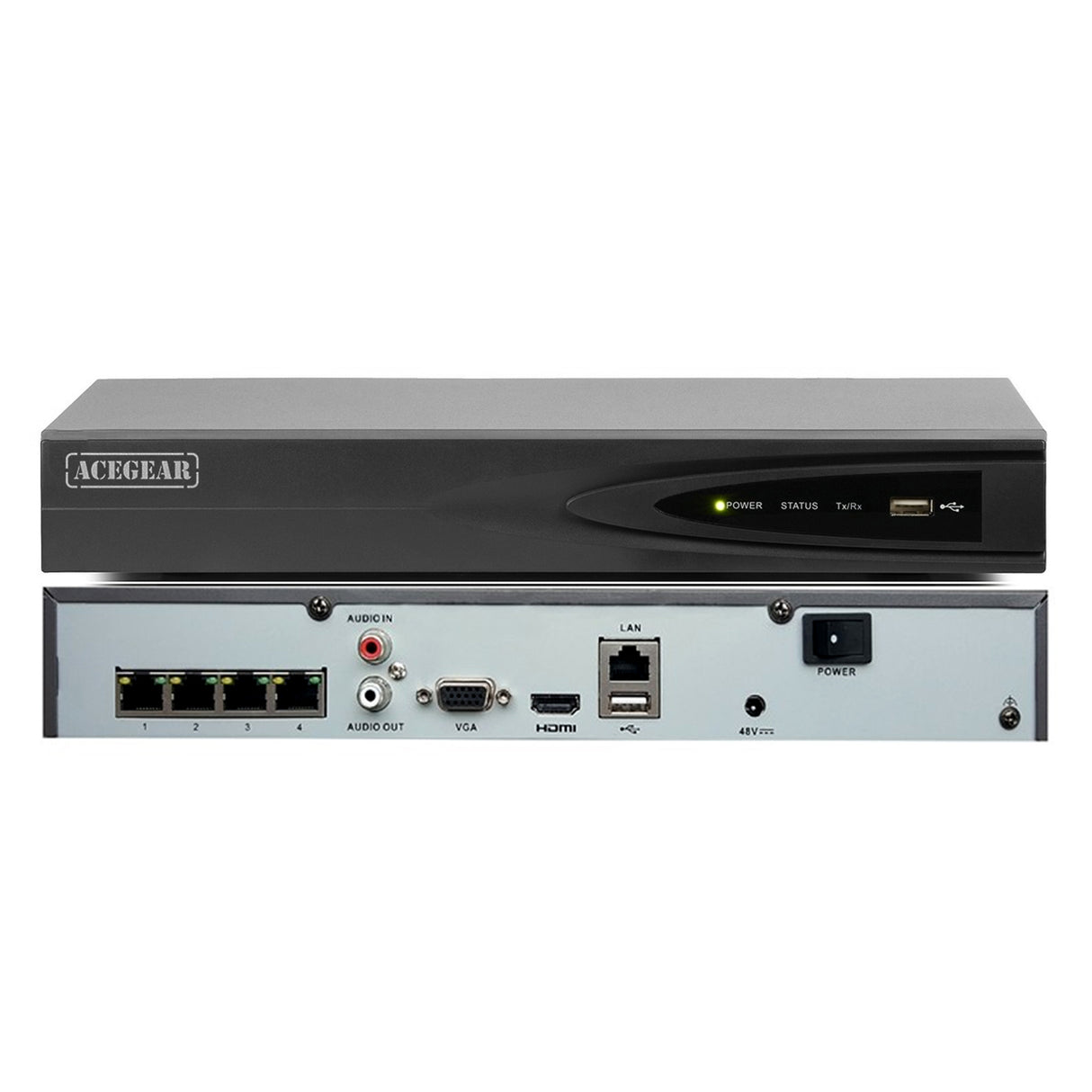

Acegear AGNVR4P4K265K1

  • Up to 8MP recording resolution
  • Full PoE interface
  • 4-ch synchronous playback
  • Provide simultaneous HDMI and VGA outputs. HDMI output at up to 4K resolution
  • 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)

The Acegear AGNVR4P4K265K1 NVR is capable to record in full digital IP cameras up to 8MP in resolution. The system can be remote access using mobile app available for Android and Apple iOS devices, Acegear also offers a free video management software available for Windows and MacOS.

Analog video input 4CH
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 40Mbps
Outgoing bandwidth 80Mbps
Remote connection 32
HDMI/VGA output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Live view/Playback resolution



Capability 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
SATA 1 SATA interface for 1 HDD, Up to 8 TB capacity for each disk
Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
USB interface 2 × USB 2.0
Power supply 48 VDC, 1.35 A
Consumption (without HDD) ≤ 10 W
Working temperature 14 °F to 131 °F (-10 °C to 55 °C)
Working humidity 10% to 90%
Dimensions (WxDxH) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight (without HDD) ≤ 1.18 kg (without HDD, 2.6 lb.)
