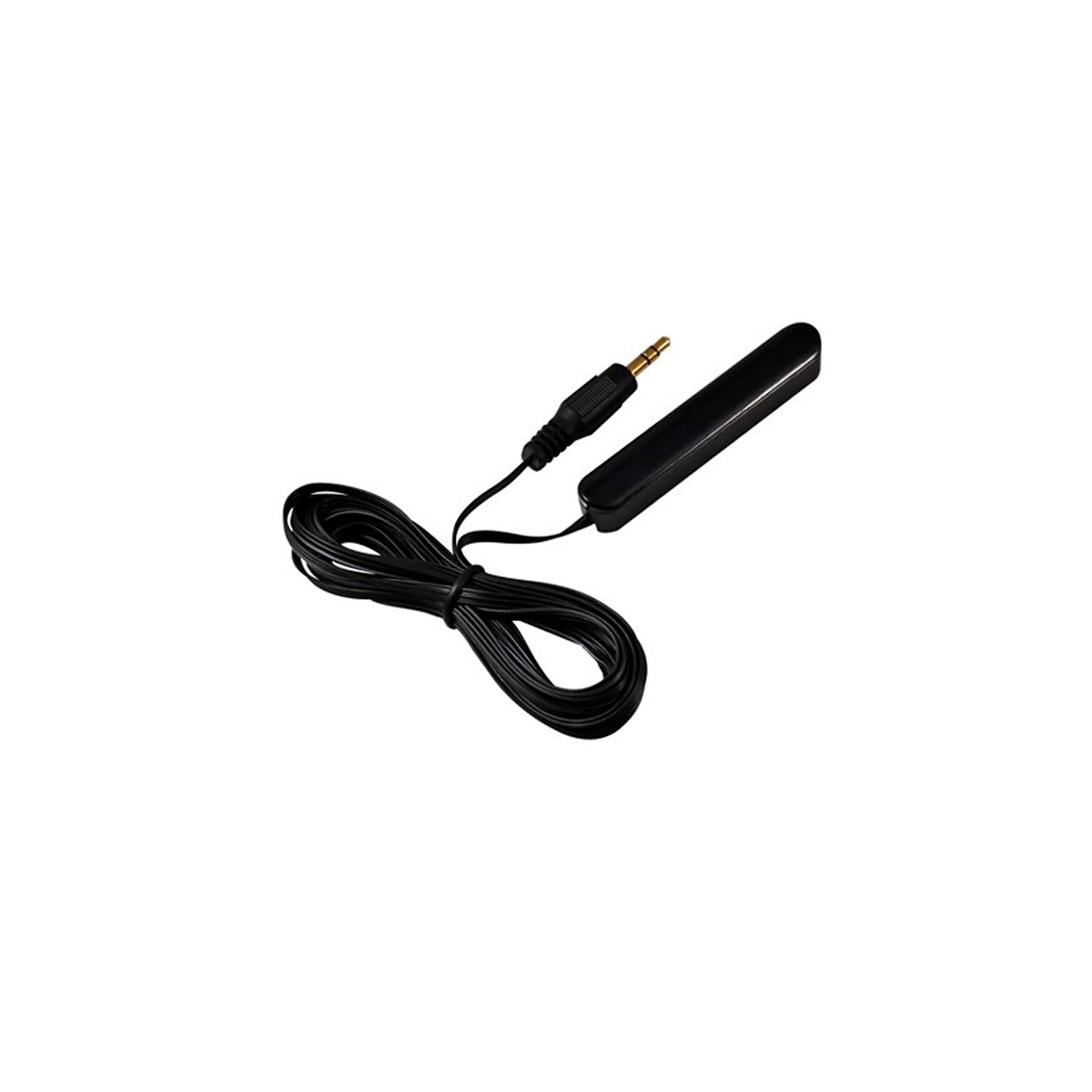

Acegear IRRECEIVER IR Receiver with 35mm Plug
by Acegear
SKU AGIRRECEIVER
IR Receiver whit 35mm plug
- IR Receiver is dual band 30 KHz to 60 KHz
- IR Receiver range up to 30 feet on axis, pending remote strength and ambient interference. In direct sunlight range is 15-20 feet.
- IR Receiver includes black bezal
- IR Receiver has confirmation LED
- IR Receiver cable can be extended using a minimum of 24 AWG 3 conductor unshielded solid or stranded copper wire up to 1000feet (300M)
| Carrier Frequency | 30 to 60KHz |
|---|---|
| Control Range | Indoor 38 KHz up to 30 feet, 56KHz up to 25 feet on axis |
| Control Range Direct Sunlight | Up to 20 feet |
| Reception Angle | +/- 45 degrees off axis |
| LED Light | Blue LED when IR command received |
| Frames | Ambient light rejection frames, Black, White, Silver Included |
| IR Receiver Cable Length | 6.56 Feet (2 meters) (Bare wire non terminated) |
| IR Receiver Dimensions | 2.44” (L) x .39” (W) x .39” (H) / 62 (L) x 10 (W) x 10 (H) mm |
