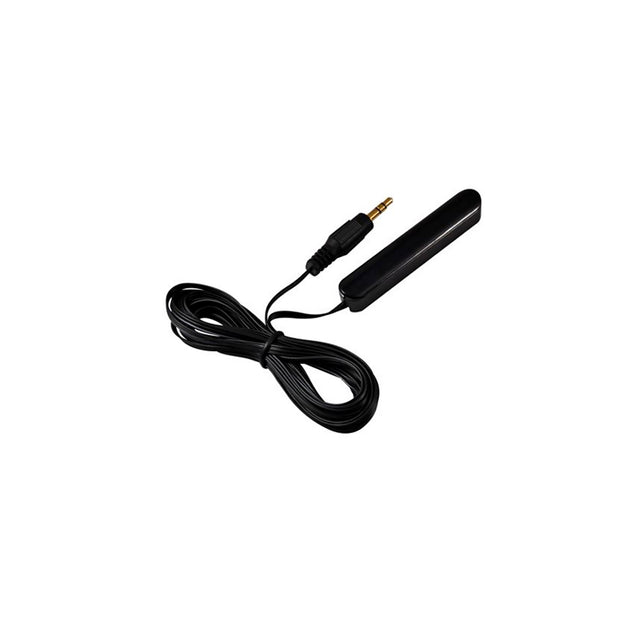

Acegear IRRECEIVER IR Receiver with 35mm Plug
Click or scroll to zoom
Tap or pinch to zoom
by Acegear
SKU AGIRRECEIVER
IR Receiver whit 35mm plug
- IR Receiver is dual band 30 KHz to 60 KHz
- IR Receiver range up to 30 feet on axis, pending remote strength and ambient interference. In direct sunlight range is 15-20 feet.
- IR Receiver includes black bezal
- IR Receiver has confirmation LED
- IR Receiver cable can be extended using a minimum of 24 AWG 3 conductor unshielded solid or stranded copper wire up to 1000feet (300M)
Carrier Frequency
30 to 60KHz
Control Range
Indoor 38 KHz up to 30 feet, 56KHz up to 25 feet on axis
Control Range Direct Sunlight
Up to 20 feet
Reception Angle
+/- 45 degrees off axis
LED Light
Blue LED when IR command received
Frames
Ambient light rejection frames, Black, White, Silver Included
IR Receiver Cable Length
6.56 Feet (2 meters) (Bare wire non terminated)
IR Receiver Dimensions
2.44” (L) x .39” (W) x .39” (H) / 62 (L) x 10 (W) x 10 (H) mm
