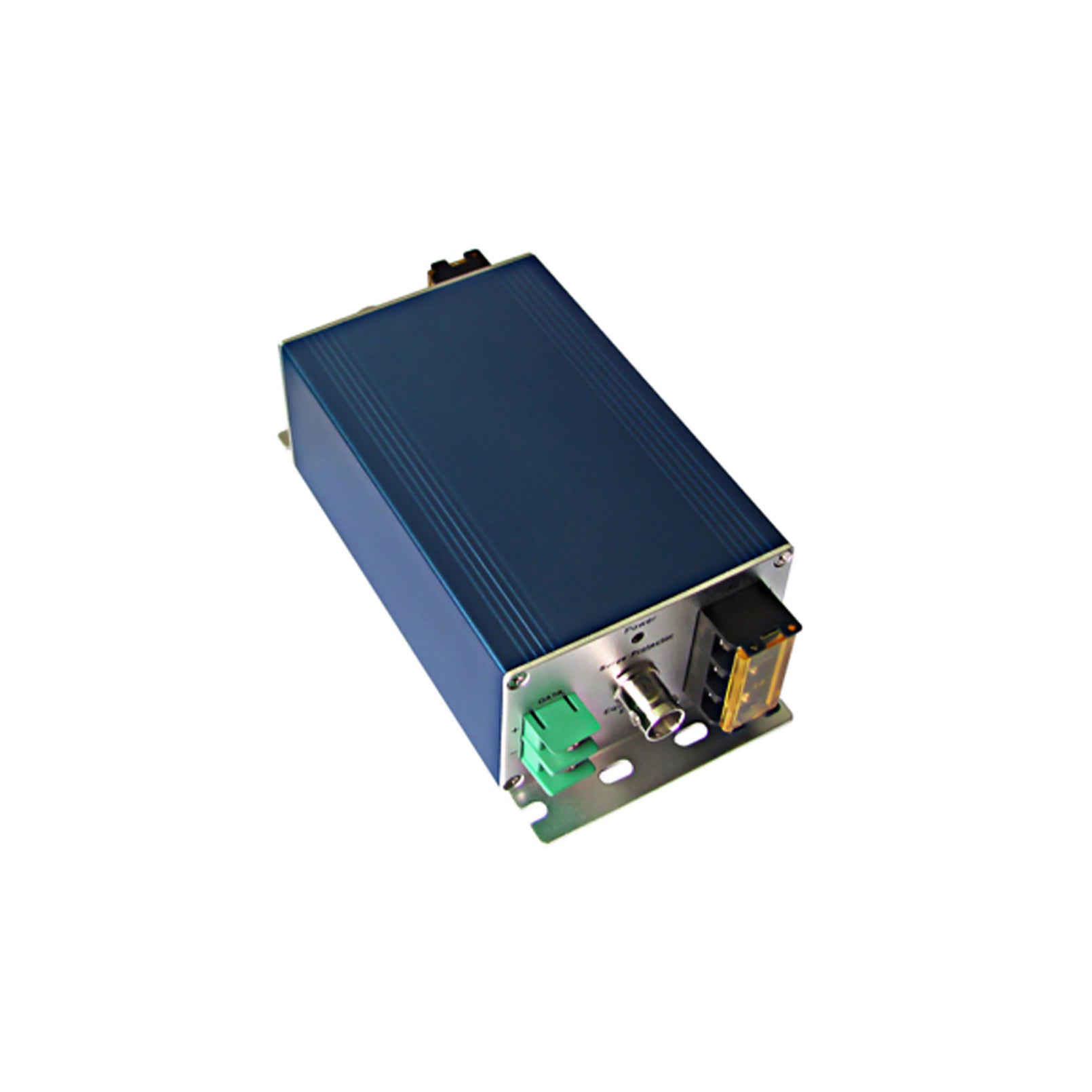

Acegear SPVDP12 Video Power and Data Surge Protector, 12V
by Acegear
SKU AGSPVDP12
CCTV Camera Video Power and Data Surge Protector
It is used to protect the Power supply, Video and RS485 data of surveillance cameras from surge damage by increase of potential difference between different devices when there is induction lightning strike.
- Power, video & data surge protector
- Protect those valuable speed domes with ease
- Built in transient protection
- Protects BNC Video, Cabled Power and Data
| Nominal Voltage UN | 5V |
|---|---|
| Max. Continuous DC Voltage UC | 8V |
| Max. Through Flow Rate | 5KA |
| Max. DataTransmission Speed VS | 20M |
| Insertion Loss | ≤ 0.3dB |
| Response time | ≤ 1ns |
| Impedance | 75Ω |
| Interface | BNC |
| Working Voltage | AC24V, AC220V, DC12V |
| Max. Continuous WorkingVoltage | 30V, 320V, 18V |
| Max. Through Flow Rate | 10KA |
| Response time | ≤ 1ns |
| Interface | terminal(L, N) |
| Data Type | RS485 |
| Working Voltage | 5V |
| Max. Continuous WorkingVoltage. | 8V |
| Max. Through Flow Rate | 5KA |
| Max. DataTransmission Speed VS | 20M |
| Response time | ≤ 1ns |
| Interface | Terminal(+, -) |
| Working Temperature | -25º C~65º C |
| Working Humidity | 5%-95% |
