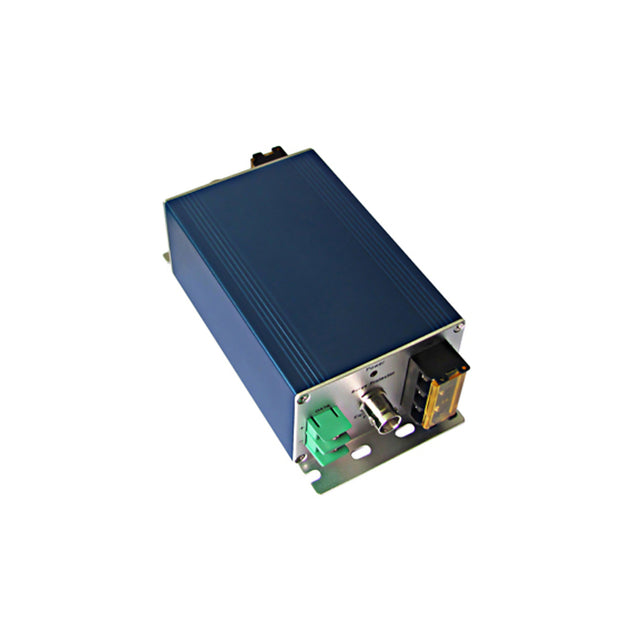

Acegear SPVDP12 Video Power and Data Surge Protector, 12V
Click or scroll to zoom
Tap or pinch to zoom
by Acegear
SKU AGSPVDP12
CCTV Camera Video Power and Data Surge Protector
It is used to protect the Power supply, Video and RS485 data of surveillance cameras from surge damage by increase of potential difference between different devices when there is induction lightning strike.
- Power, video & data surge protector
- Protect those valuable speed domes with ease
- Built in transient protection
- Protects BNC Video, Cabled Power and Data
Nominal Voltage UN
5V
Max. Continuous DC Voltage UC
8V
Max. Through Flow Rate
5KA
Max. DataTransmission Speed VS
20M
Insertion Loss
≤ 0.3dB
Response time
≤ 1ns
Impedance
75Ω
Interface
BNC
Working Voltage
AC24V, AC220V, DC12V
Max. Continuous WorkingVoltage
30V, 320V, 18V
Max. Through Flow Rate
10KA
Response time
≤ 1ns
Interface
terminal(L, N)
Data Type
RS485
Working Voltage
5V
Max. Continuous WorkingVoltage.
8V
Max. Through Flow Rate
5KA
Max. DataTransmission Speed VS
20M
Response time
≤ 1ns
Interface
Terminal(+, -)
Working Temperature
-25º C~65º C
Working Humidity
5%-95%
Click or scroll to zoom
Tap or pinch to zoom
by Acegear
SKU AGSPVDP12
CCTV Camera Video Power and Data Surge Protector
It is used to protect the Power supply, Video and RS485 data of surveillance cameras from surge damage by increase of potential difference between different devices when there is induction lightning strike.
- Power, video & data surge protector
- Protect those valuable speed domes with ease
- Built in transient protection
- Protects BNC Video, Cabled Power and Data
| Nominal Voltage UN | 5V |
|---|---|
| Max. Continuous DC Voltage UC | 8V |
| Max. Through Flow Rate | 5KA |
| Max. DataTransmission Speed VS | 20M |
| Insertion Loss | ≤ 0.3dB |
| Response time | ≤ 1ns |
| Impedance | 75Ω |
| Interface | BNC |
| Working Voltage | AC24V, AC220V, DC12V |
| Max. Continuous WorkingVoltage | 30V, 320V, 18V |
| Max. Through Flow Rate | 10KA |
| Response time | ≤ 1ns |
| Interface | terminal(L, N) |
| Data Type | RS485 |
| Working Voltage | 5V |
| Max. Continuous WorkingVoltage. | 8V |
| Max. Through Flow Rate | 5KA |
| Max. DataTransmission Speed VS | 20M |
| Response time | ≤ 1ns |
| Interface | Terminal(+, -) |
| Working Temperature | -25º C~65º C |
| Working Humidity | 5%-95% |
