Brand
|
Rsrteng
|
Model
|
IPC-5100 Plus
|
Display
|
5 inch IPS touch screen, 1920x1080 resolution
|
12MP 4K
IP camera test
H.265/H.264
|
IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK
|
Rapid Video: Auto view the video, create testing report
|
For HIKVISION test tool:
support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
For DAHUA test tool:
support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.
|
HD Coaxial test
|
8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu
|
CVBS camera test
|
1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
|

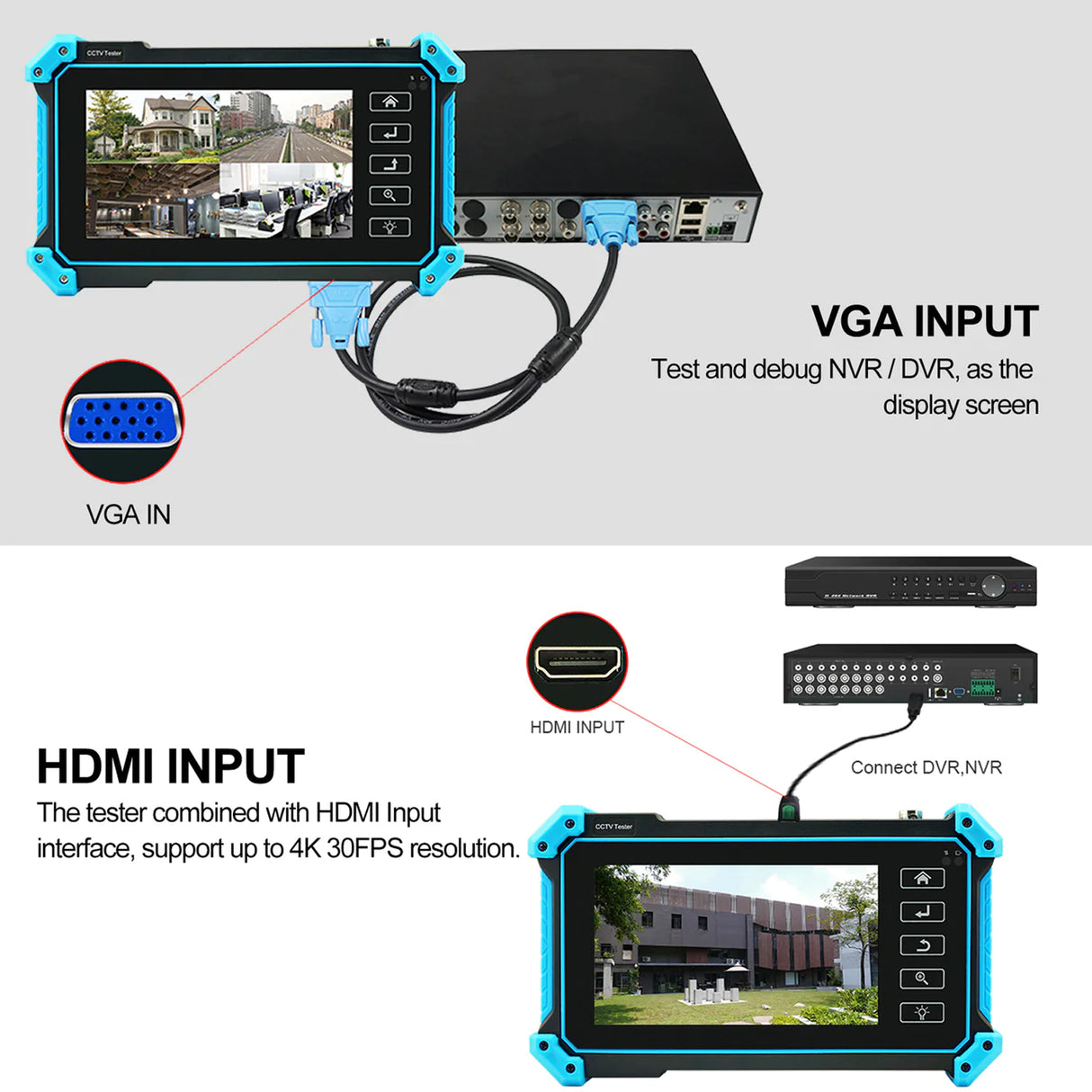

HDMI
|
HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/
1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc
|
VGA
|
1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.
|
Zoom Image
|
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
|
Cable test
|
Digital Cable tracer: N/A
|

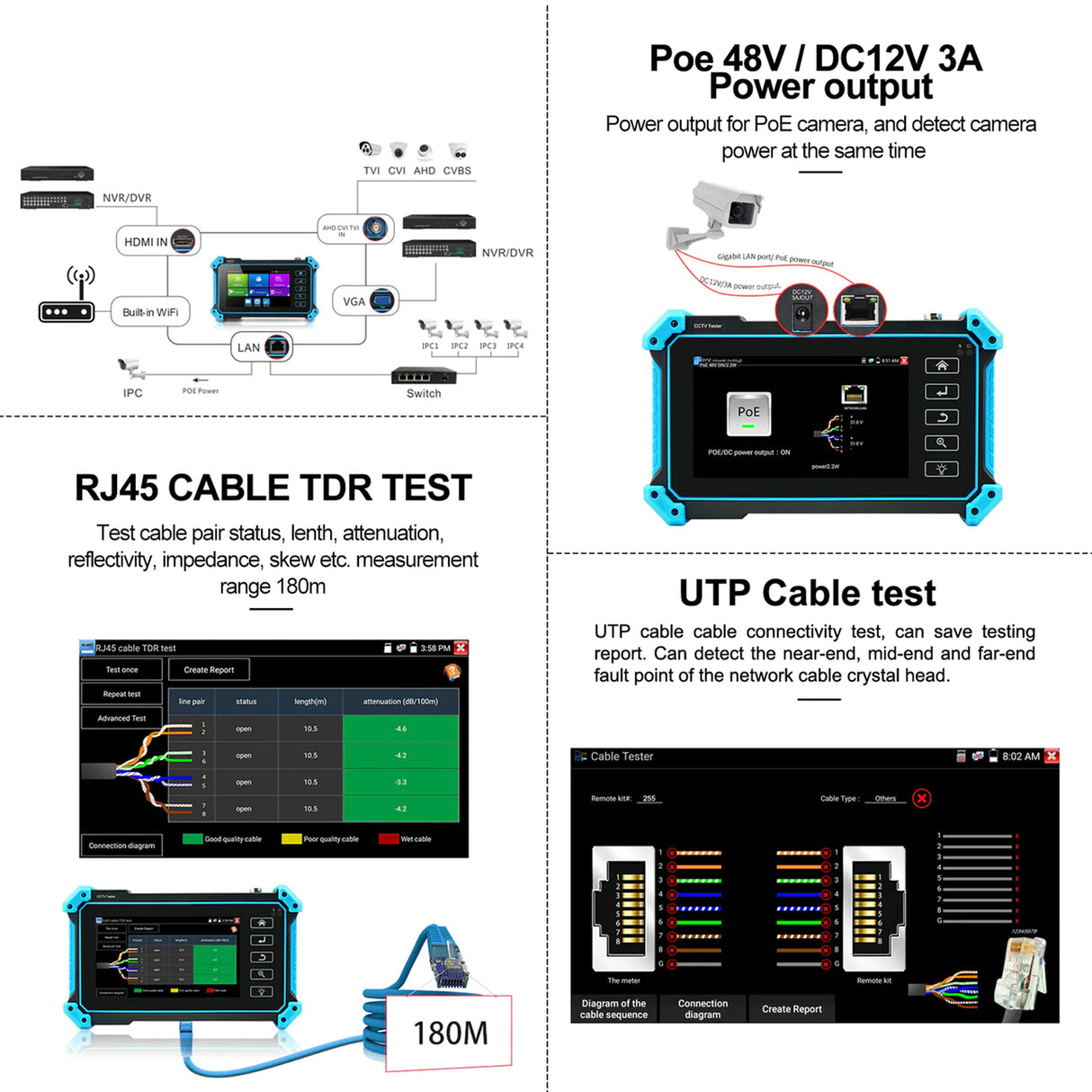

UTP cable test:
|
Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
|
RJ45 TDR cable test:
|
Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.
|
Tester Play
|
screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone)
|
Network test
|
Trace route, Link monitor, DHCP server, port flashing, Ping test
|
Wi-Fi
|
Built in WIFI, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot.
|
Audio test
|
1 channel audio signal input, test whether sound normal.
|
Data monitor
|
Captures and analyzes the command data from controlling device, also can send hexadecimal.
|

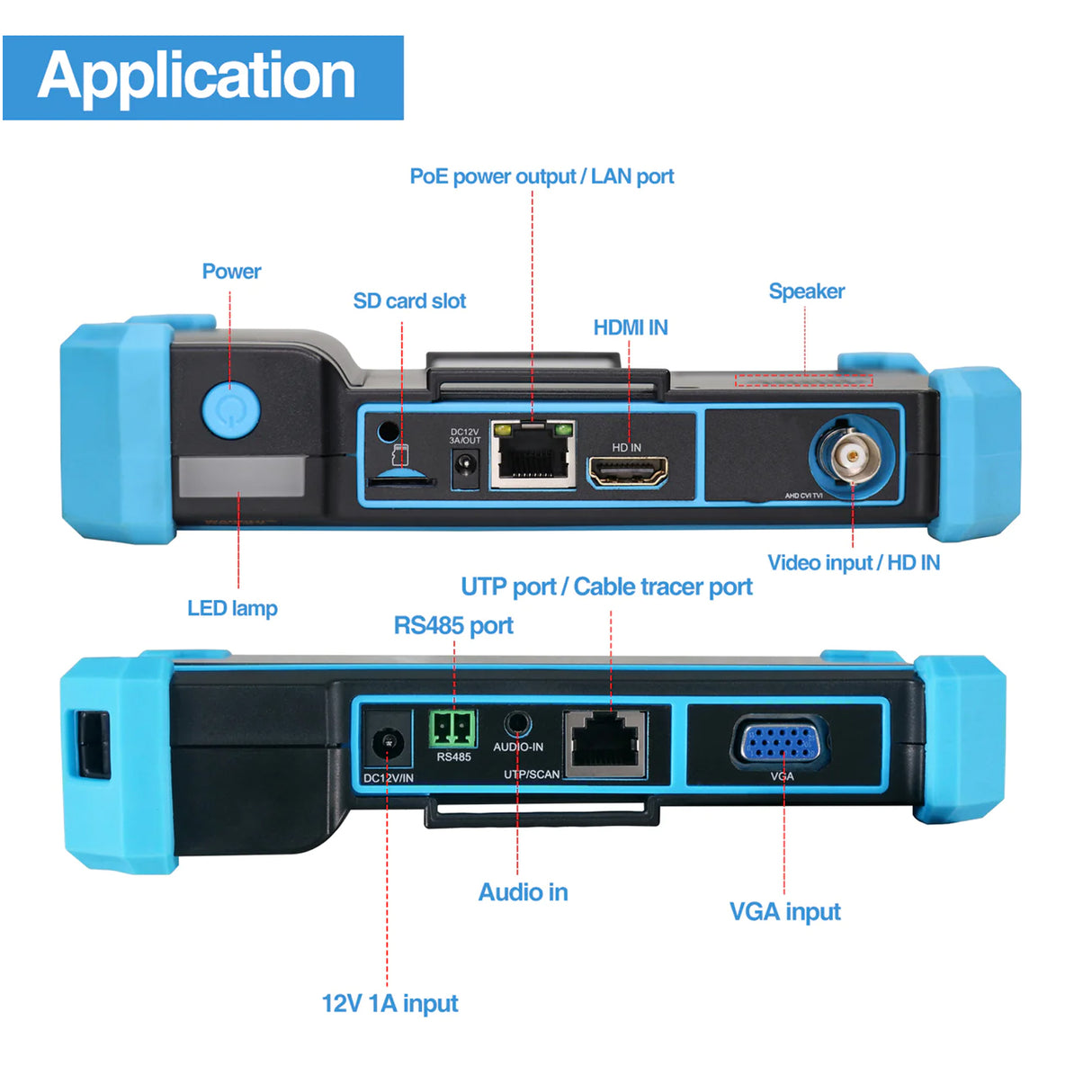

Power
|
Input: DC 12V/1A input
DC output: DC12V/3A power output, supply temporarily power for the camera

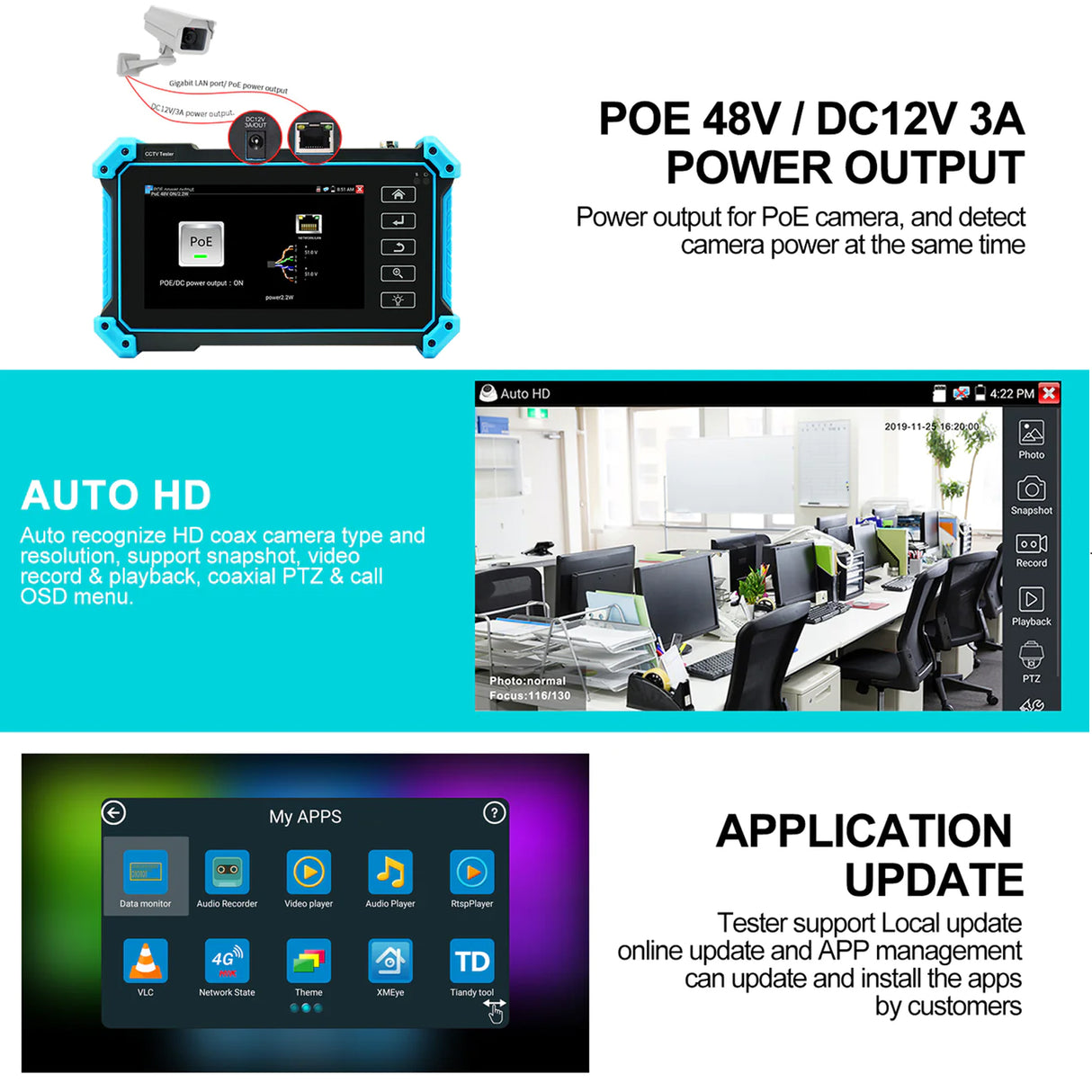

POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W
|

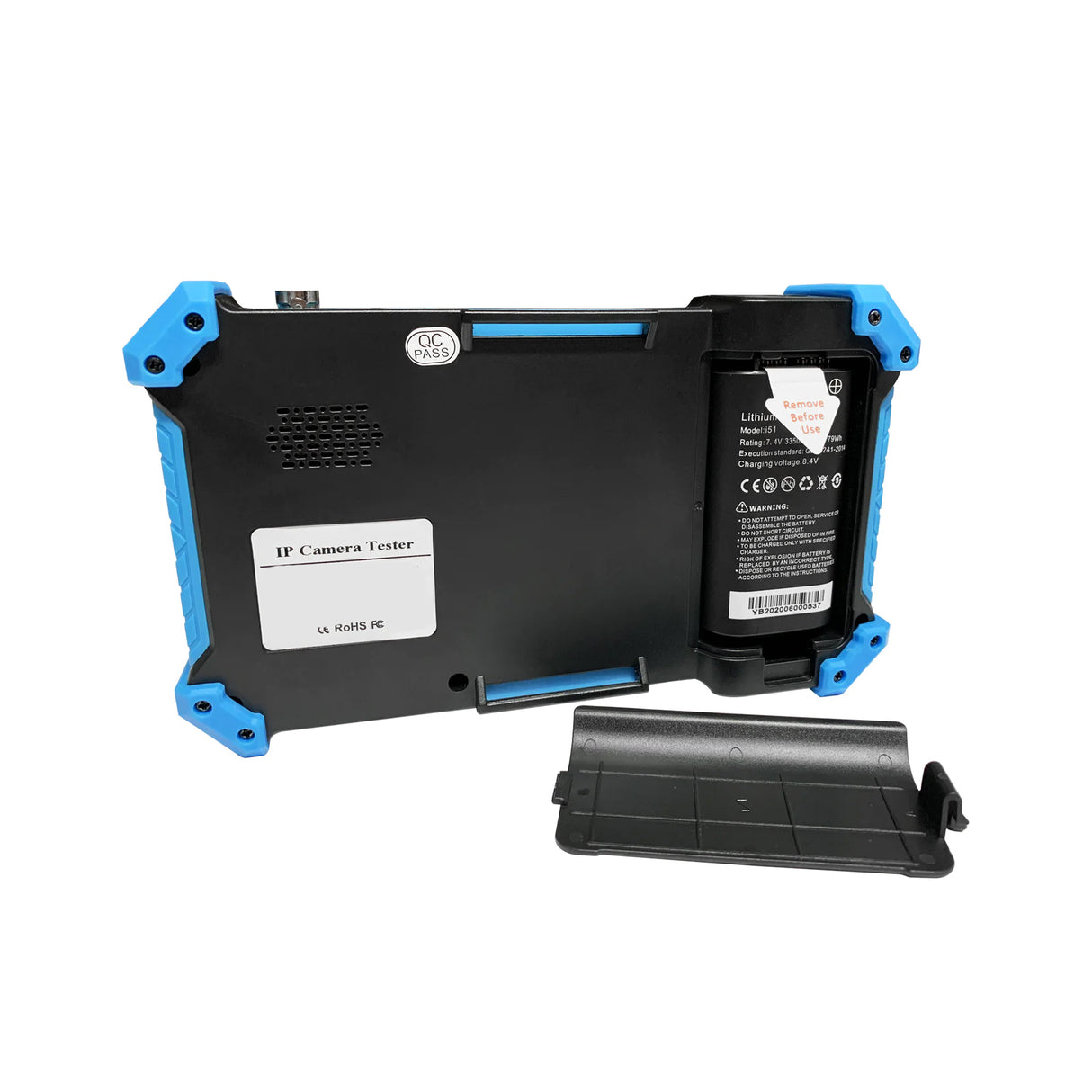

Battery
|
Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h
|
Rechargeable
|
After charging 3-4 hours, normal working time 5-8 hours
|
OS
|
Android, Free to add APP (requires version support)
|
CPU
|
4core, 1.2GHz
|
RAM(DDR)
|
1GB
|
Flash(eMMC)
|
8GB
|
TF card slot
|
Suport up to 32GB, item not include TF card
|
Menu language
|
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
|
Auto off
|
1 to 30 (mins)
|
Work Temperature
|
-10℃ to +50℃ (+14℉ to +122℉)
|
Work Humidity
|
30% to 90%
|

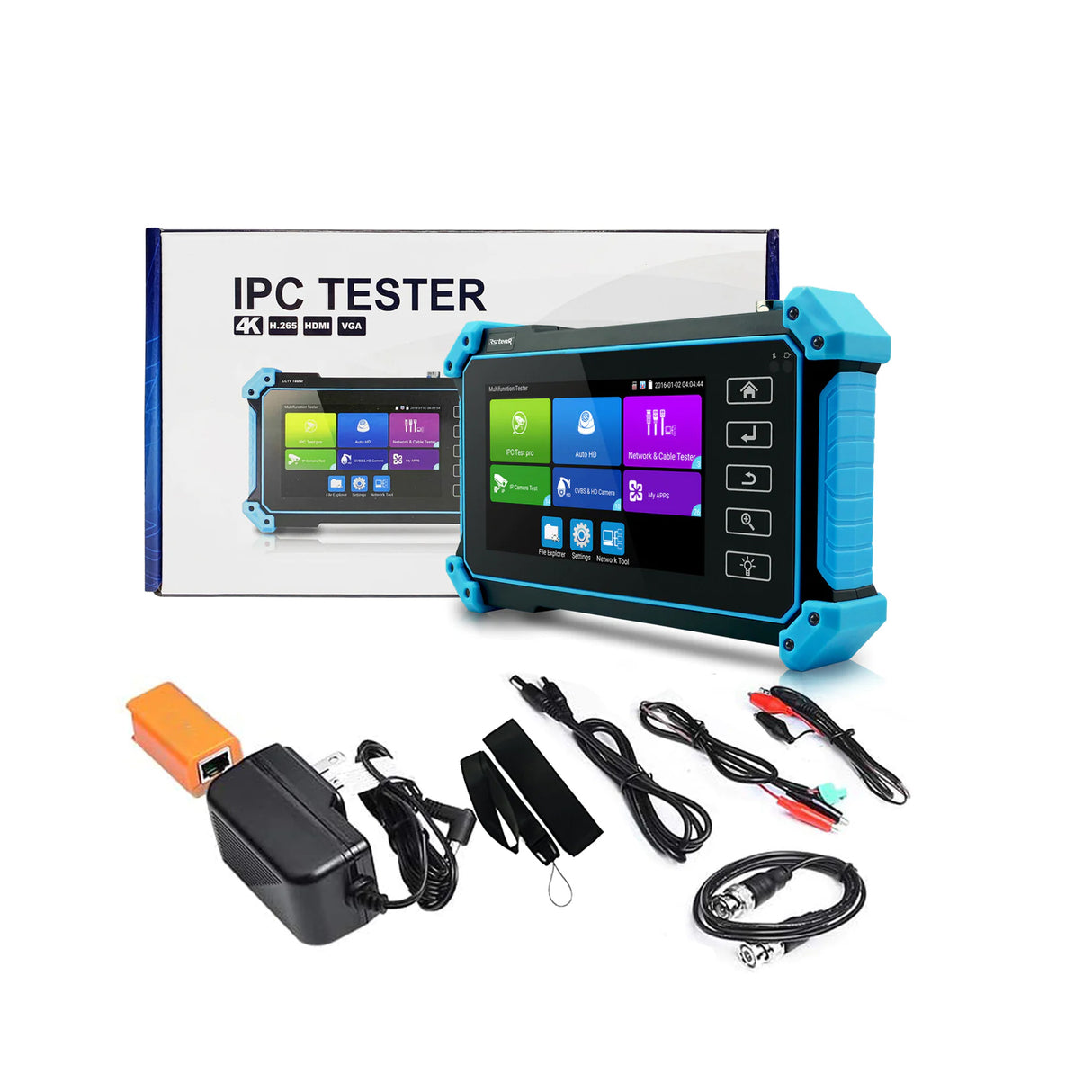

Package includes
|
1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband
|
Dimension
|
Package Dimension: 260x143x100mm(10.24x5.63x3.94inch)Tester:183x110x36.5mm(7.2x4.33x1.44inch) |
Weight
|
Package weight:1.05kg(2.31lbs)
Tester net weight: 0.4kg(0.88lb)
|
