Acegear IPCT5100PLUS: support max 4K IP cameras, support 8MP CVI/ TVI/ AHD camera test, support VGA and HDMI input.

by Acegear
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

The 4K camera tester is used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and other security equipment.

The tester uses a 5-inch 1920x1080P high-definition touch screen, so the operation becomes simple and fast; Support max 12MP IP camera and max 4K 8MP coaxial HD camera test; multiple professional tests are built-in APP, compatible with more than 90% of existing brand cameras. Suppot POE, WIFI, RJ45TDR, DC12V power output etc.

  • 5 inch IPS touch screen,1920*1080 resolution,4K 30fps HDMI input and VGA input, silicone protective shell. H.265/H.264,4K video display via mainstream,8MP TVI CVI AHD camera test, support UTC & call OSD menu,CVBS camera test, PTZ control.
  • Built-in WiFi,support WiFi camera test ,Hikvision,Dahua and Uniview test tool etc,Upgrade Rapid ONVIF,create testing report,Auto HD app,auto recognize HD coax camera type and resolution.
  • DC12V 3A,48V PoE power output, RJ45 cable TDR test, cable quality test. Rapid ONVIF, auto view video, and create testing report.
  • Equipped with 7.4 V/3350mAh Li-ion Battery, 3-4 hours charging time, working time lasts 6 hours, add LED light, it is convenient to work in dark.
  • CCTV installers often need to carry a variety of testing tools to complete their work. Koolertron Camera Tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions.  Perfectly compatible with this work.

IP camera test:

Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

Coaxial HD camera test:

Max 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support UTC control and call OSD menu.

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.

AXIS IP cameras test:

Before testing, you need to install the APP "Axs test tool" suitable for AXIS testing through automatic update.

1 x Tester
1 x Network cable tester
1 x Adaptor
1 x Polymer lithium ion battery (7.4V DC 3350mAh)
1 x Tool bag
1 x DC Power cable
1 x BNC cable
1 x RS485 cable
1 x Audio cable
1 x Safety cord
1 x Manual




IPC-5100 Plus


5 inch IPS touch screen, 1920x1080 resolution

12MP 4K

IP camera test


IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK

Rapid Video: Auto view the video, create testing report

For HIKVISION test tool:

support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

For DAHUA test tool:

support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.

HD Coaxial test

8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu

CVBS camera test

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

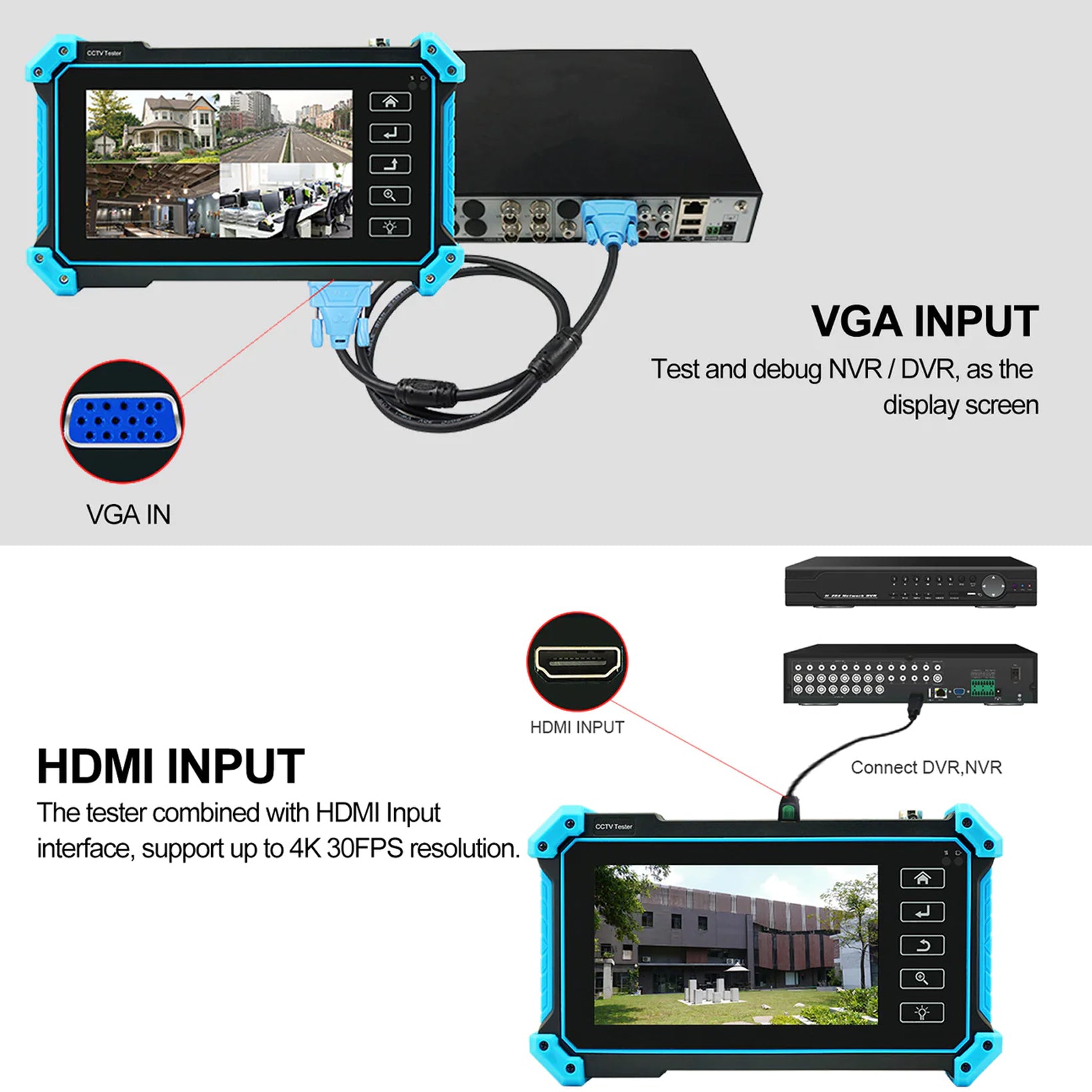

HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/

1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc


1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

Cable test

Digital Cable tracer: N/A

UTP cable test:

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

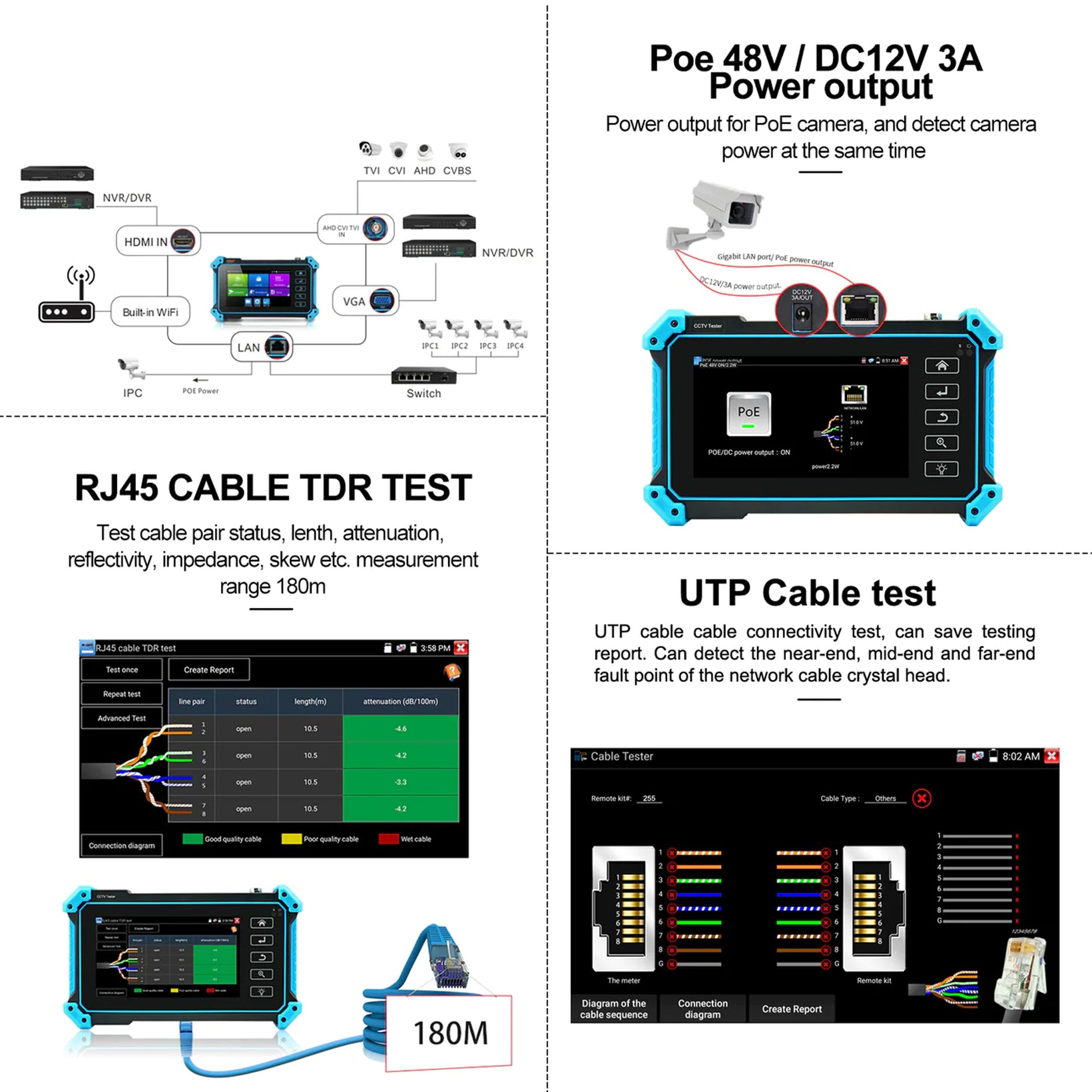

RJ45 TDR cable test:

Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Tester Play

screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test


Built in WIFI, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot.

Audio test

1 channel audio signal input, test whether sound normal.

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal.


Input: DC 12V/1A input

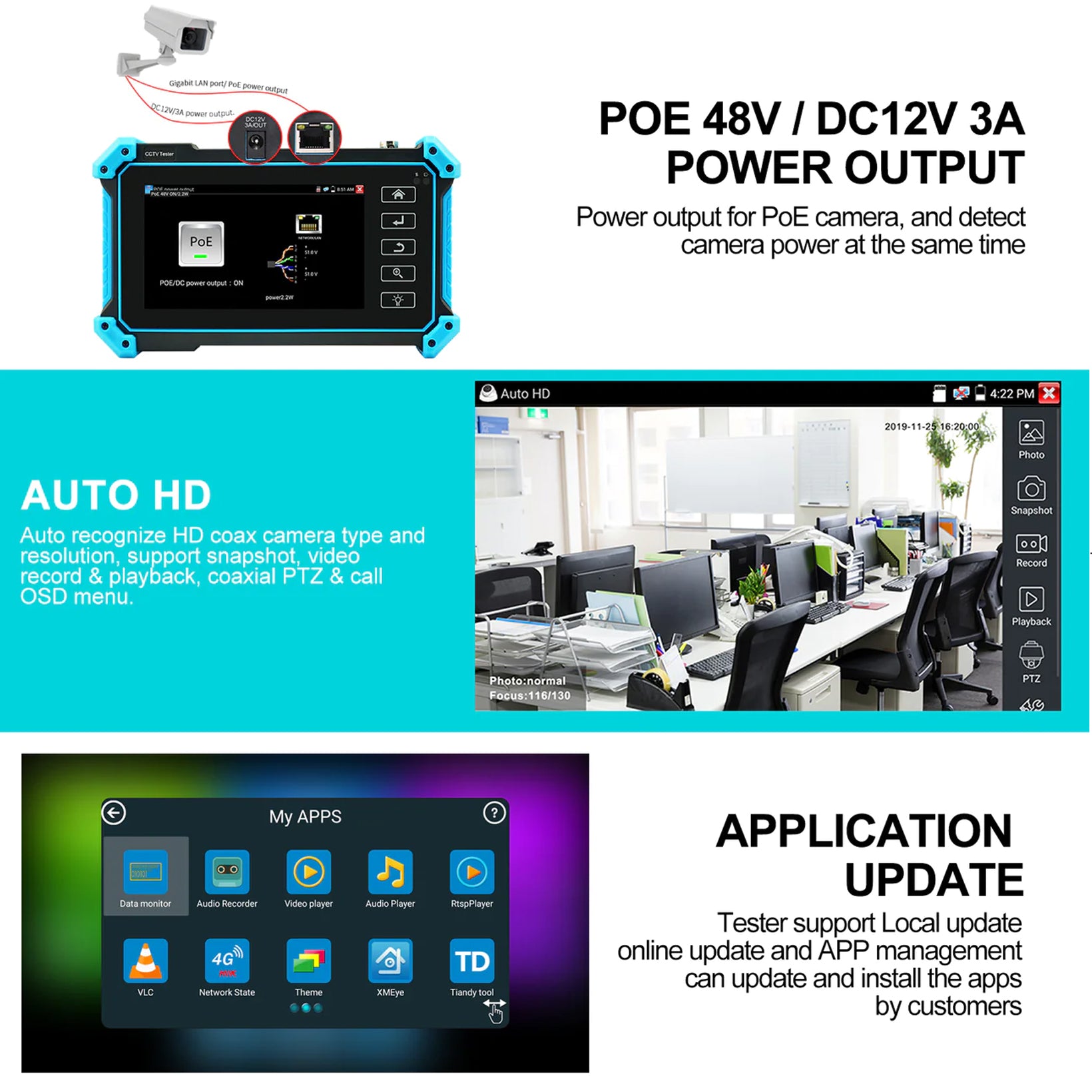

DC output: DC12V/3A power output, supply temporarily power for the camera

POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

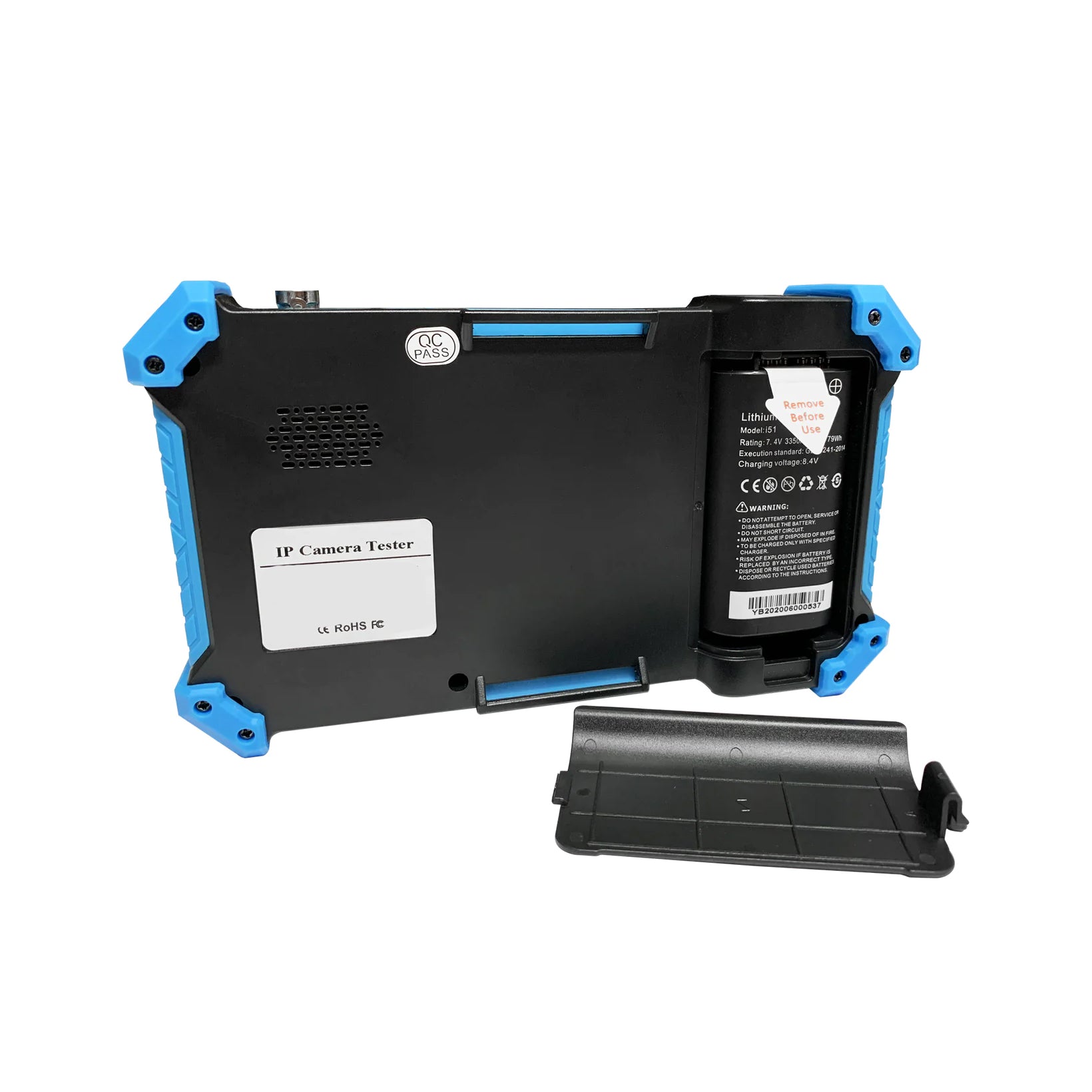

Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h


After charging 3-4 hours, normal working time 5-8 hours


Android, Free to add APP (requires version support)


4core, 1.2GHz





TF card slot

Suport up to 32GB, item not include TF card

Menu language

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1 to 30 (mins)

Work Temperature

-10℃ to +50℃ (+14℉ to +122℉)

Work Humidity

30% to 90%

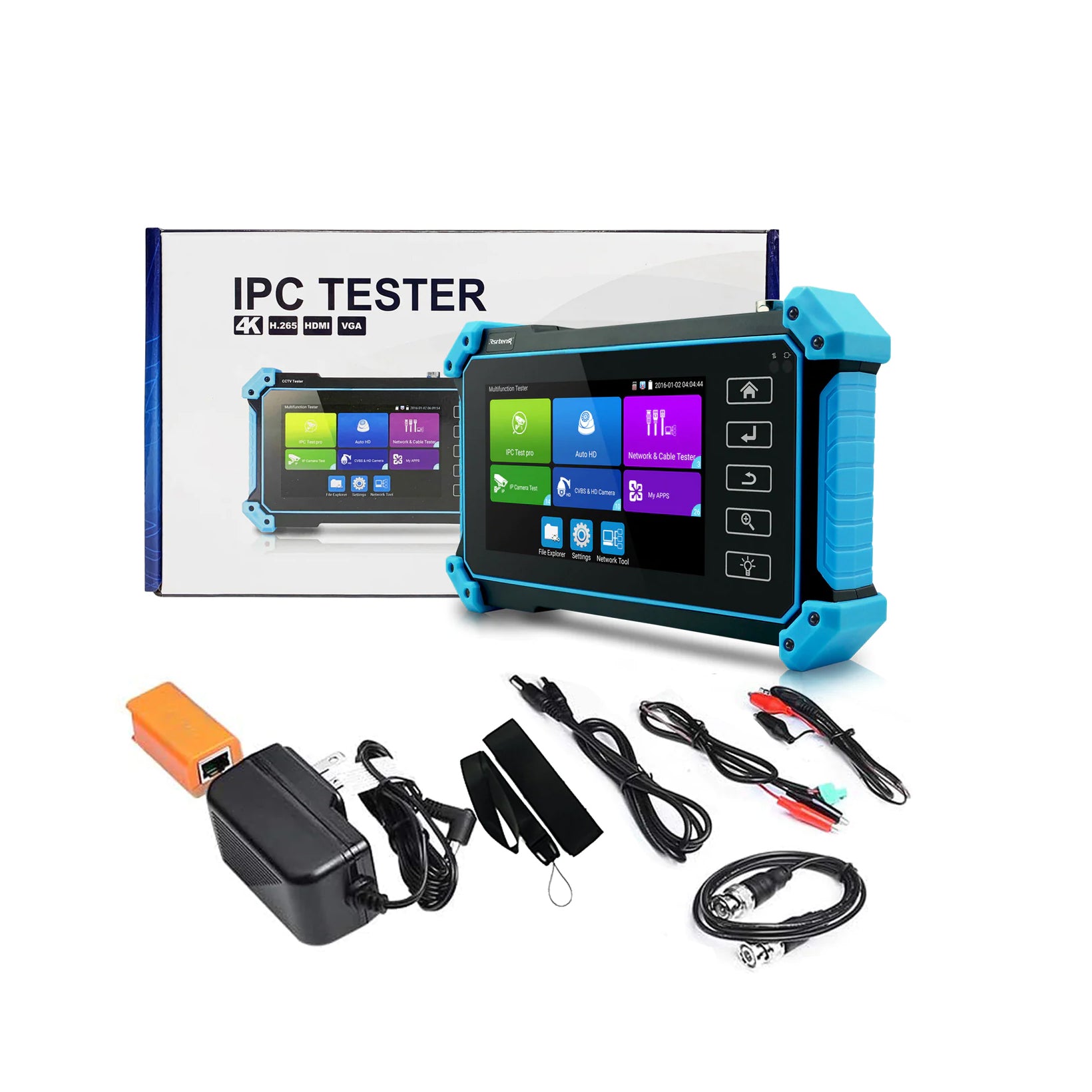

Package includes

1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband


Package Dimension: 260x143x100mm(10.24x5.63x3.94inch)Tester:183x110x36.5mm(7.2x4.33x1.44inch)


Package weight:1.05kg(2.31lbs)

Tester net weight: 0.4kg(0.88lb)
