Acegear | SKU:
AGCI1805A-NF

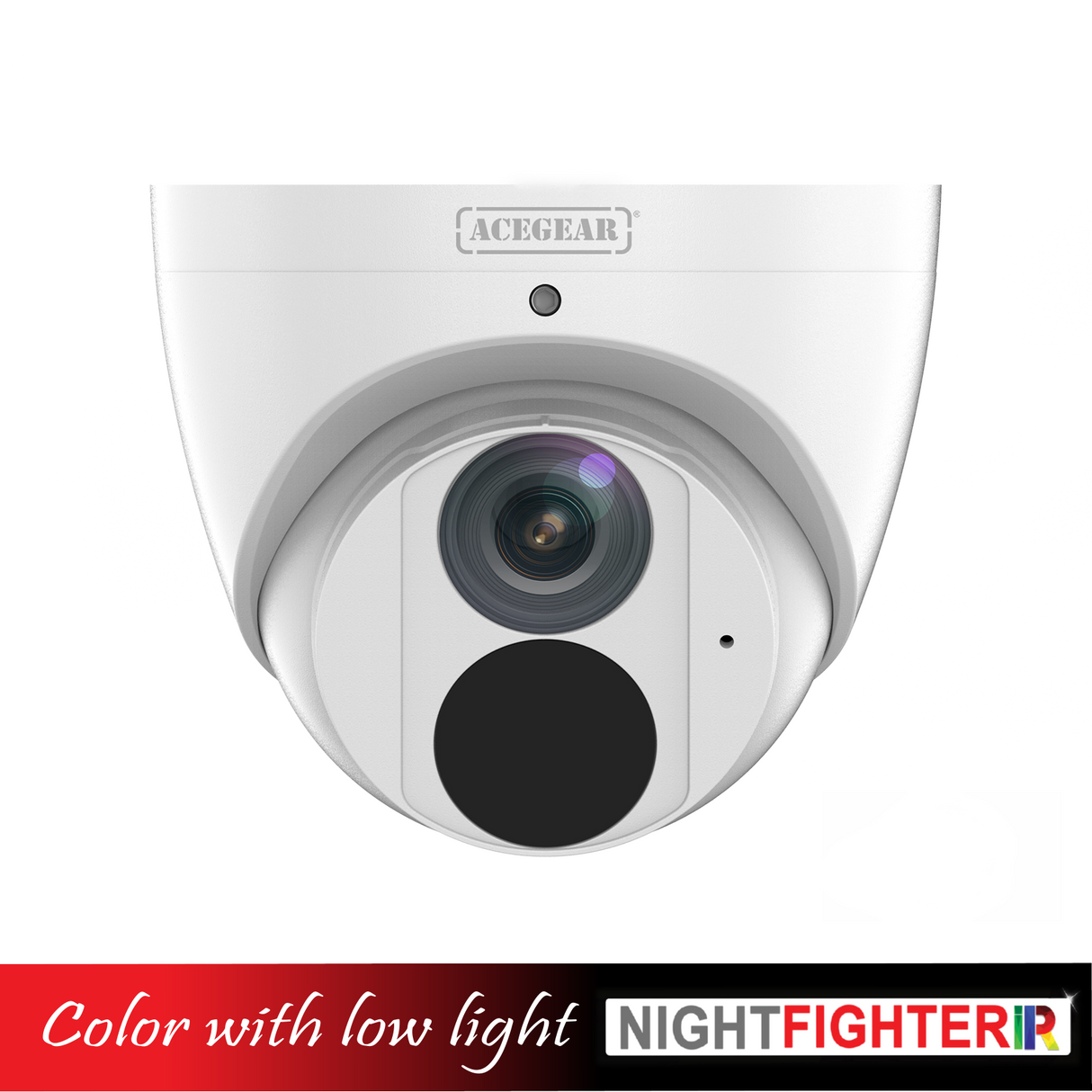

Acegear CI1805A-NF, (8MP) Turret, IPC, 2.8mm Fixed Lens, Night Fighter, Microphone
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear CI1805A-NF, (8MP) Turret, IPC, 2.8mm Fixed Lens, Night Fighter, Microphone is backordered and will ship as soon as it is back in stock.
Description
Description
- Sensor: High quality image with 4K/8MP, 1/2.7"CMOS sensor
- Resolution: 8MP /4K
- Lens: 2.8mm Fixed
- Functions: 3D DNR , WDR, 9:16 Corridor Mode
- IR Range: Smart IR, up to 30m (98ft) IR distance
- Menu: OSD
- Audio: Built-in Mic
- Micro SD: Supports 256GB Micro SD card
- Power:Support PoE power supply or DC 12V±25%
- Protection: IP67
- Warranty: 3 Years
Features
Acegear AGCI1805A-NF provides important new technology for any security application. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Specifications
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 2.8mm@F2.0 |
| Angle of View | (H)112.4°, (V)60.1°, (O)146.1° |
| Adjustment angle |
Pan: 3° ~ 360°, Tilt: 0° ~ 80°, Rotate: 3° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on |
| Digital Noise Reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| IR On/Off Control | Auto/Manual |
| WDR | 120dB |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Supported |
| HLC | Supported |
| BLC | Supported |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711 |
| Edge Storage | Micro SD, up to 256GB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
| Dimensions (L × W × H) | Φ110.5 x 94.1mm (Φ4.4� x 3.7�) |
| Net Weight | 0.44kg (0.97lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | N/A |
