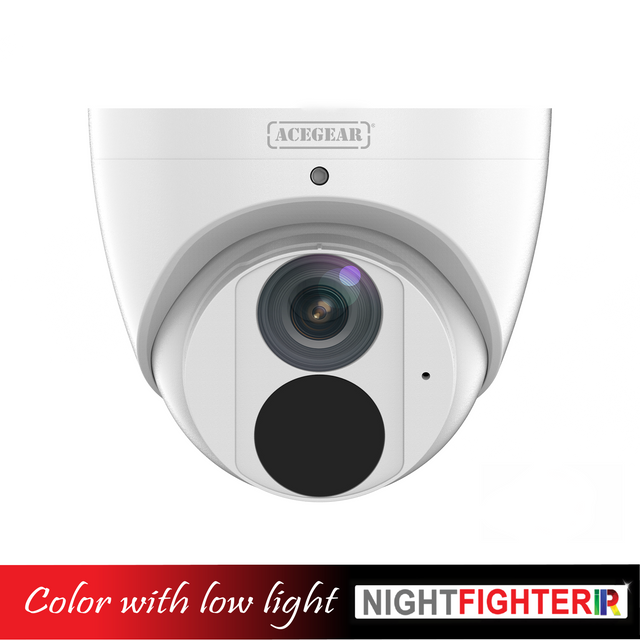

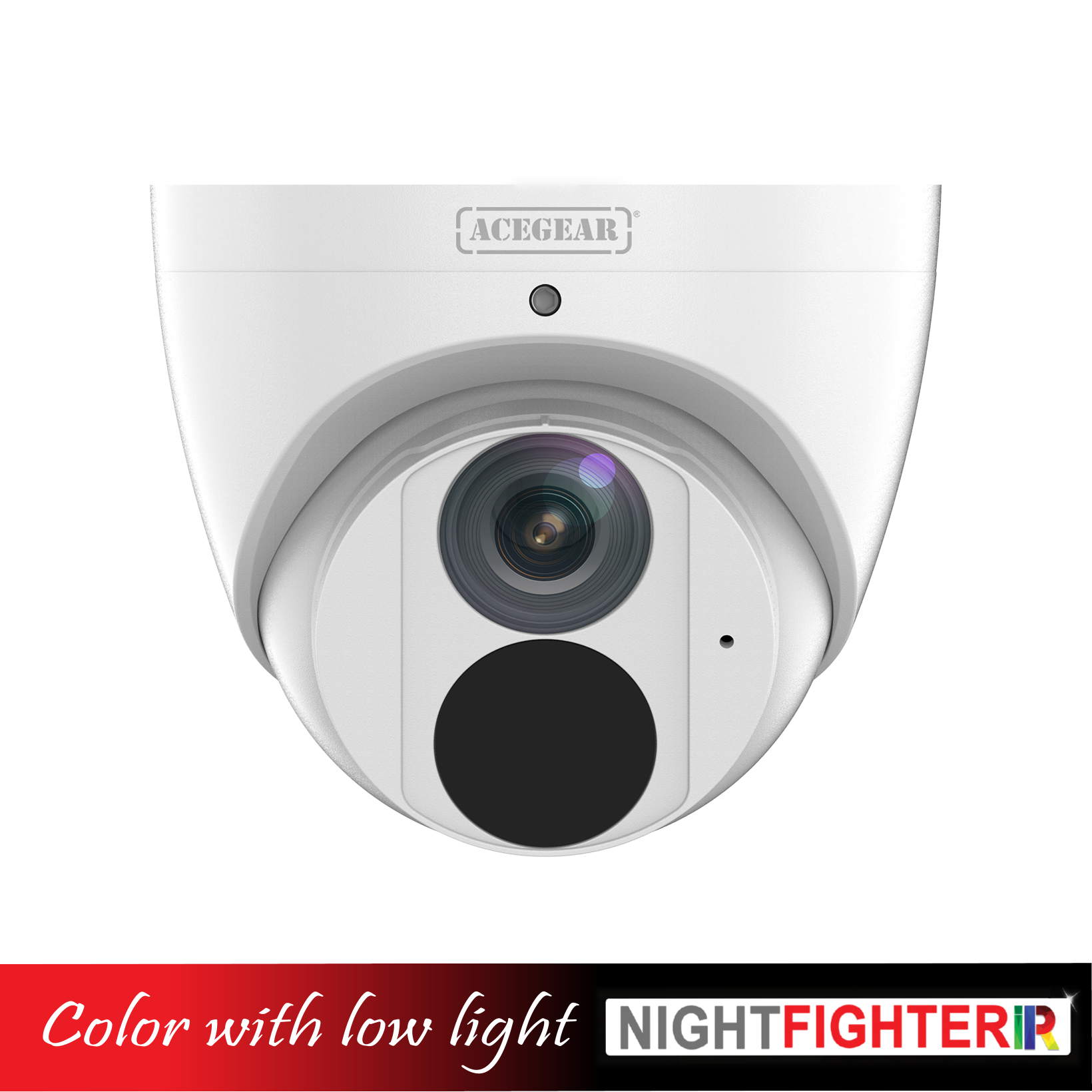

Acegear CI1805A-NF, IP 4K/8MP 2.8mm Fixed Lens, Night Fighter, Microphone, UL Listed

by Acegear
SKU AGCI1805A-NF
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

• High quality image with 4K/8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 GB Micro SD card
• IP67 protection

Acegear AGCI1805A-NF provides important new technology for any security application. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
Angle of View  (H)112.4°, (V)60.1°, (O)146.1°
Adjustment angle

Pan: 3° ~ 360°, Tilt: 0° ~ 80°, Rotate: 3° ~ 360°

Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Digital Noise Reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 30m (98 ft) IR range
IR On/Off Control Auto/Manual
WDR 120dB
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio Compression G.711
Edge Storage Micro SD, up to 256GB
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.0W

Dimensions (L × W × H) Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Net Weight 0.44kg (0.97lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Reset Button N/A
