Panamax M5300-PM, Max 5400 Power Management w/ Voltage Regulation, 2RU, 11 Outlets

by Panamax
SKU PNM5300PM
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Panamax Max 5300 Power Management  2RU, 11 Outlets

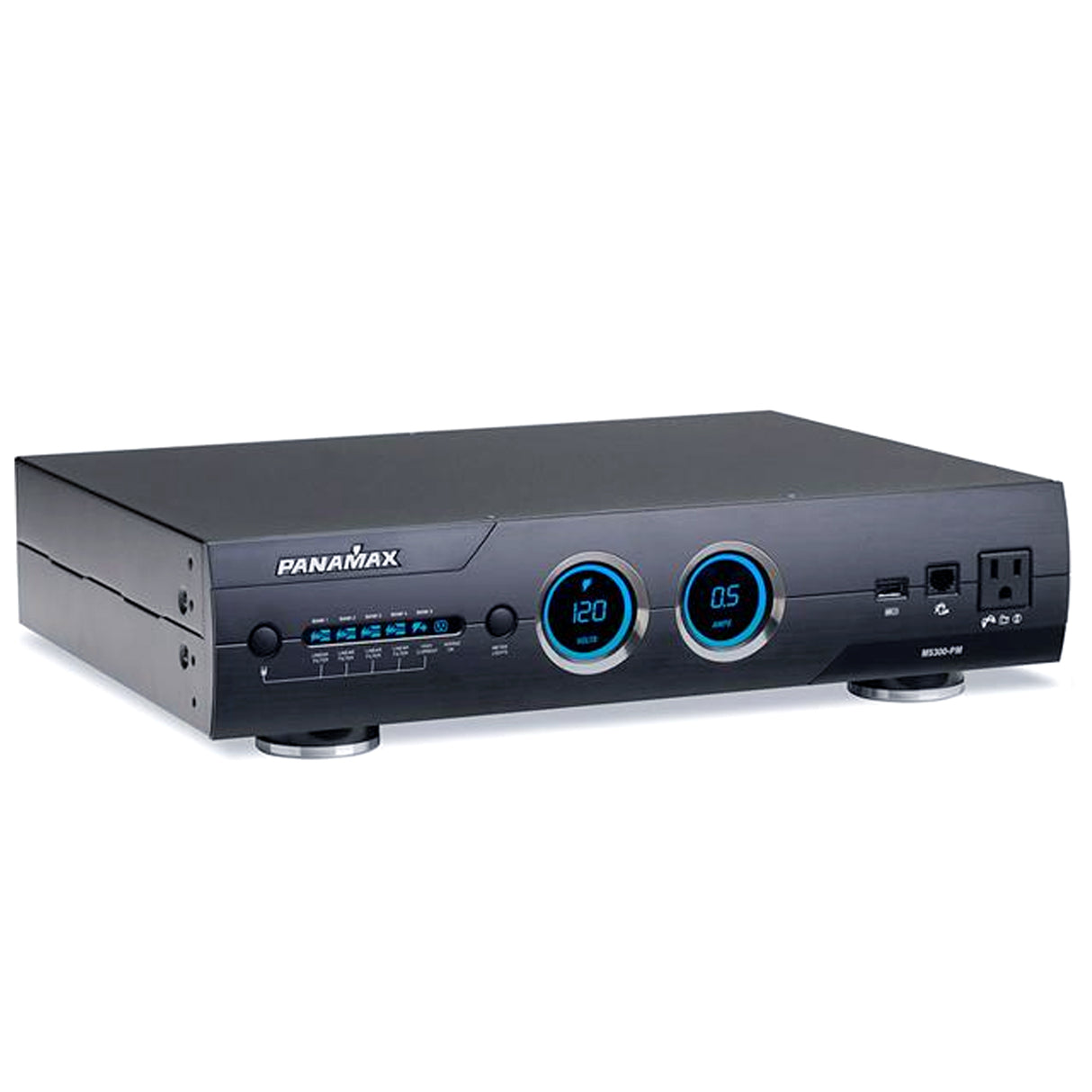

The Panamax M5300-PM protects your audio/video system from harmful power spikes and it also smoothes out minor current fluctuations and effectively eliminates electronic interference, giving you clear picture and sound. The M5300-PM can safeguard up to 11 components, and it includes a protected front-panel USB jack for your MP3 player, cell phone or another portable electronic device.

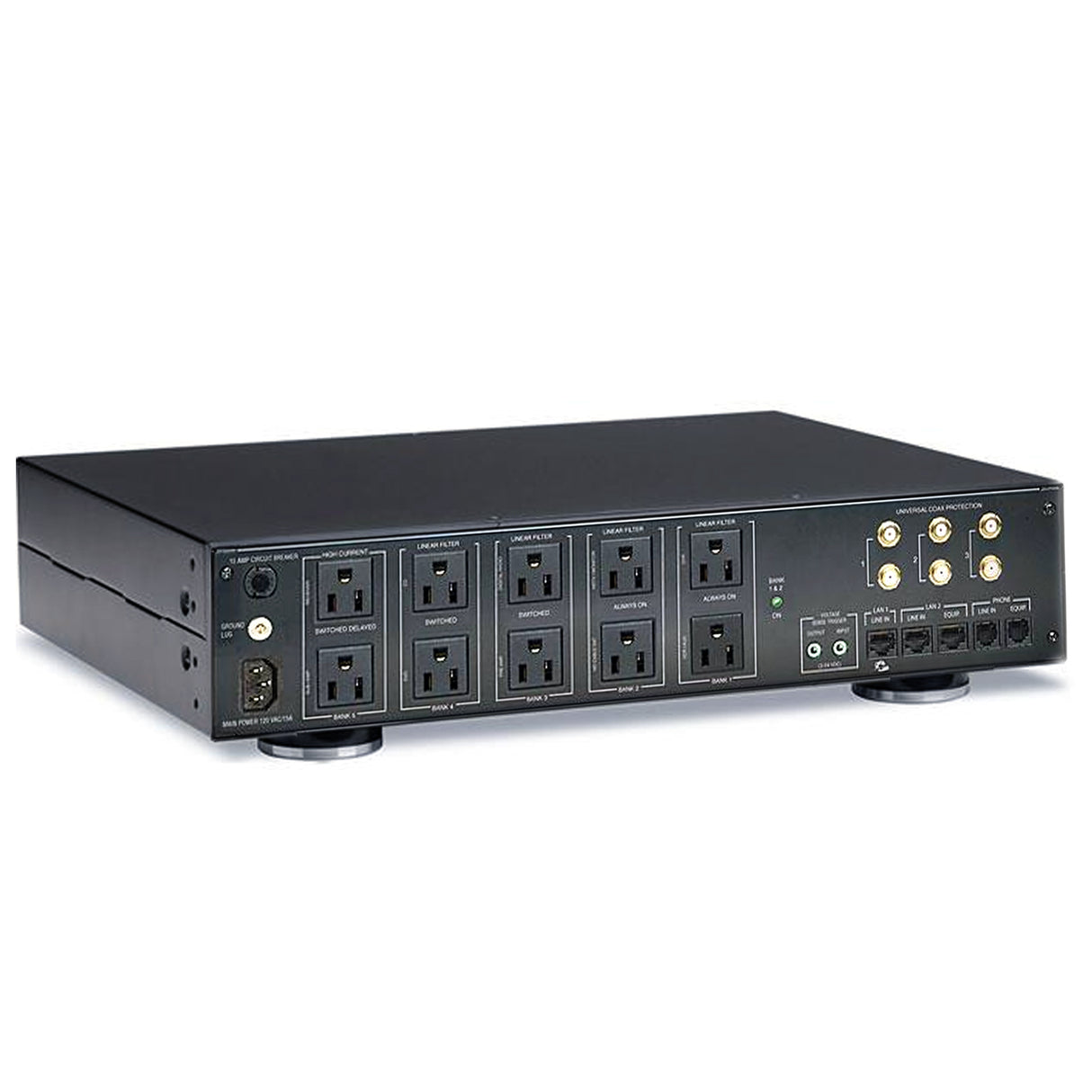

  • 11 AC outlets with 5 isolated banks:
    • two isolated banks of two switched outlets
    • two isolated banks of two always-on outlets
    • one isolated bank of two switched high-current outlets with delayed on/off
    • one front-panel convenience outlet
  • front-panel USB charger
  • surge and over- and under-voltage protection
  • filtration circuitry virtually eliminates line noise
  • three sets of coaxial RF connections for cable/satellite/TV antenna
  • two sets of RJ-45 Ethernet line inputs and outputs, including one front-panel connection
  • RJ-11 phone line input and output
  • 12-volt trigger input for delayed outlets
  • front-panel digital voltmeter and ammeter
  • 2125-joule surge protection
  • maximum current rating: 15 amps
Total AC Outlets 11
High-Current Outlets 2
USB Connections 1
RF-EMI Filtering Yes
Joule Rating 2125
Powerline Network Compatible No
Connected Equipment Guarantee $5.000.000
Width (inches) 17
Height (inches) 4-1/8
Depth (inches) 14-3/4
Weight (pounds) 14
