Panamax  |  SKU: PNM5300PM

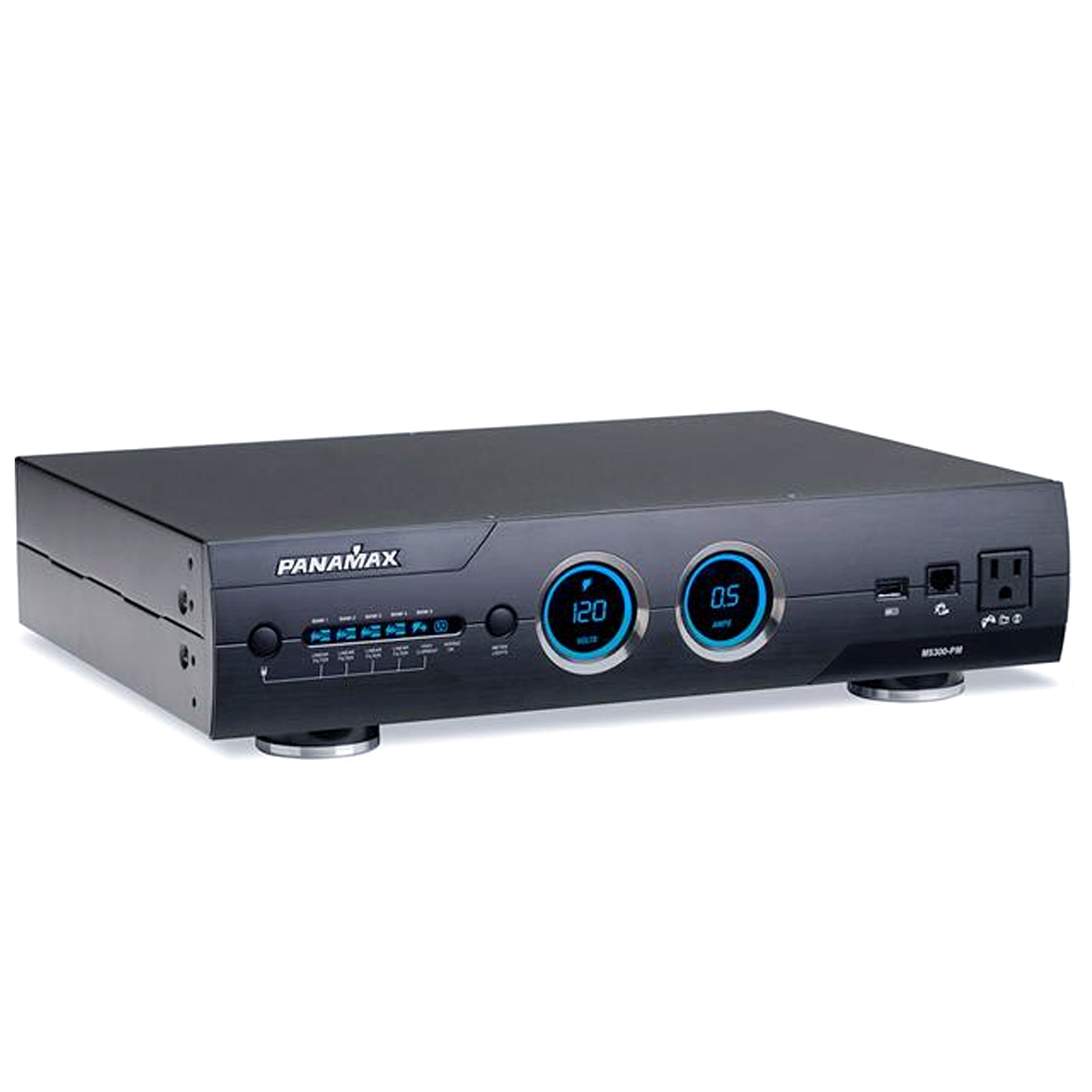

Panamax M5300-PM, Max 5400 Power Management w/ Voltage Regulation, 2RU, 11 Outlets

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description

Panamax Max 5300 Power Management  2RU, 11 Outlets

The Panamax M5300-PM protects your audio/video system from harmful power spikes and it also smoothes out minor current fluctuations and effectively eliminates electronic interference, giving you clear picture and sound. The M5300-PM can safeguard up to 11 components, and it includes a protected front-panel USB jack for your MP3 player, cell phone or another portable electronic device.

Features

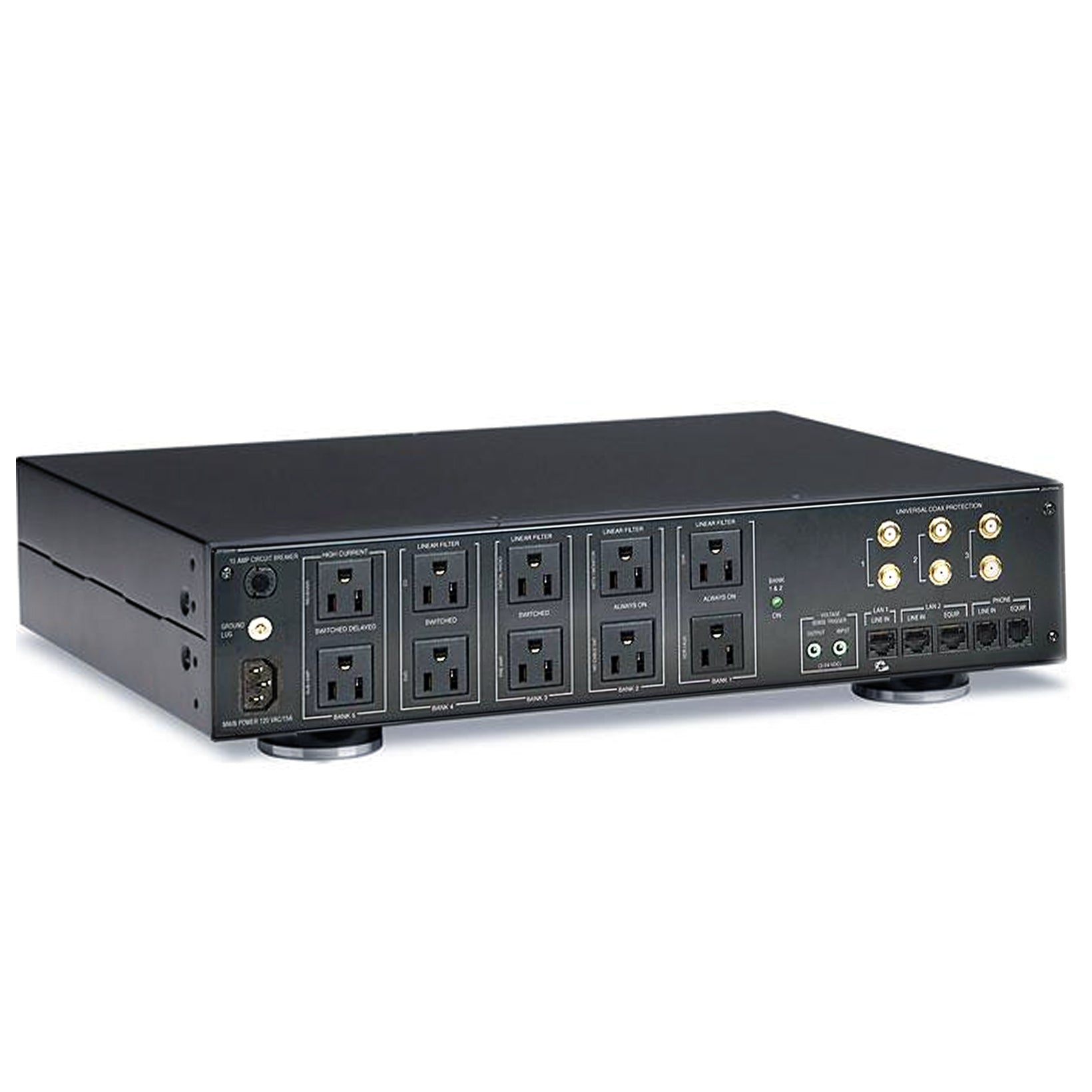

  • 11 AC outlets with 5 isolated banks:
    • two isolated banks of two switched outlets
    • two isolated banks of two always-on outlets
    • one isolated bank of two switched high-current outlets with delayed on/off
    • one front-panel convenience outlet
  • front-panel USB charger
  • surge and over- and under-voltage protection
  • filtration circuitry virtually eliminates line noise
  • three sets of coaxial RF connections for cable/satellite/TV antenna
  • two sets of RJ-45 Ethernet line inputs and outputs, including one front-panel connection
  • RJ-11 phone line input and output
  • 12-volt trigger input for delayed outlets
  • front-panel digital voltmeter and ammeter
  • 2125-joule surge protection
  • maximum current rating: 15 amps
Specs
Total AC Outlets 11
High-Current Outlets 2
USB Connections 1
RF-EMI Filtering Yes
Joule Rating 2125
Powerline Network Compatible No
Connected Equipment Guarantee $5.000.000
Width (inches) 17
Height (inches) 4-1/8
Depth (inches) 14-3/4
Weight (pounds) 14
