TRENDnet | SKU: TNTPL-407E2K

TRENDnet TPL-407E2K Powerline Adapter Kit /w Pass Through 500 AV Compact

Name: TRENDnet TPL-407E2K Powerline Adapter Kit /w Pass Through 500 AV Compact
Brand: TRENDnet
SKU: TNTPL-407E2K
Availability: InStock

MPN:

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

TRENDnet TPL-407E2K Powerline Adapter Kit /w Pass Through 500 AV Compact is backordered and will ship as soon as it is back in stock.

Description

Includes two TPL-407E adapters
Powerline 500 networking
Never lose an electrical outlet with the built-in socket
Connects over electrical lines
Two adapters are needed to start a network.
Compact form factor saves space
Easy Installation

Overview

	Sync Button Press the Sync button to change existing Powerline encryption keys
	Powerline 500 Powerline networking over existing electrical lines**
	Adapters Includes two TPL-407E adapters
	Noise Filter Advanced electrical noise filter boosts performance
	Energy Savings Power Save mode reduces electrical consumption by up to 80%
	Multiple Adapters Use up to 8 adapters on a single Powerline network
	Easy Installation TRENDnet adapters auto-connect out of the box

Fetures

The Powerline 500 AV Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a high-speed network.

Two adapters are needed to start a network.

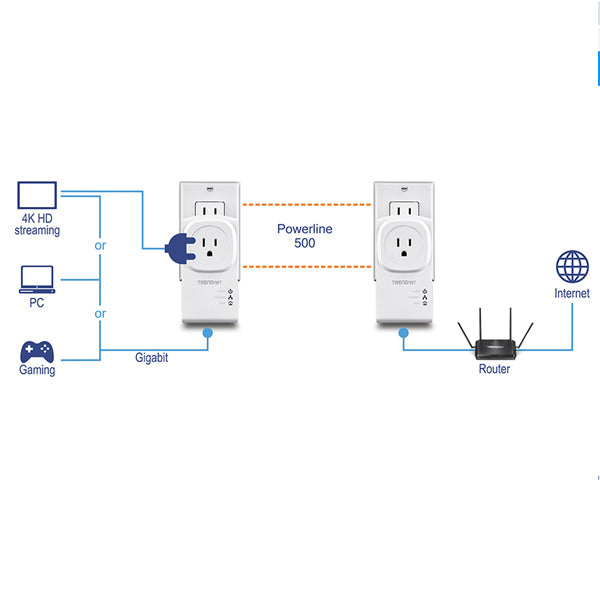

Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access.

The compact form factor saves space and offers an additional electrical outlet.

Specs

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 1901
Device Interfaces	Ethernet port Sync / reset button Status LEDs Power plug A: North America Type B (NEMA 5â€“15) EU: Euro Type C (CEE 7/16) UK: United Kingdom Type G (BS 1363)
Frequency Band	2 â€“ 68 MHz
Data PHY Rate	500 Mbps
Networking Distance	Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption	128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility	Windows^Â®Â 10, 8.1, 8, 7, Vista, XP
Nodes	Up to 8 (max.)
Overlapping Powerline Networks	Up to 4 (per electrical system)
Outlet Current	110V AC, 20A (max.) 220V AC, 16A (max.)
Power	Input: 100 â€“ 240 V AC, 50/60 Hz Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature	0 â€“ 40 Â°C (32 â€“ 104 Â°F)
Operating Humidity	Max. 90 % non-condensing
Certifications	CE FCC
Dimensions	112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight	A: 104 g (3.7 oz.) EU: 190 g (6.7 oz.) UK: 190 g (6.7 oz.)
Warranty	3 year limited

TRENDnet TPL-407E2K Powerline Adapter Kit /w Pass Through 500 AV Compact
