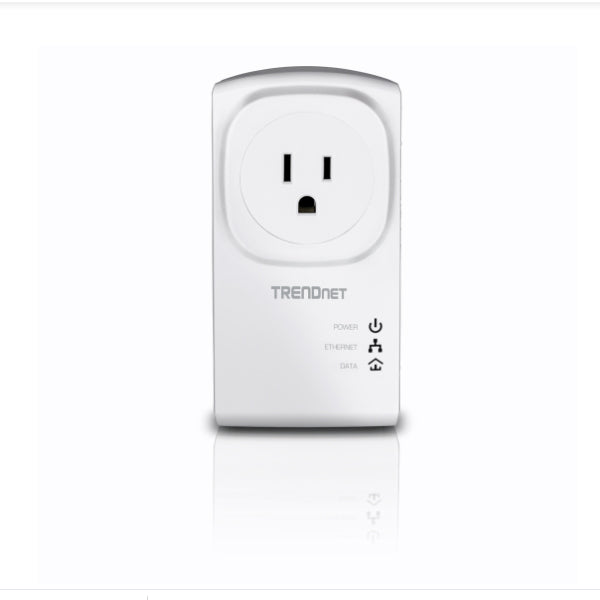

TRENDnet TPL-407E2K Powerline Adapter Kit /w Pass Through 500 AV Compact

SKU TNTPL-407E2K
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

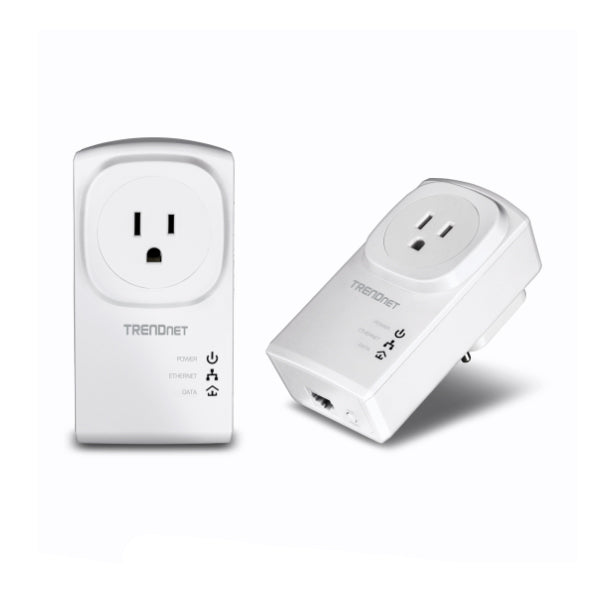

  • Includes two TPL-407E adapters
  • Powerline 500 networking
  • Never lose an electrical outlet with the built-in socket
  • Connects over electrical lines
  • Two adapters are needed to start a network.
  • Compact form factor saves space
  • Easy Installation

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 500

Powerline networking over existing electrical lines**

Adapters

Includes two TPL-407E adapters

Noise Filter

Advanced electrical noise filter boosts performance

Energy Savings

Power Save mode reduces electrical consumption by up to 80%

Multiple Adapters

Use up to 8 adapters on a single Powerline network

Easy Installation

TRENDnet adapters auto-connect out of the box

The Powerline 500 AV Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a high-speed network.

Two adapters are needed to start a network.

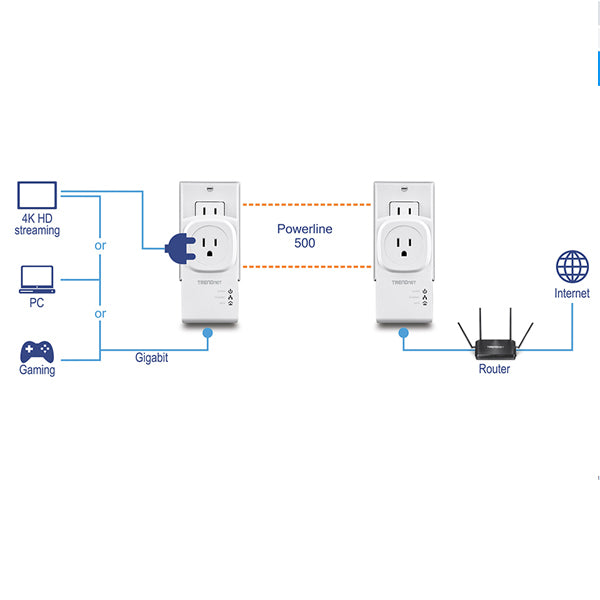

Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access.

The compact form factor saves space and offers an additional electrical outlet.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901
Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs

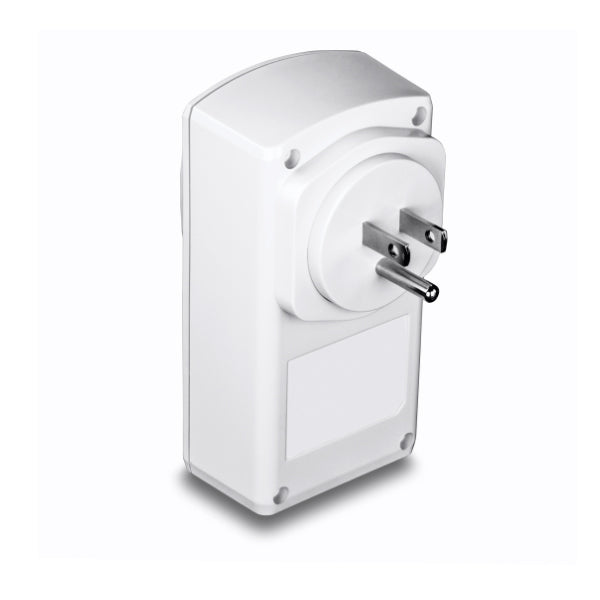

  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Data PHY Rate
  • 500 Mbps
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Outlet Current
  • 110V AC, 20A (max.)
  • 220V AC, 16A (max.)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight
  • A: 104 g (3.7 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)
Warranty
  • 3 year limited
