TRENDnet TEW-827DRU AC2600 Dual Band Wireless Router

Name: TRENDnet TEW-827DRU AC2600 Dual Band Wireless Router
Brand: TRENDnet
SKU: TNTEW-827DRU
Availability: InStock

by TRENDnet

SKU TNTEW-827DRU

AC2600 StreamBoost™ MU-MIMO WiFi Router, TEW-827DRU (Version v1.0R)

Quad-stream AC2600: 1733 Mbps WiFi AC + 800 Mbps WiFi N bands
MU-MIMO boosts performance in a busy home
StreamBoost^™ Low latency gaming/voice prioritization
High performance 1.4 GHz dual-core processor
Pre-encrypted WiFi for your convenience
All Gigabit wired ports
USB 3.0 share ports
Detachable high gain antennas

Features
Specifications

TRENDnet's AC2600 StreamBoost^™ MU-MIMO WiFi Router, model TEW-827DRU, is built to perform in a busy connected home. It generates two extreme quad-stream WiFi networks—a 1,733 Mbps WiFi AC and a concurrent 800 Mbps WiFi N network. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

Qualcomm^® StreamBoost^™ technology prioritizes low latency gaming and voice streams, shapes network traffic to optimize each connected experience, and graphically displays all connected device/app traffic. Use the Gigabit Ethernet ports and USB 3.0 share ports to further extend an extreme performance home network.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 800 Mbps)* IEEE 802.11ac (up to 1733 Mbps)*

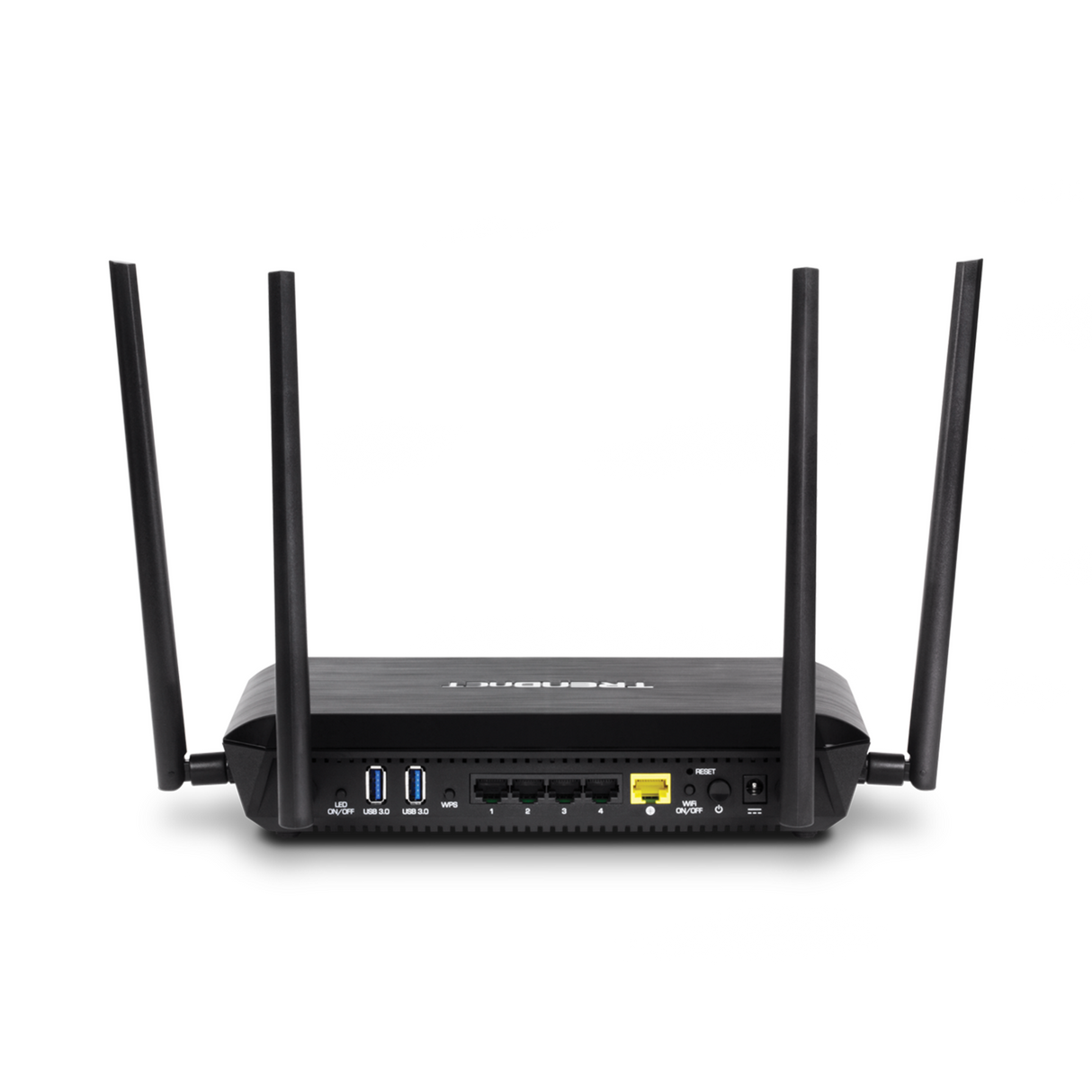

Hardware Interface	4 x Gigabit LAN ports 1 x Gigabit WAN port 2 x USB 3.0 (Storage FTP, Samba, iTunes® Media Server, BitTorrent Client) Power switch WPS button Reset button WiFi on/off LED on/off LED indicators
Special Features	StreamBoost™ automatically identifies and classifies network traffic to maximize bandwidth and speed*** Multi-User MIMO for increased bandwidth efficiency and better user experience* Multi-Language interface: English, French, Spanish, German, Russian Pre-encrypted wireless network IPv6 support 1 guest network per band with option for internet access only Up to 2 additional SSIDs per band Dynamic DNS support for dyn.com, no-ip.com, and easydns.com Samba/FTP server support Implicit and Explicit Beamforming
Access Control	Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service	WMM StreamBoost™ Traffic Shaping***
Internet Connection Types	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP) L2TP(Dynamic IP/Static IP) Russia PPPoE (Dynamic IP/Static IP) Russia PPTP (Dynamic IP/Static IP) Russia L2TP (Dynamic IP/Static IP) IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring	Local/remote web based management Upgrade firmware Backup/restore configuration Internal logging Reboot Restore to factory defaults Ping test
Routing	Static Dynamic (RIP v1/2)
Frequency	2.412 – 2.472 GHz 5.180 – 5.825 GHz
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	2.4 GHz: 4 x 3 dBi (max.) detachable/external; 5 GHz: 4 x 5 dBi
Wireless Output Power (max output power without antenna gain)	802.11a: FCC: 26 dBm (max.) / ETSI: 29 dBm (max.) / IC: 26 dBm (max.) @ 54 Mbps 802.11b: FCC: 27 dBm (max.) / ETSI: 14 dBm (max.) / IC: 27 dBm (max.) @ 11 Mbps 802.11g: FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) @ 54 Mbps 802.11n (2.4 GHz): FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) @ 800 Mbps 802.11n (5 GHz): FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) @ 800 Mbps 802.11ac: FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) @ 1733 Mbps
Receiving Sensitivity	802.11a: -68 dBm (typical) @ 54 Mbps 802.11b: -83 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -64 dBm (typical) @ 800 Mbps 802.11n (5 GHz): -68 dBm (typical) @ 800 Mbps 802.11ac: -55 dBm (typical) @ 1733 Mbps
Wireless Channels	2.4 GHz: FCC: 1-11; ETSI: 1-13 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Power	Input: 100 – 240 V AC, 50 – 60 Hz, 1 A Output: 12V DC, 3 A external power adapter Consumption: 31 Watts max.
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	250 x 180 x 45 mm (9.8 x 7.1 x 1.8 in.)
Weight	752 g (26.5 oz.)
