TRENDnet  |  SKU: TNTEW-827DRU

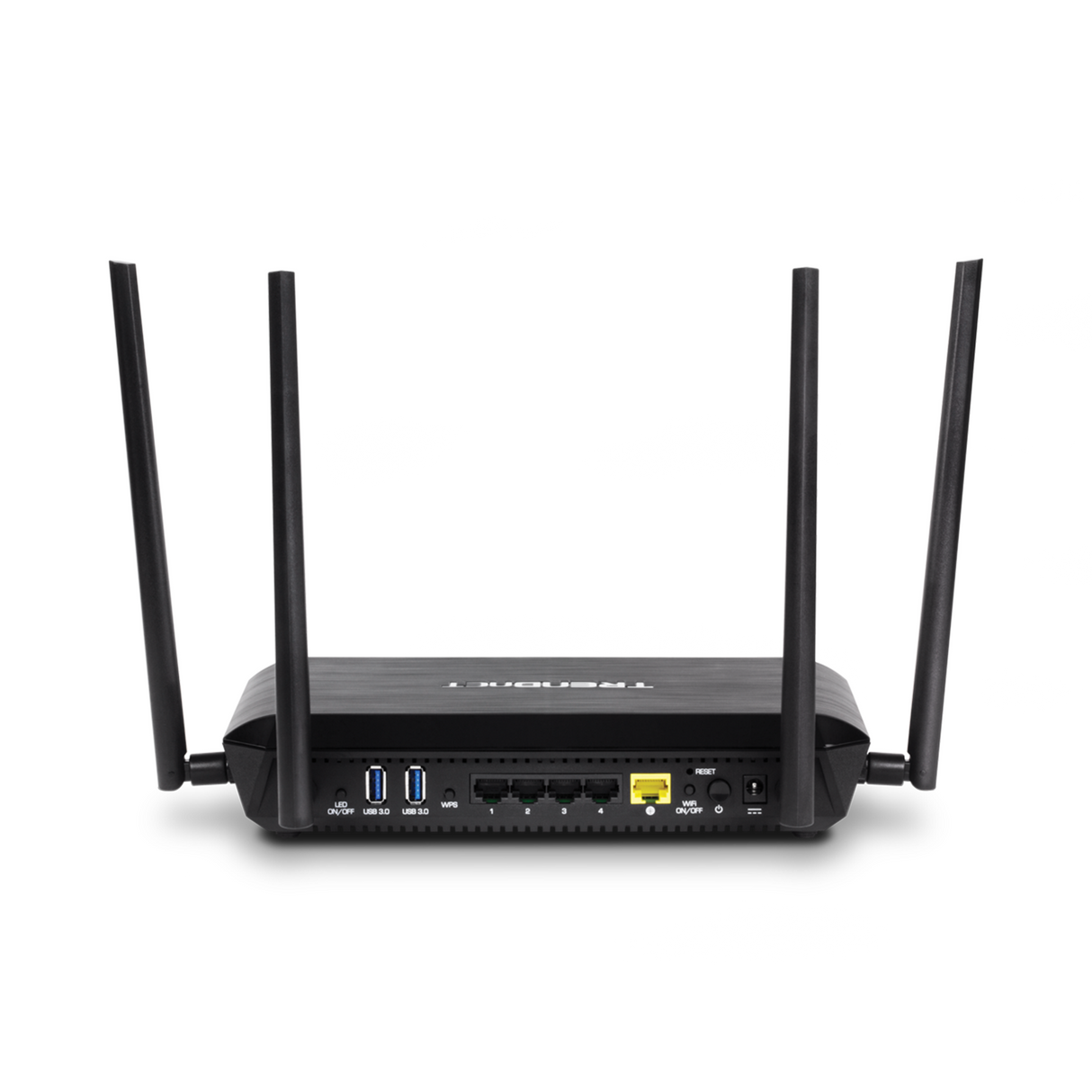

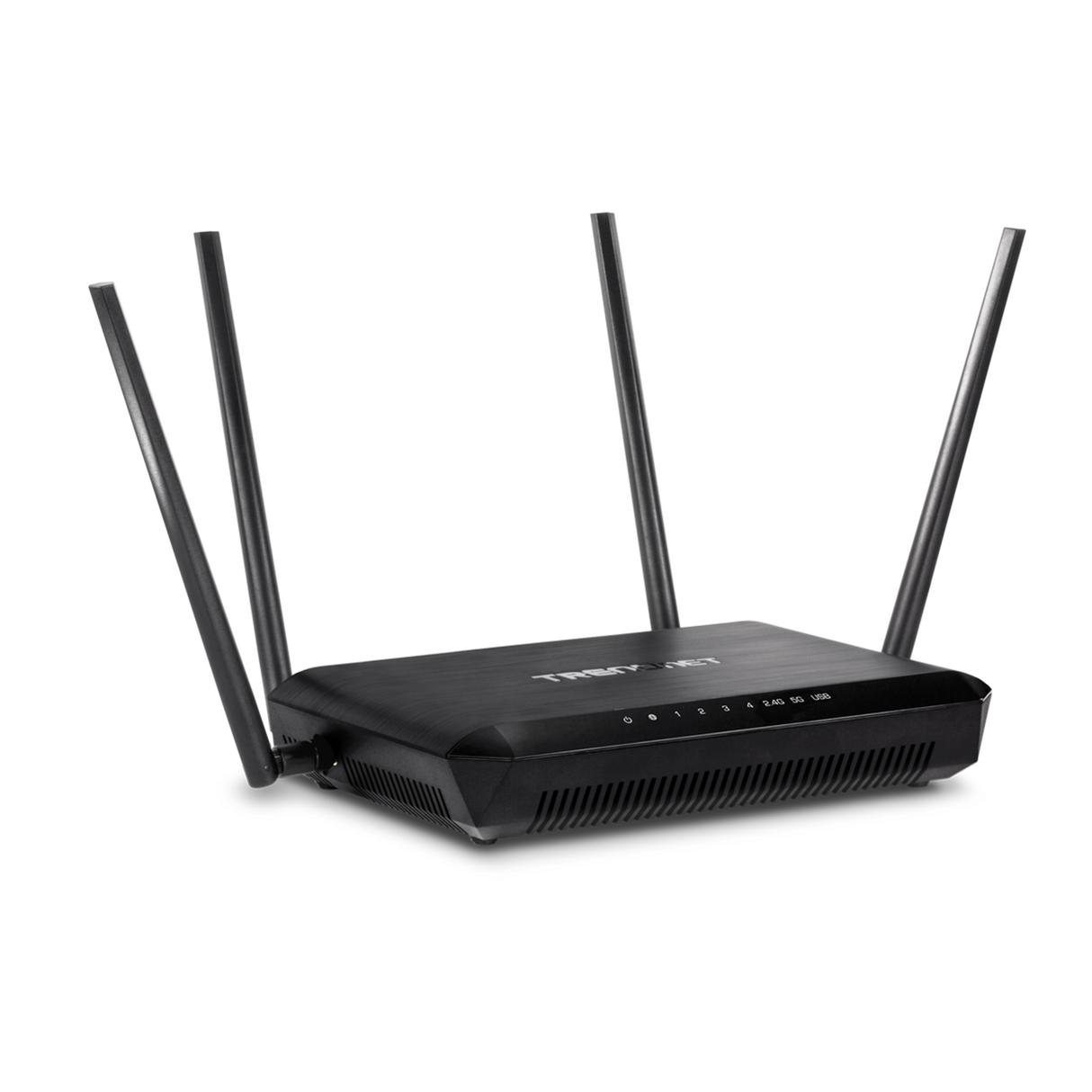

TRENDnet TEW-827DRU AC2600 Dual Band Wireless Router

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

TRENDnet TEW-827DRU AC2600 Dual Band Wireless Router is backordered and will ship as soon as it is back in stock.

Loading location-specific inventory...

Description

AC2600 StreamBoost™ MU-MIMO WiFi Router, TEW-827DRU (Version v1.0R)

  • Quad-stream AC2600: 1733 Mbps WiFi AC + 800 Mbps WiFi N bands
  • MU-MIMO boosts performance in a busy home
  • StreamBoost™ Low latency gaming/voice prioritization
  • High performance 1.4 GHz dual-core processor
  • Pre-encrypted WiFi for your convenience
  • All Gigabit wired ports
  • USB 3.0 share ports
  • Detachable high gain antennas
Features

TRENDnet's AC2600 StreamBoost™ MU-MIMO WiFi Router, model TEW-827DRU, is built to perform in a busy connected home. It generates two extreme quad-stream WiFi networks—a 1,733 Mbps WiFi AC and a concurrent 800 Mbps WiFi N network. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

Qualcomm® StreamBoost™ technology prioritizes low latency gaming and voice streams, shapes network traffic to optimize each connected experience, and graphically displays all connected device/app traffic. Use the Gigabit Ethernet ports and USB 3.0 share ports to further extend an extreme performance home network.

Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 800 Mbps)*
  • IEEE 802.11ac (up to 1733 Mbps)*
Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • 2 x USB 3.0 (Storage FTP, Samba, iTunes® Media Server, BitTorrent Client)
  • Power switch
  • WPS button
  • Reset button
  • WiFi on/off
  • LED on/off
  • LED indicators
Special Features
  • StreamBoost™ automatically identifies and classifies network traffic to maximize bandwidth and speed***
  • Multi-User MIMO for increased bandwidth efficiency and better user experience*
  • Multi-Language interface: English, French, Spanish, German, Russian
  • Pre-encrypted wireless network
  • IPv6 support
  • 1 guest network per band with option for internet access only
  • Up to 2 additional SSIDs per band
  • Dynamic DNS support for dyn.com, no-ip.com, and easydns.com
  • Samba/FTP server support
  • Implicit and Explicit Beamforming
Access Control
  • Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet
  • ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
  • Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service
  • WMM
  • StreamBoost™ Traffic Shaping***
Internet Connection Types
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • L2TP(Dynamic IP/Static IP)
  • Russia PPPoE (Dynamic IP/Static IP)
  • Russia PPTP (Dynamic IP/Static IP)
  • Russia L2TP (Dynamic IP/Static IP)
  • IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring
  • Local/remote web based management
  • Upgrade firmware
  • Backup/restore configuration
  • Internal logging
  • Reboot
  • Restore to factory defaults
  • Ping test
Routing
  • Static
  • Dynamic (RIP v1/2)
Frequency
  • 2.412 – 2.472 GHz
  • 5.180 – 5.825 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 2.4 GHz: 4 x 3 dBi (max.) detachable/external; 5 GHz: 4 x 5 dBi
Wireless Output Power (max output power without antenna gain)
  • 802.11a: FCC: 26 dBm (max.) / ETSI: 29 dBm (max.) / IC: 26 dBm (max.) @ 54 Mbps
  • 802.11b: FCC: 27 dBm (max.) / ETSI: 14 dBm (max.) / IC: 27 dBm (max.) @ 11 Mbps
  • 802.11g: FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) @ 54 Mbps
  • 802.11n (2.4 GHz): FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) @ 800 Mbps
  • 802.11n (5 GHz): FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) @ 800 Mbps
  • 802.11ac: FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) @ 1733 Mbps
Receiving Sensitivity
  • 802.11a: -68 dBm (typical) @ 54 Mbps
  • 802.11b: -83 dBm (typical) @ 11 Mbps
  • 802.11g: -70 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): -64 dBm (typical) @ 800 Mbps
  • 802.11n (5 GHz): -68 dBm (typical) @ 800 Mbps
  • 802.11ac: -55 dBm (typical) @ 1733 Mbps
Wireless Channels
  • 2.4 GHz: FCC: 1-11; ETSI: 1-13
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Power
  • Input: 100 – 240 V AC, 50 – 60 Hz, 1 A
  • Output: 12V DC, 3 A external power adapter
  • Consumption: 31 Watts max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 250 x 180 x 45 mm (9.8 x 7.1 x 1.8 in.)
Weight
  • 752 g (26.5 oz.)
