Russound MBX-PRE Wi-Fi Streaming Media Player
by Russound
SKU RSMBX-PRE

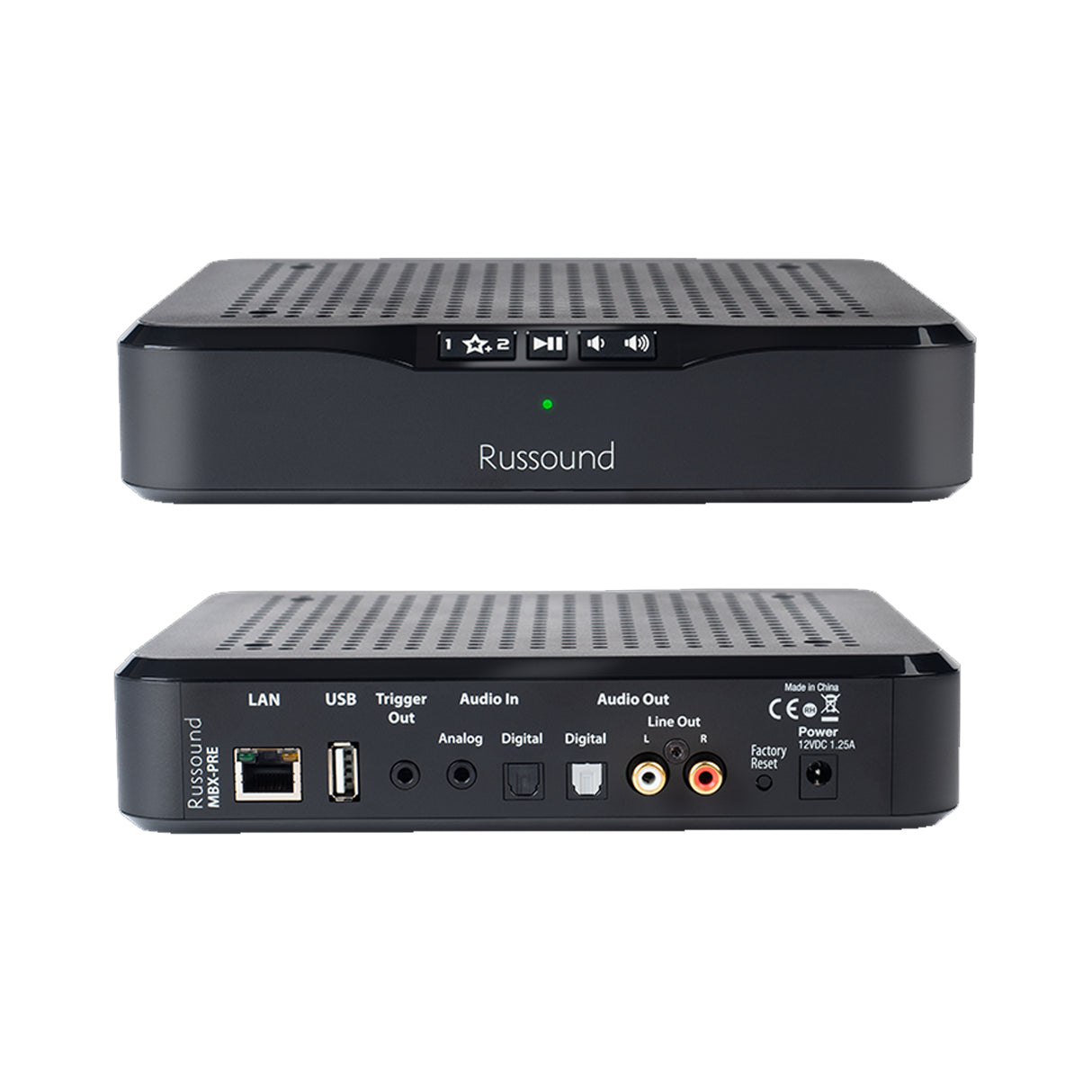

Russound MBX-PRE

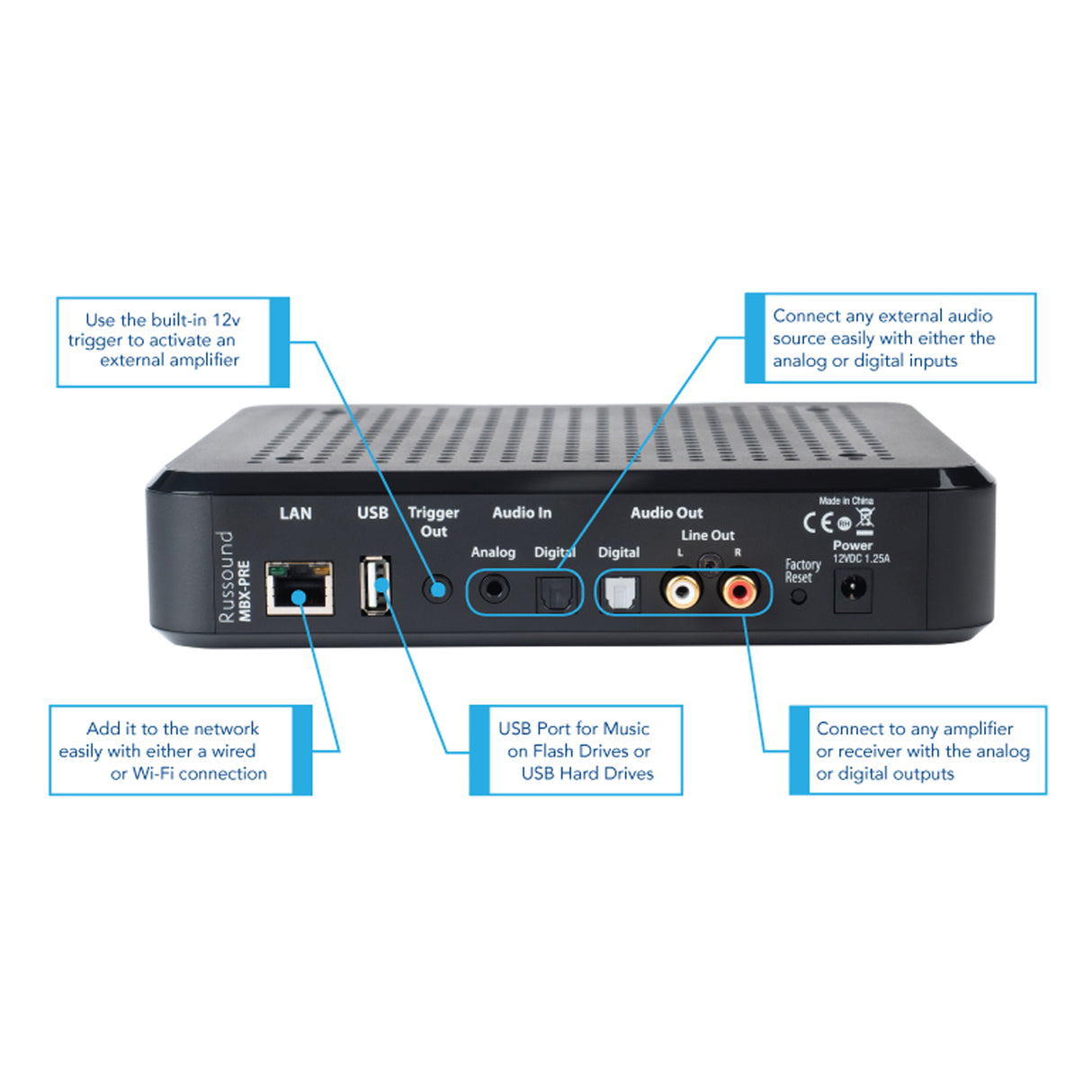

The MBX-PRE Streaming Audio Player is designed to offer a simple-to-install and simple-to-configure streaming media solution to add high quality streaming audio content to any audio system. The MBX-PRE can be used as a single stereo audio streaming source for a single room, or supply a single audio stream to a larger whole-house system through its easy-to-use analog line-level/digital (coax/optical) outputs.
- Independent streaming audio player
- Built-in AirPlay streaming with full metadata to iOS/Android apps or XTSPlus touchscreens
- Built-in Chromecast for Audio support with full metadata to iOS/Android apps or XTSPlus touchscreens
- Bluetooth Audio
- Hi-Res audio streaming support up to 24-bit/192 kHz
- USB for Flash or external USB Hard drive-based music collections
- Digital (PCM) and Analog Stereo Inputs
- Digital or analog output
- Can be integrated (as a source) with a Russound MCA-66 or MCA-88 controller or standalone (as a zone) when used with any brand of amplifier or receiver
- Controllable with the MyRussound App and fully compatible with the Russound XTSPlus in-wall touchscreen
- Bass, Treble, and Loudness settings available through the MyRussound App
- Supports local favorites
- Onboard browser-based configuration, accessible from a smartphone or tablet
- Mix and match with other MBX-Series® components for versatile system designs
| Frequency Response: | 20Hz to 20KHz |
|---|---|
| Audio Outputs Analog | Analog – Stereo Audio RCA, Digital Optical |
| Line Audio Output | 2V rms |
| Audio Inputs | 3.5mm Analog Stereo Audio, Digital Optical, USB2.0 Media Playback |
| Communication Ports | Ethernet RJ45 10/100 BaseT |
| Wi-Fi | 802.11ac, dual band |
| Bluetooth Audio Support | Yes |
| Trigger Output | 12vDC @100mA |
| Music File Formats | MP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis, FLAC (8, 16-bit), AAC, AAC+ (supports up to 24-bit/192kHz) |
| Power Requirements | 12VDC, 200 watts |
| Product Dimensions | 8.25”W x 7”D x 1.75”H (21cm W x 17.8cm D x 4.5cm H) |
| Product Weight | 1.00 lb (0.58 kg) |
