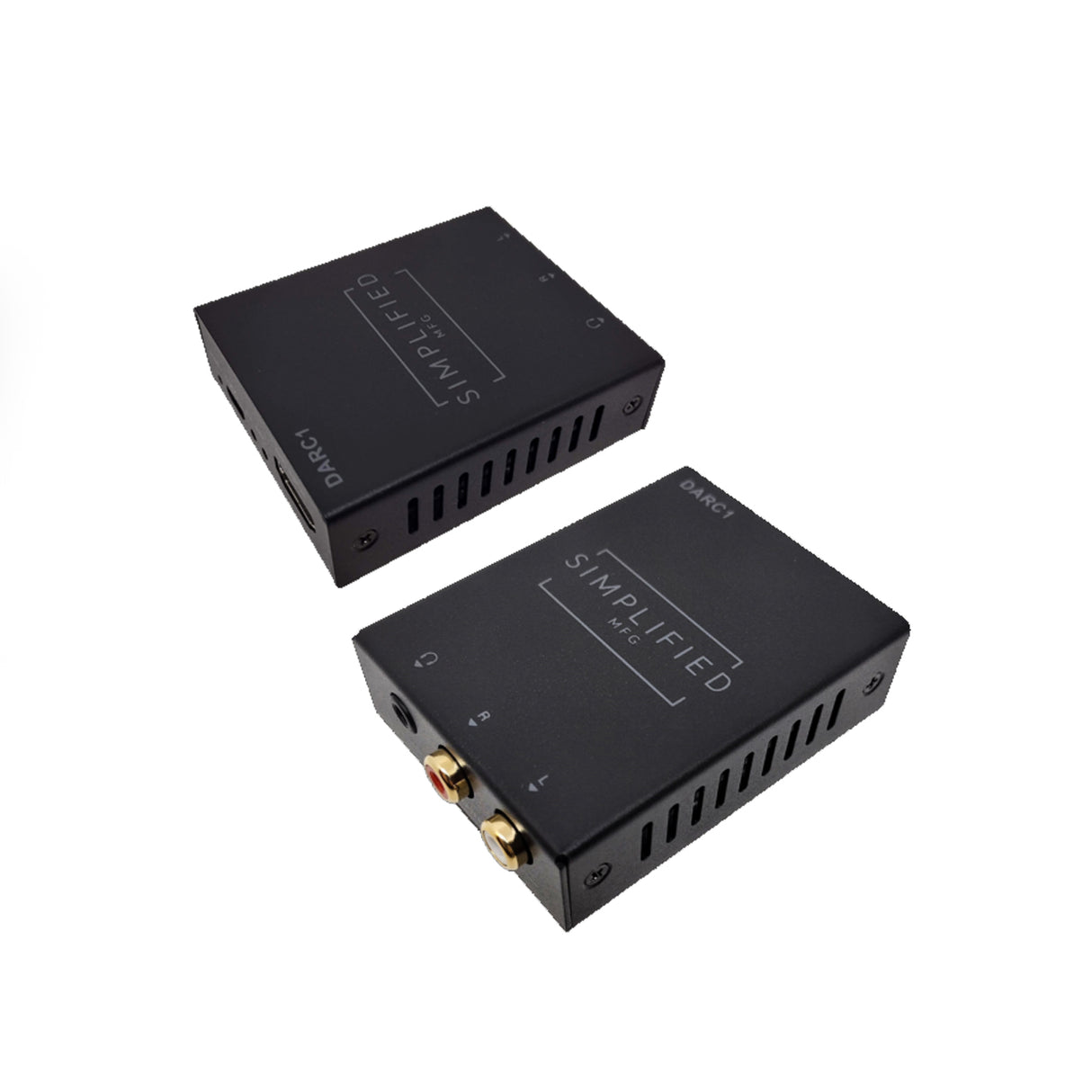

Simplified DARC1, ARC Audio Extractor with Dolby downmix capability

SKU SM-DARC1
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

HDMI ARC Audio DownMixing Device that will take ARC audio and convert it to RCA and 3.5mm mini stereo audio

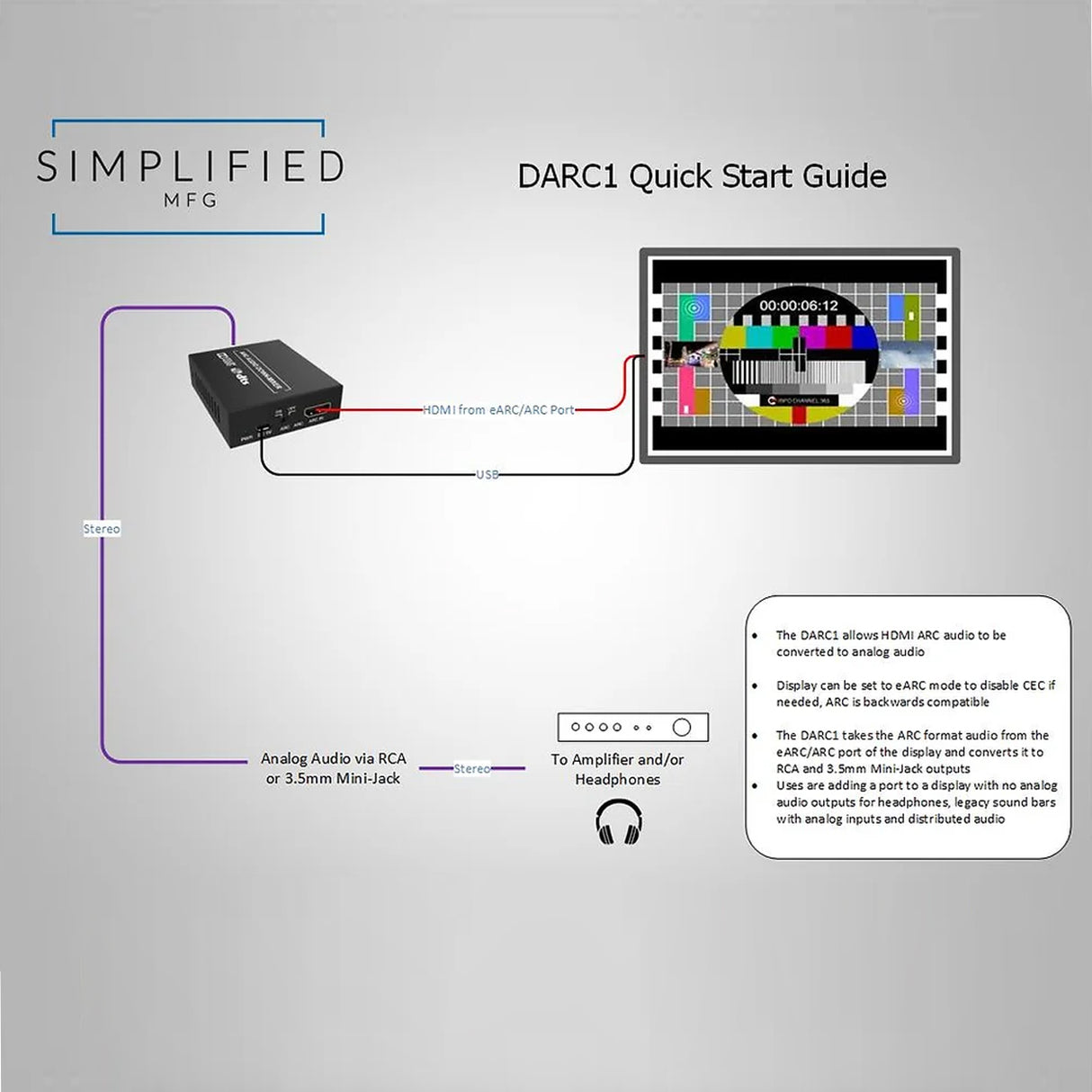

The DARC1 HDMI ARC Audio Extractor extracts audio signals (Dolby 5.1 and DTS 5.1) and downmixes the signal to stereo from the HDMI ARC/eARC input on a compatible display. The DARC1 converts the ARC format to stereo and outputs that stereo signal via RCA type connectors or via a 3.5mm mini jack. This is a great way to extract stereo from a modern display for headphones or for distributed audio. The unit is powered via USB Micro to USB Type-A cable so that power can be attained from the USB port on the display.

Primary Use: to extract audio from a display with eARC/ARC and then convert the multichannel audio to stereo.

  • Converts HDMI ARC audio to Stereo

  • Compact design

  • Powers from USB port of display

  • Converts 5.1 formats to stereo

  • 3-Year Warranty

HDMI Compliance Not Applicable
HDCP Version  Not Applicable
HDMI ARC Audio Formats LPCM 2/5.1/Dolby Digital, DTS 5.1
L/R Audio Formats Analog Stereo 2CH
Analog Output Ports  RCA (2) and 3.5mm mini-jack
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Housing  Metal Enclosure
Color  Black
Dimensions  70mm/2.756" [W] x 60mm/2.36" [D] x 20mm/0.788" [H]
Weight  130g/4.6 oz.
Power Supply Input AC100 - 240V 50/60Hz
Power Supply Output DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 1W (Max)
Operation Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
