Simplified DARC1, ARC Audio Extractor with Dolby downmix capability
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Simplified DARC1, ARC Audio Extractor with Dolby downmix capability is backordered and will ship as soon as it is back in stock.
Description
Description

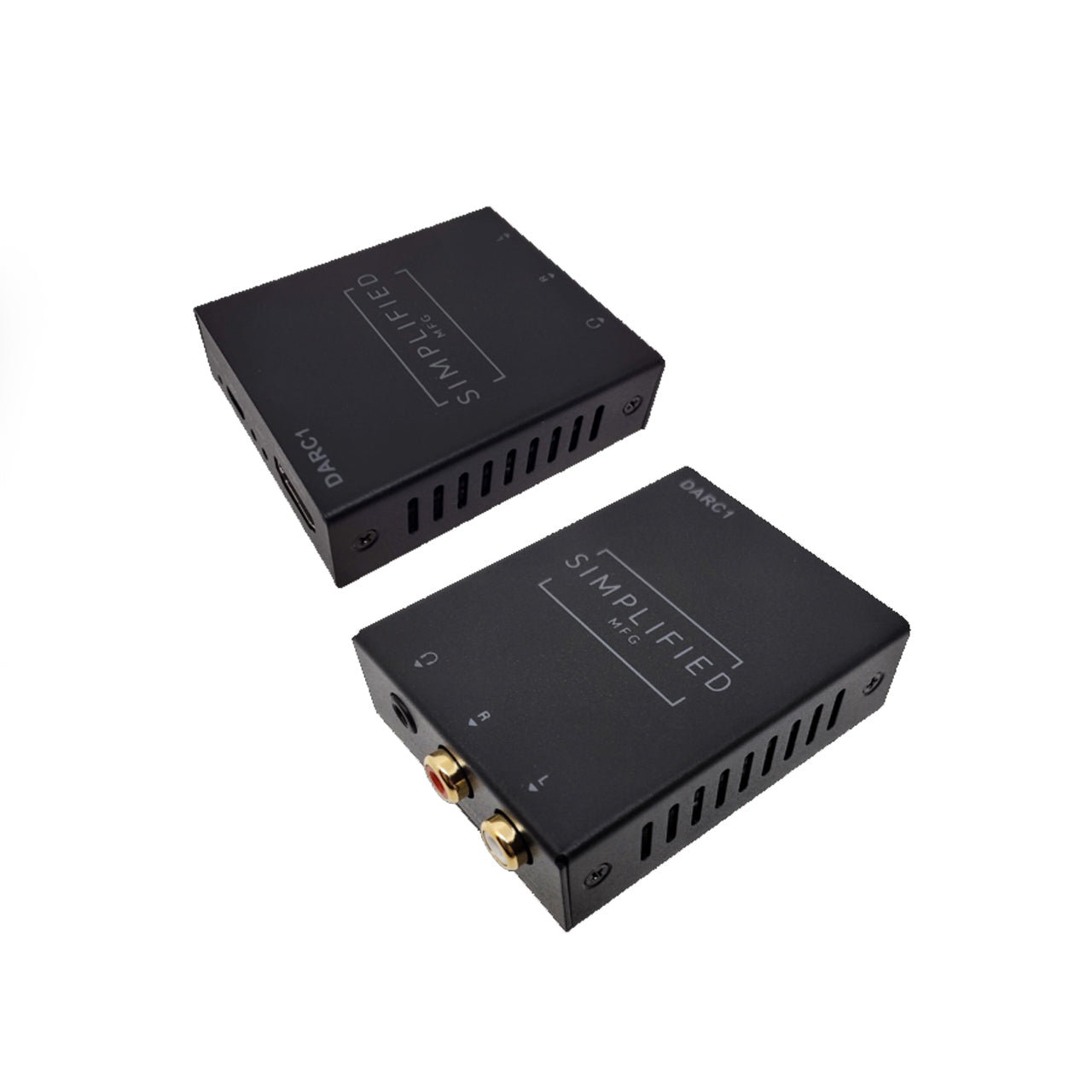

HDMI ARC Audio DownMixing Device that will take ARC audio and convert it to RCA and 3.5mm mini stereo audio

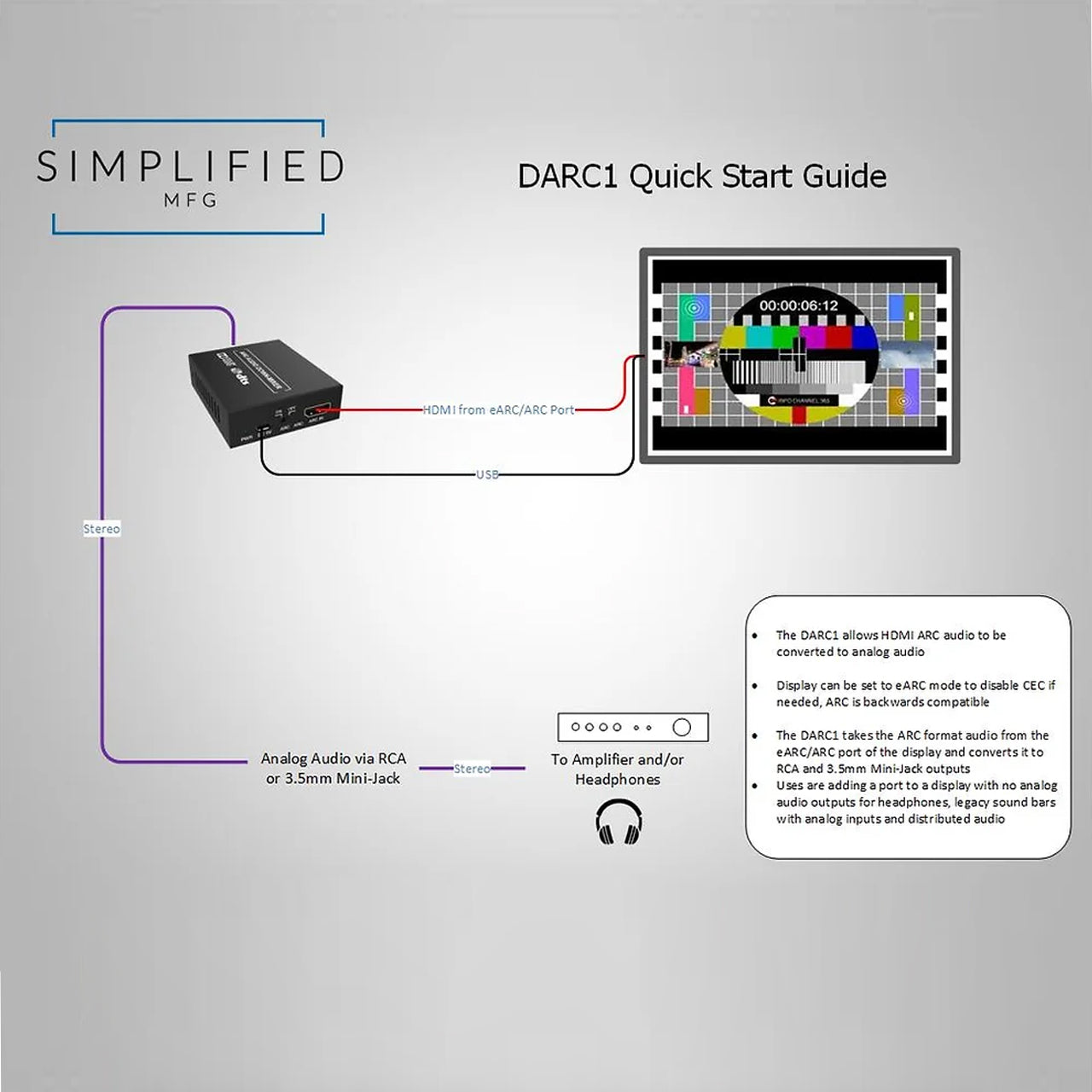

The DARC1 HDMI ARC Audio Extractor extracts audio signals (Dolby 5.1 and DTS 5.1) and downmixes the signal to stereo from the HDMI ARC/eARC input on a compatible display. The DARC1 converts the ARC format to stereo and outputs that stereo signal via RCA type connectors or via a 3.5mm mini jack. This is a great way to extract stereo from a modern display for headphones or for distributed audio. The unit is powered via USB Micro to USB Type-A cable so that power can be attained from the USB port on the display.
Primary Use: to extract audio from a display with eARC/ARC and then convert the multichannel audio to stereo.

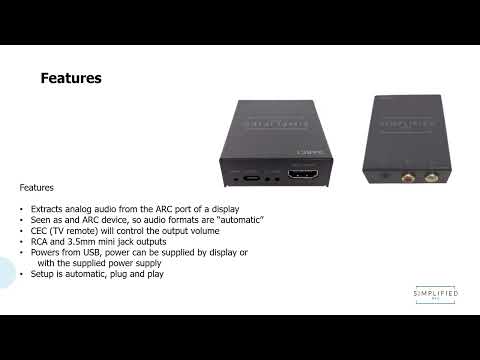

Features
-
Converts HDMI ARC audio to Stereo
-
Compact design
-
Powers from USB port of display
-
Converts 5.1 formats to stereo
Specifications
|
HDMI Compliance
|
Not Applicable
|
|
HDCP Version
|
Not Applicable
|
|
HDMI ARC Audio Formats
|
LPCM 2/5.1/Dolby Digital, DTS 5.1
|
|
L/R Audio Formats
|
Analog Stereo 2CH
|
|
Analog Output Ports
|
RCA (2) and 3.5mm mini-jack
|
|
ESD Protection
|
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
|
|
Housing
|
Metal Enclosure
|
|
Color
|
Black
|
|
Dimensions
|
70mm/2.756" [W] x 60mm/2.36" [D] x 20mm/0.788" [H]
|
|
Weight
|
130g/4.6 oz.
|
|
Power Supply Input
|
AC100 - 240V 50/60Hz
|
|
Power Supply Output
|
DC 5V/1A (US/EU standards, CE/FCC/UL certified)
|
|
Power Consumption
|
1W (Max)
|
|
Operation Temperature
|
32 - 104°F / 0 - 40°C
|
|
Storage temperature
|
-4 - 140°F / -20 - 60°C
|
|
Relative Humidity
|
20 - 90% RH (no condensation)
|
