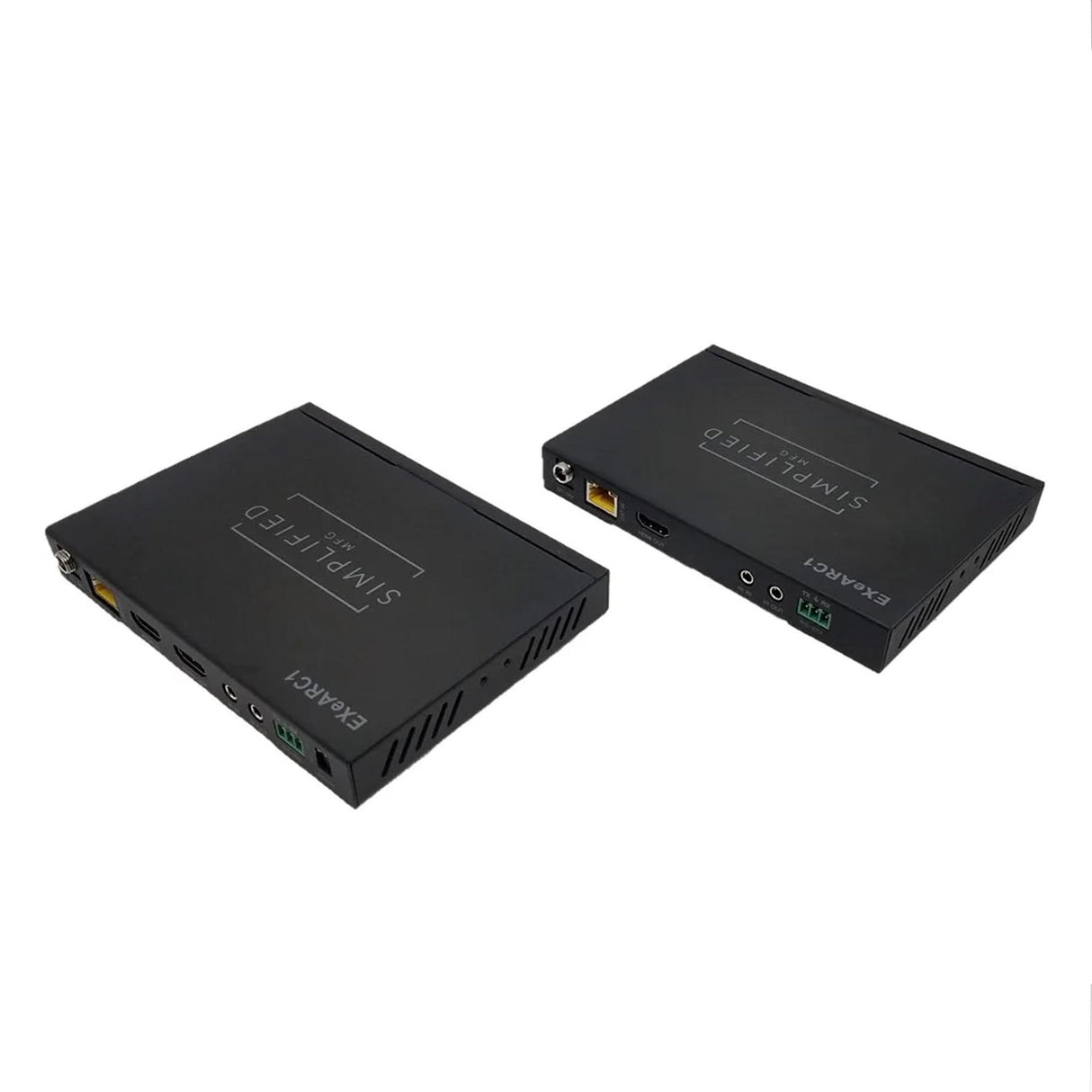

Simplified EXeARC1, HDMI Extender 4K over Cat6, with eARC
HDMI 2.0b 18Gbps Extender over Cat5e/Cat6 with eARC

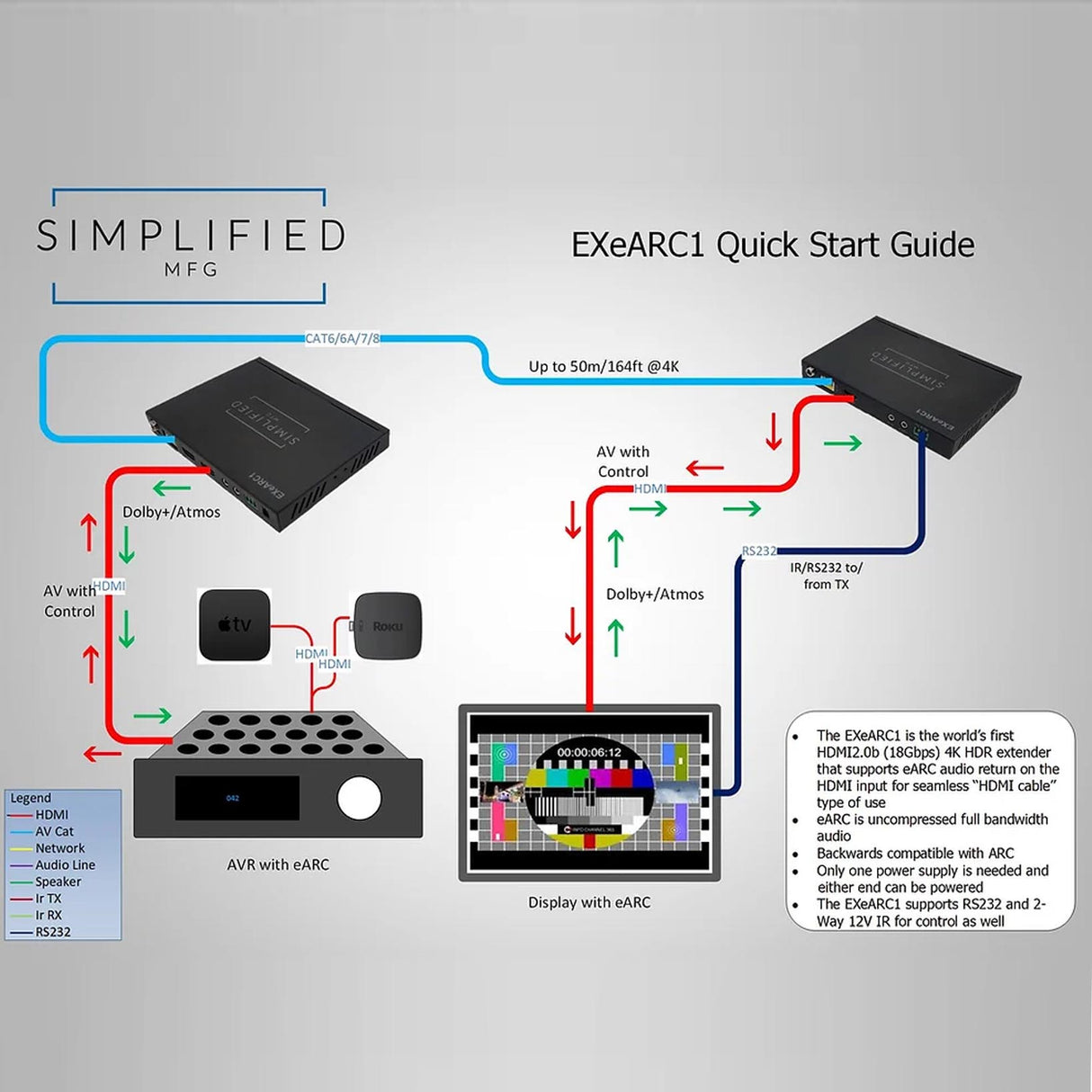

The EXeARC1 18Gbps HDMI 2.0b extender is the first of its kind that will bring eARC back from the display to the transmitter end. With this device you can bring uncompressed Dolby+/Atmos audio from your display back to the source/rack up to 50m. You can use it in ARC or eARC mode.
The EXeARC1 supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18gbps HDMI 2.0b signal.
-

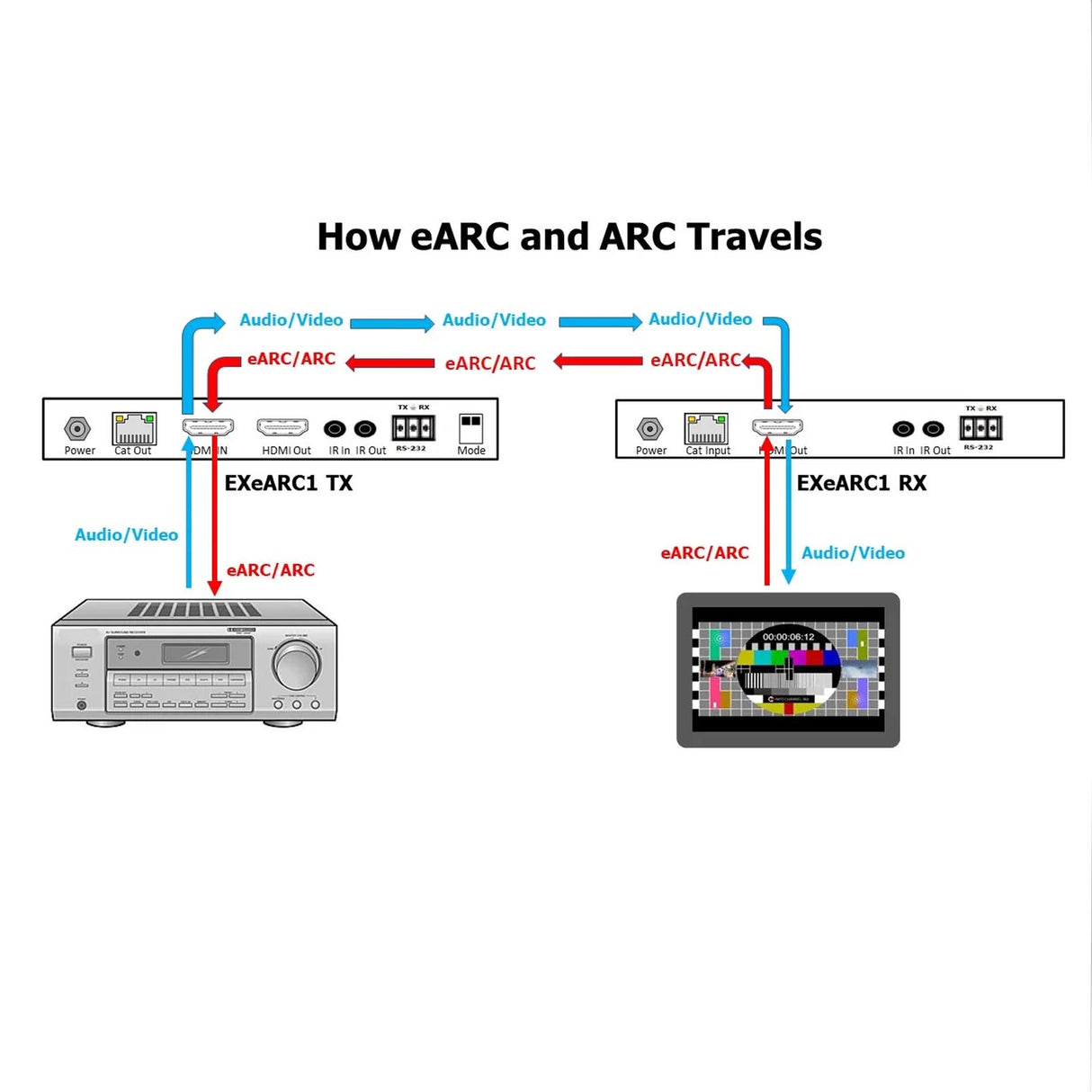

eARC and ARC are fully supported to bring Dolby+ and Atmos audio back to your rack or AVR
-
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
-
Video resolutions up to 4K2K@50/60Hz (YUV444)
-
HDR8/10/10+pass through
-
Dolby Vision™ pass through
-
Supports HDMI High Bit Rate(HBR) audio pass through
-
Supports CEC
-
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
-
Bidirectional Infrared control signal together with the HDMI signal
-
Transfer Bidirectional RS232 control signal together with the HDMI signal
-
Transmission distance: Over CAT6 cable
-
50 meters:
-
1080P @60Hz@48bit; 1080P @120Hz@24bit;
-
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
-
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
-
-
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8, 10, & 12-Bit |
| HDMI Audio Formats (pass-through and eARC) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| POE Format | 24V |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 152mm (6") [W] x 106mm (4.175) [D] x 20mm (0.82") [H] |
| Weight | 424g (15oz.) |
| Power Supply Input | AC100 -240V 50/60Hz |
| Power Supply Output | DC 24V/1A (US/EU standards, CE/FCC/UL Certified) |
| Power Consumption | 12W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
