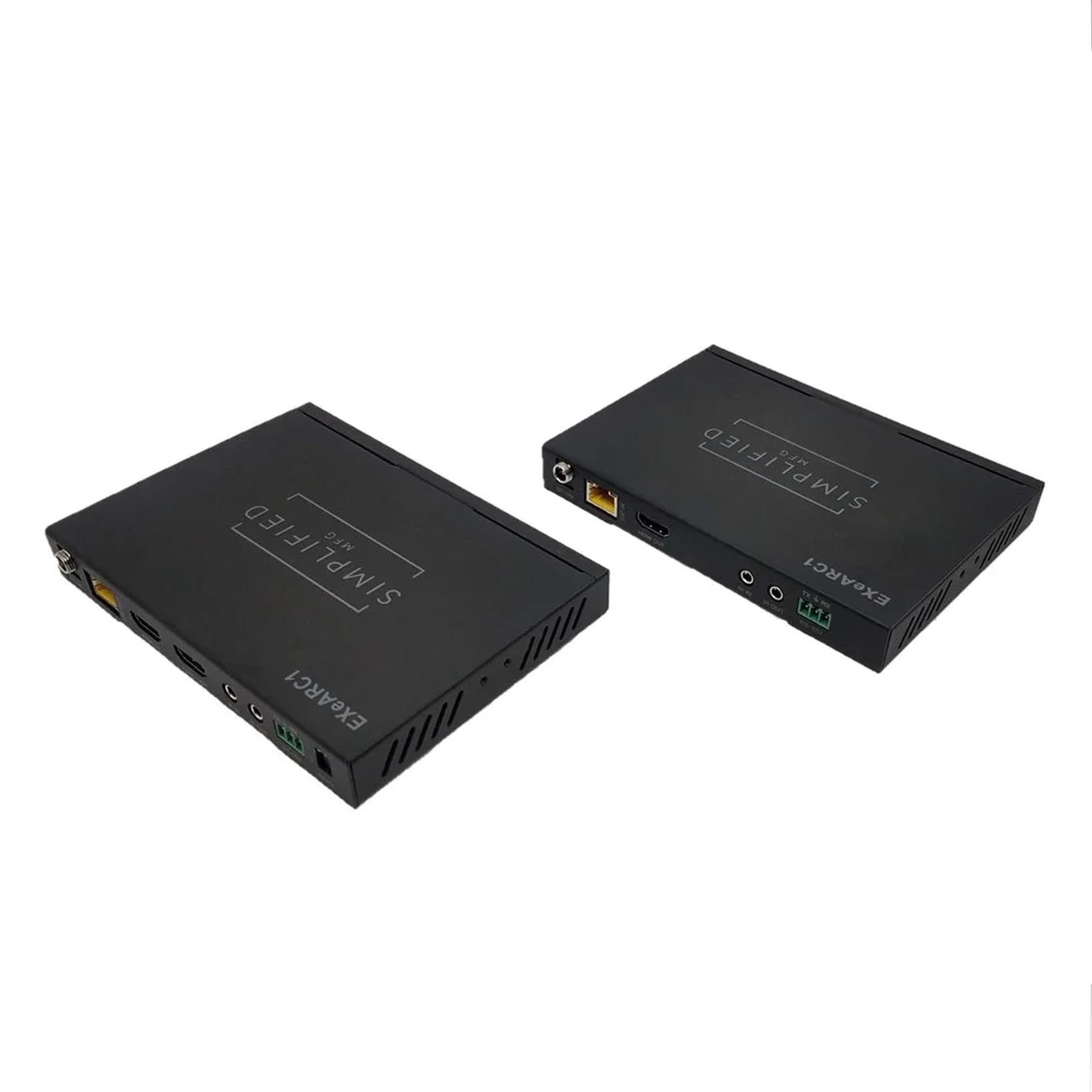

Simplified EXeARC1, HDMI 2.0b 18Gbps Extender over Cat5e/Cat6 with eARC

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Simplified EXeARC1, HDMI 2.0b 18Gbps Extender over Cat5e/Cat6 with eARC is backordered and will ship as soon as it is back in stock.

Description

HDMI 2.0b 18Gbps Extender over Cat5e/Cat6 with eARC

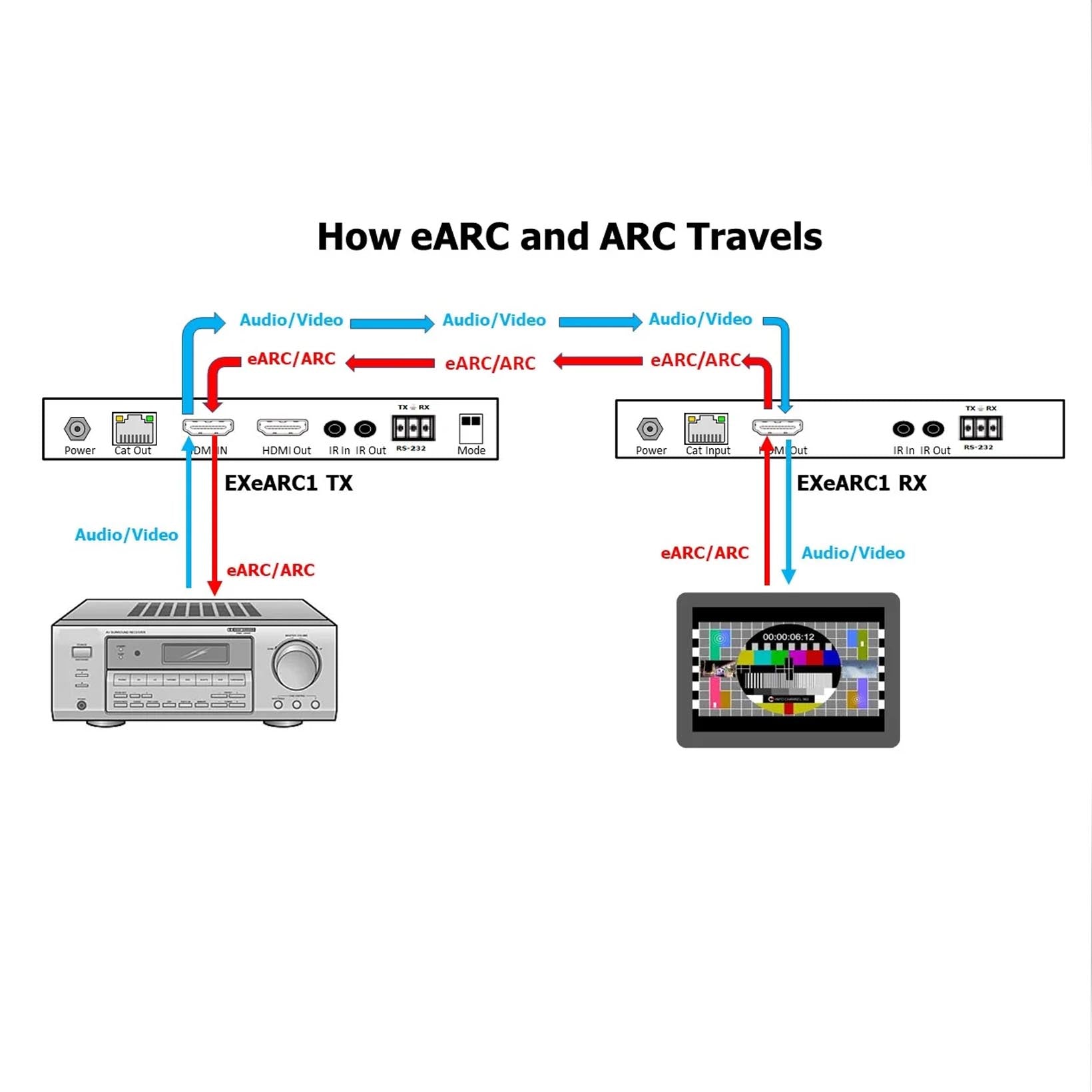

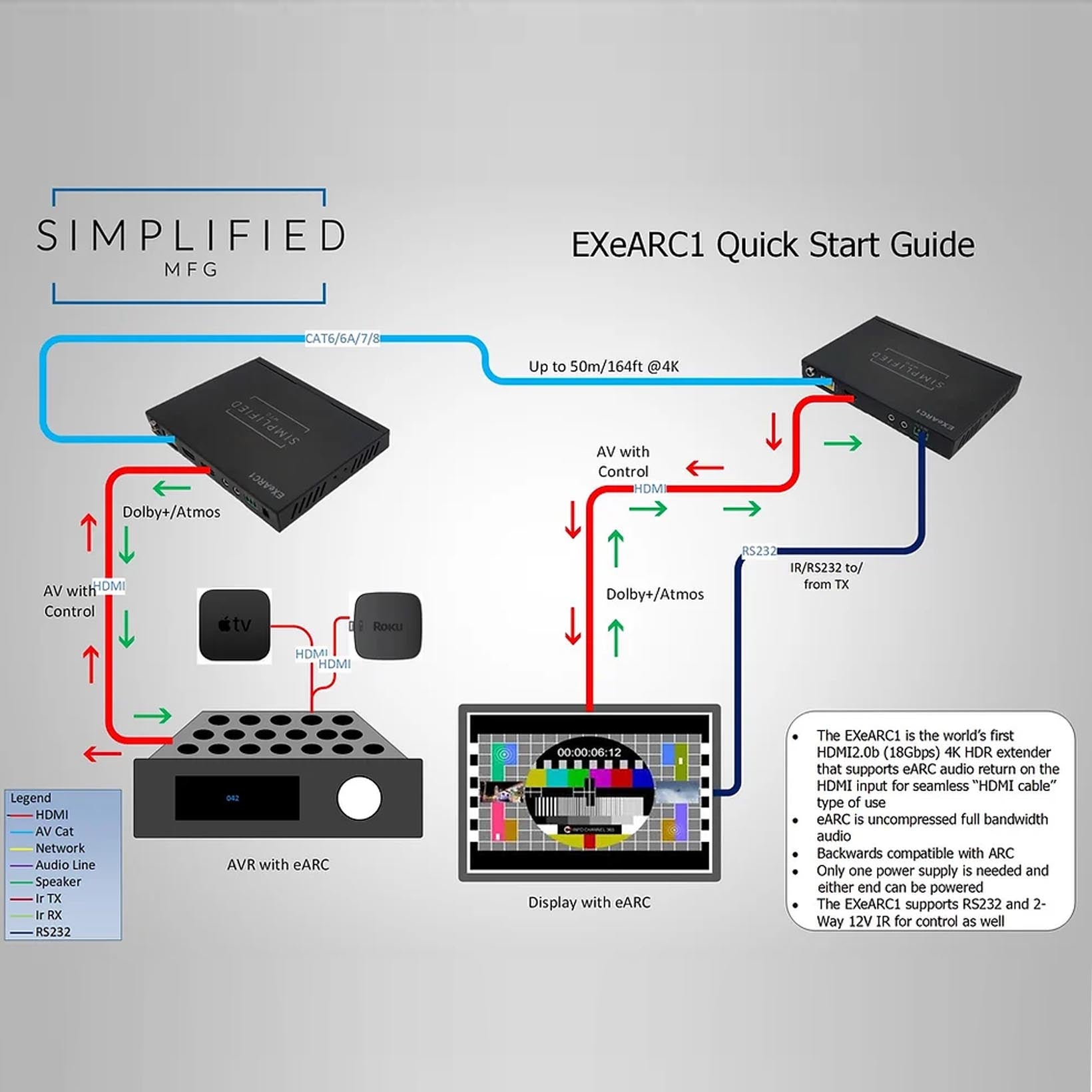

The EXeARC1 18Gbps HDMI 2.0b extender is the first of its kind that will bring eARC back from the display to the transmitter end. With this device you can bring uncompressed Dolby+/Atmos audio from your display back to the source/rack up to 50m. You can use it in ARC or eARC mode.

The EXeARC1 supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18gbps HDMI 2.0b signal.

Features
  • eARC and ARC are fully supported to bring Dolby+ and Atmos audio back to your rack or AVR

  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

  • Video resolutions up to 4K2K@50/60Hz (YUV444)

  • HDR8/10/10+pass through

  • Dolby Vision™ pass through

  • Supports HDMI High Bit Rate(HBR) audio pass through

  • Supports CEC

  • Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)

  • Bidirectional Infrared control signal together with the HDMI signal

  • Transfer Bidirectional RS232 control signal together with the HDMI signal

  • Transmission distance: Over CAT6 cable

    • 50 meters:

      • 1080P @60Hz@48bit; 1080P @120Hz@24bit;

      • 3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.

      • 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)

Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2/1.4
Video Bandwidth
18Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8, 10, & 12-Bit
HDMI Audio Formats (pass-through and eARC)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format
24V
ESD Protection
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Housing
Metal Enclosure
Color
Black
Dimensions
152mm (6") [W] x 106mm (4.175) [D] x 20mm (0.82") [H]
Weight
424g (15oz.)
Power Supply Input
AC100 -240V 50/60Hz
Power Supply Output
DC 24V/1A (US/EU standards, CE/FCC/UL Certified)
Power Consumption
12W (Max)
Operation Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
