Russound PRO-8 HP 8 Pair Impedance Matching Speaker Selector

SKU RSPRO-8-HP
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

The PRO-8HP is a robust, efficient dual-source speaker selector for up to eight pairs of speakers. Designed for demanding applications, this high-quality speaker selector features a low-frequency protection circuit to reduce subsonic signals. This allows higher power operation without amplifier shutdown.

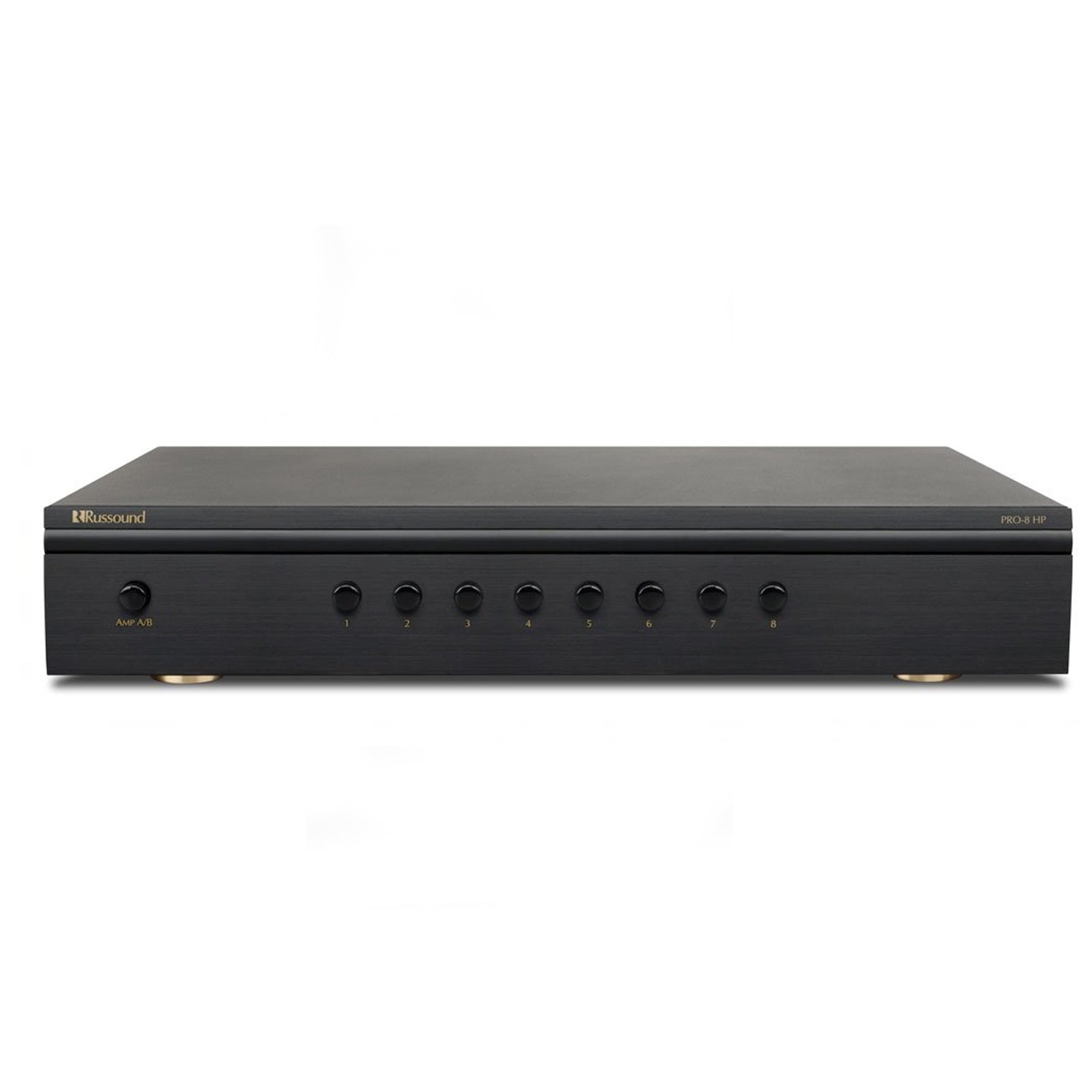

An A/B switch on the front panel allows you to power all your speakers with either of two source amplifiers. The PRO-8HP is designed for use with either 4- or 8-ohm speakers.

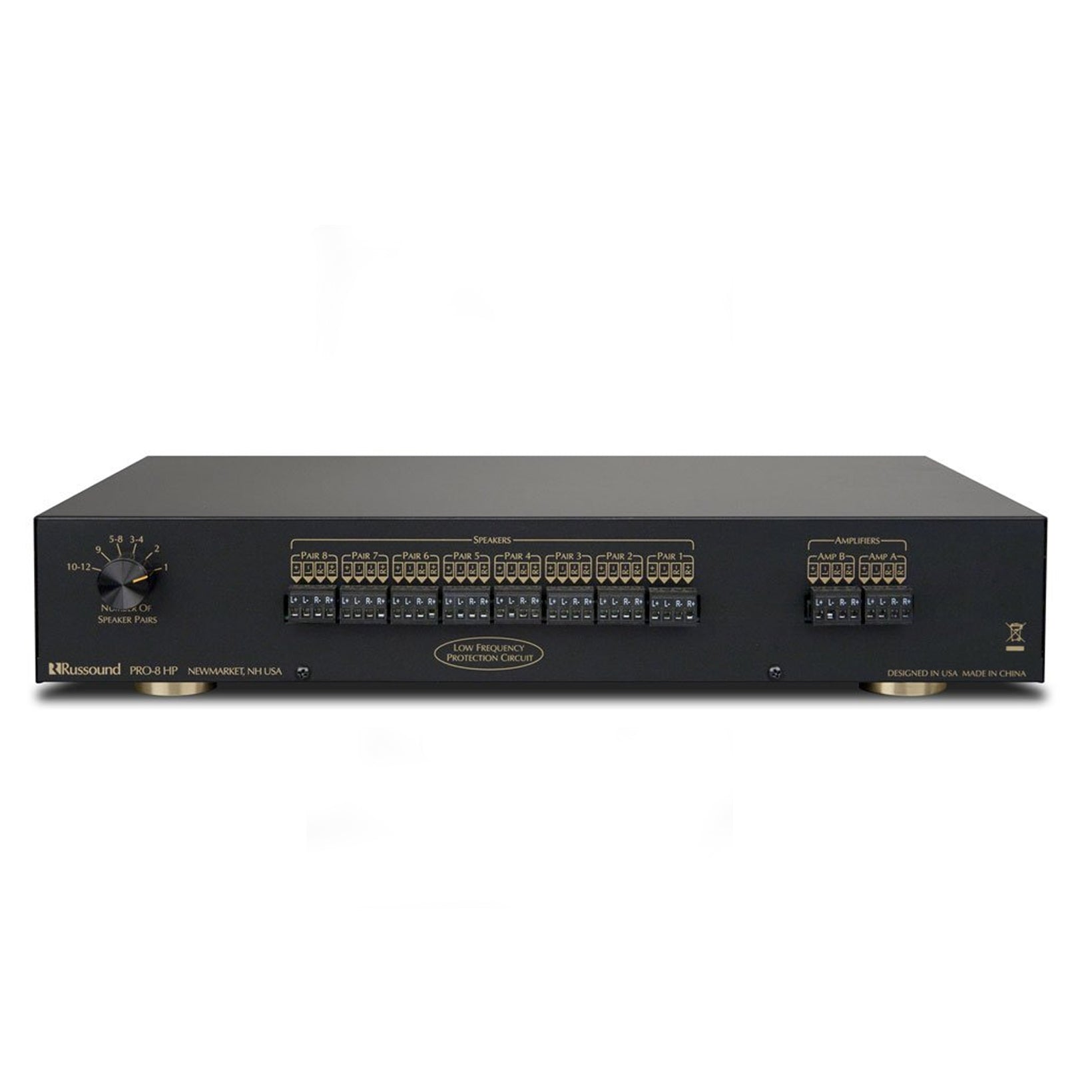

The PRO-8HP uses audiophile-grade autoformers for impedance matching to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. A rotary switch on the rear panel sets the appropriate impedance for your amplifier, based on the number of speaker pairs connected.

  • Lets you control speakers in several rooms from a central location
  • Printed room labels included
  • Detachable snap connectors are color coded for easy wire termination
  • Selectable impedance matching accommodates 4- or 8-ohm speakers
  • Low-frequency protection circuit helps to guard your amplifier
  • Audiophile-quality autoformers provide high performance for years
  • Shipping Dimensions:Ā 20.3" (W) x 6.2" (H) x 12.2" (D), (51.4 x 15.6 x 30.9 cm)
  • Shipping Weight:Ā 9.8 lbs (4.5 kg)
  • Connector(s):Ā Detachable 4-pole color-coded snap connectors
  • Impedance Matching Type:Ā Autoformer
  • Low Frequency Protection:Ā Bipolar capacitor circuit, 6 dB high-pass filter, centered at 30 Hz
  • Max Wire Size:Ā 14 AWG (1.9 mm)
  • Power Handling:Ā 100 watts RMS continuous per channel, 300 watts peak per channel
  • Speaker Impedance:Ā 4 ohms
