Russound PRO-8 HP 8 Pair Impedance Matching Speaker Selector
The PRO-8HP is a robust, efficient dual-source speaker selector for up to eight pairs of speakers. Designed for demanding applications, this high-quality speaker selector features a low-frequency protection circuit to reduce subsonic signals. This allows higher power operation without amplifier shutdown.

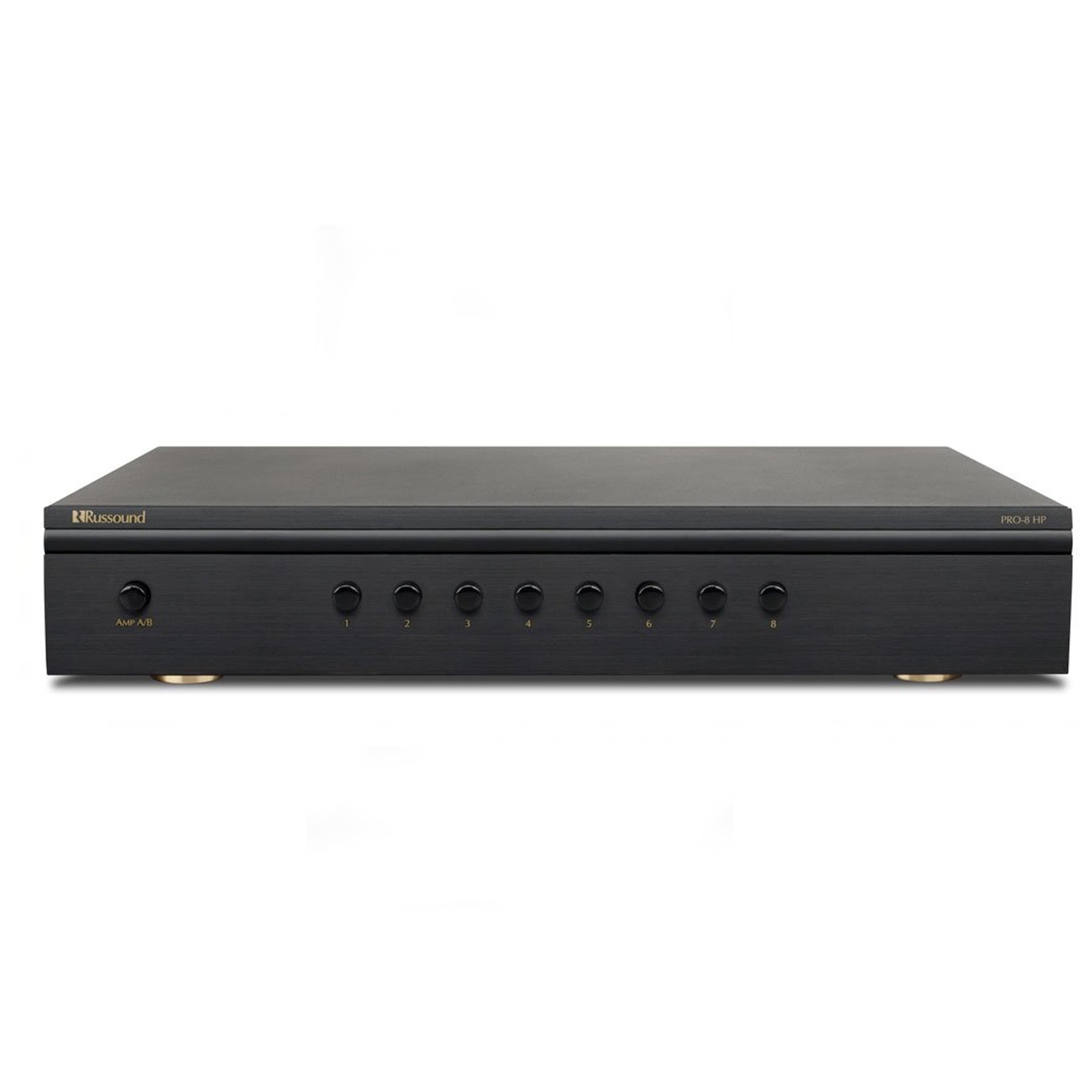

An A/B switch on the front panel allows you to power all your speakers with either of two source amplifiers. The PRO-8HP is designed for use with either 4- or 8-ohm speakers.

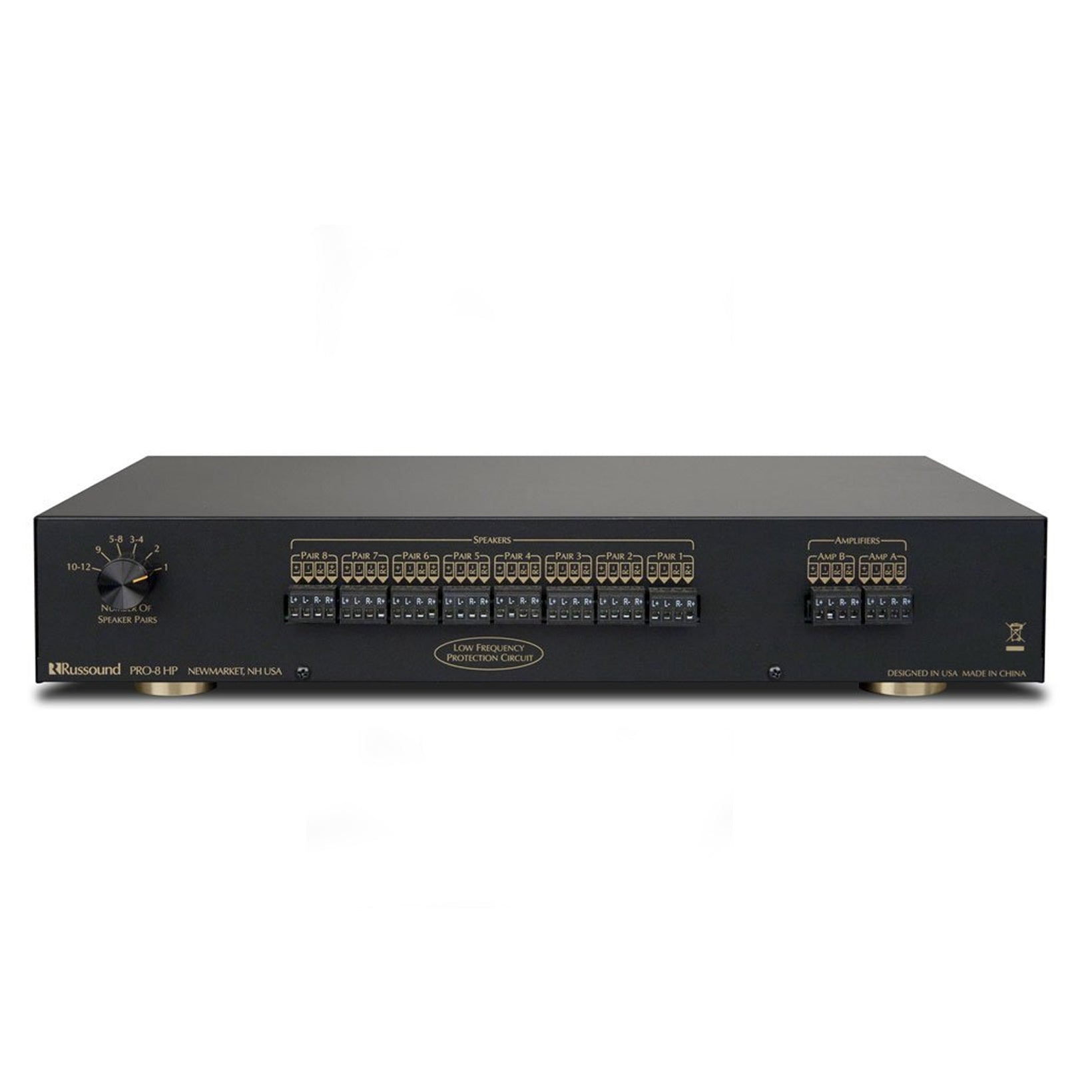

The PRO-8HP uses audiophile-grade autoformers for impedance matching to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. A rotary switch on the rear panel sets the appropriate impedance for your amplifier, based on the number of speaker pairs connected.
- Lets you control speakers in several rooms from a central location
- Printed room labels included
- Detachable snap connectors are color coded for easy wire termination
- Selectable impedance matching accommodates 4- or 8-ohm speakers
- Low-frequency protection circuit helps to guard your amplifier
- Audiophile-quality autoformers provide high performance for years
- Shipping Dimensions:Ā 20.3" (W) x 6.2" (H) x 12.2" (D), (51.4 x 15.6 x 30.9 cm)
- Shipping Weight:Ā 9.8 lbs (4.5 kg)
- Connector(s):Ā Detachable 4-pole color-coded snap connectors
- Impedance Matching Type:Ā Autoformer
- Low Frequency Protection:Ā Bipolar capacitor circuit, 6 dB high-pass filter, centered at 30 Hz
- Max Wire Size:Ā 14 AWG (1.9 mm)
- Power Handling:Ā 100 watts RMS continuous per channel, 300 watts peak per channel
- Speaker Impedance:Ā 4 ohms
