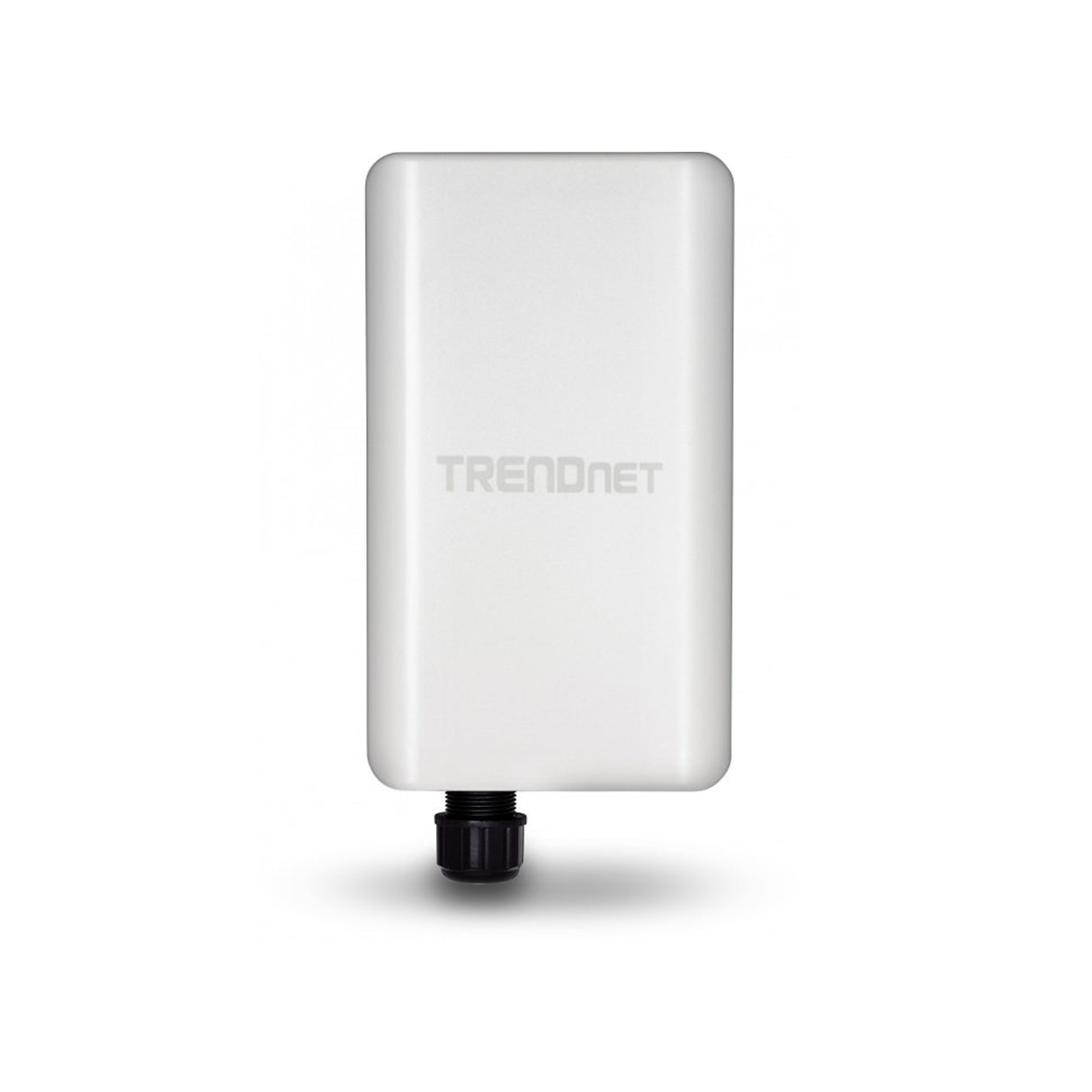

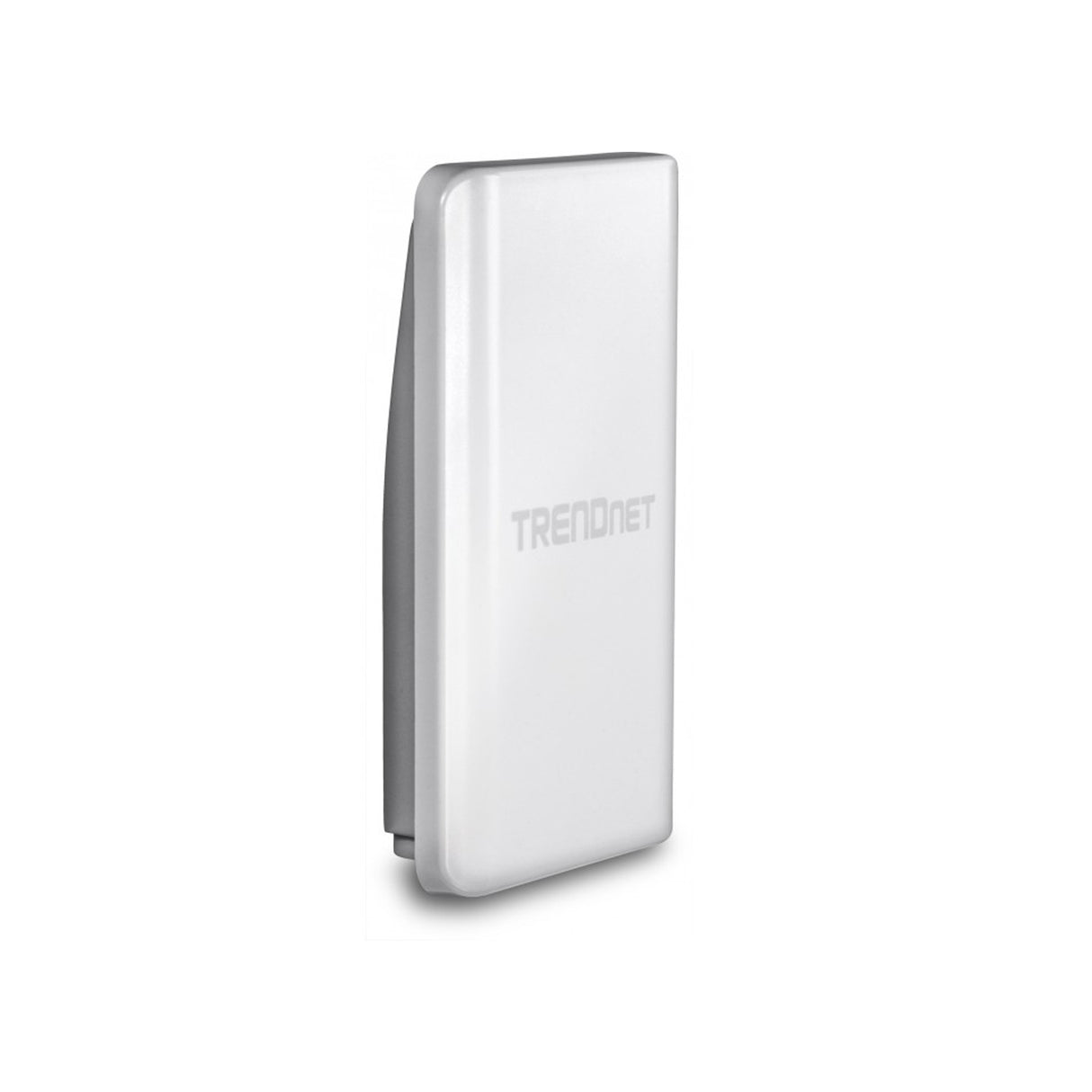

TRENDnet TEW-740APBO2K10 dBi Wireless N300 Outdoor PoE Pre-Configured Point-to-Point Bridge Kit

Name: TRENDnet TEW-740APBO2K10 dBi Wireless N300 Outdoor PoE Pre-Configured Point-to-Point Bridge Kit
Brand: TRENDnet
SKU: TNTEW-740APBO2K
Availability: InStock

by TRENDnet

SKU TNTEW-740APBO2K

10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit / TEW-740APBO2K (Version v3.0R)

Wireless N300 point-to-point networking (2.4 GHz)
Includes two preconfigured wireless N access points
IP56 outdoor weather rated housing
Built-in 10 dBi directional antenna
Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
Proprietary PoE power adapters included
1 x 10/100Mbps PoE-in port, and 1 x 10/100Mbps port

Features
Specs

TRENDnet's 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-740APBO2K, is the easiest way for you to provide long-distance, point-to-point wireless connectivity. The long-range outdoor access point kit is ideal for use with building-to-building communications, utility poles, surveillance solutions, and more.

Reduce installation time and infrastructure costs. This preconfigured directional point-to-point bridge kit is ready to install out of the box, with no additional WiFi configurations required*. Conveniently link two locations together with Wireless N300 speeds and performance, especially when you are unable to run network cables.

The durable access point housing is IP56 weather rated housing, and designed and tested for harsh, outdoor environments. This long-range outdoor access point bridge kit features built-in, high-performance 10 dBi antennas, and conveniently includes both wall and pole mounting hardware for installation flexibility.

*For future troubleshooting, we recommend assigning the APs valid IP addresses within your existing network.

Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps
Durable enclosure with an IP67 outdoor weather rating
Built in 10 dBi directional antenna
Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
Real time logs and statistics help troubleshooting
Support for wireless encryption of up to WPA2
Create up to eight additional SSIDs
Compatible with legacy wireless devices
Pole and wall mounting hardware included
DDNS support for dyn.com, no-ip.com
Schedule radio on/off time policy

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1X IEEE 802.11d IEEE 802.11e IEEE 802.11f IEEE 802.11h IEEE 802.11i IEEE 802.11b IEEE 802.11g IEEE 802.11k IEEE 802.11n (2.4GHz up to 300Mbps) IEEE 802.11r

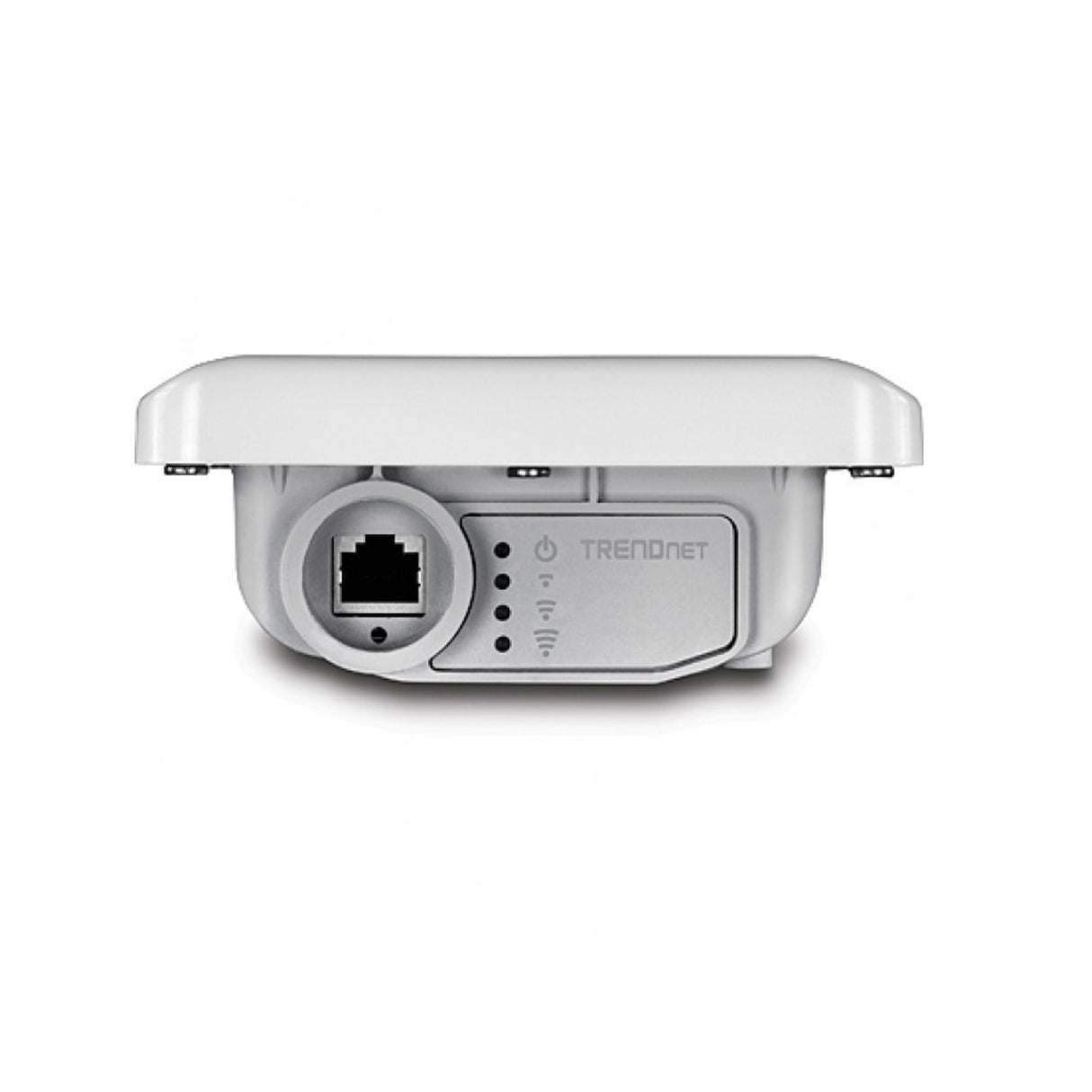

Hardware Interface	1 x 10/100Mbps LAN1 port (proprietary PoE max. cable length 60m (197 ft.)) 1 x 10/100Mbps LAN2 port LED indicators Reset button Grounding Point
Special Features	IP56 weather rated 802.1Q VLAN assignment per SSID Schedule radio on/off time policy 802.11r / 802.11k fast roaming Preconfigured point-to-point bridge kit
Access Control	Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-Enterprise, 802.1X Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting 802.1Q VLAN OAuthentication 2.0 / Walled Garden for guest authentication Customizable captive portal for guest authentication
QoS	WMM
Operation Modes	Access Point (AP) Access Point (AP) + WDS Wireless Distribution System (WDS) WISP (CPE) + AP Client Bridge + AP Router Control AP (CAP)
SSID	Up to 7 SSIDs
Internet Connection Types (WISP (CPE) + AP & Router modes)	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP)
Management/Monitoring	Local/remote web-based management (HTTP, HTTPS) Local/remote CLI based management (Telnet, SSH) SNMP v2c/v3 SNMP Trap Upgrade firmware Backup/restore configuration Event logging Authentication log Reboot Restore to factory defaults Ping test Traceroute LED Control
Frequency	FCC: 2.412 - 2.462GHz ETSI: 2.412 – 2.472GHz IC: 2.412 - 2.462GHz
Wireless Channels	FCC: 1-11 ETSI: 1-13
Modulation	802.11b: DBPK, DQPSK, CCK with DSSS 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	10 dBi internal sector antenna
Wireless Output Power	802.11b: FCC: 26 dBm (max.) / CE: 10.4 dBm (max.) / IC: 26 dBm (max.) @ 11Mbps 802.11g: FCC: 25 dBm (max.), CE: 10.5 dBm (max.) / IC: 25 dBm (max.) @ 54Mbps 802.11n: FCC: 28 dBm (max.), CE: 10.6 dBm (max.) / IC: 28 dBm (max.) @ 150Mbps 802.11n: FCC: 27 dBm (max.), CE: 10.6 dBm (max.) / IC: 27 dBm (max.) @ 300Mbps
Receiving Sensitivity	802.11b: -88 dBm (typical) @ 11Mbps 802.11g: -74 dBm (typical) @ 54Mbps 802.11n: -71 dBm (typical) @ 150Mbps 802.11n: -69 dBm (typical) @ 300Mbps
Power	Input: 100 – 220V AC, 50/60Hz, 0.5A Output: 12V DC, 1A proprietary/passive PoE injector Max. Consumption: 6.6W
Operating Temperature	-22° – 60° C (-7.6° – 140° F)
Operating Humidity	Max. 99% non-condensing
Certifications	FCC CE IC
Dimensions	195 x 118 x 61mm (7.6 x 4.6 x 2.4 in.) per access point
Weight	304g (10.7 oz.) per access point
