TRENDnet TPE-S50 5-port 10/100Mbps PoE Switch (31W)

by TRENDnet

SKU TNTPE-S50

Easy installation
4 x Fast Ethernet PoE+ ports and 2 x Fast Ethernet ports
1.2Gbps switching capacity
60W PoE budget
Wall mountable design
Sturdy metal switch
Use with TRENDnet's PoE splitter to network and power non-PoE devices
Lifetime Warranty*

Overview
Feature
Specs
Download Specs

	Ports Eight gigabit PoE+ ports provide a 16Gbps switching capacity
	LED Indicators The desktop PoE managed switch includes LED indicators that convey port status
	Switching Capacity 48 Gbps switching capacity
	Housing Wall mountable metal housing
	PoE+ Supplies up to 30 Watts of power per port with a 246 Watt PoE budget

The 6-Port Fast Ethernet PoE+ Switch, model TPE-S50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points, VoIP phones, and IP Cameras.

It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE budget. Plug and play this sturdy metal switch for reliable high speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3az

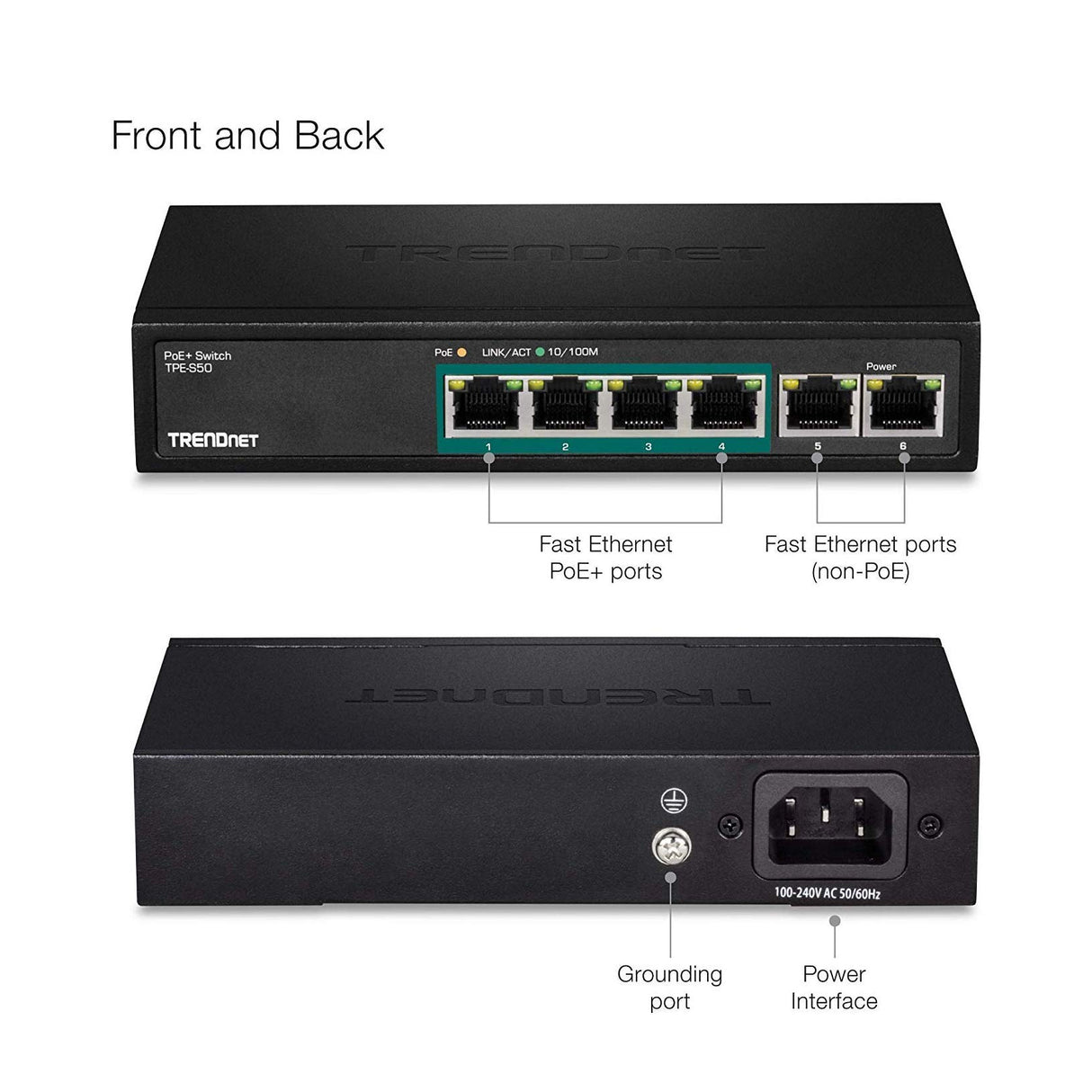

Device Interface	4 x 10/100Mbps PoE+ Ports 2 x 10/100Mbps Ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance	Data Ram Buffer: 96KB Switch Fabric: 1.2Gbps MAC Address Table: 2K entries Forwarding rate: 0.89Mpps (64-byte packet size)
Special Features	GREENnet energy saving technology
Power	Input: 100~240 VAC, 50/60 Hz Internal universal switching power Consumption: 65 Watts (max.)
PoE	PoE budget: 60 Watts Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing

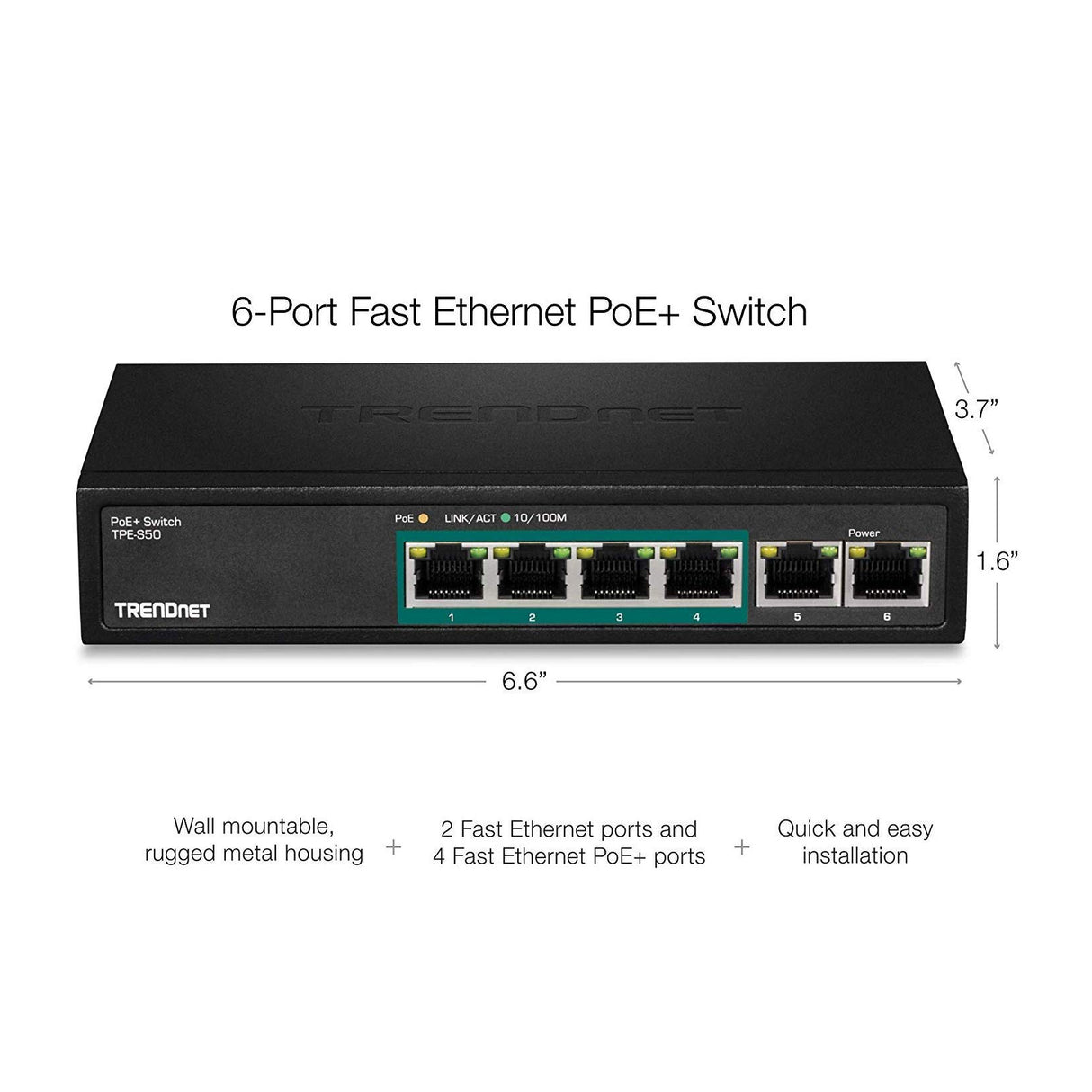

Dimensions	168 x 95 x 32 mm (6.6 x 3.7 x 1.6 in.)
Weight	504g (17.8 oz.)
