TRENDnet TPE-S50 5-port 10/100Mbps PoE Switch (31W)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Easy installation
  • 4 x Fast Ethernet PoE+ ports and 2 x Fast Ethernet ports
  • 1.2Gbps switching capacity
  • 60W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices
  • Lifetime Warranty*


Eight gigabit PoE+ ports provide a 16Gbps switching capacity

LED Indicators

The desktop PoE managed switch includes LED indicators that convey port status


Switching Capacity

48 Gbps switching capacity


Wall mountable metal housing



Supplies up to 30 Watts of power per port with a 246 Watt PoE budget

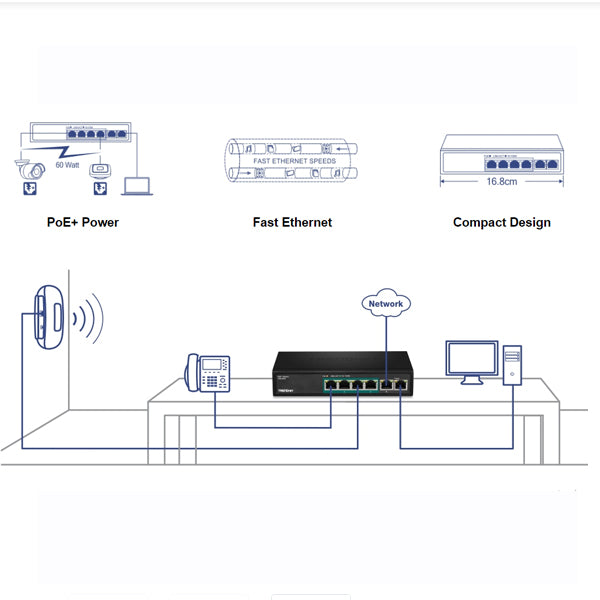

The 6-Port Fast Ethernet PoE+ Switch, model TPE-S50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points, VoIP phones, and IP Cameras.

It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE budget. Plug and play this sturdy metal switch for reliable high speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az

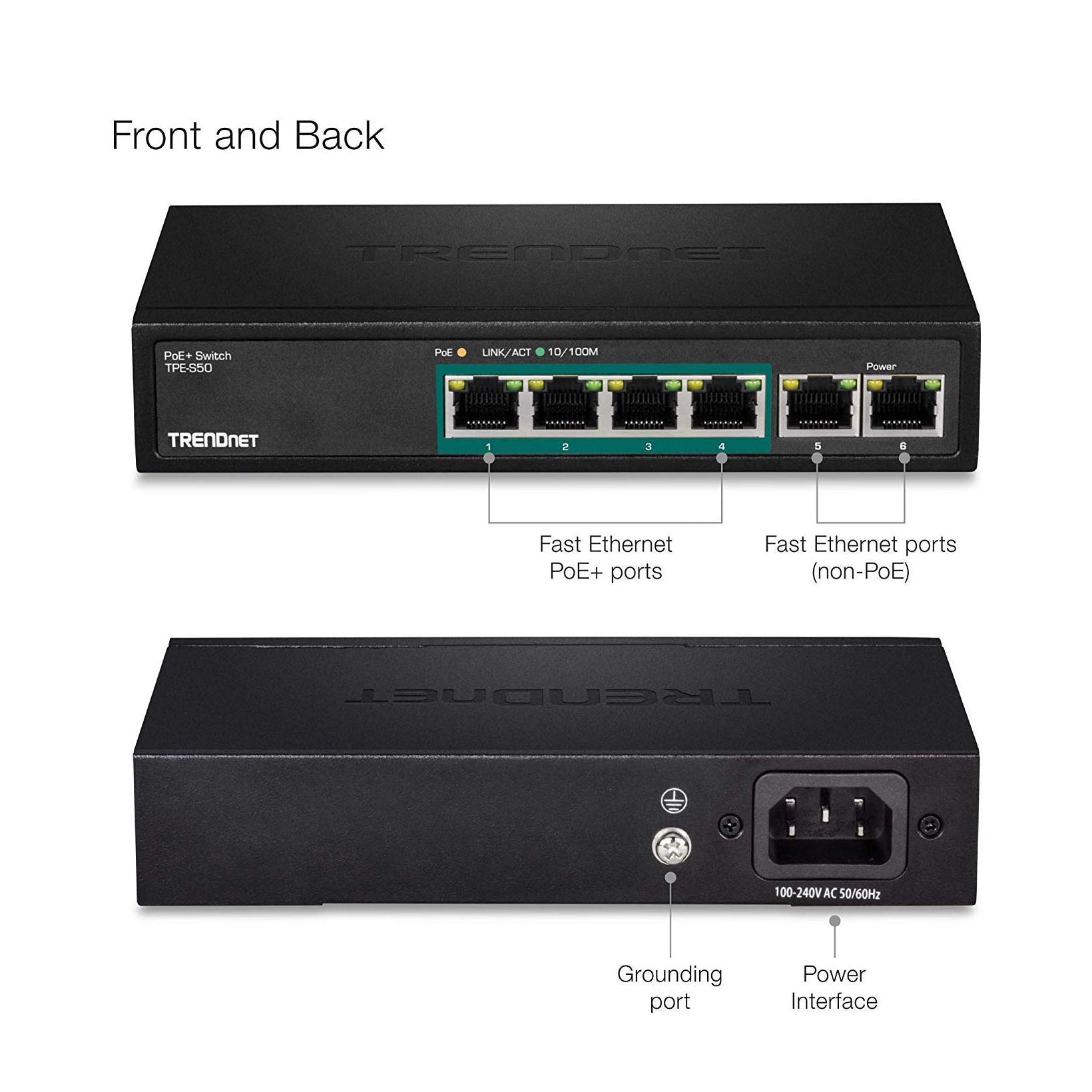

Device Interface
  • 4 x 10/100Mbps PoE+ Ports
  • 2 x 10/100Mbps Ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Data Ram Buffer: 96KB
  • Switch Fabric: 1.2Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 0.89Mpps (64-byte packet size)
Special Features
  • GREENnet energy saving technology
  • Input: 100~240 VAC, 50/60 Hz Internal universal switching power
  • Consumption: 65 Watts (max.)
  • PoE budget: 60 Watts
  • Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing

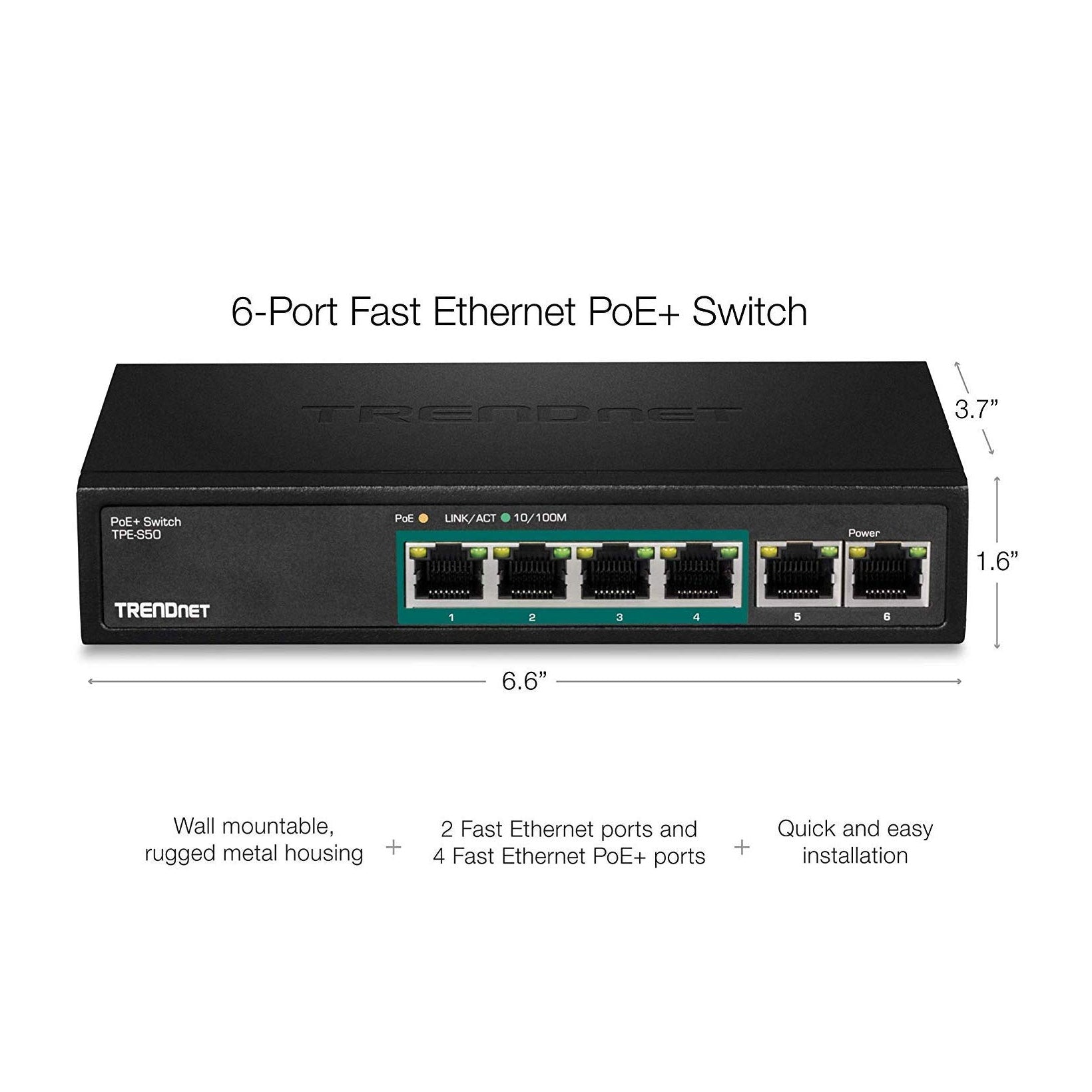

  • 168 x 95 x 32 mm (6.6 x 3.7 x 1.6 in.)
  • 504g (17.8 oz.)
