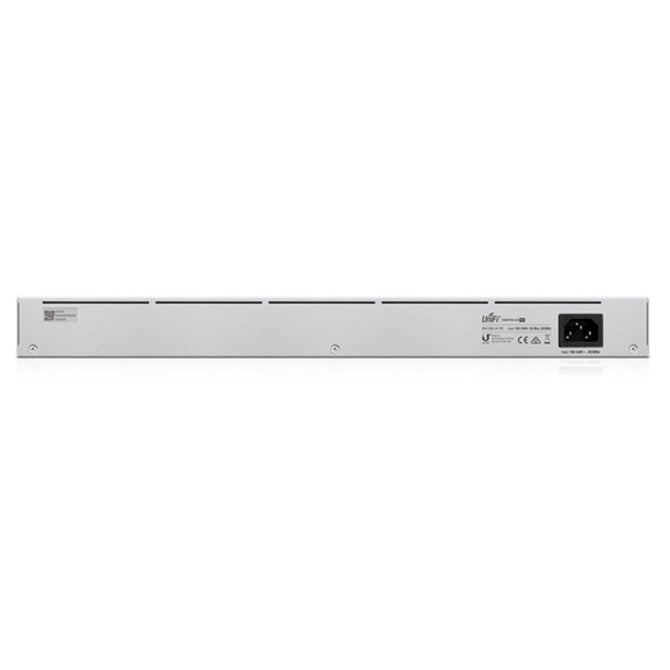

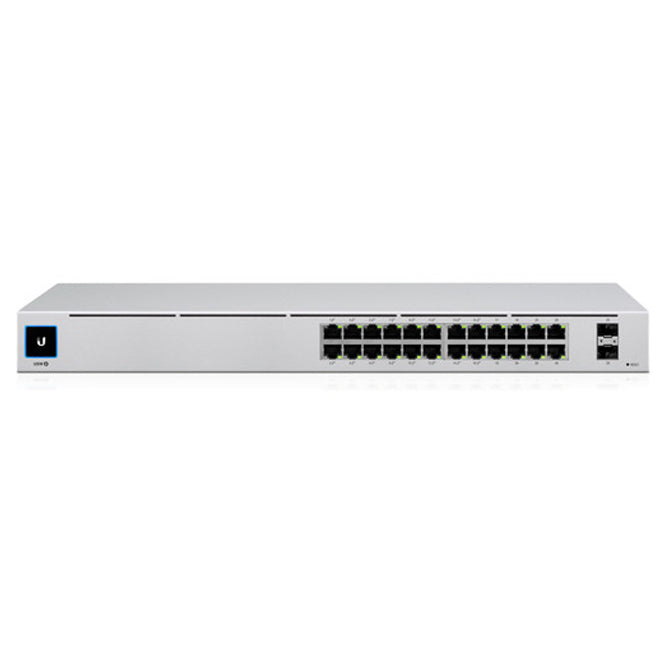

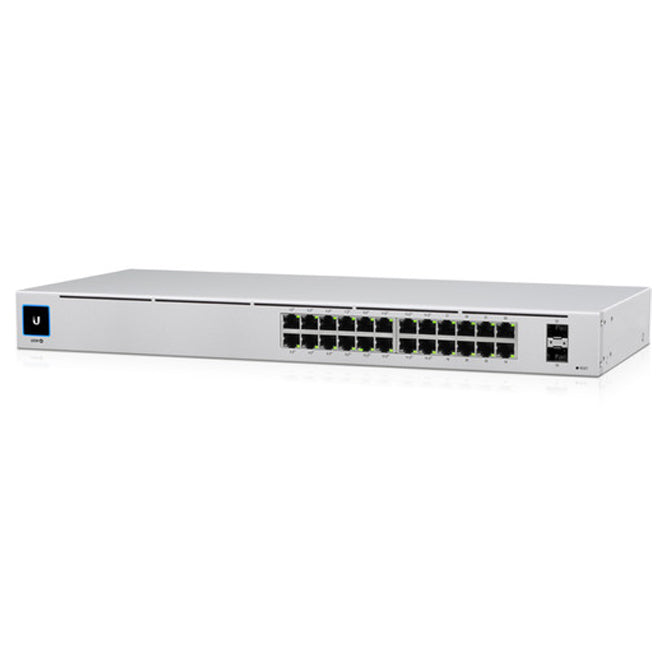

Ubiquiti USW-24-POE, UniFi 24-Port Managed, 16 Gigabit PoE Ports, 8 Gigabit Ports Switch with SFP
MPN: USW-24-POE
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Ubiquiti USW-24-POE, UniFi 24-Port Managed, 16 Gigabit PoE Ports, 8 Gigabit Ports Switch with SFP is backordered and will ship as soon as it is back in stock.
Description
Description
- 24 x Gigabit Ethernet Ports
- 16 x PoE+ Compliant Ports
- 2 x Gigabit SFP Ethernet Ports
- 52 Gb/s Switching Capacity
- 38.69 Mpps Forwarding Capacity
- Rack-Mountable Design
- 1.3" Touchscreen Display
- Passive Cooling
- UniFi Controller Support
Features
Expand your business's network with the fully manageable UniFi 24-Port Gigabit PoE+ Complaint Managed Switch from Ubiquiti. Designed for a rack mount or desktop installation, this passively cooled 24-port Gigabit switch includes 16 32W PoE+ connectors with a total power budget of 95W to power devices such as network security cameras. Each port delivers 26 Gb/s non-blocking throughput, with a 52 Gb/s switching capacity, and a 38.69 Mpps forwarding rate.
Two 1Gb SFP Ethernet Ports are available for additional expansion with compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.
Specifications
|
Inputs/Outputs
|
8x RJ45 Gigabit Ethernet
16x RJ45 Gigabit Ethernet WAN PoE+ (30 W, 802.3at) 2x SFP Gigabit Ethernet WAN |
|
Stackable
|
No
|
|
Switching Bandwidth
|
26 Gb/s (Non-Blocking)
|
|
PoE Power Budget
|
95 W
|
|
Stackable
|
No
|
|
Supported Protocols
|
Auto-MDIX/MDI
Port Mirroring |
|
Forwarding Rate
|
38.69 Mpps
|
|
Switching Bandwidth
|
26 Gb/s (Non-Blocking)
|
|
PoE per Port
|
32 W
|
|
PoE Power Budget
|
95 W
|
|
Power Draw
|
25.00 W (Max)
|
|
Input Power
|
100 to 240 VAC, 50 / 60 Hz
|
|
Power Supply Type
|
Internal
|
|
Operating Temperature
|
27 to 72°F / -5 to 40°C
|
|
Operating Humidity
|
10 to 90%
|
|
Certifications
|
CE, FCC, IC
|
|
Cooling System
|
Passive
|
|
Indicator Lights
|
Yes
|
|
Rack Mountable
|
Yes 1 RU
|
|
Dimensions
|
17.42 x 7.87 x 1.72" / 442.4 x 200 x 43.7 mm
|
|
Weight
|
6.61 lb / 3 kg
|
