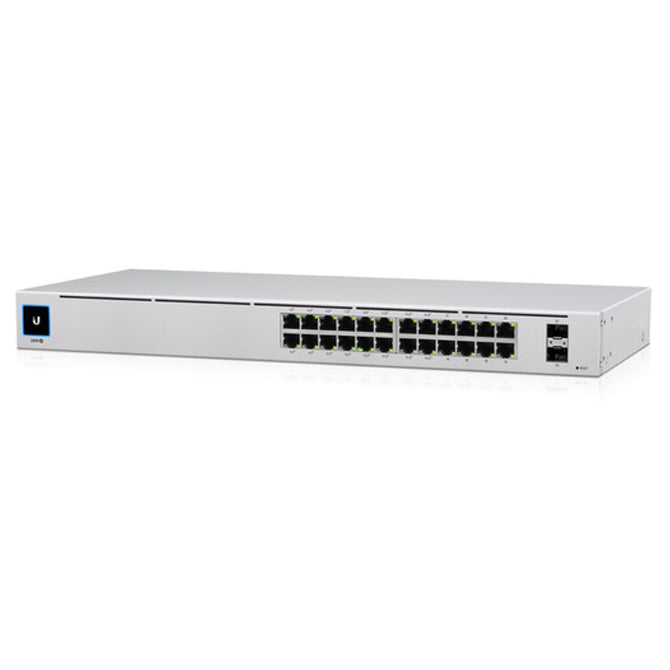

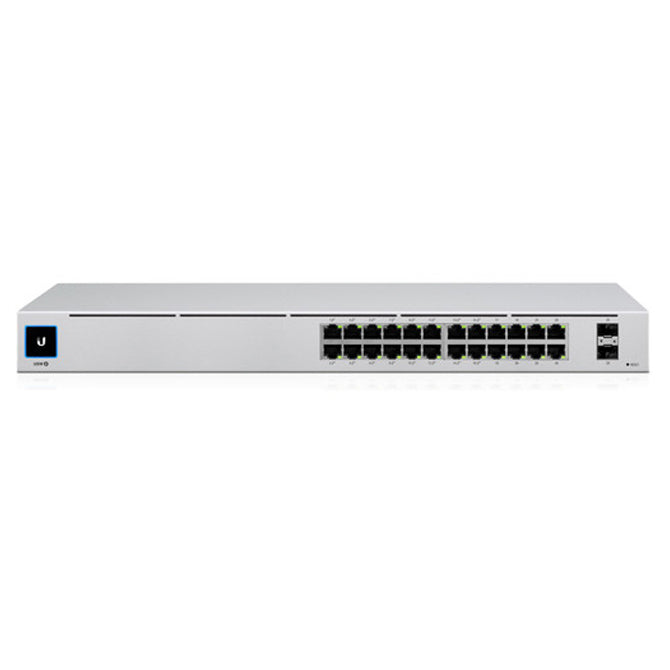

Ubiquiti USW-24-POE, UniFi 24-Port Managed Gigabit PoE Switch with SFP

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • 24 x Gigabit Ethernet Ports
  • 16 x PoE+ Compliant Ports
  • 2 x Gigabit SFP Ethernet Ports
  • 52 Gb/s Switching Capacity
  • 38.69 Mpps Forwarding Capacity
  • Rack-Mountable Design
  • 1.3" Touchscreen Display
  • Passive Cooling
  • UniFi Controller Support

Expand your business's network with the fully manageable UniFi 24-Port Gigabit PoE+ Complaint Managed Switch from Ubiquiti. Designed for a rack mount or desktop installation, this passively cooled 24-port Gigabit switch includes 16 32W PoE+ connectors with a total power budget of 95W to power devices such as network security cameras. Each port delivers 26 Gb/s non-blocking throughput, with a 52 Gb/s switching capacity, and a 38.69 Mpps forwarding rate.

Two 1Gb SFP Ethernet Ports are available for additional expansion with compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Inputs/Outputs 8x RJ45 Gigabit Ethernet
16x RJ45 Gigabit Ethernet WAN PoE+ (30 W, 802.3at)
2x SFP Gigabit Ethernet WAN
Stackable No
Switching Bandwidth 26 Gb/s (Non-Blocking)
PoE Power Budget 95 W
Stackable No
Supported Protocols Auto-MDIX/MDI
Port Mirroring
Forwarding Rate 38.69 Mpps
Switching Bandwidth 26 Gb/s (Non-Blocking)
PoE per Port 32 W
PoE Power Budget 95 W
Power Draw 25.00 W (Max)
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Operating Temperature 27 to 72°F / -5 to 40°C
Operating Humidity 10 to 90%
Certifications CE, FCC, IC
Cooling System Passive
Indicator Lights Yes
Rack Mountable Yes 1 RU
Dimensions 17.42 x 7.87 x 1.72" / 442.4 x 200 x 43.7 mm
Weight 6.61 lb / 3 kg
