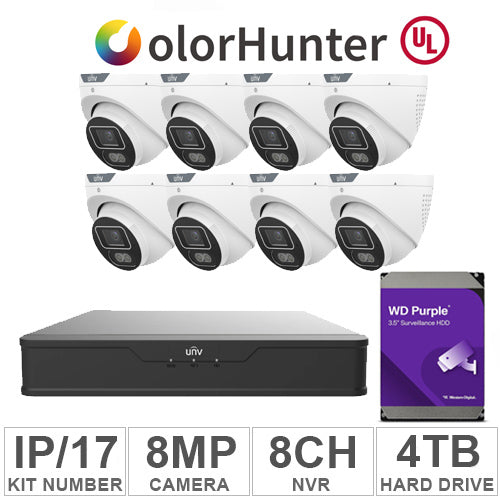

UNV KIT-IP/17 (8 Cameras IP 8MP + 1WD/4TB + 1-NVR/8CH)

by UNV

SKU UVKIT-IP/17

High quality image with 8MP, 1/2.8"CMOS sensor
8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic and Speaker
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection

Support Ultra 265/H.265/H.264 video formats
4/8‑channel input
Plug & Play with 4/8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Capacity	4 TB
Cache Memory Installed Size	64 MB
Disk Speed (RPM)	5,400 rpm
Hard Disk Form Factor	3.5 in
Hardware Connectivity	SATA 6.0 Gb/s
Dimensions (L x W x H)	5.79" x 4" x 1.03"
Compatibility	WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight	0.99 lb
